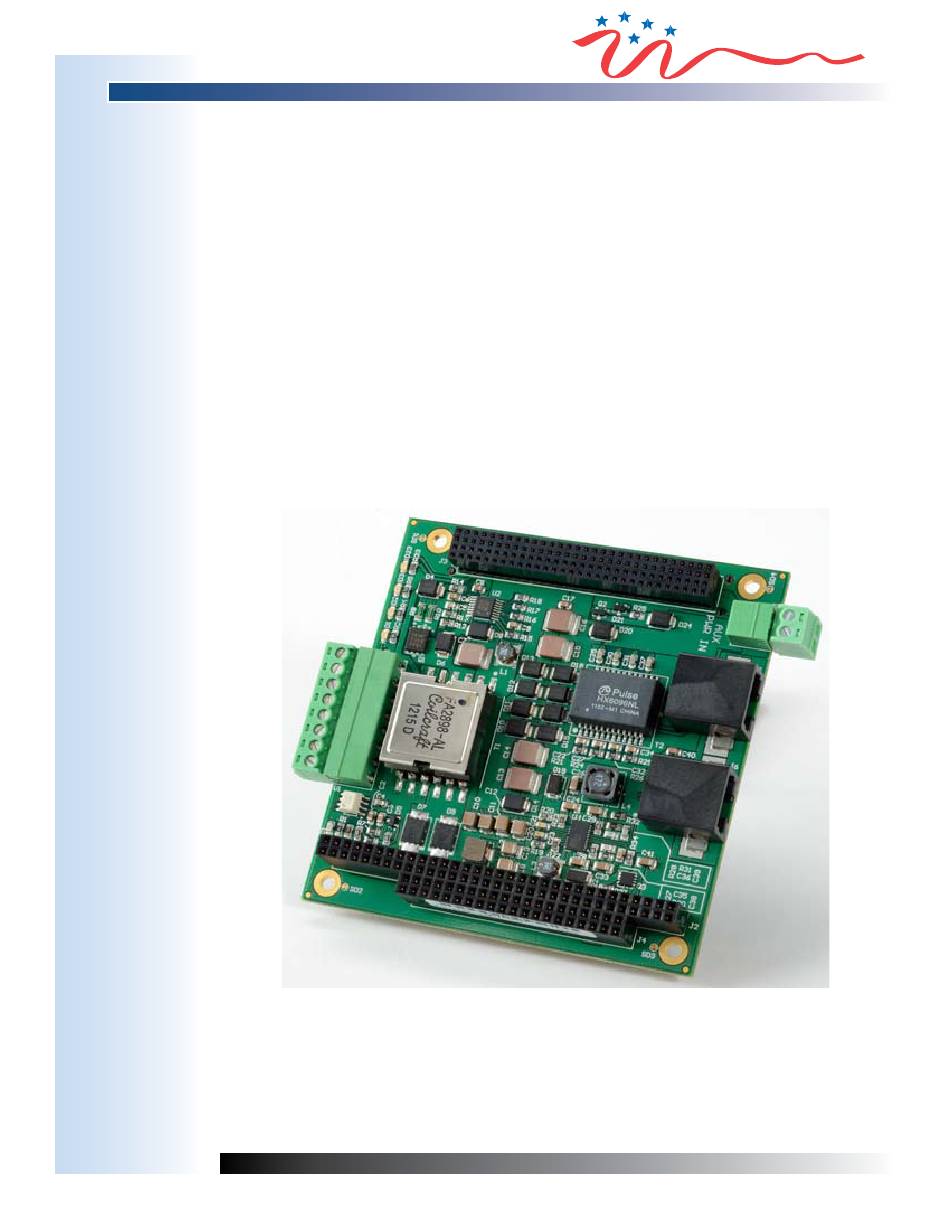

  • Page 1 WinSystems ® PPM-PS397-POE-1 25W Power over Ethernet PD PC/104-Plus Power Supply PCM-PS397-POE-1 25W Power over Ethernet PD PC/104 Power Supply ISM-PS397-POE-1 25W Power over Ethernet PD Embedded Power Supply PRODUCT MANUAL WinSystems, Inc. 715 Stadium Drive Arlington, TX 76011 http://www.winsystems.com This datasheet has been downloaded from http://www.digchip.com...
  • Page 2 MANUAL REVISION HISTORY P/N G400-0397-000 (PPM-PS397-POE-1, PCM-PS397-POE-1, ISM-PS397-POE-1) Revision Date Code ECO Number 130404 130715 16-63 - Reduced -12V max 170103 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN Visual Index - Top View (Connectors & LEDs) - PPM-PS397-POE-1 Visual Index - Top View (Connectors & LEDs) - PCM-PS397-POE-1 Visual Index - Top View (Connectors & LEDs) - ISM-PS397-POE-1 Visual Index - Bottom View - PPM-PS397-POE-1, PCM-PS397-POE-1, ISM-PS397-POE-1...
  • Page 4: Before You Begin

    Please review these guidelines carefully and follow them to ensure you are successfully using your embedded PC. For any questions you may have on WinSystems products, contact our Technical Support Group at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).
  • Page 5: Visual Index - Top View (Connectors & Leds) - Ppm-Ps397-Poe-1

    Visual Index - Top View (Connectors & LEDs) - PPM-PS397-POE-1 PC/104-Plus PoE PD ACTIVE (YELLOW) Auxiliary Power Input +5V (RED) Ethernet Pass-through +12V (YELLOW) -12V (GREEN) Ethernet with Power over Ethernet (PoE) Auxiliary Power Output PC/104 (C/D) PC/104 (A/B) RESERVED - NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
  • Page 6: Visual Index - Top View (Connectors & Leds) - Pcm-Ps397-Poe-1

    Power over Ethernet (PoE) Auxiliary Power Output PC/104 (C/D) PC/104 (A/B) RESERVED - NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable. 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 7: Visual Index - Top View (Connectors & Leds) - Ism-Ps397-Poe-1

    Visual Index - Top View (Connectors & LEDs) - ISM-PS397-POE-1 PoE PD ACTIVE (YELLOW) +5V (RED) +12V (YELLOW) Auxiliary Power Input -12V (GREEN) Ethernet Pass-through Ethernet with Power over Ethernet (PoE) Auxiliary Power Output 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 8 Visual Index - Bottom View - PPM-PS397-POE-1, PCM-PS397-POE-1, ISM-PS397-POE-1 RESERVED - 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 9 This page has been left intentionally blank. 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 10: Introduction

    INTRODUCTION This manual is intended to provide the necessary information regarding configuration and usage of the PPM-PS397-POE-1, PCM-PS397-POE-1, and ISM-PS397-POE-1 power supplies. WinSystems maintains a Technical Support Group to help answer questions not adequately addressed in this manual. Contact Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).
  • Page 11: Functionality

    The PPM-PS397-POE-1 accepts positive or negative polarity power in the 42 – 57 VDC range from the RJ-45 Ethernet interface. It converts the power to three rails: +5 VDC @ up to 5.0A, +12 VDC @ up to 1.0A, and -12 VDC @ up to 500 mA.
  • Page 12: Connector Reference

    PHOENIX 1803578 □ □ 16-60 VDC J1 - Auxiliary Power Output Visual Index PCB Connector: PHOENIX 1803332 (J1) Mating Connector: PHOENIX 1803633 □ □ ISO_GND □ +12V □ ISO_GND □ -12V □ ISO_GND □ ISO_GND □ ISO_GND 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 13: J6 - Ethernet With Poe Power

    PS397 outputs are being derived from the PoE power provided from J6. D23 will not be lit when power is supplied from Auxiliary power. See table below for signal definitions. (Ethernet with PoE) Function Color -12V GREEN +12V YELLOW PoE PD Active YELLOW 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 14: Pc/104 Bus

    The PC/104 bus is electrically equivalent to the 16-bit ISA bus. Standard PC/104 I/O cards can be populated on PPM-PS397-POE-1 and PCM-PS397-POE-1’s connectors, located at J2 and J4. The interface does not support hot swap capability. The PC/104 bus connector pin definitions are provided below for reference. Refer to the...
  • Page 15: Pc/104-Plus Bus

    The PC/104-Plus is electrically equivalent to the 33 MHz PCI bus and is terminated to a 120-pin, nonstackthrough connector. The standard PC/104-Plus I/O modules can be populated on PPM-PS397-POE-1’s PC104-Plus bus. The interface does not support hot swap capability. The PC/104-Plus bus connector is located at J3. Refer to the PC/104-Plus Bus Specification for specific signal and mechanical specifications.
  • Page 16: Specifications

    MTBF MIL-217 Part Count Reliability method using Manufacturer’s Failure Rate Data Mechanical Dimensions 3.6 x 3.8 inches (90 x 96 mm) 3.94 oz (112g) (PPM-PS397-POE-1) Weight 3.56 oz (101g) (PCM-PS397-POE-1) 2.84 oz (81g) (ISM-PS397-POE-1) Printed Circuit Board 0.078 inches 4-Layer FR4...
  • Page 17: Mechanical Drawing

    MECHANICAL DRAWING 3.575 90.81 3.375 85.73 2.982 75.74 2.241 56.92 2.174 55.21 1.301 33.05 .921 23.38 .200 5.08 .125 3.18 (4X) .472 11.99 .435 11.05 .276 7 .462 11.72 .512 13.01 PPM-PS397 MECHANICAL 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 18 3.575 90.81 3.375 85.73 2.982 75.74 2.241 56.92 2.174 55.21 1.301 33.05 .921 23.38 .200 5.08 .125 3.18 (4X) .472 11.99 .435 11.05 .276 7 .462 11.72 PCM-PS397 MECHANICAL 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 19 3.575 90.81 3.375 85.73 2.982 75.74 2.241 56.92 2.174 55.21 1.301 33.05 .921 23.38 .200 5.08 .125 3.18 (4X) .472 11.99 .276 7 ISM-PS397 MECHANICAL 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 20: Best Practices

    Use the largest gauge wire that you can. Most connector manufacturers have a maximum gauge wire they recommend for their pins. Try going one size larger; it usually works and the extra copper will help your system perform properly over time. 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 21 Contact Points WinSystems’ boards mostly use connectors with gold finish contacts. Gold finish contacts are used exclusively on high speed connections. Power and lower speed peripheral connectors may use a tin finish as an alternative contact surface. It is critical that the contact material in the mating connectors is matched properly (gold to gold and tin to tin).
  • Page 22 CONFORMAL COATING Applying conformal coating to a WinSystems product will not in itself void the product warranty, if it is properly removed prior to return. Coating may change thermal characteristics and impedes our ability to test, diagnose, and repair products.
  • Page 23 Every single board computer has an Operations manual or Product manual. Manual Updates Operations/Product manuals are updated often. Periodicially check the WinSystems website (http://www.winsystems.com) for revisions. Check Pinouts Always check the pinout and connector locations in the manual before plugging in a cable. Many single board computers will have identical headers for different functions and plugging a cable into the wrong header can have disastrous results.
  • Page 24: Efficiency Measurements

    APPENDIX - B EFFICIENCY MEASUREMENTS CONVERTER EFFICIENCY 130715 PRODUCT MANUAL PPM-PS397-POE-1/PCM-PS397-POE-1/ISM-PS397-POE-1...
  • Page 25: Warranty Information

    WARRANTY INFORMATION (http://www.winsystems.com/company/warranty.cfm) WinSystems warrants to Customer that for a period of two (2) years from the date of shipment any Products and Software purchased or licensed hereunder which have been developed or manufactured by WinSystems shall be free of any material defects and shall perform substantially in accordance with WinSystems’...
