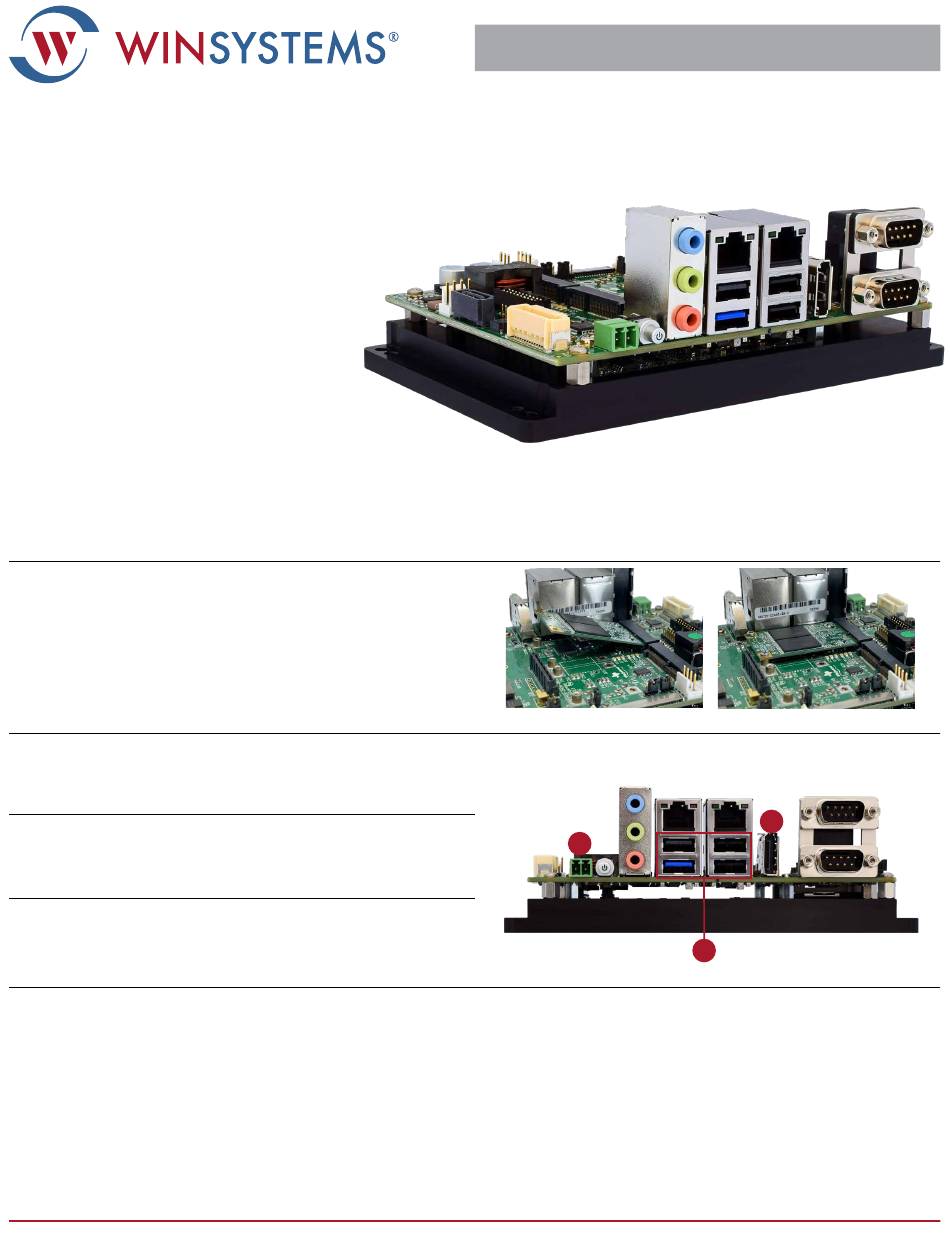

SBC35-CC405
Install mPCIe MiniCard or mSATA Storage
1
(A) Slide the MiniCard or mSATA device into the Mini Card slot
on the top of the SBC at a 30° angle.
(B) Secure the device using the two (2) supplied M2 x 4mm
screws.
NOTE: Only mPCIe connector (J9) provides mSATA support.
Attach USB Peripherals
2
Attach a keyboard/mouse and/or bootable USB stick to the
USB ports on the front panel of the SBC.
Video Output
3
Connect a monitor using a DisplayPort cable to the
DisplayPort connector on the SBC.
Power Connection
4
Using the supplied phoenix screw terminal connector, terminate
+10V to +50V DC input on the left side and GND on the right.
Entering BIOS
5
After applying power to the SBC35-CC405, press the <F2> key during POST to enter the BIOS. See page 2 of the Quick Start
Guide for common BIOS changes.
WINSYSTEMS, INC. | 2890 112
Street, Grand Prairie, Texas 75050 | 817-274-7553 | info@winsystems.com | www.winsystems.com
th
Q U I C K S TA R T G U I D E
��
4
��
3
2
