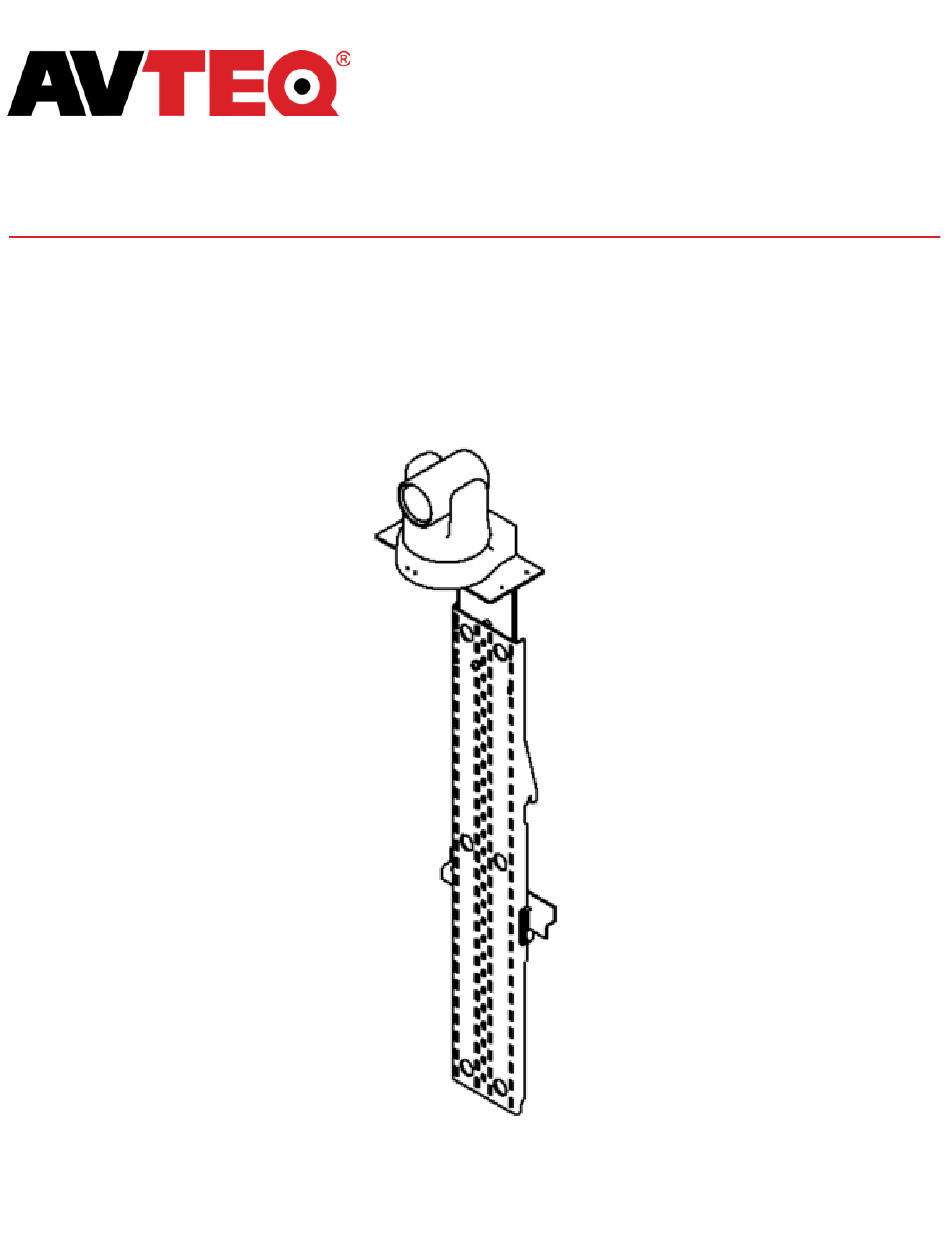

- Page 1 Install Guide PTZ Camera Mount (PS50)
- Page 2 PACKAGE CONTENTS PTZ Camera Mount installation requires an Avteq display mount (UM-1 or UM-2 included with Avteq carts, stands, and credenzas). One camera shelf attachment is provided based on your order and where you’d like to position your camera. Included with PTZ Camera Mount (PS50):...
- Page 3 • Remove the screws from the locking tab on the camera spine (B) and center the camera spine vertically on the Avteq display mount. • Fix position of the camera spine using the top hooks on both sides. After positioning, secure the locking tab with the screws.
- Page 4 To Position Camera Below Display (For BLW Camera Shelf): • Hang the camera shelf (A) on the lower rear side of the camera spine (B) at the desired height to position the camera below the display. • Lock in position using a [x1] 1/4-20 screw (C).
