Flying a Kairos UxV/35 Flight Basket Drone
This document will guide a user with little or no experience to be able to successfully operate a
UxV/35 Small Form Factor Drone in manual only mode.
A Basic Overview
For simplicity's sake, we will assume that a Kairos Taranis x7 transmitter (controller) is being
used and that the left stick controls yaw and throttle, and the right stick controls roll and pitch.

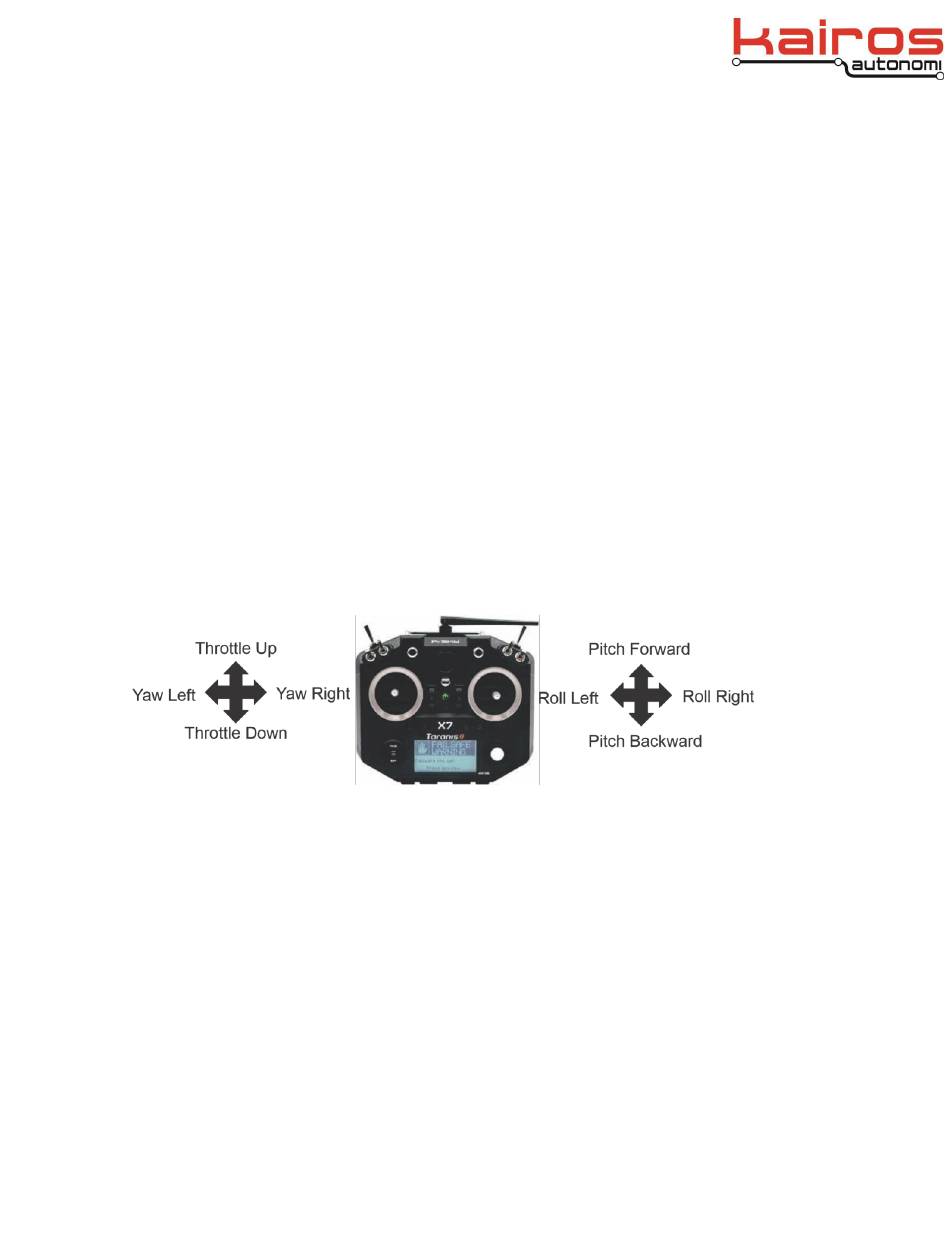

There are 4 main controls for a multirotor aircraft
 Roll: Done by pushing the right stick left or right. Literally rolls the drone, which
maneuvers the drone left or right
 Pitch: Done by pushing the right stick forwards or backwards. Tilts the drone, which
maneuvers the drone forward or backward
 Yaw: Done by pushing the left stick to the left or right. Rotates the drone left or right.
Points the front of the copter in different directions and helps with changing directions
while flying
 Throttle: To increase, push the left stick forwards. To decrease, pull the left stick
backward. This adjusts the altitude, or height, of the drone.
Think in terms of how the drone will move, rather than how it is oriented towards you. Your
frame of reference is always the drone and not you.
Kairos Autonomi
9 August 2024
V:\Kairos Documentation\Application Notes\UxV35 Flight Basket Quick Start Guide(82nd).docx
What is the Purpose of this Document?
Page 1 of 8
Version 1.00.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the UxV/35 and is the answer not in the manual?

Questions and answers

Related Manuals for KAIROS UxV/35

Summary of Contents for KAIROS UxV/35

  • Page 1 UxV/35 Small Form Factor Drone in manual only mode. A Basic Overview For simplicity’s sake, we will assume that a Kairos Taranis x7 transmitter (controller) is being used and that the left stick controls yaw and throttle, and the right stick controls roll and pitch.
  • Page 2 Flying a Kairos UxV/35 Flight Basket Drone Pre-Flight Checks Taranis X7 Transmitter On the upper left-hand side resides the arming switch. This switch should lock into position and only be moved if pulled up and out. If the switch is able to move freely and does not lock its position, the controller should not be used as it is unsafe.
  • Page 3 Flying a Kairos UxV/35 Flight Basket Drone Batteries:  Use the battery tester to check that the LiPo battery is charged (16.8V is fully charged).  Plug the 5-wire cable into the battery tester starting at pin 1 on the right side. If the battery tester does not show a battery reading, turn the cable over.
  • Page 4 Taranus and the flight stack. Connect the UxV/35 Bind/Reset board to the top of the stack using the UxV/35 connectors. Verify that the Keyed D connector connects to the keyed D connector on the UxV/35 GPS. Press and hold the silver button on the Bind/Reset board while pressing the power button on the UxV/35 Battery Base board.
  • Page 5 Flying a Kairos UxV/35 Flight Basket Drone Press the three-line button and then press the page button. This will show the configuration for the current profile on the Taranus Roll the silver button to the left (button to the right of the screen) showing a different screen.
  • Page 6 Once the flight stack is powered up, a signal strength icon will show on the main screen of the Taranus controller. The Taranus controller is now paired to the UxV/35 SBUS Radio. Additionally if a Kairos bind board is available, refer to the Quick bind guide to bind a controller to a flight basket. Kairos Autonomi...

  • Page 7: Flying The Drone

    Ensure arming switch is in disarmed position i.e., all the way down/back. To insert a battery into the UxV/35 Flight Basket in the Velcro battery holder in the bottom of the drone. Connect the LiPo battery to the flying XT60 connector from the bottom power board.
  • Page 8 Place the flight basket on the ground such that the drone is as flat and level as can be. Hold the Flight basket in between your legs and with your ankles or calves, squeeze and hold the Flight Basket such as shown. Arm the UxV/35 Flight basket. The props will start to spin. With the props...
