TEST PROCEDURE
FrSky SBUS Radio
UxV/35 FrSky SBUS Radio Test Procedure

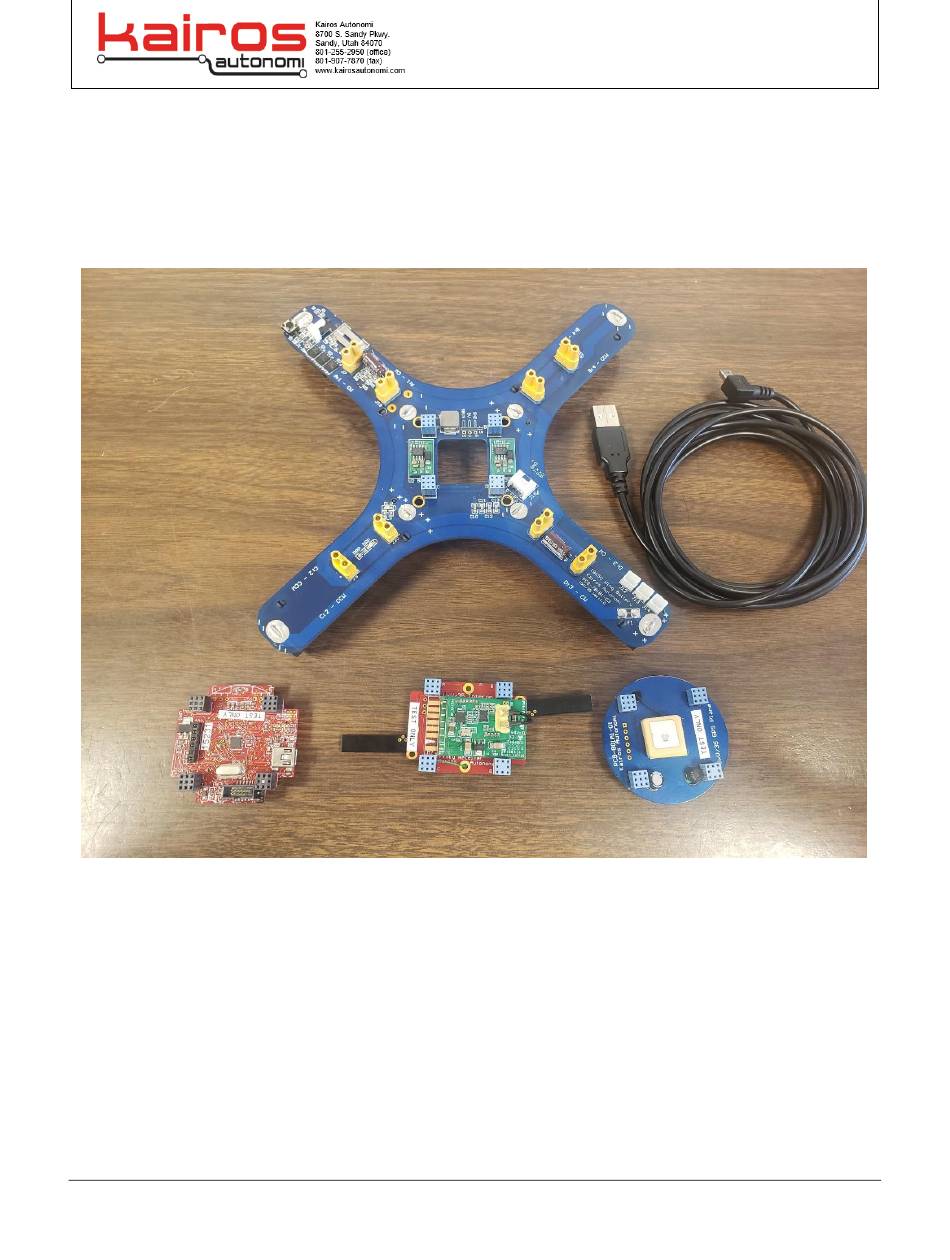

Purpose: The purpose of this document is to outline the procedure to test the UxV/35 FrSky SBUS
Radio. The test consists of verifying binding to a Taranis transmitter and connecting to a computer with
Mission Planner software installed and verifying inputs through the radio.
UxV/35™ FrSky SBUS Radio Test Procedure
Company Confidential
Page 1 of 7
©2023 Kairos Autonomi, Inc.
V. 2.0.0 | 2024-08-09
V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx

Advertisement

loading
Need help?

Need help?

Do you have a question about the UxV/35 FrSky SBUS Radio and is the answer not in the manual?

Questions and answers

Related Manuals for KAIROS UxV/35 FrSky SBUS Radio

Summary of Contents for KAIROS UxV/35 FrSky SBUS Radio

  • Page 1 Radio. The test consists of verifying binding to a Taranis transmitter and connecting to a computer with Mission Planner software installed and verifying inputs through the radio. UxV/35™ FrSky SBUS Radio Test Procedure Company Confidential Page 1 of 7 ©2023 Kairos Autonomi, Inc. V. 2.0.0 | 2024-08-09 V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx...
  • Page 2 4. Verify that the menu disappears and the controller begins to beep. UxV/35™ FrSky SBUS Radio Test Procedure Company Confidential Page 2 of 7 ©2023 Kairos Autonomi, Inc. V. 2.0.0 | 2024-08-09 V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx...
  • Page 3 TEST PROCEDURE FrSky SBUS Radio 5. Attach the UxV/35 FrSky SBUS Radio to a power source. This can be the intended drone or any power source with compatible UxV/35 Mission Controller and GPS. 6. On the SBUS receiver board find the bind button on the board as shown.
  • Page 4 11. The drone is now successfully paired to the Taranis and is ready for flight UxV/35™ FrSky SBUS Radio Test Procedure Company Confidential Page 4 of 7 ©2023 Kairos Autonomi, Inc. V. 2.0.0 | 2024-08-09 V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx...
  • Page 5 2. Connect a USB A to USB Mini cable to an open port on the computer and the other end to the USB Mini port on the UxV/35 Mission Controller. UxV/35™ FrSky SBUS Radio Test Procedure Company Confidential Page 5 of 7 ©2023 Kairos Autonomi, Inc. V. 2.0.0 | 2024-08-09 V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx...
  • Page 6 5. Click the Setup button in the top left corner of the Mission Planner window. Click the Mandatory Hardware tab in the left pane and select Radio Calibration. UxV/35™ FrSky SBUS Radio Test Procedure Company Confidential Page 6 of 7 ©2023 Kairos Autonomi, Inc. V. 2.0.0 | 2024-08-09 V:\Kairos Documentation\Test Procedures\UxV35 SBUS Radio Test Procedure v2(82nd).docx...
  • Page 7 6. Move the sticks around on the Taranis and verify the inputs on the Mission Planner window. 7. If the UxV/35 FrSky SBUS Radio responds to input and signal is seen, the board is working correctly and can be configured for use.
