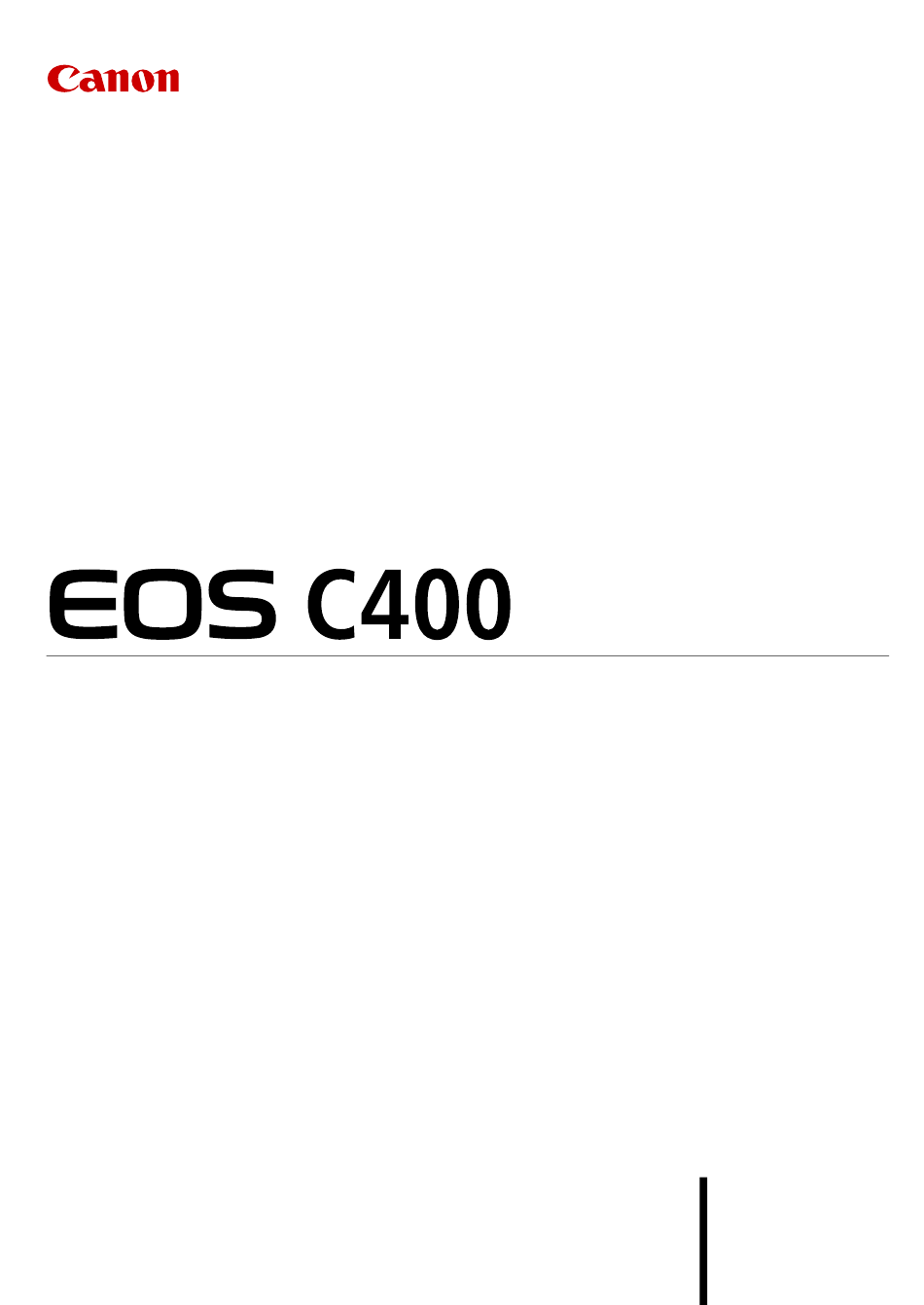

Page 1 PUB. DIE-0587-000A Digital Cinema Camera Firmware Version 1.0.1.1 Instruction Manual...
Page 2 Safety Instructions Be sure to read these instructions in order to operate the product safely. Follow these instructions to prevent injury or harm to the operator of the product or others. WARNING Denotes the risk of serious injury or death. •...
Page 3 This product is not to be disposed of with your household waste. This product should be handed over to a designated collection point. For more information regarding return and recycling of WEEE products, please visit https://in.canon/en/consumer/web/e-waste or write to us at cipl.ewaste@canon.co.in Also, this product including its components, consumables, parts and spares complies with the “E-Waste (Management) Rules, 2022”...
Page 5 Table of Contents Safety Instructions 2 Preparing Recording Media 42 Compatible Recording Media 42 1. Introduction 9 Inserting Cards 43 About this Manual 9 Removing Cards 44 Conventions Used in this Manual 9 Initializing Recording Media 44 Supplied Accessories 10 Switching Between Card Slots 44 Before Using the Camera 11 Recovering Recordings 45...
Page 6 Zoom Modes of the Lens 98 Recorded 121 Adjusting the Zoom 98 Using Metadata 122 Displaying Live Video 99 Setting a User Memo Created with Canon XF Example of live video system 99 Utility 122 Inputting and Outputting Return Signals 99 Using News Metadata 123...
Page 7 4. Customization 133 Connecting to an External Monitor or Recorder 164 Assignable Buttons 133 Using the SDI OUT Terminal 164 Custom Picture Settings 138 Using the MON. Terminal 165 Selecting Custom Picture Files 138 Using the HDMI OUT Terminal 165 Preset Picture Settings 138 Enabling simultaneous output from the MON.
Page 8 IP Streaming 197 Browser Remote: Controlling the Camera from a Network Device 199 Starting Browser Remote 199 Using Browser Remote 201 Recording remotely using an XC Protocol compatible controller/application 205 Recording remotely using the RC-IP100/ RC-IP1000 Remote Camera Controller 205 Recording remotely using the Remote Camera Control Application 206 Recording remotely using Multi-Camera...
Page 9 Introduction About this Manual Thank you for purchasing the Canon EOS C400. Please read this manual carefully before you use the camera Troubleshooting and retain it for future reference. Should the camera fail to operate correctly, refer to (A 243).
Page 10 Supplied Accessories Supplied Accessories The following accessories are supplied with the camera. LCD Monitor LCD Attachment Unit Handle Unit Camera Grip* (for use only with the C400) Microphone Holder BP-A60N Battery Pack CG-A20 Battery Charger CA-CP300 B Compact Power Adapter (incl.
Page 11 Supplied Accessories Before Using the Camera • Before making important recordings for the first time, make test recordings using the video configuration(s) you plan to use to check that the camera operates correctly. Should it fail to operate correctly, refer to Troubleshooting (A 243).
Page 12 Names of Parts Names of Parts Camera Assignable Buttons Refer to (A 133) for details about the camera’s assignable buttons. CAMERA REMOTE AF L OCK 1 MEDIA button (A 149) 8 SELECT dial/SET button (A 39) 9 Q switch Toggles the camera between CAMERA mode and C: Key lock.
Page 13 Names of Parts CAMERA REMOTE AF L OCK 1 Audio level dials for CH1 (top) and CH2 (bottom) 11 REC (start/stop recording) button (A 53) (A 115) 12 WB (white balance) button (A 85)/ 2 Audio level switches for CH1 (top) and CH2 Assignable button Camera 9 Ò...
Page 14 Names of Parts SDI O UT MI C LENS G- L OCK/ S YNC/ R ET 1 INPUT 1 (top) / INPUT 2 (bottom) switches 4 Camera grip attachment thread/Rosette (A 34) (A 113) Compliant with ARRI rosettes. 2 Ethernet terminal 5 GRIP (camera grip connection) terminal (A 34) 3 Exhaust ventilation outlet (A 50) 6 Air intake vent (A 50)
Page 15 Names of Parts 1 VIDEO terminal lock cover 8 LENS terminal 2 VIDEO terminal (A 30) 9 Assignable button Camera 12 3 Front tally lamp (A 53) 10 RF lens contacts (A 35) 4 Monaural microphone (A 114) 11 AF LOCK button / 5 RF lens mount index (A 35) Assignable button Camera 13 6 Lens release button (A 35)
Page 16 Names of Parts 1 FUNC (main functions) button (A 64)/ 13 SDI OUT terminal (A 164) Assignable button Camera 11 (A 133) 14 INPUT 1 terminal (A 113) 2 Joystick (A 39) 15 INPUT 2 terminal (A 113) 3 CANCEL button (A 39) 16 G-LOCK/SYNC/RET terminal 4 MENU button (A 39, 133) 17 TIME CODE terminal (A 107, 108)
Page 17 Names of Parts 1 Accessory mount with socket for 1/4"-20 6 Multi-function shoe mounting screws (6.9 mm (0.27 in.) deep) (A 30) 7 Shoe cover 2 Screw holes for 1/4"-20 mounting screws 8 Screw hole for 3/8"-16 mounting screws (7.8 mm (9 mm (0.35 in.) deep, x6) (0.31 in.) deep) 3 Screw hole for 1/4"-20 mounting screws (7.6 mm...
Page 18 Names of Parts LCD Monitor 1 LCD panel with touch screen (A 30, 33) 8 VIDEO terminal lock cover 9 LCD monitor’s position alignment mark Í (A 30) 2 FUNC (main functions) button (A 64)/ Assignable button LCD 1 (A 133) 10 Screw hole for 1/4"-20 mounting screws 3 MENU button (A 39, 133) (11.2 mm (0.44 in.) deep)
Page 19 Names of Parts LCD Attachment Unit (A 30) 1 Mounting hole 6 LCD monitor fixation bolt 2 Lock lever (left/right) 7 Position alignment mark 3 Lock lever (front/back) 8 Pivot B 4 Sliding rail 9 Pivot A 5 LCD monitor mount 10 Sliding rod...
Page 20 Names of Parts Handle Unit (A 30) 1 Multi-function shoe 5 LCD attachment mounting hole 2 Shoe cover 6 Cable clamp 3 Screw holes for 1/4"-20 mounting screws 7 Fixation bolts (6 mm (0.24 in.) deep, x2) 8 Locking knob 4 Accessory mount Microphone Holder (A 34, 113) 1 Microphone lock screw...
Page 21 Names of Parts Camera Grip (A 34) At the time of purchase, the camera grip is pre-attached to the camera. 1 Grip control dial (A 79, 82) 5 Assignable button Grip 2 (A 133) 2 REC (start/stop recording) button (A 53) 6 Joystick (A 39) 3 Assignable button Grip 3 7 Assignable button Grip 1 (A 133)
Page 22 4K and Higher Resolutions: Workflow Overview 4K and Higher Resolutions: Workflow Overview The following illustrates the typical workflow for 6K/4K recording with the camera. Recording Post-production 4K recording Full-quality SDI OUT / data HDMI OUT External terminal recorder output Primary clips 6K/4.3K recording (RAW), XF-AVC 4K recording (XF-AVC /...
Page 23 Input Transform: Refers to the table used for converting color information of the input device to ST2065-1 color space. It can be downloaded from Canon’s website. Output Transform: Refers to the table used for mapping ST2065-1 color space information to the specific color - 0.2...
Page 24 4K and Higher Resolutions: Workflow Overview...
Page 25 Preparations Preparing the Power Supply You can power the camera using a battery pack or the DC IN 12V terminal. Even when a battery pack is attached, if a power source is connected to the DC IN 12V terminal, the camera will not draw power from the battery pack.
Page 26 Preparing the Power Supply • To prevent equipment breakdowns and excessive heating, do not connect the supplied battery charger or compact power adapter to voltage converters for overseas travels or special power sources such as those on aircraft and ships, DC-AC inverters, etc. NOTES •...
Page 27 Preparing the Power Supply Removing the Battery Pack 1 Turn off the camera. 2 Holding down the BATTERY RELEASE button ( ), slide the battery pack toward the right and then pull it out ( ). Checking the Remaining Battery Charge You can check the approximate charge level on the battery pack itself.
Page 28 Preparing the Power Supply 1 Turn off the camera. 2 Connect the AC adapter’s 4-pin XLR connector to the camera’s DC IN 12V terminal. IMPORTANT • Make sure to turn off the camera before connecting or disconnecting an external power source to/from the camera’s DC IN 12V terminal.
Page 29 Your camera is incredibly versatile and allows you to build the shooting configuration that best fits your needs and shooting conditions. In addition to the supplied accessories, Canon offers a variety of optional accessories that expand the functionality of the camera (A 260). For details about accessories compatible with this camera, please download the Cinema EOS System Expansion User Guide (PDF file), available from your local Canon website.
Page 30 Preparing the Handle Unit and LCD Monitor Preparing the Handle Unit and LCD Monitor The LCD screen is necessary to complete the initial setup of the camera, so how to attach the supplied handle and LCD monitor will be explained in this section. Attaching the Handle Unit 1 Slide the mounting base at the bottom of the handle unit into the camera’s top accessory shoe and gently...
Page 31 Preparing the Handle Unit and LCD Monitor 3 Attach the LCD attachment unit to the handle unit. • Insert the sliding rod of the LCD attachment unit into the LCD attachment mounting hole of the handle unit ( ). • Tighten the fixation bolt firmly ( ). 4 Connect the camera to the LCD monitor’s VIDEO terminal using the supplied MC-5U Monitor Cable.
Page 32 Preparing the Handle Unit and LCD Monitor Attaching the LCD Monitor to the Camera 1 Turn off the camera. • If the handle unit is attached to the camera, remove it. 2 Turn the screw on the LCD attachment unit to remove the sliding rail ( ).
Page 33 Preparing the Handle Unit and LCD Monitor Adjusting the LCD Monitor The LCD attachment unit can be rotated and moved in a number of ways to match your shooting style. The following are suggested positions, assuming the user is behind the camera and can see the LCD monitor and the subject.
Page 34 Preparing the Handle Unit and LCD Monitor Removing and Attaching the Camera Grip The camera grip comes originally attached to the camera. You can remove it when a minimal configuration is necessary. Removing the Camera Grip 1 Turn off the camera. 2 Disconnect the camera grip’s connection plug ( ).
Page 35 Preparing the Lens Preparing the Lens As much as possible, attach and remove the lens quickly and in a clean environment free of dust. Refer also to the instruction manual of the lens used. IMPORTANT • When attaching/removing a lens, avoid direct sunlight or strong light sources. Also, be careful not to drop the camera or lens.
Page 36 You can update the firmware of the lens/mount adapter/power zoom adapter attached to the camera (only in CAMERA mode). For details about firmware updates, visit your local Canon website. The following example explains how to perform a firmware update for lenses.
Page 37 • If correction data is not available, [Periph. Illum. Corr.] or [Chromatic Aberr. Corr.] will appear grayed out. Visit your local Canon website and check if there is correction data available for the lens you are using. If so, download the necessary update package, update the camera’s firmware version and repeat the procedure from the beginning.
Page 38 Date, Time and Language Settings Date, Time and Language Settings Setting the Date and Time You will need to set the date and time on the camera before you can start using it. The [Date/Time] screen will appear automatically when the camera’s clock is not set. 1 Select the desired time zone and move to the next field.
Page 39 Using the Menus Using the Menus Many of the camera’s functions can be adjusted from the menu that opens after pressing the MENU button. In CAMERA mode, you can also register frequently used menu settings in a customized menu (My Menu) for easy Menu Options access.
Page 40 Using the Menus • In the example, the B icon, corresponding to the [System Setup] menu. • If one of the icons in the top row is not selected when you open the menu, first push the joystick up or press the CANCEL button to move the orange selection frame to one of the icons.
Page 41 Using the Menus • Select the menu setting you want to move (the ] icon will appear next to the setting you selected). Move the menu setting to the desired position and press SET. Removing Menu Settings Select > [¥ My Menu] > [Edit] > [Delete]. •...
Page 42 CFexpress cards compliant with CFexpress 2.0 Type B specifications. However, it may not be possible to record on the card depending on the camera mode and bit rate used. For details about CFexpress cards tested for use with this camera, visit your local Canon website. SD cards...
Page 43 Preparing Recording Media - When using exFAT-formatted cards with other devices (digital recorders, card readers, etc.), make sure that the external device is compatible with exFAT. For more information on compatibility, contact the computer, operating system or card manufacturer. - If you use exFAT-formatted cards with a computer OS that is not exFAT-compatible, you may be prompted to format the card.
Page 44 Preparing Recording Media Removing Cards 1 Wait until the card access indicator is off or is illuminated in green. 2 Slide the card compartment cover switch in the direction of the arrow. • The card compartment cover will open to the left. 3 Make sure the card access indicator is off.
Page 45 Preparing Recording Media Recovering Recordings Some actions, such as suddenly turning off the camera or removing the card while data is being recorded, can cause data errors in the recorded file. You may be able to recover recordings with corrupted data using the following procedure.
Page 46 Selecting the Video Recording Method Selecting the Video Recording Method This camera features various recording modes, as well as video recording methods using two cards. You can also stream the audio/video while recording it on a card (A 197). Below is an overview. For details, refer to each function’s section.
Page 47 Selecting the Video Recording Method Available simultaneous recording configurations Second card recording function Proxy Audio Relay Double Slot Recording Recording Recording Recording Recording Ü Ü Ü Ü Ü Ü Normal Recording Ü Ü Ü – – – Slow & Fast Motion Recording Ü...
Page 48 Options [Canon]: The volume label of CFexpress and SDXC cards will be “Canon” regardless of the clip file name settings. [Canon + Metadata]: The volume label of CFexpress and SDXC cards will be “CanonXY9999” where “X” / “Y”...
Page 49 To set the user-defined field 1 Select > [Æ Recording/Media Setup] > [Metadata] > [User Defined] > [Change]. • To reset the user-defined field to [CANON], select [Reset] instead. 2 Enter the desired text string. Using the data entry screen 1 Select the first character or digit and then press SET to move to the next.
Page 50 Selecting the Video Recording Method - [Tilt+Roll]: Displays inclination for both tilt and roll. - [Tilt]: Displays the vertical inclination of the optical axis. - [Roll]: Displays the amount of rotation around the optical axis. - [Off]: Inclination is not displayed. NOTES •...
Page 51 Selecting the Video Recording Method IMPORTANT • While the fan is running, the exhaust vent will emit warm air. • Be careful not to obstruct in any way the fan’s air vents (A 13, 14). NOTES • Depending on the ambient temperature and other shooting conditions, the fan may not turn off even if you set its operating mode to [Automatic].
Page 52 Adjusting the Black Balance Adjusting the Black Balance In CAMERA mode, you can have the camera adjust the black balance automatically when ambient temperature changes considerably or if there is a noticeable change in a true black video signal. 1 Attach the body cap to the lens mount and set the camera to CAMERA mode. •...
Page 53 Recording Recording Video and Photos Recording This section explains the basics of recording clips* and photos. For details on recording audio, refer to Audio (A 110). * “Clip” refers to a single movie unit recorded with a single recording operation. You can also include metadata with the clip. Recording Power indicator/ Front tally lamp...
Page 54 XF-AVC S/XF-HEVC S 1920x1080 1920x1080 IMPORTANT • Be sure to save your recordings regularly, especially after making important recordings. Canon shall not be liable for any loss or corruption of data. NOTES NOTES • You can use the review function (A 62) to play back part or all of the last clip recorded without having to switch to MEDIA mode.
Page 55 Recording Video and Photos Onscreen Displays Refer to this section for an explanation of the various screen displays that appear in CAMERA mode. You can use the custom display function ( 214) to turn off individual onscreen displays if they are not required. The menu item that controls each display is given in the following tables (1: indicates a menu item under [Custom Display 1] and 2: indicates a menu item under [Custom Display 2]).
Page 56 Recording Video and Photos Left side of the screen Icon/Display Description Custom Display Network connection status (A 195). 2: [Network Functions] 000.0 m Object distance (numeric). 1: [Object Distance (Numeric)] Object distance (bar). 1: [Object Distance (Bar)] 0000 mm Approximate focal length of the lens. 1: [Focal Length] Focus mode (A 88).
Page 57 Recording Video and Photos Top of the screen Icon/Display Description Custom Display Recording media status, estimated remaining recording time and video format 2: [Remaining Rec Time] , 8 (in green) : CFexpress card; 8: SD card. 0000 min The card’s status is indicated by the icon’s color: in green – can record; in yellow – card almost full (5 minutes or less);...
Page 58 Recording Video and Photos Right side of the screen Icon/Display Description Custom Display Power supply level indicator+ 2: [Remaining Battery]   è é Remaining battery charge of a BP-A60N (supplied) or an optional Battery Pack and ê  ë ...
Page 59 Recording Video and Photos Icon/Display Description Custom Display AE ±0.00 AE shift (A 83). 1: [AE Shift] Direct touch control (A 63) – Å Å ¼ É È White balance (A 85). 1: [White Balance] 00000K ±00 CC ND 00 stops ND filter (A 80).
Page 60 Recording Video and Photos MEDIA mode Display level During clip/photo playback Index screen/During audio playback [DISP Level 1] All onscreen displays. [DISP Level 2] No onscreen displays. All onscreen displays. [DISP Level 3] – NOTES NOTES • You can change the transparency level of onscreen displays (A 166). Peripheral Border Display You can apply the peripheral border display to all display levels.
Page 61 Recording Video and Photos Onscreen Displays in Portrait Mode When shooting in portrait mode, you can change the orientation of the onscreen displays. Select > [¢ Monitoring Setup] > Desired [OSD Orientation:] setting > 90 Degrees Right] or [ 90 Degrees Left]. NOTES NOTES •...
Page 62 Reviewing a Recording Reviewing a Recording If you set an assignable button to [Review Recording] in advance, you can review the last clip (primary clip) recorded on the recording media currently in use even with the camera set to CAMERA mode. 1 Set an assignable button to [Review Recording] (A 133).
Page 63 Adjusting Camera and Recording Settings Adjusting Camera and Recording Settings Using direct touch control, you can perform a variety of settings (camera, recording, assistance functions, etc.) in CAMERA mode. White balance and exposure related settings can also be modified with the direct setting mode, using the FUNC button.
Page 64 Direct Setting Mode (FUNC Button) Direct Setting Mode (FUNC Button) In CAMERA mode, you can adjust main camera functions—shutter speed, ISO speed/gain, aperture and white balance—using the FUNC button (direct setting mode). This section will explain the basic operation of the direct setting mode.
Page 65 Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate In CAMERA mode, you can set the video configuration used for primary clips with the following procedures. Select the video format, sensor mode, main recording destination, main recording format, resolution (frame size), system frequency and frame rate settings that best match your creative needs.
Page 66 Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate Selecting the Frame Rate Select the frame rate for the primary clips. This procedure is not necessary when the system frequency is set to 24.00 Hz. 1 Select >...
Page 67 Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate Available video configuration settings (XF-AVC) Target recording media: CFexpress cards only: - When the frame rate is 59.94P, the main resolution is 4096x2160 / 3840x2160 and the bit rate is 1200 Mbps / 900 Mbps.
Page 68 Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate Available video configuration settings (XF-AVC S) Target recording media: CFexpress cards only: - When the frame rate is 59.94P, the main resolution is 4096x2160 / 3840x2160 and the bit rate is 1200 Mbps / 900 Mbps.
Page 69 Video Configuration: Video Format, Sensor Mode, System Frequency, Resolution and Frame Rate Available video configuration settings (XF-HEVC S) Target recording media: CFexpress and SD cards. System frequency / Frame rate Main 59.94 Hz 50.00 Hz 24.00 Hz recording Main resolution / bit rate format 59.94P 29.97P...
Page 70 Sub Recording Clips Sub Recording Clips While recording a primary clip to a CFexpress card, you can simultaneously record the same scene (sub recording clips) to an SD card in a different video recording configuration. See the following tables for more Recording / Output Signal and details on the video configuration for sub recording clips.
Page 71 • If you select [Conform to Custom Picture], the gamma curve and color space are determined to conform to the gamma curve of Custom Picture. Furthermore, if you select [BT.709 (Canon 709)] or [BT.709 (CMT 709)], they are converted as follows.
Page 72 Proxy Clips (Simultaneous Recording) Gamma curve after conversion Gamma curve of Custom Picture Color space after conversion BT.709 (Canon 709) BT.709 (CMT 709) BT.709 Standard BT.709 Standard BT.709 Standard BT.709 Wide DR BT.709 Wide DR BT.709 Wide DR Canon 709...
Page 73 Shutter Speed Shutter Speed In CAMERA mode, you can set the shutter speed according to the shooting conditions. For example, you may want to set slower shutter speeds in darker environments. The camera offers the following modes. You can also perform this function remotely using Browser Remote on a connected network device (A 199). [Speed]: Allows you to set the shutter speed (in fractions of a second).
Page 74 Shutter Speed Changing the Shutter Speed Mode and Value 1 Select > [ Camera Setup] > [Shutter Mode] > Desired shutter speed mode. 2 For [Speed] only: Select > [ Camera Setup] > [Shutter Increment] > [1/3 stop] or [1/4 stop]. 3 Adjust the shutter speed, angle value or clear scan frequency using the direct setting mode (A 64).
Page 75 Shutter Speed - When there are repetitive patterns (such as grid or stripe patterns). - When the subject is in constant movement. - In extreme brightness or darkness. - When there are multiple light sources in the screen. - When the blinking light source is too small. - When the subject illumination is low.
Page 76 ISO Speed/Gain ISO Speed/Gain You may want to adjust the brightness of the image according to the shooting conditions. You can choose between manual and automatic settings. By choosing manual settings you can change the ISO speed or gain value to adjust the sensitivity of the sensor. You can also set the camera’s base ISO speed by choosing from four modes.
Page 77 Base ISO settings Gamma curve [ISO] [Gain] [Canon Log 2] / [Canon Log 3] [Auto Selection], [Base ISO 800], [Base ISO 3200], [Auto Selection], [Base ISO 800 (12 dB)], (Also applies when the main recording [Base ISO 12800]...
Page 78 When the main recording format is RAW, the available base ISO settings are the same as when the gamma curve component of the [Gamma/Color Space] setting in the custom picture file is set to [Canon Log 2] / [Canon Log 3].
Page 79 ISO Speed/Gain Using the Control Dials You can also adjust the ISO speed or gain value using the control dial on the camera or the one on the camera grip. You will need to set in advance the function of one of the control dials to [ISO/Gain]. You can select the function assigned to each control dial independently.
Page 80 ND Filter ND Filter In CAMERA mode, using the ND filter allows you to open up the aperture to obtain a shallower depth of field even when recording in bright surroundings. You can also use the ND filter to avoid the soft focus caused by diffraction when using small apertures.
Page 81 Aperture Aperture In CAMERA mode, you can affect the brightness of your recordings or change the depth of field by adjusting the aperture. Depending on the lens used, the aperture value displayed may differ (F value or T value) and available aperture values will vary as well.
Page 82 Aperture Using the Control Dials You can also adjust the lens’s aperture value using the control dial on the camera or the one on the camera grip. By default, the function of both control dials is set to [Iris]. You can select the function assigned to each control dial independently.
Page 83 Aperture Automatic Aperture When a compatible lens is attached to the camera, you can have the camera automatically adjust the aperture. This function is not available when slow & fast motion recording is activated. 1 Select > [ Camera Setup] > [Iris Mode] > [Automatic]. •...
Page 84 Aperture 1 Select > [ Camera Setup] > [Light Metering]. 2 Select the desired option. • The icon of the selected mode ( , no icon for [Standard]) appears on the left of the screen. Options [Backlight]: Suitable when recording backlit scenes. [Standard]: Averages the light metered from the entire screen, giving more weight to the subject in the center.
Page 85 White Balance White Balance In CAMERA mode, the camera uses an electronic white balance process to calibrate the picture and produce accurate colors under different lighting conditions. The camera offers the following ways to set the white balance. You can also perform this function remotely using Browser Remote on a connected network device (A 199). Custom white balance: You can use a gray card or white object with no pattern to establish the white balance and set it to one of two custom white balance positions, ÅA or ÅB.
Page 86 White Balance Å 4 Press the button. • The Å A or Å B icon will flash quickly. • Make sure the gray card or white object fills the screen until the procedure is completed. • Once the icon stops flashing, the procedure is completed. The setting is retained even if you turn off the camera.
Page 87 White Balance Auto White Balance (AWB) The camera constantly adjusts the white balance automatically to achieve an appropriate level. The camera will adjust the white balance if the light source changes. 1 Press the WB button. • The camera will enter the direct setting mode (A 64) with the white balance mode icon highlighted.
Page 88 Focus Focus In CAMERA mode, the camera offers the following ways to focus, depending on the lens used. The camera incorporates Dual Pixel CMOS AF technology for advanced autofocus performance with compatible lenses. Refer to the list of compatible lenses and functions that can be used (A 270). You can also adjust the focus remotely using Browser Remote on a connected network device (A 199).
Page 89 Focus - Select > [B System Setup] > [Focus Ring Response] to select whether the focus operation is linked to the rotation degree or the rotation speed of the focus ring. - When the lens focus mode is set to AF (autofocus), you can enable/disable manual adjustment from >...
Page 90 Focus Peaking The camera offers two peaking levels. 1 Press the PEAKING button. • The peaking icon (J or K) appears on the left of the screen and outlines (contour lines) in the image that are in focus will be shown highlighted. •...
Page 91 Focus Focus Position Guide When a compatible lens (A 270) is attached, you will be able to display the current focus position and the preregistered focus positions. Depending on the lens, you may need to connect a 12-pin interface cable to the LENS terminal on the camera.
Page 92 • You can change the adjustment speed and responsiveness of the autofocus function with the following settings. Visit your local Canon website for the latest information. > [v Camera Setup] > [AF Speed] to set the AF speed (the speed at which the focus is adjusted) to one of 10 levels.
Page 93 Focus • When [Focus Guide] is set to [On], the frame on the screen changes to the focus guide frame. • When an assignable button set to [AF Lock (While Pressed)] is operated, the AF function is activated only while the button is held pressed down. NOTES NOTES •...
Page 94 Focus * When [Continuous AF] is enabled, [Lens action if cannot AF] was set to [Stop], and distance measurement is not possible. • When multiple subjects are detected, Ï and Ð are shown on the main subject frame. If [Subject to detect] is set to [People], a gray frame is displayed on subjects other than the main subject.
Page 95 Focus Tracking a Specific Subject You can have the camera track other moving subjects that are not faces and also combine the tracking function with one of the autofocus functions to let the camera focus on the desired subject automatically. To use the tracking function, you will need to set an assignable button to [Tracking] in advance.
Page 96 Image Stabilization Image Stabilization In CAMERA mode, you can use the image stabilizer to compensate for camera shake and achieve steadier shots. The image stabilizer is more effective at wider angles and the effect is reduced the more you approach the telephoto end.
Page 97 Image Stabilization • The camera’s image stabilization will not function when using super telephoto lenses with a focal length exceeding 1000 mm.
Page 98 Zoom Zoom You can use the camera to zoom when an EF Cinema lens compatible with zoom operation (A 270), an EF lens integrated with a PZ-E1 Power Zoom Adapter or an RF lens integrated with a PZ-E2 Power Zoom Adapter is attached to the camera.
Page 99 Displaying Live Video Displaying Live Video You can input return signals to the camera’s G-LOCK/SYNC/RET terminal, and tally information to the Ethernet terminal, allowing you to build a system to display live video. The resolution of signals that can be input to the G- LOCK/SYNC/RET terminal is 1920x1080.
Page 100 Onscreen Markers, Zebra Patterns and False Color Onscreen Markers, Zebra Patterns and False Color In CAMERA mode, using onscreen markers allows you to make sure your subject is correctly framed and is within the appropriate safe area. Zebra patterns help you identify areas that are overexposed. The false color overlay allows you to check if the exposure is correct.
Page 101 Onscreen Markers, Zebra Patterns and False Color Center Marker / Horizontal Marker / Vertical Marker / Grid Marker 1 Select > [A Assistance Functions] > Desired option > Desired marker color. 2 For [Center Marker] only: Select > [A Assistance Functions] > [Center Marker Type] > Desired marker shape.
Page 102 Onscreen Markers, Zebra Patterns and False Color NOTES NOTES • After activating the onscreen markers you can set > [¢ Monitoring Setup] > [DISP Level 2] to [Only FUNC/MENU] and then select display level 2 to turn off all other onscreen displays, leaving only the markers (A 59).
Page 103 Onscreen Markers, Zebra Patterns and False Color Color Meaning Blue Just above black clipping Purple Black clipping • The false color overlay will not be output while color bars are displayed. • When the Look File registered to the custom picture file is active, the color displayed might not be that of the correct brightness level.
Page 104 Setting the Time Code Setting the Time Code In CAMERA mode, the camera generates a time code signal and records it with the recorded clips. The time code signal can be output from the SDI OUT terminal, MON. terminal, TIME CODE terminal (A 108) or HDMI OUT terminal.
Page 105 Setting the Time Code Selecting Drop or Non-Drop Frame When the frame rate is set to 59.94P, 59.94i or 29.97P, you can select between a drop frame (DF) or non-drop frame (NDF) time code, depending on how you plan to use your recordings. With all other frame rates, the time code is set to non-drop frame (NDF) and cannot be changed.
Page 106 Setting the User Bit Setting the User Bit In CAMERA mode, you can set a user bit composed of the date or the time of recording or an identification code consisting of 8 characters in the hexadecimal system. There are sixteen possible characters: the numbers 0 to 9 and the letters A to F.
Page 107 Synchronizing with an External Device Synchronizing with an External Device In CAMERA mode, you can use the camera’s TIME CODE terminal to synchronize this camera’s time code to an external signal. Using the same external time code signal with multiple cameras allows you to set up a multi- camera recording.
Page 108 Synchronizing with an External Device • When a suitable external time code signal is received, the camera’s own time code will be synchronized to it and the synchronization will be maintained even if you disconnect the cable from the TIME CODE terminal. •...
Page 109 Synchronizing with an External Device Reference Video Signal Output After changing the function of the camera’s G-LOCK/SYNC/RET terminal to [HD Sync Output], you can use the camera’s video signal as a reference sync signal (tri-level HD signal) to synchronize an external device to this camera.
Page 110 Recording Audio Recording Audio The camera features the following options for audio recording and playback. You can record audio using an external microphone/external line input (INPUT terminals or MIC terminal), the monaural microphone*, or an accessory compatible with the multi-function shoe. The audio signal will be output with the video signal from the SDI OUT/MON./HDMI OUT terminals.
Page 111 Recording Audio INPUT 1/INPUT 2 Menu settings Recorded audio channels/audio sources Audio source selection switches [Audio Input [Audio Input Selection] > Selection] > [CH2 Input] INPUT 1 INPUT 2 [CH1/CH2] [CH3/CH4] MIC/48V INPUT 2 MIC INPUT 2 MIC MIC/48V INPUT 1 MIC INPUT 1 MIC LINE INPUT 2 LINE...
Page 112 Recording Audio INPUT 1/INPUT 2 Menu settings Recorded audio channels/audio sources Audio source selection switches [Audio Input [Audio Input Selection] > Selection] > [CH2 Input] INPUT 1 INPUT 2 [CH1/CH2] [CH3/CH4] MIC/48V INPUT 1 MIC INPUT 2 MIC MIC/48V LINE INPUT 1 MIC INPUT 2 LINE [INPUT...
Page 113 Recording Audio Connecting an External Microphone or External Audio Input Source to the Camera To each of the INPUT terminals you can attach commercially available microphones or analog line in sources with a mini XLR connector. To the MIC terminal you can attach an external microphone/external line input (analog) with a ∅...
Page 114 Recording Audio INPUT 1 / INPUT 2 switches Set the INPUT 1 or INPUT 2 switch to LINE, MIC or (audio source selection) MIC+48V. • When using the INPUT terminals to record to only one channel, use the INPUT 1 terminal. IMPORTANT •...
Page 115 Recording Audio Adjusting the Audio Recording Level In CAMERA mode, you can adjust the audio recording level of the INPUT terminals or the MIC terminal. You can select automatic or manual audio level adjustment, and adjust each audio channel separately or adjust CH1/ CH2 or CH3/CH4 together (when the audio level adjustment of the audio channels is linked, A 116).
Page 116 • When the optional the Canon DM-E1D Multi-Function Shoe Directional Stereo Microphone is attached, adjustment with the audio level switch is also possible. In this case, CH1 settings are also applied to CH2.
Page 117 Recording Audio Options [Off]: For recording audio under usual conditions. [LC1]: For recording mainly people’s voices. [LC2]: For reducing the background sound of wind when recording outdoors in windy surroundings (for example, on a beach or close to buildings). Note that when you use this setting some low-frequency sounds may be suppressed along with the sound of wind.
Page 118 • While color bars are displayed, the magnification function (A 90) cannot be used. • Color bars cannot be output when the gamma curve component of the [Gamma/Color Space] setting in the custom picture file (A 142) is set to an option other than [BT.709 Wide DR], [BT.709 Standard] or [Canon 709].
Page 119 Video Scopes Video Scopes The camera can display a simplified waveform monitor or a vectorscope to check your recordings. The selected video scope can be output to the VIDEO terminal, SDI OUT terminal and MON. terminal/HDMI terminal. Displaying a Video Scope Choose between a waveform monitor or a vectorscope.
Page 120 Video Scopes Options for [Vertical Scale for HDR] [IRE]: Displays the video scope in IRE units. [PQ/HLG]: For HDR-PQ images, displays the video scope in nits (cd/m ) (including when the gamma curve after applying the Look File is set to [PQ]). For such images, the narrow range’s (video range) waveform monitor is displayed.
Page 121 Adding Marks to Clips in CAMERA Mode Adding Marks to Clips in CAMERA Mode In CAMERA mode, only when the main recording format is set to XF-AVC, you can add marks to primary clips to set them apart. While recording, you can add shot marks (!) to flag an important shot or frame. After recording a clip, you can add an OK mark ($) or check mark (%) to help you identify particular clips.
Page 122 Setting a User Memo Created with Canon XF Utility Before you can add a user memo, you must first install Canon XF Utility (A 173). Next, create the user memo and then save it to an SD card. Once you insert the SD card in the camera and select the user memo, it will be added to clips you record.
Page 123 Using Metadata Using News Metadata When recording, you can add News Metadata* to the recorded clips. Using Content Transfer Professional, you can check and edit News Metadata files. The most recently set News Metadata will be prioritized and added. See the following table for details on News Metadata settings. * Refers to a metadata file compliant with the DPP002 Metadata Exchange for News recommendation ver.
Page 124 Using Metadata 4 Save the News Metadata to the camera. • News Metadata files transferred from a smartphone will be saved automatically to the camera. • Automatically, > [Æ Recording/Media Setup] > [Metadata] > [Add XML File] will be set to [On], and [XML File Format] will be set to [News Metadata].
Page 125 Special Recording Modes Special Recording Modes The camera features the following special recording modes. - Slow & fast motion recording (A 125). - Pre-recording (A 126). - Continuous recording (A 126). - Frame recording (A 127). - Interval recording (A 128). Slow &...
Page 126 Special Recording Modes • If you change the system frequency, slow & fast motion recording will be canceled and the shooting frame rate will be reset to its default value. • About the time code when slow & fast motion recording is activated: - The time code mode can be set to [Regen.], or to [Preset] with [Rec Run] running mode.
Page 127 Special Recording Modes With the exception of step 4, you can also use direct touch control to perform this function (A 63). 1 Insert a card into each card slot (CFexpress card for normal recording, SD card for continuous recording). 2 Select >...
Page 128 Special Recording Modes NOTES NOTES • Frame recording cannot be used simultaneously with slow & fast motion recording, pre-recording, interval recording or continuous recording. • Frame recording cannot be used when the frame rate is set to 59.94i or 50.00i. When in use, frame recording will end if the frame rate is set to 59.94i or 50.00i.
Page 129 Special Recording Modes • About the time code when interval recording is activated: - The time code mode can be set to [Regen.], or to [Preset] with [Rec Run] running mode. The time code advances by the number of frames recorded every time. - If the time code running mode was set to [Free Run] or the camera was synchronized to an external time code signal, the time code running mode will be changed automatically to [Rec Run] when interval recording is activated.
Page 130 Using Anamorphic Lenses Using Anamorphic Lenses You can attach an anamorphic lens to the camera and set the anamorphic desqueeze ratio used to display the image from the camera on monitoring devices while shooting or during playback. 1 To apply the anamorphic desqueeze to individual video outputs, select >...
Page 131 Using the Optional RC-V100 Remote Controller Using the Optional RC-V100 Remote Controller You can connect the optional RC-V100 Remote Controller to the camera’s REMOTE terminal in order to control the camera (including advanced recording functions) from a distance. The remote controller lets you turn the camera on, navigate the menus and remotely control the aperture and shutter speed, change picture-related settings like the knee and sharpness, and more.
Page 132 Using the Optional RC-V100 Remote Controller...
Page 133 Customization Assignable Buttons The camera offers a number of assignable buttons to which you can assign various functions. On the LCD monitor On the camera grip 1 Press the MENU button and, while holding it pressed down, press the assignable button whose function you wish to change.
Page 134 Assignable Buttons • When you select [Enable] in > [ Assignable Buttons] > [Link to Camera], the functions assigned to assignable buttons 1–4 on the camera can also be assigned to assignable buttons 1–4 of the RC-V100, RC-IP100/RC-IP1000, Remote Camera Control Application, and Multi-Camera Control. Assignable functions Functions can be set separately in CAMERA mode and MEDIA mode.
Page 135 Assignable Buttons CAMERA MEDIA Function name Description mode mode [Zebra: All], [Zebra: VIDEO Term.], Ü Turns zebra patterns on/off. – [Zebra: MON./HDMI], [Zebra: SDI] [WFM: All], [WFM: VIDEO Term.], Ü Ü Turns the selected video scope on/off. [WFM: MON./HDMI], [WFM: SDI] [LUT: All], [LUT: VIDEO Term.], Ü...
Page 136 Assignable Buttons CAMERA MEDIA Function name Description mode mode Ü [Color Bars] Turns color bars on/off. – Ü [IP Streaming] Turns the IP streaming function on/off. – Ü [Photo] Records a photo. – Ü [Review Recording] Plays back the last clip recorded in CAMERA mode. –...
Page 137 Assignable Buttons CAMERA MEDIA Function name Description mode mode Customizable slot. Assign to the button any menu setting you would like to Ü Ü User Setting] – register. Function can be used only by assigning it to a button. Not available when slow & fast motion recording is activated.
Page 138 [Canon 709 / BT.709] – dynamic range optimized for playback on BT.709 compliant monitors. These settings use Canon Log 2 gamma and require post- [Canon Log 2 / C2: [Canon Log 2] – production processing. They achieve superior gradation in the C.Gamut]...
Page 139 - There are also other LUTs available that can be applied for processing in post-production. For the latest information on available LUTs, please visit your local Canon website. • About changing custom picture related settings using the optional RC-V100 Remote Controller - When an optional RC-V100 Remote Controller is connected to the camera, you can press the remote controller’s CUSTOM PICT.
Page 140 Custom Picture Settings • Enter the desired file name (Up to 16 characters) (A 41). Protecting Custom Picture Files Protecting a custom picture file prevents its settings from being accidentally changed. 1 Select a custom picture file (A 138). > [/ Custom Picture] > [Edit / File] > [Protect] > [Protect]. 2 Select •...
Page 141 Custom Picture Settings • Save a Look File to the root directory of the SD card. • If the correct input/output gamma curve and color space conversion are not selected, video will not be output correctly. • A Look File cannot be used if the [Gamma/Color Space], [HLG Color], [White Level 100%] or [Over 100%] settings are changed after registering it.
Page 142 Gamma curve [Canon Log 2]: Logarithmic gamma curve that obtains a richer color gradation in the dark areas of the image. Requires image processing in post-production. [Canon Log 3]: Logarithmic gamma curve that keeps the characteristics of the [Canon Log] setting Canon709 BT.709 WideDR...
Page 143 These settings correct the color cast in blacks. These settings are not available when the gamma [Master Black Blue] curve component of the [Gamma/Color Space] setting is set to one of the [Canon Log 2] or [Canon Log 3] options.
Page 144 Custom Picture Settings Menu items Options / Additional information [Saturation] –10 to +10 (±0) [Slope] These settings control the upper part of the gamma curve (highlights of the image). By compressing the highlights, you can prevent parts of the image from being overexposed. [White Level 100%]: Adjusts automatically to keep output at 100% even if [Point] is changed.
Page 145 Determines how the camera handles video signals exceeding 100%. This setting is not available when the gamma curve component of the [Gamma/Color Space] setting is set to one of the [Canon Log 2], [Canon Log 3], [PQ], [HLG] or [Canon 709] options. [Through]: Leave the signal unchanged.
Page 146 Custom Picture Settings NOTES • Depending on other menu settings, you may not be able to obtain the desired image effect even after changing the custom picture settings. • When an optional RC-V100 Remote Controller is connected to the camera, the following custom picture settings can be changed using the buttons and dials on the remote controller.
Page 147 Saving and Loading Menu Settings Saving and Loading Menu Settings After you adjust settings in the various menus, you can save those settings in the camera or on an SD card. You can load those settings at a later date or on another camera of the same model so that you can use that camera in the same way.
Page 148 Saving and Loading Menu Settings...
Page 149 Playback Playback This section explains how to play back clips, photos and WAV audio with the camera. For details on playing back Connecting to an External Monitor or Recorder recordings using an external monitor, refer to (A 164). Clip Index Screen 1 Set the Q switch to CAMERA.
Page 150 Playback 1 Key lock (A 12) 10 Clip thumbnail 2 Shot mark (A 157) 11 Clip number / Total number of clips 3 $ mark/% mark (A 156) 12 Recording date (month and day only) and time 4 Orange selection frame 13 Clip’s start time code 5 Clip identification (camera index, reel number and 14 Clip duration...
Page 151 Playback Playing Back Recordings 1 In the index screen, select the thumbnail of the desired recording and then press the Ò button. • Clips: Playback of the selected clip will start. • Photos: The selected photo will be displayed. 2 Use the joystick and buttons on the camera to control the playback.
Page 152 Playback Onscreen Displays During Clip Playback 8 9 10 1 Fan operation (A 50) and temperature warning 8 Frame rate (A 66) (A 245) 9 Custom picture file embedded (A 142) 10 $ mark 2 Output onscreen displays (A 166) /% mark / Proxy clip (A 156, 71) 3 Playback button...
Page 153 Playback WAV playback screen Onscreen Displays During Clip Playback (A 152) for the description of onscreen displays that are common on all playback screens. 1 Audio file name 3 Audio level meter 2 Sampling frequency and bit depth Playback Controls The following playback types are available using the joystick and the touchs screen.
Page 154 Playback Adjusting the Volume You can use headphones or the built-in speaker to listen to the audio × (headphone) during normal playback. When you connect headphones to the × terminal (headphone) terminal, the speaker will be muted. The audio signal will also be output from the SDI OUT terminal, MON.
Page 155 Recording Data Operations Recording Data Operations You can perform various operations on the clip selected in the index screen using the clip menu. Available options will depend on the type of recording selected. Clip/Photo Menu Operations 1 Select the desired recording. 2 Press SET.
Page 156 Recording Data Operations Displaying Clip Information 1 Select the desired clip in the clip index screen. 2 Press SET (clip menu) and select [Display Clip Info]. • The [Clip Info] screen will appear. • Push the joystick left/right to check the information on other clips. Press the CANCEL button to return to the index screen.
Page 157 Recording Data Operations Adding an $ Mark or % Mark During Playback You can add an $ mark or % mark to a clip during playback or playback pause. 1 Set an assignable button to [Add $ Mark] or [Add % Mark] (A 133). 2 Select the desired clip in the [XF-AVC] index screen and press the Ò...
Page 158 Recording Data Operations Deleting Recordings You can delete clips, photos and WAV audio files. To delete clips with an $ mark, you need to delete the $ mark beforehand (A 157). 1 Select the desired file in the index screen. •...
Page 159 External Connections Video Output Configuration The video signal output from the SDI OUT terminal, MON. terminal and HDMI OUT terminal, depends on the clip’s video configuration and on various menu settings. The camera does not output signals to the MON. terminal and HDMI OUT terminal simultaneously and will select the active output terminal automatically.
Page 160 Video Output Configuration Recording video configuration SDI OUT terminal Main video SDI output format Output format Frame rate Main resolution Output frame rate resolution 4096x2160 4096x2160P/3840x2160P 3840x2160 Same as main clip 2048x1080 2048x1080P/1920x1080P 1920x1080 59.94i 29.97PsF 59.94i 1920x1080i 1920x1080 50.00i 4096x2160 3840x2160 25.00PsF...
Page 161 Video Output Configuration Recording video configuration SDI OUT terminal Main video SDI output format Output format Frame rate Main resolution Output frame rate resolution 2048x1080P/1920x1080P 1920x1080 Same as main clip 59.94i 29.97PsF 59.94i 59.94P 50.00i 29.97P 25.00PsF 23.98P 1920x1080 60.00i 50.00P 1920x1080i 1920x1080...
Page 162 Video Output Configuration MON. Terminal / HDMI OUT Terminal Video Output Configuration (Recording/Playback) Recording video MON. terminal HDMI OUT terminal configuration Main video MON. output HDMI output format format format Main Output Output Output Output Frame rate resolution resolution frame rate resolution frame rate 4096x2160P/...
Page 163 Video Output Configuration Recording video MON. terminal HDMI OUT terminal configuration Main video MON. output HDMI output format format format Main Output Output Output Output Frame rate resolution resolution frame rate resolution frame rate – – – 4096x2160 4096x2160P/ Same as main 3840x2160P clip –...
Page 164 Connecting to an External Monitor or Recorder Connecting to an External Monitor or Recorder When you connect the camera to an external device, be it a monitor (to monitor the recording or for playback) or an external video recorder (for recording), use the terminal on the camera that matches the one you wish to use on the external device.
Page 165 Connecting to an External Monitor or Recorder NOTES • Depending on the external recorder, you may not be able to record at the desired video configuration. • After you connect the camera to the external recorder, make a test recording first to check that audio and video are recorded correctly on the external recorder.
Page 166 You can select the output range of video signals output from the various terminals to determine how the image levels are mapped to code values. Moreover, you can select the setting independently for Canon Log output and for HDR output.
Page 167 Monitoring Setup] > [Range: SDI], [Range: MON.] or [Range: HDMI]. 2 Select [During Canon Log Output] or [During HDR Output] > Desired option. • Repeat the procedure as necessary to select the output range for other terminals or output signals.
Page 168 Not available for the VIDEO terminal (LCD monitor). Available only for the VIDEO terminal (LCD monitor). Selectable LUTs (A) Custom picture file Available LUTs [HDR Assist. [HDR Assist. [Gamma/Color Space] [CMT 709] [Canon 709] [CMT DCI] [CMT PQ] [CMT HLG] [ACESproxy] (1600%)] (400%)] Ü Ü...
Page 169 You can adjust the SDR gain difference relative to HDR within a range of ± 7.5 dB (in 0.5 dB increments) in the following cases: • When the main clip is set to HDR* and a LUT that changes the color space to [CMT 709] or [Canon 709] is applied to the output.
Page 170 Applying a LUT to Video Outputs User LUTs You can register in the camera up to four LUT files created with Blackmagic Design’s DaVinci Resolve as user LUTs and apply them to video outputs/screens. User LUTs can be applied when the gamma in the custom picture file is a log gamma curve.
Page 171 Applying a LUT to Video Outputs - LUT files which include values outside of the 0 to 1 range in the data area are not supported. - LUT files 2 MB and larger, as well as files with a name containing over 65 characters are not supported. - Only the following characters can be used in the file name: Numbers 0 to 9, upper/lower case letters a to z, underscore (_), hyphen (-), period (.) and a single byte space.
Page 172 Audio Output Audio Output The camera can output audio from the SDI OUT terminal, MON. terminal, HDMI OUT terminal, × (headphone) terminal or speaker. When recording or playing back clips recorded with 4-channel audio, you can select which audio channels are output from the HDMI OUT terminal, headphones and speaker. Audio output configuration Recorded audio configuration Audio output during recording/playback...
Page 173 Saving Files Use Canon XF Utility to save and organize XF-AVC clips and other recorded files on a computer. You can use the Canon XF plugins to easily use XF-AVC clips directly from Avid non-linear editing (NLE) software. The software and plugins are available as free downloads from your local Canon website.
Page 174 DPX, they will be ready for color grading. Alternatively, you can use the Canon RAW Plugin to easily use RAW clips unaltered (in RAW format) directly from major non-linear editing (NLE) applications. The software and plugin are available as free downloads from your local Canon website.
Page 175 Importing Files to a Computer/Smartphone 5 When the connection ends, disconnect the USB cable from the camera. Automatically Transferring Recording Data to an FTP Server You can use Content Transfer Professional to automatically transfer clips (XF-AVC S, XF-HEVC S), audio (WAV), photos (JPEG) and metadata to an FTP server.
Page 176 Importing Files to a Computer/Smartphone...
Page 177 (Wi-Fi) networks. Canon cannot provide support regarding network configurations. IMPORTANT • Canon shall not be liable for any loss of data or damage resulting from incorrect network configuration or settings. Additionally, Canon shall not be liable for any loss or damage caused by the use of network functions.
Page 178 About the Network Functions NOTES • Do not open the card compartment cover while using network functions. • Do not place cables connected to the SDI OUT, MON., HDMI Built-in OUT, INPUT, MIC, or USB terminal near the built-in wireless wireless antenna.
Page 179 Using Networks Using Networks Using a Wi-Fi Network You can connect the camera in Infrastructure mode, using an access point (wireless router etc.), or in Camera Access Point mode, directly to a network device. The type of connection you can use, depends on the network function you wish to use (A 177).
Page 180 Using Networks Using a Wired (Ethernet) Network Connect a commercially available Ethernet cable to the (Ethernet) terminal on the camera and to the Ethernet port on a network device. Use Category 5e, shielded twisted pair (STP) Ethernet cables compatible with Gigabit Ethernet (1000BASE-T) and with good shielding capability. (Ethernet) terminal and connection indicator Ethernet port on a...
Page 181 Step 2 FTP transfer (A 196) IP streaming (A 197) Browser Remote (A 199) Canon App (A 208) XC Protocol (A 186) CV Protocol (A 186) Activating a Network Connection Activate the desired network connection to use network functions or to configure the connection setting online.
Page 182 Configuring Connection Settings Adding a New Connection Setting Using the Wizard You can use the wizard to set up a new connection setting. This section uses a connection to a Wi-Fi network using the WPS push button method as an example. Refer to the instruction manual of the access point for details about the location and operation of the WPS button.
Page 183 Configuring Connection Settings 3 Configure the destination FTP server. Select [Server] and [Port No.] > [OK]. • Enter the FTP server’s IP address or host name using the keyboard screen. Enter the port number using the data entry screen (A 49). •...
Page 184 Configuring Connection Settings IP Streaming This section continues the connection settings wizard (A 182). In the function settings you will configure the streaming video bit rate and resolution, the protocol used and the receiver’s settings. For details refer to the instruction manual of the decoder device or software you will use.
Page 185 (A 208). For more details, refer to the smartphone’s instruction manual. 1 Select [Create New Func. Setting]. • Once you have added multiple function settings, you can select [Select Existing Setting] to reuse Canon App settings that you saved previously.
Page 186 4 When the confirmation message appears, press SET. • Use the Canon Live Link Plugin for Unreal Engine to send metadata information to applications used for virtual production. For details about using and downloading Live Link Plugin for Unreal Engine refer to the Canon website.
Page 187 Configuring Connection Settings 2 Make sure the Ethernet cable is correctly connected (A 180) and select [Setup with Network Connection]. • Select [Setup without Network Connection] to only configure the settings, without connecting to the network. 3 Set the IP address (A 189). 4 Select [OK] to continue to configure the function settings.
Page 188 Configuring Connection Settings • The camera will generate and display an 8-digit PIN code. 2 Enter the PIN code into the wireless router’s WPS (PIN code) setup screen and then, on the camera, select [OK]. 3 Set the IP address (A 189). 4 Select [OK] to continue to configure the function settings.
Page 189 Configuring Connection Settings 5 Set the IP address (A 189). 6 Select [OK] to continue to configure the function settings. • The communication settings are saved to an [NW] file. • Continue with one the following procedures to configure the selected function’s settings (A 182). Offline Configuration without Connecting to a Network 1 In the [Select a network] screen, select [Configure Offline].
Page 190 Configuring Connection Settings NOTES • Only one root certificate, with one of the following file names, can be read by the camera: “ROOT.CER”, “ROOT.CRT” and “ROOT.PEM”. • If you transfer files using FTPS transfer with a self-signed certificate, you may not be able to trust the destination server.
Page 191 Configuring Connection Settings Changing Connection Settings using Existing Settings You can use previously registered communication settings ([NW] files) or function settings ([MODE] files) to easily replace the content of a connection setting or to add a second network or network function in addition to those registered using the wizard.
Page 192 Configuring Connection Settings Checking the Content of a Communication Setting/Function Setting 1 Select > [ Network Settings] > [Advanced Settings] > [Communication Settings] or [Function Settings]. 2 Select the desired communication setting ([NW1] to [NW25]) or function setting ([MODE1] to [MODE25]). 3 Select [Check Settings].
Page 193 Configuring Connection Settings Menu item Setting options and additional information [TCP/IPv4] [IP Address Settings]* [Automatic Setting], [Manual Setting] [DNS Server] [Disable], [Auto Assign], [Manual Setting] [DNS Address]*, [IP Address]*, [Subnet Mask]*, [Gateway]* [TCP/IPv6] [TCP/IPv6 Settings]* [Disable], [Enable] [Manual Setting] [Disable], [Enable] [DNS Server] [Disable], [Auto Assign], [Manual Setting] [DNS Address],...
Page 194 Configuring Connection Settings Menu item Setting options and additional information [IP Streaming] [Protocol]* [UDP], [RTP], [RTP+FEC], [RTSP+RTP], [SRT] [Destination Server]*, [Dest. Port No.]*, [FEC Port No.]* [FEC Interval] 10 to 100 (intervals of 5) [RTSP: User Name]*, [RTSP: Password]* [SRT: Connection Mode] [Caller], [Listener] [SRT: Stream ID] [SRT: Listening Port No.]...
Page 195 Checking the Network’s Status Checking the Network’s Status Unless you selected to configure a connection setting offline (without connecting to the network), immediately after configuring a new connection setting, the camera will connect to the network automatically and the selected function settings will be activated. The icons displayed on the screen will indicate the type of network selected and the connection status.
Page 196 FTP File Transfer FTP File Transfer In MEDIA mode, you can transfer clips from the camera to another device connected to the network, using the FTP protocol. The following explanations assume that the FTP server is on, ready and correctly configured. Transferring a Single Clip 1 Connect the camera to the desired network and activate the network functions ( 181).
Page 197 * This can be a dedicated video transfer device or decoder software on a computer. For details about compatible decoders, please visit your local Canon website. Configuration of video streamed over IP Main recording video configuration...
Page 198 IP Streaming • Depending on the network used and the connection conditions, you may experience lost or delayed IP packets. • After streaming continuously for 24 hours, the camera will stop the IP streaming momentarily and then restart it automatically. •...
Page 199 Web browser* of any network device** connected to the same network. * A Web browser that supports JavaScript and is enabled to accept cookies is required. ** For details about compatible devices, operating systems, Web browsers, etc., please visit your local Canon website. Preparations on the Camera 1 Connect the camera to the desired network and activate the network functions (A 181).
Page 200 Browser Remote: Controlling the Camera from a Network Device NOTES • Depending on the network used and the connection performance, you may notice delays in the refreshing of the live view image and other settings. If the delay is too long, changing the resolution of the live view image is recommended (A 204).
Page 201 Browser Remote: Controlling the Camera from a Network Device Using Browser Remote NOTES • Browser Remote does not support multi-touch gestures. The Main Remote Operation Screen 10 11 12 13 14 15 17 18 8 Add an $ mark 1 Network connection indicator While Browser Remote is correctly connected to 9 Camera’s nickname (A 190) and lens model the camera, the dots will keep turning on and off...
Page 202 Browser Remote: Controlling the Camera from a Network Device 13 [REC] button 15 [SLOT SELECT] button Touch to select the other card when both card Touch the button to start recording. The recording slots contain a card. operation indicator changes to [ÜREC] and the center of the button turns red.
Page 203 Browser Remote: Controlling the Camera from a Network Device The menu is displayed in detail as follows when Full Controls is selected. If needed, use the [Full Ctrl] switch. 19 Manual zoom slider 41 42 43 Touch to adjust the zoom. 20 Manual focus controls When [Focus] is active, touch [ ], [...
Page 204 Browser Remote: Controlling the Camera from a Network Device 44 Function shortcut button 49 Subject detection AF Displays the various adjustable functions. Touch 50 Cancel tracking the function you wish to adjust. 51 Extended ND range 45 [Focus Guide] switch 52 Fine increment Touch to display the focus guide (A 89).
Page 205 You can also control the camera remotely using Multi-Camera Control on a smartphone connected to the same network as the camera. Available from your local Canon website. Available from the App Store. 1 In CAMERA mode, activate the network functions (A 181) •...
Page 206 Recording remotely using an XC Protocol compatible controller/application Recording remotely using the Remote Camera Control Application During recording, you can check the angle of view using Live View and adjust various picture related settings. For details about connection/setup and the Remote Camera Control Application, refer to the Remote Camera Control Application manual.
Page 207 Recording remotely using an XC Protocol compatible controller/application • Select a connection setting with the [XC Protocol] function setting. 4 Open Multi-Camera Control on the smartphone. 5 Operate the smartphone to connect to the camera. 6 Operate Multi-Camera Control on the smartphone to record remotely. 7 When you finish the procedure, set Network Settings] >...
Page 208 • For details, refer to the smartphone’s instruction manual. 3 Activate the desired network connection (A 181). • Select a connection setting with the [Canon App] function setting. 4 As indicated on the screen, open the application on the smartphone.
Page 209 (A 78) [Gain]: [Off/42 dB], [6 dB] to [39 dB] When the [Gamma/Color Space] gamma curve is set to [Canon 709] and the [Base ISO] is set to [Auto Selection]. Available values differ depending on the [Gamma/Color Space] gamma curve settings and [ISO/Gain] settings.
Page 210 [/ Custom Picture] menu (CAMERA mode only) Menu item Setting options and additional information [Select File] [C1:Canon 709], [C2:Canon Log 2], [C3:Canon Log 3], [C4:BT.709 Wide DR], [C5:BT.709 138) Standard], [C6:PQ], [C7: HLG], [C8:EOS Standard], [C9:EOS Neutral], [C10:User10] to [C20:User20]...
Page 211 [Protect] [Unprotect], [Protect] 140) [Reset] [Canon 709], [Canon Log 2], [Canon Log 3], [BT.709 Wide DR], [BT.709 Standard], [PQ], [HLG], [EOS Standard], [EOS Neutral], [User (Canon 709)] Available Custom Picture Settings Detailed custom picture Refer to the tables in the...
Page 212 [0001] to [9999] (A 48) [Clip Number] [001] to [999] [User Defined] User defined string up to 5 characters ([CANON]) (A 49) [Scene], [Take] Scene description up to 16 characters / Take description up to 8 characters (A 124) [Lens Squeeze] [x2.0], [x1.8], [x1.3], [Off]...
Page 213 Menu Options [¡ Audio Setup] menu Menu item Setting options and additional information [Audio Input Selection] (A 114) [CH1/CH2] [INPUT Terminals], [MIC Terminal], [Monaural Mic], [Multi-Function Shoe] [CH3/CH4] [INPUT Terminals], [MIC Terminal], [Monaural Mic], [Multi-Function Shoe] [CH2 Input] [INPUT 2], [INPUT 1], [Monaural Mic], [MIC Terminal] (A 114) [CH1/CH2 ALC Link], [Linked], [Separated]...
Page 214 Menu Options [¢ Monitoring Setup] menu Menu item Setting options and additional information [LCD Brightness], [LCD Contrast] 50 to 50 (±0) (A 33) [LCD Color] –20 to 20 (±0) (A 33) [LCD Sharpness] 1 to 4 (2) (A 33) [LCD Luminance] [Normal], –2 to +6 (A 33) [Anamorphic: Video Term.],...
Page 215 [LUT: MON.], [LUT: HDMI], [On], [Off] (A 168) [LUT: VIDEO Term.], [LUT: SDI] [LUT Selection: MON.], [CMT 709], [Canon 709], [CMT DCI], [CMT PQ], [CMT HLG], [ACESproxy], [UserLUT1]* to (A 168) [LUT Selection: HDMI], [UserLUT4]* [LUT Selection: SDI] * Available only when user LUTs have been registered in the camera (A 170).
Page 216 [Reset All User LUTs] – [User LUT Info] – [Range: SDI], [Range: MON.] (A 166) [During Canon Log Output] [Full Range], [Narrow Range] [During HDR Output] [Full Range], [Narrow Range] [Range: HDMI] [During Canon Log Output] [Full Range Priority], [Narrow Range]...
Page 217 Menu Options Menu item Setting options and additional information [False Color: Video Term.], [On], [Off] (A 102) [False Color: MON./HDMI], [False Color: SDI] [False Color Index] – [Zebra: Video Term.], [On], [Off] (A 102) [Zebra: MON./HDMI], [Zebra: SDI] [Zebra] [Zebra 1], [Zebra 2], [Zebra 1+2] [Zebra 1 Level] [5 ±5%] to [95 ±5%] in 5 percentage point intervals ([70 ±5%]) [Zebra 2 Level]...
Page 218 Menu Options Menu item Setting options and additional information [Marker Safe Area %] [80% (Side Length)], [88% (Side Length)], [90% (Side Length)], [93% (Side Length)], [95% (Side Length)] [User Marker 1], [User Marker 2], [Yellow], [Blue], [Green], [Red], [Black], [Gray], [White], [Off] [User Marker 3] [User Marker 1 Settings], [User Marker 2 Settings],...
Page 219 Menu Options Menu item Setting options and additional information [Advanced Settings] [Communication Settings] [NW1] to [NW25] 191) [Function Settings] [MODE1] to [MODE25] [Browser Remote Settings] [User Setting], [User Name/Password], [Port No. (HTTP)], [Port No. (HTTPS)], [HTTPS] 194) [FTP Transfer Settings] [Read Root Certificate], [Root Certificate Details], [Delete Root Certificate] 189) [XC Protocol Settings]...
Page 220 Menu Options Menu item Setting options and additional information [Language [Deutsch], [English], [Español], [Français], [Italiano], [Polski], [Português], (A 38) ], [ ], [ ], [ ], [ [REMOTE Term.] [RC-V100 (REMOTE A)], [Standard] (A 131) [MON&HDMI Simult. Output] [1920x1080P], [1920x1080i(PsF)], [Off] (A 165) [MON.
Page 221 (A 13) [USB Mode] [Canon App(s) for iPhone], [Canon App(s)/GP-E2] (A 174) Select [Canon App(s)/GP-E2] when connecting the GP-E2 GPS Receiver to the camera using an optional interface cable. [GPS Auto Time] [On], [Off] When this setting is set to [On], the camera automatically adjust its date and time settings according to the information received from the GPS signal.
Page 222 Menu Options Menu item Setting options and additional information [Firmware] [Camera] – Displays the current firmware version of the camera and is used to update the firmware. [Lens], [Mount Adapter], – (A 36) [Power Zoom Adapter], [Accessory] The default value depends on the country/region of purchase. [¥...
Page 223 Displaying the Status Screens Displaying the Status Screens You can use the status screens to check the camera’s various settings. You can also output the status screens to an external monitor. 1 Set an assignable button to [Status] (A 133). 2 Press the assignable button to open the status screens.
Page 224 Recording / Output Signal and Detailed Settings Recording / Output Signal and Detailed Settings Sub Recording Clips (A 70) Main clip: RAW Sub recording clip: XF-AVC, XF-AVC S (XF-AVC S YCC422 10 bit) Primary clip Sub recording clip Frame rate Recording format Resolution Bit rate...
Page 225 Recording / Output Signal and Detailed Settings Sub recording clip: XF-AVC S (XF-AVC S YCC420 8 bit) Primary clip Sub recording clip Frame rate Recording format Resolution Bit rate Resolution, bit rate 2130 Mbps / 1780 Mbps • 4096x2160 150 Mbps Long GOP 59.94P / 50.00P •...
Page 226 Recording / Output Signal and Detailed Settings Primary clip Sub recording clip Frame rate Recording format Resolution Bit rate Resolution, bit rate 2290 Mbps / 1910 Mbps • 4096x2160 225 Mbps Long GOP 1130 Mbps / 939 Mbps 59.94P / 50.00P •...
Page 227 Recording / Output Signal and Detailed Settings Primary clip Sub recording clip Frame rate Recording format Resolution Bit rate Resolution, bit rate 574 Mbps / 479 Mbps • 2048x1080 35 Mbps / 35 Mbps Long GOP 59.94P / 50.00P 283 Mbps / 236 Mbps 184 Mbps / 154 Mbps 287 Mbps / 240 Mbps / •...
Page 228 Recording / Output Signal and Detailed Settings Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate • 2048x1080 300 / 250 Intra-frame 50 Mbps Long GOP 59.94P / 50.00P 50 / 50 Long GOP – 2048x1080 •...
Page 229 Recording / Output Signal and Detailed Settings Sub recording clip: XF-AVC S (XF-AVC S YCC422 10 bit) Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate 1200 / 1000 • 2048x1080 300 Mbps / 250 Mbps Intra-frame 900 / 750 Intra-frame 50 Mbps Long GOP...
Page 230 Recording / Output Signal and Detailed Settings Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate 1200 / 1000 • 1920x1080 350 Mbps / 250 Mbps Intra-frame 900 / 750 Intra-frame 50 Mbps Long GOP 59.94P / 50.00P 600 / 500 •...
Page 231 Recording / Output Signal and Detailed Settings Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate • 1920x1080 300 / 250 Intra-frame 300 Mbps / 250 Mbps Intra-frame 50 Mbps Long GOP 59.94P / 50.00P • 1920x1080 50 / 50 Long GOP 50 Mbps Long GOP...
Page 232 Recording / Output Signal and Detailed Settings Main clip: XF-AVC S (YCC422 10 bit) Sub recording clip: XF-AVC S (XF-AVC YCC422 10 bit) Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate 1200 / 1000 • 2048x1080 300 Mbps / 250 Mbps Intra-frame 900 / 750 Intra-frame...
Page 233 Recording / Output Signal and Detailed Settings Sub recording clip: XF-AVC S (XF-AVC YCC420 8 bit) Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate 1200 / 1000 • 2048x1080 35 Mbps Long GOP 900 / 750 Intra-frame 59.94P / 50.00P 600 / 500...
Page 234 Recording / Output Signal and Detailed Settings Main clip: XF-HEVC S (YCC422 10 bit) Sub recording clip: XF-HEVC S (YCC422 10 bit) Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate • 2048x1080 59.94P / 50.00P 225 / 225 Long GOP 50 Mbps Long GOP...
Page 235 Recording / Output Signal and Detailed Settings Main clip: XF-HEVC S (YCC420 10 bit) Sub recording clip: XF-HEVC S (YCC420 10 bit) Primary clip Sub recording clip Frame rate Resolution Bit rate Resolution, bit rate • 2048x1080 59.94P / 50.00P 150 / 150 Long GOP 35 Mbps Long GOP...
Page 236 Recording / Output Signal and Detailed Settings Available shooting frame rates (RAW) Recording format Main resolution Bit rate Frame rate Shooting frame rate during slow & fast motion recording RAW ST 2130 59.94 1 to 60 RAW LT 1380 RAW HQ 2160 1 to 30 RAW ST...
Page 237 Recording / Output Signal and Detailed Settings Recording format Main resolution Bit rate Frame rate Shooting frame rate during slow & fast motion recording RAW ST 59.94 RAW LT RAW ST 29.97 RAW LT RAW ST 50.00 RAW LT 4096x2160 RAW ST 25.00 RAW LT...
Page 238 Recording / Output Signal and Detailed Settings Available shooting frame rates (XF-AVC) Main recording Compression Recording Shooting frame rate during slow & fast Main resolution Frame rate Bit rate format method media motion recording CFexpress 1200 1 to 60 CFexpress 1 to 120 59.94 CFexpress...
Page 239 Recording / Output Signal and Detailed Settings Main recording Compression Recording Shooting frame rate during slow & fast Main resolution Frame rate Bit rate format method media motion recording CFexpress 1 to 180 59.94 1 to 120 CFexpress 1 to 180 29.97 1 to 120 CFexpress...
Page 240 Recording / Output Signal and Detailed Settings Available shooting frame rates (XF-AVC S) Main recording Compression Recording Shooting frame rate during slow & fast Main resolution Frame rate Bit rate format method media motion recording 1200 1 to 60 CFexpress 1 to 120 59.94 1 to 120...
Page 241 Recording / Output Signal and Detailed Settings Main recording Compression Recording Shooting frame rate during slow & fast Main resolution Frame rate Bit rate format method media motion recording CFexpress, SD 59.94 1 to 120 CFexpress 1 to 120 29.97 1 to 100 CFexpress, SD 50.00...
Page 242 Recording / Output Signal and Detailed Settings During proxy clip recording Recording Compression Recording Shooting frame rate during slow & fast Main resolution Frame rate Bit rate format method media motion recording 59.94 50.00 YCC420 29.97 2048x1080 Long GOP 16, 9 1 to 60 8 bit 25.00...
Page 243 Troubleshooting Troubleshooting If you have a problem with your camera, refer to this section. Consult your dealer or a Canon Service Center if the problem persists. Power source The camera will not turn on or it turns off by itself.
Page 244 - The camera may become hot after using it continuously for long periods of time; this is not a malfunction. If the camera becomes unusually hot or it becomes hot after using it only for a short while, it may indicate a problem with the camera. Consult a Canon Service Center. Playback...
Page 245 [closed]. The ND filter indicator appears in red or as [- -] on the screen. - The ND filter mechanism may not be working properly. Consult a Canon Service Center. Picture and Sound The screen of the monitoring device connected to the VIDEO terminal does not turn on.
Page 246 Troubleshooting Video noise appears on screen. - Keep a distance between the camera and devices that emit strong electromagnetic fields such as near powerful magnets and motors, MRI machines or high-voltage power lines. Horizontal bands appear on the screen. - This is a phenomenon typical of CMOS image sensors when recording under some types of fluorescent, mercury or sodium lamps.
Page 247 Troubleshooting - When the currently selected custom picture file is protected, detailed custom picture settings cannot be adjusted using the RC-V100. Unprotect the file (A 140). Cannot adjust the custom picture settings using the RC-IP100/RC-IP1000 Remote Camera Controller. - When the currently selected custom picture file is protected, detailed custom picture settings cannot be adjusted using the RC-IP100/RC-IP1000.
Page 248 - The device, operating system or Web browser used may not be supported. For the latest information about supported systems, visit your local Canon website. - Enable JavaScript and cookies in your Web browser’s settings. For details, refer to the help modules or online documentation of the Web browser used.
Page 249 - You attached a battery pack that is not recommended by Canon for use with this camera. - If you are using a battery pack recommended by Canon for use with this camera, there may be a problem with the battery pack or camera.
Page 250 Fan error - The cooling fan may not be working properly. The camera will turn off automatically after a few minutes. Consult a Canon Service Center. File name error - The clip number has reached its maximum value. Save your recordings and initialize the card (A 44) or delete all the clips (A 158).
Page 251 - The main recording format is set to RAW and the gamma curve component of the [Gamma/Color Space] setting in the custom picture file is set to an option other than [Canon Log 2] or [Canon Log 3]. Under such conditions, there may be more noise on the recorded proxy clips (SD card) and on video output from the various terminals.
Page 252 With the current combination of lens and mount adapter, some functions' performance may not be precise. Visit your local Canon web site for details. - With the current combination of lens and mount adapter used, the focal length and aperture value displayed by the camera may not be accurate and should be considered only as a reference.
Page 253 Troubleshooting Network Functions Along with this list, refer also to the instruction manuals of the access point or other external devices you are using. A streaming error occurred. - CV protocol data could not be sent to the receiver. Check the receiver’s [Destination Server] and [Dest. Port No.] settings on the camera.
Page 254 Troubleshooting No response from DNS server. - The camera is set to automatic IP address assignment. If the selected network does not use a DNS server, change the camera’s DNS address to [Disable] and configure the IP address (A 189). - Enter the same IP address of the DNS server used in the camera’s network settings.
Page 255 Troubleshooting Unable to log in to FTP server. Error code returned. - Check the FTP server’s [User Name] and [Password] in the camera’s network settings. - Change the file access permission settings on the FTP server to allow reading, writing and accessing logs. - Change the destination folder so the path includes only ASCII characters.
Page 256 If any of the above should get into the camera it may damage the camera and/or the lens. Consult a Canon Service Center as soon as possible. • Be careful to avoid dust and dirt particles accumulating on the lens or entering the camera. When you finish using the camera, make sure to attach the body cap to the lens mount and the lens cap and dust cap to the lens.
Page 257 Handling Precautions Long-term storage • Store battery packs in a dry place at temperatures no higher than 30 C (86 ° ° • Before storing battery packs, charge them until two lamps (on the indicator on top of the battery) illuminate (A 27).
Page 258 Recording Media • Periodically backing up recordings from the cards used to a computer is recommended. Data may be corrupted or lost due to defects or exposure to static electricity. Canon shall not be liable for lost or corrupted data.
Page 259 You can use the battery charger and compact power adapter to charge battery packs in any country/region with power supply between 100 and 240 V AC, 50/60 Hz. Consult a Canon Service Center for information on plug adapters for overseas use.
Page 260 • Power supply from the camera to multi-function shoe For our customers in the USA: Call or visit your local retailer/dealer for genuine Canon video accessories. You can also obtain genuine accessories for your Canon camera by calling: 1-800-828-4040, Canon U.S.A.
Page 261 Cinema RAW Light Audio format: Linear PCM, 24 bit, 48 kHz, 4 channels File format: CRM (Canon RAW Movie; Canon proprietary file format) XF-AVC Video compression: MPEG-4 AVC / H.264 Audio format: Linear PCM, 24 bit, 48 kHz, 4 channels...
Page 262 (approximate): 19,000,000 pixels Rounded to the nearest 10,000. • Lens Mount Canon RF mount - RF lenses (including RF-S lenses/RF Cinema lenses) - EF lenses (Including EF-S lenses/EF Cinema lenses, when using the EF-EOS R Mount Adapter) - PL lenses (when using a PL-RF Mount Adapter) •...
Page 263 Specifications • Iris Manual (1/2-stop increments, 1/3-stop increments, fine adjustment available), push auto iris, automatic aperture • ISO Speed/Gain [Automatic] and [Manual] settings. ISO speed ([1 stop] and [1/3 stop] settings): 100 to 102400 Gain ([Normal] and [Fine] settings): –6 dB to 54 dB •...
Page 264 Specifications • GRIP Terminal USB Type-C™ jack, Canon proprietary signal (for connection to the included camera grip) Output Terminals • MON. Terminal BNC jack Video: HD: SMPTE 292 3G: SMPTE 424, SMPTE 425 Audio: SMPTE ST 299-1, SMPTE ST 299-2 Output signal level: 0.8 Vp-p...
Page 265 • Ethernet Terminal RJ45 connector (1000BASE-T supported) Other Terminals • DC IN 12V Terminal XLR 4-pin jack • Multi-Function Shoe Terminal Proprietary Canon connector Power/Others • Power Supply (rated) GND (ground) Battery pack: 14.4 V DC 11.5 V to 20.0 V DC IN 12V terminal: XLR 4-pin jack (male connector), 11.5 V to 20.0 V DC, 10 A...
Page 266 Specifications • VIDEO Terminal Proprietary connector for connection to the camera; input only • Dimensions (W x H x D): 113 x 73 x 30 mm (4.4 x 2.9 x 1.2 in.) • Weight : 155 g (5.5 oz.) LCD Attachment Unit Includes pivots that allow for rotation •...
Page 267 Reference Tables Reference Tables Approximate Recording Time on a Card Approximate times, for reference only, based on a single recording that continues until the card is full. Recording times are determined by the bit rate used, which in turn is determined by various video configuration settings (A 66).
Page 268 Reference Tables Primary clips (SD card) Recording format Bit rate 512 GB 128 GB Recording format Bit rate 512 GB 128 GB XF-HEVC S 225 Mbps 282 min. 70 min. XF-AVC 600 Mbps 105 min. 26 min. 150 Mbps 422 min. 105 min.
Page 269 Reference Tables Approximate Usage Times with a Fully Charged Battery Pack The recording times in the tables below are approximate and were measured recording on a CFexpress card (single recording), using an RF50mm F1.8 lens and the LCD monitor/MON. terminal/SDI OUT terminal. Actual times may vary.
Page 270 Depending on the lens’s purchase date, you may need to update the lens’s firmware to use these functions. For details, visit your local Canon website or consult a Canon Service Center. PL mount lenses can only be used after attaching the optional PL-RF Mount Adapter. In addition, connection to the LENS terminal on the camera or an external device is required.
Page 271 Appendix: Compatible Lenses and Functions Focus control from the camera Lens Continuous Subject Manual One-shot AF Tracking Focus guide detection AF CN-E18-80mm T4.4 L IS KAS S Ü Ü Ü Ü Ü Ü CN-E70-200mm T4.4 L IS KAS S Manual focus lenses compatible with Ü...
Page 272 Appendix: Camera Dimensions Appendix: Camera Dimensions Unless indicated with the " (inch) mark, all units are in mm. represents the depth of a hole or socket. 6x 1/4" 1/4" 21.0 24.0 31.8 31.8 Front Left 134.9 Lens attachment plane Lens attachment plane 125.5 66.5...
Page 273 Appendix: Camera Dimensions Camera with camera grip, handle unit, microphone holder, LCD monitor (open), LCD attachment unit and battery pack BP-A60N 1/4" 37.1 25.4 Slide range 152 to 192 Slide range 323 to 363 Slide range 307 to 361 Slide range 183 to 237 123.9 170.7...
Page 274 Camera nickname ..... .190 Canon App ..... . .185, 208 Data entry / keyboard screen .
Page 275 Developing RAW clips ....174 Digital tele-converter .....98 Handle unit .
Page 276 AC adapter (DC IN 12V) ..27, 265 Canon battery packs ....25 Microphone holder ....34, 113 Checking power levels/remaining MON.
Page 277 Video scopes ......119 VIDEO terminal ......30 Safe area .
Page 278 Trademark Acknowledgements • SD, SDHC and SDXC Logos are trademarks of SD-3C, LLC. • CFexpress is a trademark of the CFA (CompactFlash Association). • Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. •...
Page 279 B. If the Products are defective as a result of leaking batteries, sand, dirt or water damage; C. If defects or damages are caused by the use of parts or supplies (other than those sold by Canon USA) that cause damage to the Products or that cause abnormally frequent service calls or service problems;...
Page 280 B. If the Products are defective as a result of leaking batteries, sand, dirt or water damage; C. If defects or damages are caused by the use of parts or supplies (other than those sold by Canon Canada) that cause damage to the Products or that cause abnormally frequent service calls or service problems;...
Page 281 Canon Inc. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan Canon Europa N.V. Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands http://www.canon-europe.com The information in this document is verified as of September 2024. Subject to change without notice. Visit your local Canon website to download the latest version.
