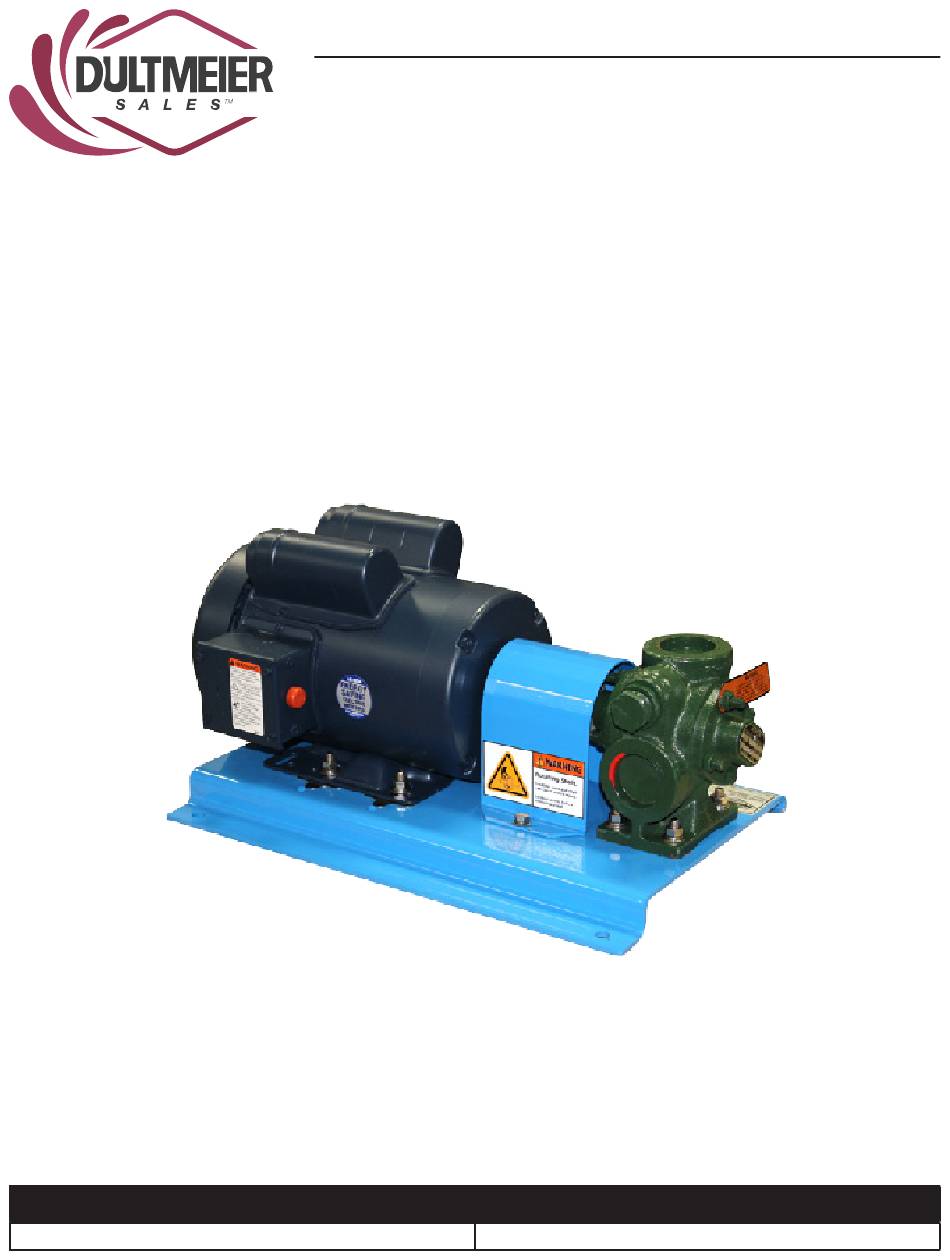

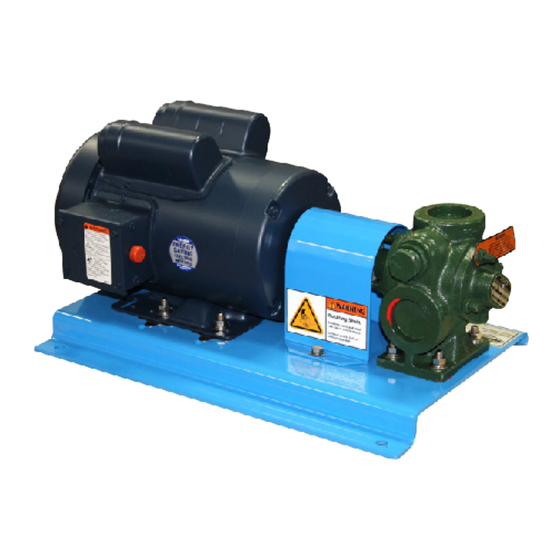

- Page 1 Roper Pump Unit DUF10, DUF10-2-3, DUF10-3, DUF12C Owner’s Manual #0821 033116 Serial Number: Installation Date:...
- Page 2 Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold.
- Page 3 To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage.
- Page 4 Setup Instructions for DUF10, DUF12C • For 115 Volts - Wire Motor As Shown in Figure 1 • For 208/230 Volts - Wire Motor As Shown in Figure 2 figure 1 figure 2...
- Page 5 Setup Instructions for DUF10-3 • For 208/230 Volts, wire motor as shown in Figure 1 • For 460 Volts, wire motor as shown in Figure 2 Low Voltage High Voltage INTERCHANGE ANY LEAD TO REVERSE ROTATION INTERCHANGE ANY LEAD TO REVERSE ROTATION...
- Page 6 1.5 HP / 1 PH Motor (DUF12C also) ....CE120922 ....1.5 HP / 3 PH Motor (DU F10-3, Not Shown) ....CEEM3558T ....2 HP / 3 PH Motor (DUF10-2-3 Only) 2.... LJL075-1/2 ....Lovejoy Coupling, 1/2” (For Pump, Not Visible) 3.... LJL075-R ....
- Page 7 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
