Summary of Contents for Dultmeier Sales CAT PUMPS DUPS1901C-PG

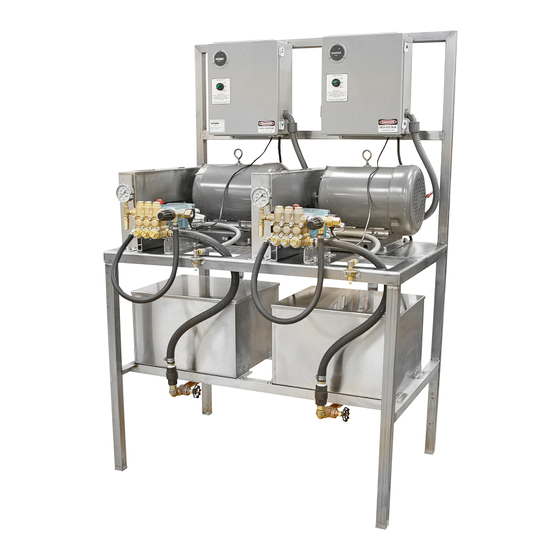

- Page 1 CAT PUMPS® (7.5 HP) Pump Stations DUPS1901C-PG & DUPS1901CPG2 DUPS1903C-PG & DUPS1903CPG2 Owner’s Manual #0806 012816 Serial Number: Installation Date:...
-
Page 2: Table Of Contents
Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold. -
Page 3: Safety Information
To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage. -
Page 4: Specifications
Specifications Model(s) ............DUPS1901C-PG (Single Pump Station) DUPS1901CPG2 (Double Pump Station) Style..............Bench Style Pump Station Capacity............4.8 GPM ..............2300 Maximum Inlet Pressure ........60 PSI Maximum Inlet Temperature ......130° F *See Included CAT PUMPS® Service Manual for Higher Temperatures Motor ............... - Page 5 Specifications Model(s) ............DUPS1903C-PG (Single Pump Station) DUPS1903CPG2 (Double Pump Station) Style..............Bench Style Pump Station Capacity............4.8 GPM ..............2300 Maximum Inlet Pressure ........60 PSI Maximum Inlet Temperature ......130° F *See Included CAT PUMPS® Service Manual for Higher Temperatures Motor ...............
-
Page 6: Installation Instructions
Placement 1. Place Pump Station on a level surface, against a wall with a 4” - 6” clearance from the back of the unit, located near electrical supply, water source, and floor drain. Make sure the front of the station is accessible for service. - Page 7 Chemical Setup (Optional) 1. Set or mount soap tank in place near the Pump Station and run city pressure soft water line to inlet of tank. 2. Select proper mix tip for soap and screw into chemical Select proper chemical mixing tip inlet port on Hydrominder eductor.
-
Page 8: Maintenance & Storage
Maintenance & Storage 1. Change the oil after intial 50 hours. Use Cat Oil, part number CC 6100-1 for 21 oz. bottles or CC 6105-1 for 2.5 gallon jug. (Fig. 9) This pump takes 17 oz. IMPORTANT 2. The oil should be changed every 500 hours. If other than Cat Pumps special custom blend multi-viscosity ISO68 hydraulic oil is used, change the oil every 300 hours. -
Page 9: Parts Breakdown
Parts Breakdown: DUPS1903CPG2 Item Part Number Description 1.... DUEP50A-73 ..... Electrical Panel with Delay Shutoff 2.... CEEM3710T ....7.5HP / 3PH Baldor Motor 3.... IPYVB8KMS ....Unloader Valve with Switch 4.... GCS203-24 ....Brass Solenoid, 1/2” 5.... TWGV-3/4 ....Bronze Gate Valve, 3/4” 6.... -
Page 10: Warranty Information
Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available. -
Page 11: Customer Checklist
Accessories Included Shipping Container Was In Good Shape Overall Condition If you have any questions or concerns about condition of this unit, please contact us before operating. Dultmeier Sales, LLC Omaha, NE 1.800.228.9666 • Davenport, IA 1.800.553.6975 http://www.dultmeier.com • dultmeier@dultmeier.com...
