Summary of Contents for Dultmeier Sales CAT Pumps DU PM390

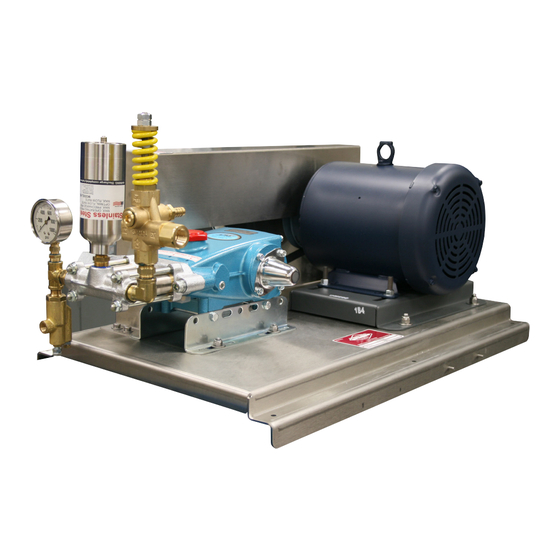

- Page 1 Medium Pressure Pump Units featuring CAT PUMPS® DU PM390 Owner’s Manual #0800 022311 Customer Number: Serial Number: Model Number: Installation Date:...
- Page 2 Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold.
- Page 3 To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage.
-
Page 4: System Features
CAT PUMPS® Medium Pressure Pump Unit Specifications DU PM390 Model ............... Style..............Medium Pressure Piston Pump Capacity............12 GPM ..............Maximum Inlet Pressure ........40 PSI Maximum Inlet Temperature ......130° F *See Included CAT PUMPS® Service Manual for Higher Temperatures CE EM3615T 5 HP, 3 PH CE 131538... -
Page 5: Maintenance And Storage
Maintenance & Storage 1. Change the oil after intial 50 hours. Use CAT PUMPS® Oil, part number CC 6100-1 for 21 oz. bottles or CC 6105-1 for 2.5 gallon jug. (Fig. 1) This pump takes 21 oz. IMPORTANT 2. The oil should be changed every 500 hours. If other than CAT PUMPS®... - Page 6 Parts Breakdown: DU PM390 IMPORTANT Pump Rotation: Pump was designed for forward rotation to allow optimum lubrication of the crosshead area. Reverse rotation is acceptable if the crankcase oil level is increased slightly above center dot to assure adequate lubrication. Item Part Number Description...
- Page 7 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
-
Page 8: Customer Checklist
Production Checklist Oil Level Pop-Off Valve Set Clamps Tight Unloader Valve Locked Bolts Tight & Anti-Seized Belts Tight Pump RPM Pulleys Aligned & Torqued to Specifications Motor Amps Fittings Straight Motor Wired For Tested Accessories Winterized Safety Pop Off Valve Trigger Gun High Pressure Hose Injector / Injector Hose...
