Summary of Contents for Dultmeier Sales DU PMTS2021-5

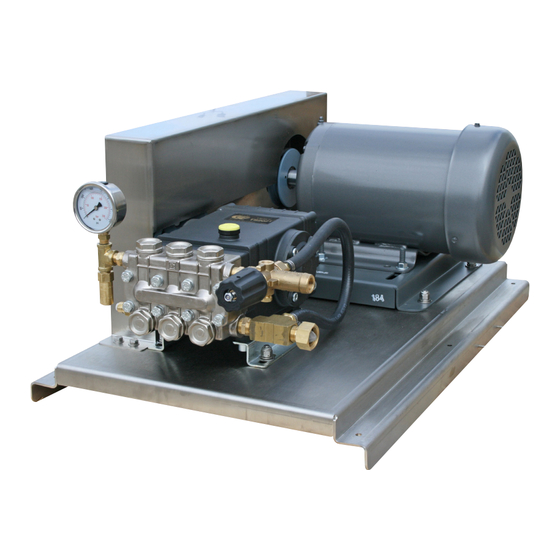

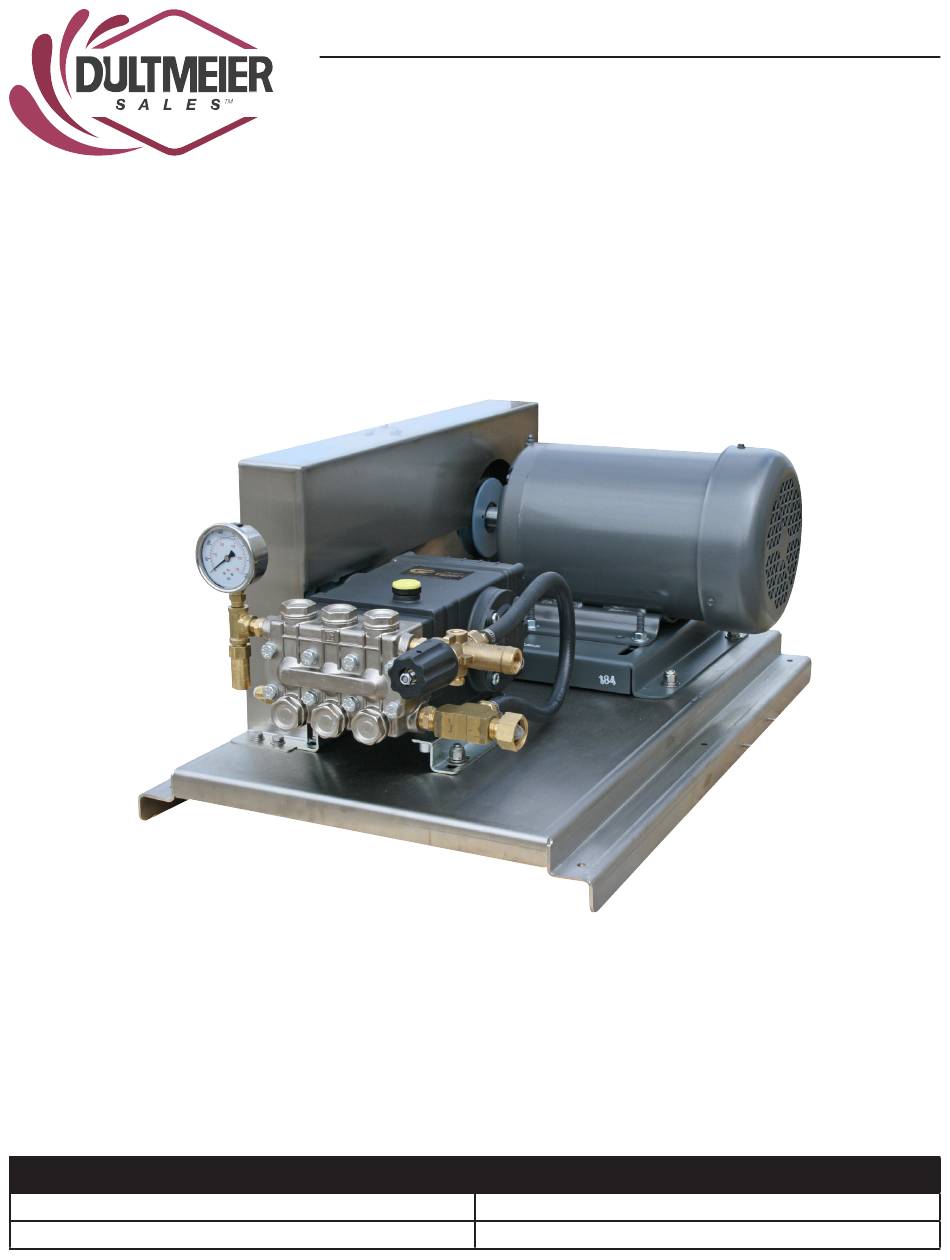

- Page 1 Prep Unit featuring General Pump DU PMTS2021-5 Owner’s Manual #0807 022111 Customer Number: Serial Number: Model Number: Installation Date:...
- Page 2 Consumers should notice that this manual may differ slightly from the actual product as more improvements are made to our products. Some of the pictures in this manual may differ slightly from the actual product as well. Dultmeier Sales reserves the right to update designs and / or change the specifications at any time without incurring any obligation to install them on units previously sold.
- Page 3 To avoid serious or fatal personal injury or major property damage, read and follow all safety and operation instructions in the manual. This is a Safety Alert Symbol - When you see this symbol in the manual, look for the following signal words & be alert to the potential for personal injury or property damage.
-
Page 4: System Features
General Pump Prep Wash Unit Specifications Model(s) ............DU PMTS2021-5 Style..............High Pressure Plunger Pump Unit Capacity............4 GPM ..............1800 Maximum Inlet Pressure ........125 PSI Maximum Inlet Temperature ......165° F Motor ............... CE EM3615T 5 HP, 3 PH... -
Page 5: Maintenance And Storage
Maintenance & Storage 1. Change the oil after intial 50 hours. Use General Pump Oil, part number IP 100214-1 for 16 oz. bottles or IP 100553-1 for 2.5 gallon jug. (Fig. 1) This pump takes 40.6 oz. IMPORTANT 2. The oil should be changed every 500 hours. If other than General Pumps special custom blend multi- viscosity ISO68 hydraulic oil is used, change the oil every 300 hours. - Page 6 Parts Breakdown: DU PMTS2021-5 Item Part Number Description 1.... CE EM3615T ..... Baldor Motor 5 HP 3 PH 2.... B45....... V-Belt (2 qty.) (Not Visible, Located Inside Belt Guard) 3.... AH 2750-4 ....3600# Liquid Filled Pressure Gauge 4.... GU 22568 ....
- Page 7 Notice Regarding Manufacturer’s Limited Warranty Dultmeier Sales Limited Liability Company (hereinafter Dultmeier), notifies you that component part(s) carry a manufacturer’s limited warranty provided by the manufacturer of said component part(s). These warranties do not pertain to normal wear of component part(s) that may occur within any specified period. While Dultmeier is not the manufacturer of any of the component part(s), Dultmeier will assist you in processing any and all manufacturer’s warranty claim if applicable and available.
-
Page 8: Customer Checklist
Production Checklist Oil Level Pop-Off Valve Set Clamps Tight Unloader Valve Locked Bolts Tight & Anti-Seized Belts Tight Pump RPM Pulleys Aligned & Torqued to Specifications Motor Amps Fittings Straight Motor Wired For Tested Accessories Winterized Safety Pop Off Valve Trigger Gun High Pressure Hose Injector / Injector Hose...
