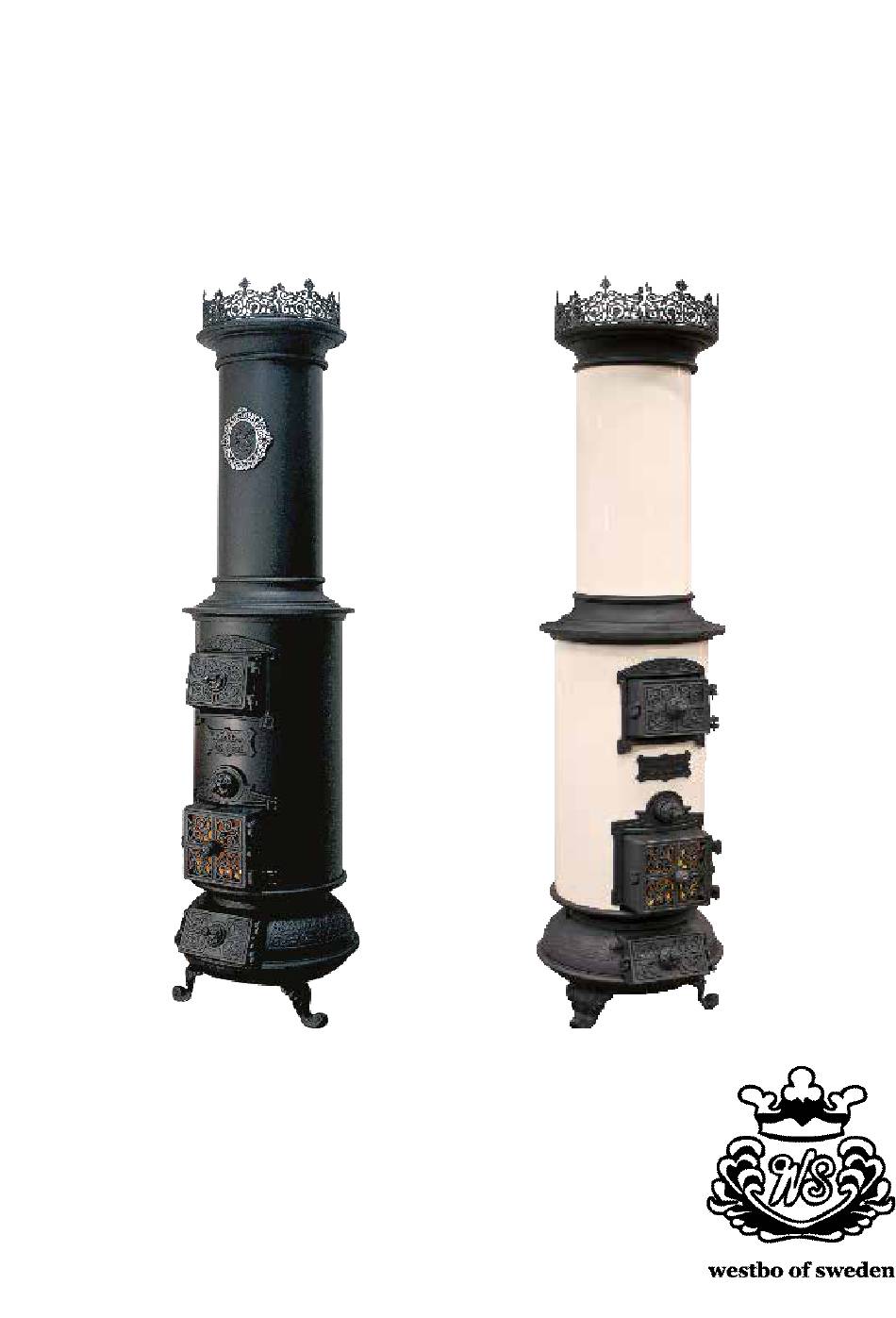

- Page 1 M a n u a l & I n s t r u c t i o n s Westbo Classic...
- Page 2 2. Use of the construction product: Room heater burning solid fuel 3. Manufacturer: Westbo i Reftele AB, Industrigatan 8, 33021 Reftele, Sweden, Tel. 0046-371-23330 4. Authorised: Mattias Gunnarsson, mg@westbo-of-sweden.com, Box 5, 33021 Reftele. +46 371 23332 5. Systems of assessment and veri cation of constancy of performance: System 3 6a.
- Page 3 General tips Classic Installation by authorised This manual contains instructions about how the stoves must be assembled and installed. To ensure the function and safety of the stove, we recommend that the installation is carried out by an authorised technician. Please contact your dealer who can recommend suitable technicians. Building application Please ask your local dealer or authority or for advice regarding building regulations.
- Page 4 Classic Preparation If you are installing your stove top, first measure the center of chimney and prepares cutout in the ceiling. Be careful to follow the chimney supplier’s instructions. Should you connect rear, follow the instructions bellow. 1. Measure out the center of the hole 1735mm 2.
- Page 5 Classic Montage instructions Assembling 1. First unpack the stove and make sure everything is delivered and that nothing is missing or damaged. In case of damage please report to the carrier immediately 2. Remove the bottompart of the stove (main body) from the pallet and place it in place.
- Page 6 The threaded rods should go through the 2 holes on the smok pipe. Pic 6 6. Now you assemble the cast iron rings and steel tube as shown in Pic 7 and 8. 7. Assemble the crown 6pcs (if it is to be used) then place the ring on top of the stove. As showed in Pic 9 and fasten it.
- Page 7 Classic Montage Overview Hot air Crown Hot air Lion emblem Steel tube Smoke pipe Air control 1 Burning chamber Air control 3 Lever for open and close the grate Air control 2...
- Page 8 Burning instructions Starting to use Air supply Smell Westbo Classic is equipped with 3 air controls see page 7. At the first firing, a certain smell might occur. This depends on the coating. Fire up The smell disappears after a few fires.
- Page 9 Classic Info Technical data and measures Weight: 230 kg Output: 7,0 kW Efficiency : Connection size: Ø 5inch CE aproved: EN 13240 Distance to combustible wall...
- Page 10 Warranty Warranty Westbo of Sweden has a 10 year stove casting warranty and a 1 year warranty concerning natural wear and tear of articles of consumption such as firebricks, vermiculite, grates, glass, handles and rope seal. The warranty is only valid if the stove has been used in a proper way according to the instructions and will not be valid if any extreme or careless handling has occurred like overheating, wrong fuel or too much wood etc.
