4.4 Assembly
4.4.1
Assembling the Main Body
1.

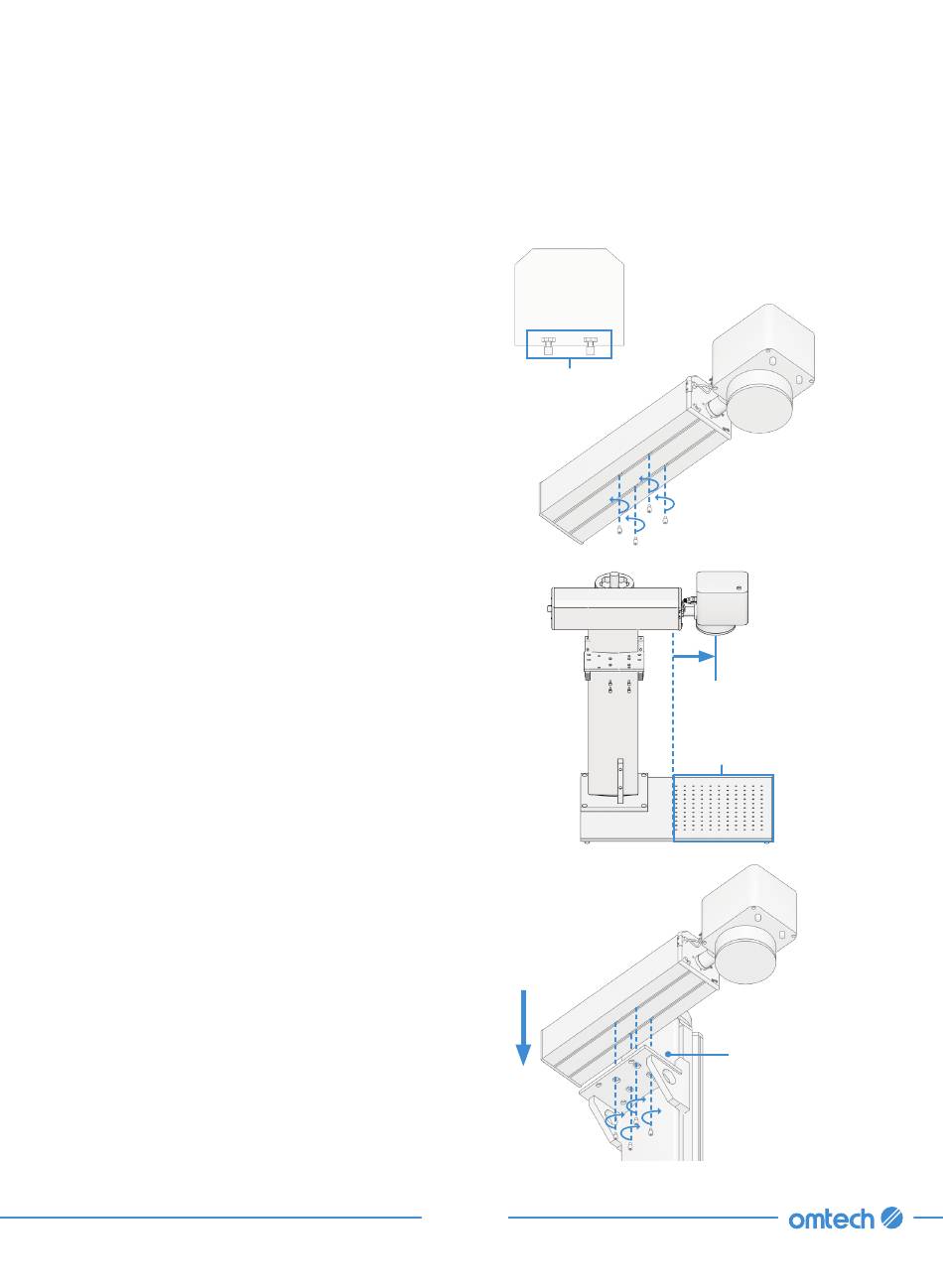

Install the laser arm onto the support column.
a. Remove the preinstalled bolts from the
laser arm.
b. Mount the laser arm so that its lens box
is positioned over the work area.
c. Align the four holes on the housing
with the holes in its mounting bracket.
d. Tighten it into place with the removed
bolts.
Provided Bolts
20
Work Area
Mounting Bracket
