3 Components

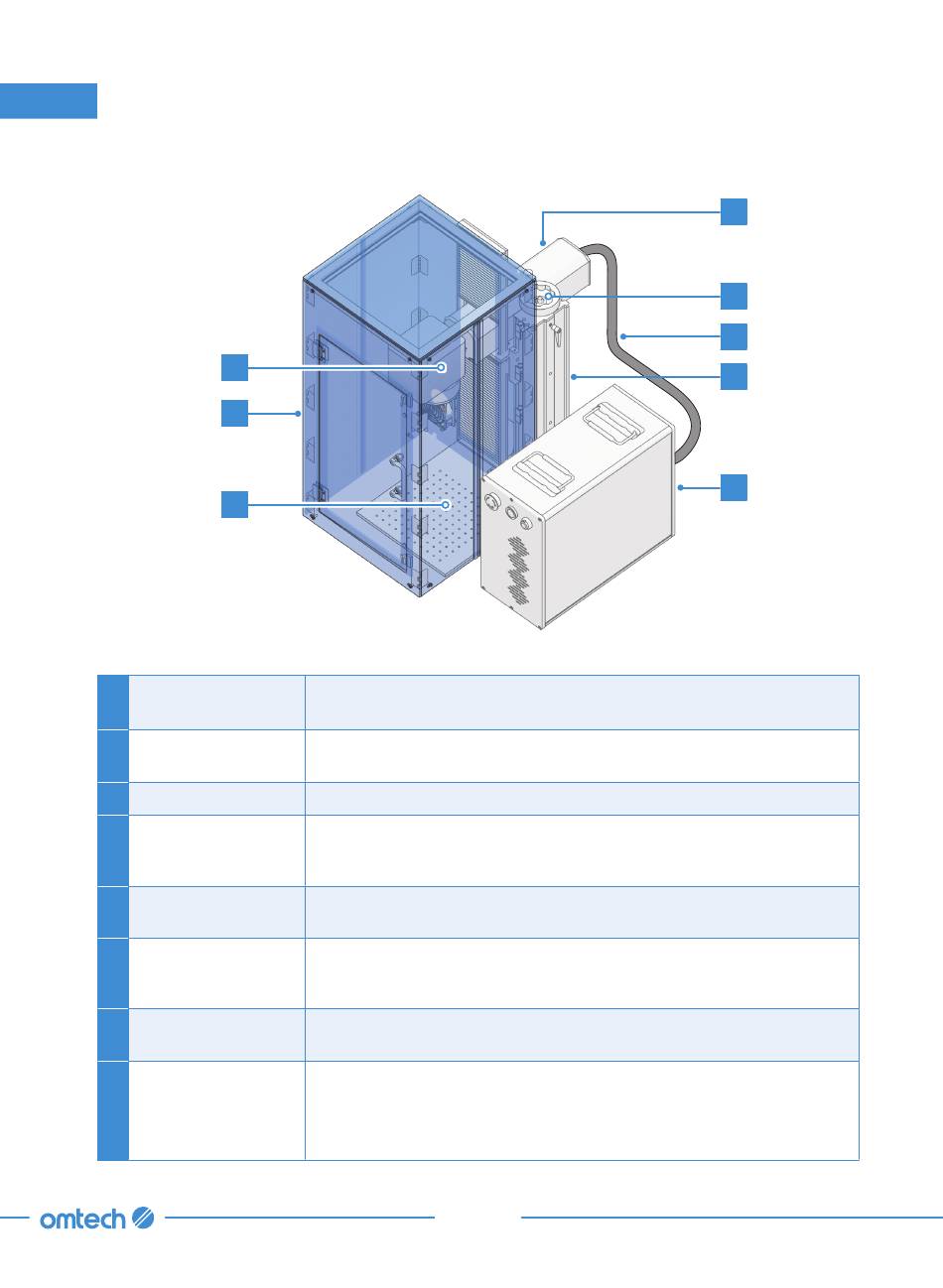

3.1 Main Parts
D
H
G
Height Adjustment
A
Knob
Support Column
B
Laser Arm
C
D Galvo Lens Head
E Laser Cable
F Main Tower
G Worktable
H Protective Cover
Moves the laser arm up and down for the correct alignment across
different materials and thicknesses.
Holds the laser arm and includes a precise graduated ruler for quickly
adjusting the height to work with different materials and thicknesses.
Secures the galvo lens and moves it along the support column.
The high-speed galvanometer scanning head focuses the laser beam
to a fine point, directing it to proper locations on the target material
during engraving.
Transmits laser beam emitted from the laser source, electrical power,
and control signals between the main tower and the laser arm.
H o u s e s t h e f i b e r l a s e r s o u rce, t h e m a i n b o a rd , a n d va r i o u s
connections, controlling the operation of the laser marking system. It
is equipped with a laser cable and a ground wire on the back.
Holds the target material. Optionally, use it with positioning bars for
more precise alignment.
Protects onlookers from the potentially harmful effects of the invisible
laser and its reflections. Its exhaust fan will put out gasses and
airborne dust from your worktable, sending it through your vent to a
window or air purifier.
13
C
A
E
B
F
