- Page 2 CONTENTS Pages 1. Important Safety Information .............. 2 - 3 2. Pack Contents Checklist ..............4 3. Part Description ................... 5 4. Electrical Requirement ................ 6 5. General Informations ................7 6. Installation Procedures ............... 8 - 9 7. User Maintenance ................10 8.
- Page 3 IMPORTANT SAFETY INFORMATION WARNING 4) The outlet point of this heater, hose and 1) Check the RCD in this heater (refer A) & the handshower act as a vent. They must not RCD at the main switch board (refer B) of the premise at least once a month.
- Page 4 CENTON and its technicians will also not be liable to reimburse back any damages or replacement cost for such removal works. SAF EGUAR DI NG THE ENVI RONMENT This product may not be treated as household waste.
- Page 5 PACK CONTENTS CHECKLIST Heater & Shower Accessories 1 x Pressure Relief Valve (Pre-installed) 2 x Isolation Barrier (Pre-installed) Install Transparent PVC Hose to Pressure Relief Valve by using cable tie provided Cable tie provided to install it to Pressure Relief Valve 1 x Transparent 1 x Installation &...

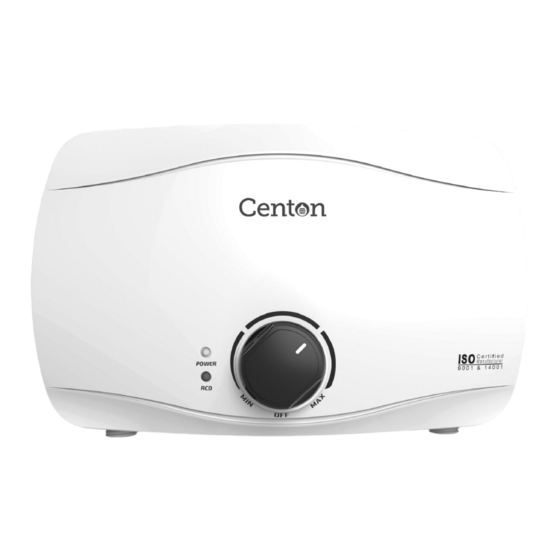

- Page 6 PART DESCRIPTION 11 12 13 14 MODEL : FORZA FR255EMP FUZZY LOGIC (RIGHT INLET - COPPER TANK - MULTIPOINT) Heater Cover Heater Inlet Power Indicator Heater Base RCD Indicator Indicator PCB Isolation Barrier Electronic Control Unit Temperature Control Knob Built-in RCD Pressure Relief Valve Terminal Block Auto Reset Thermostat...
- Page 7 ELECTRICAL REQUIREMENT WARNING THIS APPLIANCE MUST BE EARTHED Note: An approved type of Residual Current Device (RCD) of 10mA sensitivity should be installed in conjunction with the heater. Installation must be carried out by a qualified electrician. The shower heater unit must be connected to its own independent electrical circuit. Lead the power cable from the indoor fuse distributor board or Miniature Circuit Breaker (MCB) to an ‘ON/OFF’...
- Page 8 GENERAL INFORMATIONS PLUMBING Plumbing Installation must comply with Local Water Authority or Water Undertakers Bylaws and the Building Regulations. The minimum maintained operating pressure for satisfactory operation - 0.28bar (4psi). Maximum static pressure plastic tank 3.79bar / copper tank 6bar. Instantaneous Electric showers are normally connceted to the mains cold water supply can be taken from a cold water storage cistern provided there is a minimum to height of 1 meter (i.e.
- Page 9 INSTALLATION PROCEDURES WATER CONNECTION Water Tank a) All plumbing works should be completed before proceeding to electrical wiring Minimum connections. 1.5m b) The water to the heater MUST be fed from a cold gravity water storage tank. c) Note that a height of 1.5 meter from the top of heater to the bottom of Main Water...
- Page 10 INSTALLATION PROCEDURES TEST RUN HEATER To check if the heater is functioning properly, turn the electric water supply. Then turn the Temperature Control Knob of the heater ON, Power Indicator light will light up. The shower will be warm within a few seconds.
- Page 11 USER MAINTENANCE OPERATION CAUTION! : ALWAYS ENSURE THAT HEATER TANK IS FILLED WITH WATER (especially after installation, servising/repairs of water supply) BEFORE SWITCHING ON THE ELECTRICAL SUPPLY. THIS STEP TO PREVENT DAMAGE TO THE HEATING ELEMENT. 1. Switch on the heater switch located outside the bathroom. The heater RCD Indicator light will turn ON.
- Page 12 QUALITY ASSURED All Centon heaters are tested before leaving the factory. With proper care and usage, the heaters are durable, safe, and reliable. Use only accessories recommended by the manufacturer. WARNING 1. The appliance must be earthed. Do not use plumbing cement on connection. If necessary, use only thread or sealant tape.
- Page 13 SPECIFICATION Model Electrical Rating – Available from 5.5kW - 8.0kW, 220-240Vac, 50/60Hz Minimum Water Flow Rate – 2 liters/ min Minimum Water Inlet Pressure (close outlet) – 20kPa (0.2bar / 2.9psi) Maximum Water Inlet Pressure (close outlet) – 0.6MPa (6bar / 87psi) Shower Temperature Control –...
- Page 14 SPECIFICATION SPECIFICATION Model Electrical Rating – Available from 5.5kW - 8.0kW, 220-240Vac, 50/60Hz Minimum Water Flow Rate – 2 liters/ min Minimum Water Inlet Pressure (close outlet) – 20kPa (0.2bar / 2.9psi) Maximum Water Inlet Pressure (close outlet) – 0.6MPa (6bar / 87psi) Shower Temperature Control –...
