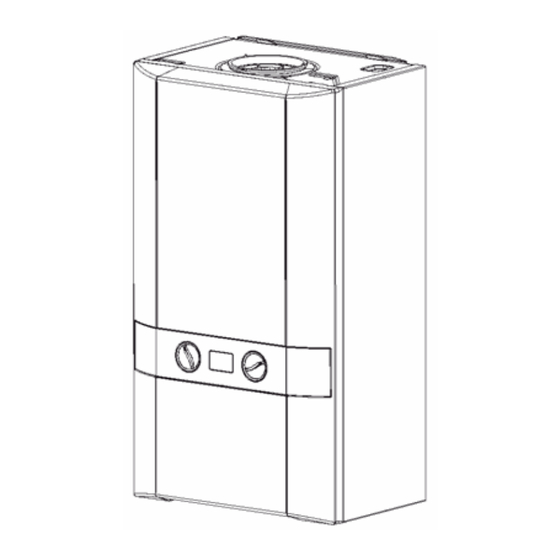

INSTALLATION AND SERVICING
Models covered by these instructions
15IE
18IE
24IE
30IE
LOGIC SYSTEM
15IE 18IE 24IE 30IE
When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we
require.
Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
For the very latest copy of literature for specification and maintenance practices visit our website www.idealboilers.com where you can
download the relevant information in PDF format.
May 2015 UIN 212125 A01
INSTALLATION AND SERVICING
ERP DATA
Condensing Boiler
Low Temperature Boiler
B1 Boiler
Cogeneration Space Heater
Equipped with a
Supplementary Heater
Combination Heater
Nominal Heat Output for Space Heating
Full Load
Part Load
Auxiliary Electricity Consumption
Full Load
Part Load
Standby
Seasonal Space Heating Energy Efficiency
Full Load
Part Load
Standby Loss
Ignition
Emissions
Annual Energy Consumption
Sound Power Level, Indoors
(41-750-44) Natural Gas
(41-750-45) Natural Gas
(41-750-46) Natural Gas
(41-750-47) Natural Gas
SYMBOL
UNITS
15
n/a
n/a
yes
n/a
n/a
no
n/a
n/a
no
n/a
n/a
no
n/a
n/a
no
n/a
n/a
no
P
kW
15
4
P
kW
4.9
1
el
kW
0.021
max
el
kW
0.012
min
P
kW
0.005
SB
%
89.7
η4
η1
%
97.7
P
kW
0.055
stby
P
kW
0
ign
NO
mg/KWh
27
x
Q
GJ
46.0
HE
L
dB
41
WA
MODEL
18
24
yes
yes
yes
no
no
no
no
no
no
no
no
no
no
18
24
5.8
7.8
9.8
0.026
0.042
0.048
0.013
0.013
0.013
0.005
0.005
0.005
89.6
89.6
89.8
97.4
98
0.055
0.055
0.055
0
0
24
34
56.0
74.0
93.0
42
45
30
no
no
no
no
no
30
98
0
36
45
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ideal Boilers 15IE
Summary of Contents for Ideal Boilers 15IE
- Page 1 30IE (41-750-47) Natural Gas LOGIC SYSTEM 15IE 18IE 24IE 30IE When replacing any part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal.
- Page 3 GENERAL Table 1 - General Data Ideal Logic System IE 15IE 18IE 24IE 30IE Gas supply 2H - G20 - 20mbar Gas Supply Connection 15mm copper compression Injector Size (mm) 4.15 4.15 4.15 4.65 Central Flow Connection 22mm copper compression...
- Page 4 Natural Gas Only Boiler Size G.C. Appliance PI No. (Benchmark No.) 15IE 41-750-44 86 CL 08 18IE 41-750-45 86 CL 08 24IE 41-750-46 86 CL 08 30IE 41-750-47 86 CL 08 Destination Country: GB, IE CONTENTS Air Supply Benchmark Commissioning Checklist...
- Page 5 Boiler interlock For all boilers Flushing to BS.7593 Inhibitor Central heating mode Heat inputto be calculated Burner operating pressure Central heating flow temp. measure and record Central heating return temp. measure and record For combination boilers only Scale reducer Hot water mode Heat input to be calculated Max.
- Page 6 Data Plate The boiler model and serial number can be located on the bottom of the boiler casing, shown in Frame 1 - Water & Gas Connection Diagram. SAFE HANDLING This boiler may require 2 or more operatives to move it to its installation site, remove it from its packaging base and during movement into its installation location.
- Page 7 Ideal boilers in writing. If in doubt please enquire. Any direct connection of a control device not approved by Ideal Boilers could invalidate the certification and the normal appliance warranty. It could also infringe the Gas Safety Regulations and the above regulations.
- Page 8 A compartment used to enclose the boiler should be designed and constructed specially for this purpose. An existing cupboard or compartment may be used, provided that it is modified for the purpose. In both cases, details of essential features of cupboard / compartment design, including airing cupboard installation, are to conform to the following: BS 6798 (No cupboard ventilation is required - see "Air Supply"...
- Page 9 2. It is important that the position of the terminal allows the free passage of air across it at all times. 3. Minimum acceptable spacing from the terminal to obstructions and ventilation openings are specified in Table 4. Where the lowest part of the terminal is fitted less than 2m (6"6") above a balcony, above ground or above a flat roof to which people have access then the terminal MUST be protected by a purpose designed guard.
- Page 10 BOILER CONTROL INTERLOCKS Central heating systems controls should be installed to ensure the boiler is switched off when there is no demand for heating, in compliance with Building Regulations. Heating systems utilising full thermostatic radiator valve control of temperature in individual rooms should also be fitted with a room thermostat controlling the temperature in a space served by radiators not fitted with such a valve.
- Page 11 Front Clearance The minimum front clearance when built in to a cupboard is 5mm from the cupboard door but 450mm overall clearance is still required, with the cupboard door open, to allow for servicing. * Bottom Clearance Bottom clearance after installation can be reduced to 5mm. This must be obtained with an easily removable panel, to enable the consumer to view the system pressure gauge, and to provide the 100mm clearance required for servicing.
- Page 12 11.9 14.0 12.5 14.7 15.6 18.4 18.8 22.1 For other system volumes 0.063 0.074 multiply by the factor across Model 15IE 18IE 24IE 30IE Max CH output 24.2 30.3 (Btu/h) (51,300) (61,600) (82,600) (103,300) Water flow rate l/min 10.7 17.2...
- Page 13 Ideal Boilers recommend Water Treatment in accordance with the Benchmark Guidance Notes on Water Treatment in Central Heating Systems. If water treatment is used Ideal Boilers recommend only the use of SCALEMASTER GOLD 100, FERNOX, MBI, ADEY MC1, SENTINEL X100 or CALMAG CM100 inhibitors and associated water treatment products, which must be used in accordance with the manufacturers"...
- Page 14 Woking Surrey GU21 5RZ +44 (0) 870 601 5000 Sentinel Performance Solutions The Heath Business & Technical Park Runcorn Cheshire WA7 4QX Tel: 0800 389 4670 www.sentinel-solutions.net Scalemaster Water Treatment Products Emerald Way Stone Staffordshire ST15 0SR Tel: +44 (0) 1785 811636 Calmag Ltd.
- Page 15 6 UNPACKING The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic flue assembly for rear or side flue outlet in Pack B is suppled as a separate order. Unpack And Check The Contents. Pack A Contents Boiler Hardware Pack Box Wall Mounting Plate...
- Page 16 HARDWARE PACK CONTENTS Gas Valve Pack 1. Pipe - Gas Inlet 2. Washer - Gas (blue) 3. Gas Cock Return Valve Pack 1. Pipe CH Return 2. Washer CH 3. Valve Return Accessory Pack 1. Screw (x2) 2. Wallplug (x2) 3.
- Page 17 3. Valve Flow (with gauge) 7 UNPACKINGCONT'D NOTE: This flue system incorporates a removable flue outlet nose that utilises a push fit location system. This enables the installation of deflector, high level or balcony outlet flue kits without the removal of the whole "B" pack terminal. The appliance must not be operated without the desired outlet nose correctly fitted in place.
- Page 18 9 WALL MOUNTING TEMPLATE The wall mounting template is located on the internal protective packaging. The template shows the position of the fixing and rear flue centre holes for a standard installation Care MUST be taken to ensure the correct holes are drilled. 1.
- Page 19 11 FITTING THE WALL MOUNTING PLATE Screw the wall mounting plate to the wall using 2 wall plugs (previously fitted) with the 2 screws provided. Choose one of the 2 sets of slots in left and right bank. Ensuring that at least one of the screws is fitted into a top slot. 12 MOUNTING THE BOILER 1.
- Page 20 IMPORTANT: The boiler must be installed in a vertical position in accordance to the installation instructions. FLUE KITS Telescopic Flue"B" Pack - contains: Flue turret, telescopic flue incorporating a terminal and rubber wall seals. Horizontal Flue Terminal (600mm long) "B" Pack - contains: Flue turret, non telescopic single piece flue incorporating a terminal and rubber wall seals.
- Page 21 (600mm long) B Pack Telescopic Flue B Pack Horizontal Flue Terminal (1000mm long) B Pack Horizontal Flue Terminal (1000mm long) B Pack cut 75mm For Flue lengths between 658 & 708 use a Horizontal Flue Terminal (1000mm long) B Pack, cut 75mm off the end of the terminal section of the telescopic flue only.
- Page 22 TELESCOPIC FLUE B PACK SHOULD ONLY BE ADJUSTED FOR USE WITHIN ITS SPECIFIED RANGE AND MUST NOT BE CUT HORIZONTAL FLUE TERMINAL (1000MM LONG) B PACK (TELESCOPIC) MUST ONLY BE CUT IF REQUIRED FLUE LENGTHS ARE BETWEEN 602 & 652MM. THIS WILL REQUIRE 75MM TO BE CUT OFF THE TERMINAL END OF THE 1000MM TELESCOPIC FLUE. ALL OTHER LENGTHS OBTAINED USING "D"...
- Page 23 16 INSTALLING THE FLUE FITTING FLUE THROUGH THE WALL 1. Measure wall thickness and add 14mm. 2. Measure from the outer terminal lip towards the end of outer flue, place a small location mark at the dimension acquired at point 1. 3.
- Page 24 FITTING THE TURRET - Ensure the condense trap/siphon is filled with water 1. Ensure the rubber seal is fitted correctly on the appliance manifold and that all flue seals are undamaged. 2. Hold the flue firmly and push the turret on until it has travelled 30mm on to the flue pipe and is fully engaged. Make sure the flue has not rotated or moved forward during fitting and the flue seam is upper most.
- Page 25 18 ROOF FLUE KIT CONTENTS / OPTIONS 19 FLUE TERMINAL POSITION The terminal should be positioned so that products of combustion can safely disperse at all times. Pluming may occur at the termination so, where possible, terminal positions where this could cause a nuisance should be avoided.
- Page 26 Where two or more vertical fanned draught chimney configurations terminate in close proximity at the same height, they shall be separated by at least 1 500mm. Where any vertical outlet is more than 300mm above the other, then they shall be separated by at least 1500mm. Where any vertical fanned draught chimney configuration outlet is within 2000mm measured horizontally of an opening window, then it shall be at least 300mm above the opening.
- Page 27 Determine the correct height that the flue should terminate above the roof. If after calculating or measuring the overall flue height from the top of the boiler, it is necessary to cut both pipes of assembly A, then ensure they are cut equally leaving the inner flue tube longer than the outer air tube as supplied.
- Page 28 6. If the last extension duct requires cutting, measure "X", the distance (outer ducts), between the duct and the terminal and add 100 mm to this dimension. This gives the length of the last extension duct. NOTE: Check the position of the inner flue duct relative to the outer duct on the assembled extension duct(s) and ensure the terminal flue duct is cut longer than the air duct to ensure engagement in the final flue duct seal.
- Page 29 All condensate pipework should conform to the following: a. Where a new or replacement boiler is being installed, access to an internal "gravity discharge" termination should be one of the main factors considered in determining boiler location. b. Plastic with push fit or solvent connections. c.
- Page 30 Figure 2 - Connection of a Condensate Drainage Pipe Downstream of a Sink, Basin, Bath or Shower Water Trap to Internal Soil Vent Stack 22 CONDENSATE DRAIN - CONT'D Figure 3 - Connection of a Condensate Pump Typical Method (see manufacturers detailed instructions) Figure 4 - Connection of condensate Drainage Pipe to External Soil &...
- Page 31 Figure 7 - Connection of a Condensate Drainage Pipe to an External Purpose Made Soak Away. 23 CONNECTIONS & FILLING NOTE: Ensure all boss blanking plugs are removed before connecting hardware. Each valve must be fitted to the correct boss as shown in the picture.
- Page 32 FILLING IMPORTANT - When Filling: A. Ensure the dust cap on air vent located at the rear of the pump chamber is slightly unscrewed. B. When filling, there may be a slight water leak from the air vent therefore electrical connections should be protected. 1.
- Page 33 A mains supply of 230Vac ~ 50 Hz is required. The fuse rating should be 3A. All external controls and wiring must be suitable for mains voltage. Wiring external to the boiler MUST be in accordance with the current I.E.E. (BS.7671) Wiring Regulations and any local regulations. Wiring should be 3 core PVC insulated cable, not less than 0.75mm²...
- Page 34 26 REPLACING PRE-FITTED MAINS CABLE If it is necessary to use an alternative mains cable to the one prefitted then use the following guide. Replacement wiring should comply with notes in Frame 1. Isolate the mains supply to the boiler. 2.
- Page 35 27 EXTERNAL ELECTRICAL CONTROLS Wiring External To The Boiler The fuse rating should be 3A. Wiring external to the boiler MUST be in accordance with the current I.E.E. (BS.7671) Wiring Regulations and any local regulations. Frost Protection If parts of the pipework run outside the house or if the boiler will be left off for more than a day or so then a frost thermostat should be wired into the system.
- Page 36 29 COMMISSIONING AND TESTING A. Electrical Installation 1. Checks to ensure electrical safety should be carried out by a competent person. 2. ALWAYS carry out the preliminary electrical system checks, i.e. earth continuity, polarity, resistance to earth and short circuit, using a suitable test meter.
- Page 37 The combustion for this appliance has been checked, adjusted and preset at the factory for operation on the gas type defined on the appliance data plate. ###DO NOT## adjust the air/gas ratio valve. Having checked: - That the boiler has been installed in accordance with these instructions. - The integrity of the flue system and the flue seals, as described in the Flue Installation section.
- Page 38 NOTE: Valves shown are in the open position. 1. Check that the system has been filled and that the boiler is not airlocked. Ensure the automatic air vent cap is open. Refer to Frame NOTE: It is important the burner is not operated before the system is fully vented of air. If it is necessary to operate the appliance pump to assist venting of the air this must be done with the gas service cock turned off.
- Page 39 NOTE: Boiler frost protection - boiler fires if temperature is below 5 degrees C. NOTE: The boiler incorporates a fan overrun cycle which ###MUST NOT## be prematurely interrupted by isolation of the mains electricity supply. 31 GENERAL CHECKS Make the following checks for correct operation: CENTRAL HEATING (CH) MODE 1.
- Page 40 33 HANDING OVER After completing installation and commissioning of the system the installer should hand over to the householder by the following actions: 1. Hand the User Instructions to the householder and explain his/ her responsibilities under the relevant national regulations. 2.
- Page 41 CLEANING PROCEDURE NOTE: In order to carry out either servicing or replacement of components the boiler front panel must be removed. Refer to Frame 1. Clean the main burner. Refer to Frame 2. Clean the heat exchanger & condensate trap/siphon.Refer to Frames 38 &...
- Page 42 REMOVAL 1. Loosen the two screws retaining the front panel. 2. Pull the two spring clips down to disengage and pull panel forward and upward and remove. REPLACEMENT 3. Hook the panel onto the top retaining clips. 4. Push the panel until the 2 bottom spring clips engage ensuring the 4 control knobs line up with the holes in the front panel. 5.
- Page 43 37 BURNER REMOVAL AND CLEANING 1. Ensure the sump is fully drained 2. Undo the two screws and remove the sump cover retaining the lower flue manifold. 3. Lift the manifold to clear the bottom sealing gasket and remove manifold. 4.
- Page 44 38 CLEANING THE CONDENSATE TRAP/SIPHON 1. Pull off the rubber pipe at the sump drain. 2. Disconnect the condensate drain pipe. 3. Turn the siphon clock wise to disengage and lift to remove. NOTE: Keep siphon upright when removing 4. Clean siphon with water. 5.
- Page 45 39 CLEANING THE HEAT EXCHANGER NOTE: Ensure the condensate trap/siphon is fully drained before cleaning. Refer to Frame 1. Remove ignition and flame detection electrodes.Refer to Frames 46 & 47. 2. It is advisable to replace the sump cover prior to the water flush process. 3.
- Page 46 2. Refit the burner ensuring the sealing gasket is correctly positioned and free from damage (tighten the 4 fixing screws in the sequence shown below). 3. Refit the fan / venturi assembly ensuring the retaining tabs are correctly positioned and the sealing gasket is correctly positioned and free from damage.
- Page 47 THE BOILER MUST NOT BE OPERATED WITHOUT THE FRONT PANEL FITTED 42 FAN REPLACEMENT 1. Refer to Frame 2. Disconnect the electrical leads from the fan. 3. Remove the clip from the gas control valve outlet. 4. Remove the extended nut retaining the fan mounting bracket. 5.
- Page 48 43 BURNER INJECTOR REPLACEMENT 1. Refer to Frame 2. Disconnect the electrical leads from the fan. 3. Remove the clip from the gas valve to venturi pipe and ease the pipe upwards, rotate and ease down to remove. 4. Loosen the screw retaining the fan mounting bracket. 5.
- Page 49 45 RETURN THERMISTOR REPLACEMENT 1. Refer to Frame 2. Unclip the return thermistor from the return pipe and withdraw it from the boiler. 3. Disconnect the electrical leads from the thermistor. 4. Reconnect the electrical lead to the new thermistor and reassemble in reverse order, ensuring that the thermistor is securely fitted to the pipe on the thermistor locator tab as shown.
- Page 50 46 IGNITION ELECTRODE REPLACEMENT 1. Refer to Frame 2. Remove the burner. Refer to Frame 3. Unplug the ignition lead from the electrode. 4. Remove the earth lead from the ignition electrode. 5. Remove the 2 screws holding the ignition electrode to the combustion chamber. 6.
- Page 51 47 FLAME DETECTION ELECTRODE REPLACEMENT 1. Refer to Frame 2. Remove the burner. Refer to Frame 3. Unplug the flame detection lead from the electrode. 4. Remove the 2 screws retaining the detection electrode. 5. Remove the electrode. 6. Fit the new flame detection electrode, using the new gasket supplied. 7.
- Page 52 48 SPARK GENERATOR REPLACEMENT 1. Refer to Frame 2. Disconnect the leads from the spark generator. 3. Remove the single M5 Screw securing the spark generator to the gas valve mounting bracket. 4. Fit the new spark generator and reassemble in reverse order ensuring the two earth leads are correctly replaced. 5.
- Page 53 1. Refer to Frame 2. Unplug the electrical lead connection from the gas control valve. 3. Disconnect the earth wire. 4. Remove the outlet gas valve clip and slide the pipe upwards 5. Undo the gas inlet pipe union at the inlet to the gas valve. 6.
- Page 54 51 MAIN PCB REPLACEMENT NOTE: Production boiler PCBs are factory pre-set to operate for boiler range and output, but when ordering Primary PCB as a spare, an additional Boiler Chip Card (BCC) MUST also be purchased for your specific boiler range and output. NOTE: Fit the earth strap provided with the PCB to your wrist and secure to a suitable earth on the boiler chassis.
- Page 55 52 USER CONTROL PCB REPLACEMENT NOTE: Fit the earth strap provided with the PCB to your wrist and a suitable earth on the boiler chassis. 1. Refer to Frame 2. Remove the main PCB, refer to Frame 3. Unclip the PCB and lift to clear the mounting posts. 4.
- Page 56 6. Check operation of the boiler.Refer to Frames 30 & 31. 53 DRAINING THE BOILER CENTRAL HEATING CIRCUIT 1. Refer to Frame 2. Close all the CH water isolating valves on the boiler inlet. 3. To drain the primary heat exchanger circuit: Open the drain valve and attach a length of hose to the CH drain point. 4.
- Page 57 54 PRESSURE GAUGE REPLACEMENT 1. Refer to Frame 2. Drain the heating system. Refer to Frame 3. Unscrew the pressure gauge and discard. 4. Fit new pressure gauge, using suitable jointing compound. 5. Refill the boiler. Refer to Frame 6. Check operation of the boiler.Refer to Frames 30 &...
- Page 58 56 PUMP AUTOMATIC AIR VENT REPLACEMENT 1. Refer to Frame 2. Drain the boiler. Refer to Frame 3. Remove the expansion vessel. Refer to Frame 4. Firstly, increase access area by disconnecting the 22mm pipe connection at top of pump chamber and bottom of heat exchanger and remove pipe Refer to Frame 55 (no's 5,6 &...
- Page 59 2. Drain the boiler. Refer to Frame 3. Disconnect the two electrical leads from the pump. 4. Remove the 4 Allen screws retaining the pump head. 5. Remove the pump head. 6. Fit the new pump head. 7. Reassemble in reverse order. 8.
- Page 60 1. Refer to Frame 2. Drain down the boiler. Refer to Frame 3. Unplug the electrical lead. 4. Unscrew the thermistor (to facilitate removal a 13mm socket spanner should be used). 5. Fit the new thermistor using the sealing washer provided. 6.
- Page 61 20. Check operation of the boiler.Refer to Frames 30 & 31. 61 EXPANSION VESSEL RECHARGING & REPLACEMENT RECHARGING 1. Remove the charge point cover. 2. Recharge the tank pressure to 0.75 bar. 3. Re-assemble in reverse order 4. Check operation of the boiler.Refer to Frames 30 &...
- Page 62 62 BOILER SEALING PANEL SEAL REPLACEMENT 1. Refer to Frame 2. Remove the old seal from the casing and thoroughly clean the casing surfaces. 3. Fit the new seal, ensuring the bottom joint provides an air tight seal. 4. Reassemble in reverse order. 5.
- Page 63 NOTE: Production boiler PCBs are factory pre-set to operate for boiler range and output, but when ordering Primary PCB as a spare, an additional Boiler Chip Card (BCC) MUST also be purchased for your specific boiler range and output. **If PCB replaced as a spare ensure that the BCC (boiler chip card - small plastic part) is fitted to the PCB otherwise replace PCB. RESTART PROCEDURE - To restart boiler, turn mode knob to restart position and immediately turn knob back to required setting.
- Page 64 64 ALTERNATING 'L' AND '1' - FLOW TEMPERATURE OVERHEAT LOCKOUT OR NO WATER FLOW LOCKOUT RESTART PROCEDURE - To restart boiler, turn mode knob to restart position and immediately turn knob back to required setting. 65 ALTERNATING 'L' AND '2' - IGNITION LOCKOUT NOTE: *Due to the wave form of the rectified voltage, the reading will vary depending on the type of meter used to measure the value.
- Page 65 68 ALTERNATING 'F' AND '3' - FAN FAULT 69 ALTERNATING 'F' AND '4' - CONTROL / NO FLOW THERMISTOR FAULT 70 ALTERNATING 'F' AND '5' - RETURN THERMISTOR FAULT 71 ALTERNATING 'F' AND '6' - OUTSIDE SENSOR FAULT...
- Page 66 72 ALTERNATING 'F' AND 'D' - NO WATER FLOW 73 ALTERNATING 'C' AND '2' - BCC FAULT (BOILER CHIP CARD) RESTART PROCEDURE - To restart boiler, turn mode knob to restart position and immediately turn knob back to required setting. 74 NO CH OPERATION...
- Page 67 75 NO DISPLAY 76 NO HW SPARE PARTS...
- Page 68 When replacing any part on this appliance use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Ideal. Failure to do so could affect safety or performance of this appliance.
- Page 70 BENCHMARK COMMISSIONING AND SERVICING SECTION It is a requirement that the boiler is installed and commissioned to the manufacturers instructions and the data fields on the commissioning checklist completed in full. To instigate the boiler guarantee the boiler needs to be registered with the manufacturer within one month of the installation. To maintain the boiler guarantee it is essential that the boiler is serviced annually by a Gas Safe registered engineer who has been trained on the boiler installed.
- Page 71 5. The boiler will remain at minimum rate for 5 minutes before reverting to normal operation.
- Page 73 Ideal Boilers Ltd., P.O. Box 103, National Ave, Kingston upon Hull, HU5 4JN. Telephone: +44 (0)1482 492 251 Fax: +44 (0)1482 448 858. Registration No. London 322 137. Ideal Boilers Ltd., pursues a policy of continuing improvement in the design and performance of its products. The right is therefore reserved to vary specification without notice.
