Digisol DG-WM5307DOAC User Manual
  1. Manuals
  2. Brands
  3. Digisol Manuals
  4. Network Hardware
  5. DG-WM5307DOAC
  6. User manual
Digisol DG-WM5307DOAC User Manual

Digisol DG-WM5307DOAC User Manual

802.11ac/n outdoor dual band wireless ap, poe
Hide thumbs

Advertisement

Quick Links

Download this manual
DG-WM5307DOAC User Manual
DG-WM5307DOAC
802.11ac/n outdoor Dual Band wireless AP, POE
User Manual
V1.0
2017-02-21
As our products undergo continuous development the specifications are subject to change without prior notice
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG-WM5307DOAC and is the answer not in the manual?

Questions and answers

Related Manuals for Digisol DG-WM5307DOAC

Summary of Contents for Digisol DG-WM5307DOAC

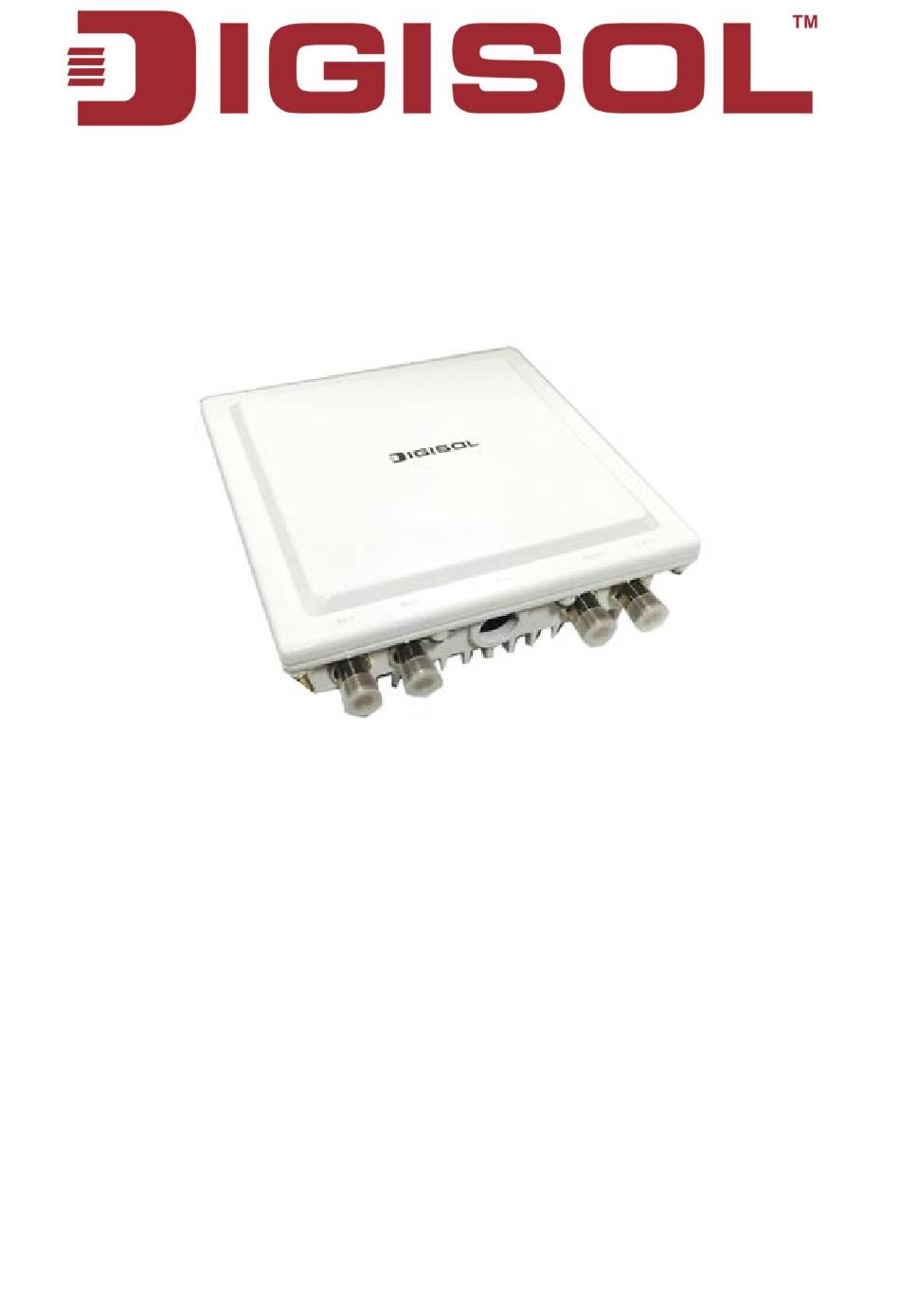

  • Page 1 DG-WM5307DOAC User Manual DG-WM5307DOAC 802.11ac/n outdoor Dual Band wireless AP, POE User Manual V1.0 2017-02-21 As our products undergo continuous development the specifications are subject to change without prior notice...
  • Page 2 DG-WM5307DOAC User Manual COPYRIGHT Copyright 2017 by Digisol Systems Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company.
  • Page 3 DG-WM5307DOAC User Manual INDEX Chapter 1 Introduction .............. 6 1.1 Overview ..................... 6 1.2 Get Familiar with your new indoor wireless Access Point ..... 6 1.3 Installation Precautions ..............7 1.4 Installation Environment Requirements .......... 7 1.5 Equipment Accessories ..............7 1.6 Front View ..................
  • Page 4 DG-WM5307DOAC User Manual 3.1.2 Wireless Settings ..................26 3.1.3 Explanation ....................26 3.2 Statistic for Transmitting and Receiving IP Traffic ....... 26 3.2.1 Device Information Status ............... 26 3.2.2 Transmit/Receive Packets ............... 27 3.3 Client Associations................27 Chapter 4 Advance Configuration ......... 29 4.1 Ethernet Settings ................
  • Page 5 DG-WM5307DOAC User Manual 6.2.2 Configuration Steps ................. 46 6.2.3 Test the Configuration Results ............... 47 6.3 WPA2-PSK Wireless Access ............48 6.3.1 Networking Requirements............... 48 6.3.2 Configuration Steps ................. 48 6.3.3 Test the Configuration Results ............... 49 6.4 WPA2-Enterprise Wireless Access ..........50 6.4.1 Networking Requirements...............
  • Page 6 DG-WM5307DOAC User Manual Chapter 1 Introduction 1.1 Overview For the network administrator to configure and maintain to devices, this device provides WEB network management function. The administrator can use WEB interface to manage and maintain the network devices visually. The running environment of Web network management is shown in fig 1-1.
  • Page 7 DG-WM5307DOAC User Manual 1.3 Installation Precautions Only allow the professionals installing and disassembling the device and its annex. Before the installation and configuration, please read the related security introduction carefully.  Adopt the appropriate security measures to avoid the personal injury and equipment damage.
  • Page 8 DG-WM5307DOAC User Manual Package Contents Before you start using this AC, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items:  DG-WM5307DOAC (1 No.)  Installation Kit (1 No.) ...
  • Page 9 DG-WM5307DOAC User Manual to reset to factory default 5- PWR Light always On: system normal 6- ETH Light Always On: Ethernet connection stable Light Flash: Data is transferring 7- 2.4G 2.4G RF Indicator Light always on: Wireless connection stable Light flash: Data is transferring...
  • Page 10 DG-WM5307DOAC User Manual 1.6.1 Preparation for Installation Installation Precautions  Before installation, the personnel must take the necessary safety measures to ensure personal safety.  Do not put AP and Tool on walkways to avoid damage.  Device support pole installation, maximum pole diameter range is 50mm.
  • Page 11 DG-WM5307DOAC User Manual Installation of equipment to the mounting bracket Install "L-shaped" mounting kit to the device by using M6 studs and nuts come with the packaging. Install U-turn through the hoop clip code, "L-shaped" mounts, then use flat washers, spring washers, nuts, mount the device to the rod.
  • Page 12 DG-WM5307DOAC User Manual Connecting Cables Loosen the screw at lower left corner of the equipment (next to ground identification), connect the ground wire screw and equipment, and the other end connected to earth ground wire to complete the installation.
  • Page 13 DG-WM5307DOAC User Manual Connecting feeder, the feeder antenna is connected to the device, and tighten it. Unscrew and remove the gland; Install the waterproof connectors with network cable; Connect RJ45 Ethernet interface into the device, in strict accordance with the order Then Tighten joint body;...
  • Page 14 DG-WM5307DOAC User Manual Power Up Equipment Connect to POE switches or 48V POE power adapter Use network cable to connect device network port to 48V POE power adapter port, POE access switch. 1.6.2 Checking after power Check the LED of AP works normally after connecting the power.
  • Page 15 DG-WM5307DOAC User Manual 1.7 Login Web Network Management User can use the default information directly to login the web interface of the device. The default Web login information includes: User name: admin Password: admin IP address of the device: 192.168.1.10 The steps of web login: (1) Connect the device to PC.
  • Page 16 DG-WM5307DOAC User Manual Fig 1-1 Web network management login page 1.8 Quit Web Network Management Click the “log off” button on the upper right corner on the Web network management page to quit.
  • Page 17 DG-WM5307DOAC User Manual 1.9 Introduction to Page Layout of Web Network Management Web network management page includes: navigation bar, configuration area and help area as shown in fig 1-2. Fig 1-2 Initial page of Web network management Navigation bar: Organize the Web network management menu by using the navigation tree.
  • Page 18 DG-WM5307DOAC User Manual 1.10 Introduction Network Management Function The Web network management function explanation is given below in table 1-2: Table 1-2 Web network management function explanation Menu/label Function explanation Shows the AP address (IP address and MAC address), version (firmware version) and device information. The...
  • Page 19 DG-WM5307DOAC User Manual related configuration. Modes of AP Configure the modes and IP address of AP. Configuration Configure to restart AP and restore it to the factory management configuration. Import and export the files. System maintenance Configure the firmware upgradation of AP.
  • Page 20 DG-WM5307DOAC User Manual (5) After the software version of the device has changed, we suggest to clear the cache data of the browser first during login the device through web network management. Otherwise, the content of web network management may not show properly.
  • Page 21 DG-WM5307DOAC User Manual Chapter 2 Basic Configuration Shows the basic configuration of the device and it includes the following content: Review description of this access point, Device information; Administrator password; Serial settings and System settings.
  • Page 22 DG-WM5307DOAC User Manual 2.1 Detailed Explanation of settings 2.1.1 Description of this Access Point Field Description IP Address Shows the IP address of the current device. IPv6 Address Shows the IPv6 address of the current device. IPv6 Autoconfigured Global Addresses Shows the IPv6 auto configured global address of the current device.
  • Page 23 DG-WM5307DOAC User Manual 2.1.3 Administrator Password Field Description Current password Input the current administrator password. New password Input the new password. Confirm new password Input the new password again and it must be same as the above new password. 2.1.4 Serial Settings...
  • Page 24 DG-WM5307DOAC User Manual Chapter 3 Current Status The current status includes network information, statistic of transmitting and receiving packets and the client associations. 3.1 Network Information 3.1.1 Wired Settings Field Description MAC address Shows the MAC address of the current device.
  • Page 25 DG-WM5307DOAC User Manual IP address Shows the IP address of the current device. Subnet mask Shows the subnet mask of the current device. IPv6 Address Shows the IPv6 address of the current device. Static IPv6 Address Prefix Length Shows the prefix length of static IPv6 address.
  • Page 26 DG-WM5307DOAC User Manual 3.1.2 Wireless Settings Field Description MAC address Shows the MAC address information of RF1 or 2. Mode Shows the wireless mode information of RF1 or 2. Channel Shows the channel information of RF1 or 2. 3.1.3 Explanation Click the “Edit”...
  • Page 27 DG-WM5307DOAC User Manual networks on the same AP. VLAN ID is configured in VAP label. Network name (SSID) Wireless network name. it is also named as SSID which is used to mark the WLAN. SSID is configured in VAP label.
  • Page 28 DG-WM5307DOAC User Manual Field Description Network The SSID of the client associated network. Station The MAC address of the associated client. Status Authenticated The status of authenticated means the IEEE 802.11 authentication status. Associated The status of associated means the IEEE 802.11 association status.
  • Page 29 DG-WM5307DOAC User Manual Chapter 4 Advance Configuration The “Advance configuration” includes Ethernet settings, wireless settings, RF parameters, virtual AP, WDS and AP modes. 4.1 Ethernet Settings Field Description Host name The host name of AP. MAC Address The MAC address of the Ethernet interface of AP.
  • Page 30 DG-WM5307DOAC User Manual Management VLAN ID The management VLAN is used to access the VLAN which is associated with the IP address of Untagged VLAN If the untagged VLAN was disabled, all the packets will be marked with the same VLAN number.
  • Page 31 DG-WM5307DOAC User Manual IPv6 Link Local Address Shows the IPv6 link local address of AP. Default IPv6 Gateway Shows the default IPv6 gateway of AP. IPv6 DNS Server Configure the address getting mode of DNS server of IPv6; configure the static IPv6 DNS server address.
  • Page 32 DG-WM5307DOAC User Manual 4.3 RF Parameters...
  • Page 33 DG-WM5307DOAC User Manual Field Description Radio Choose the configured RF. Status Enable/disable the RF. Mode The PHY standard used by RF. Channel Choose the channel. Channel bandwidth The channel bandwidth of 802.11n mode. Primary channel The mode of the primary channel (only the 802.11n...
  • Page 34 DG-WM5307DOAC User Manual 4.4 Virtual AP Field Description Radio Choose the configured RF. Show the ID number of the virtual AP.
  • Page 35 DG-WM5307DOAC User Manual Enabled Configure the status of the virtual AP. VLAN ID Configure the VLAN that the client associated with the virtual AP belongs to. SSID Configure the name of wireless network. Broadcast SSID Configure the broadcast SSID. Security Configure the security mode.
  • Page 36 DG-WM5307DOAC User Manual Field Description Transfer key index Configure the key index. Key length Configure the length of the key. Key type Configure the type of key. WEP keys Configure the key 1-4. Authentication Configure the authentication mode. 4.4.3 WPA Personal Security Configuration Choose the security configuration as WPA Personal and show the detailed configuration information of WPA Personal security configuration.
  • Page 37 DG-WM5307DOAC User Manual 4.4.4 WPA Enterprise Security Configuration Choose the security configuration as WPA Enterprise and show the detailed configuration information of WPA Enterprise security configuration. The direct user name and password in radius server should be input in client to pass the authentication.
  • Page 38 DG-WM5307DOAC User Manual 4.4.5 WDS...
  • Page 39 DG-WM5307DOAC User Manual 4.5 AP Modes The AP modes can be switched on this page. Configure the address of Access Controller and the password of AP authentication under Mode Fat. Field Description Management AP administrative mode Configure the AP modes.
  • Page 40 DG-WM5307DOAC User Manual Chapter 5 System Maintenance The system maintenance includes configuration management and firmware upgradation. 5.1 Configuration Management Click “reset” button to restore the configuration of AP to default. The default working mode of AP is fit AP mode.
  • Page 41 DG-WM5307DOAC User Manual file name is the input name. When the upload method was chosen as HTTP mode, click “browse” button to choose the configuration file (the format is *.xml) which needs to be uploaded. Confirm it and click “restore” button. The current configuration of AP will be restored to the configuration in the uploaded configuration file.
  • Page 42 DG-WM5307DOAC User Manual 5.2 Firmware Upgrading Platform Version of firmware Shows the version of firmware of the current AP. Complete the firmware upgradation of AP by using HTTP through the following steps: 1. Choose the HTTP as the upgrading method.
  • Page 43 DG-WM5307DOAC User Manual Complete the firmware upgradation of AP by using TFTP through the following steps: 1. Choose TFTP as the uploading method. 2. Input the name of the mirror file in the text box (1 to 256 characters). The name includes the integral path of the mirror file.
  • Page 44 DG-WM5307DOAC User Manual Chapter 6 Configuration Examples 6.1 Laws Wireless Access 6.1.1 Networking Requirements A department needs to achieve the mobile office through deploying AP for that the staffs can visit the internal network resources anytime and anywhere. The device...
  • Page 45 DG-WM5307DOAC User Manual  Choose “enable” for Radio Interface 1.  Choose IEEE 802.11b/g/n for the wireless mode.  Choose the default configuration for channel.  Click “submit” button. 2. Enter into the virtual AP configuration page.  Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ...
  • Page 46 DG-WM5307DOAC User Manual “WEP”.  For meeting the high bandwidth requirements and the compatible 802.11g wireless network, adopt the 802.11n (2.4GHz) RF mode. Fig 6-2 WEP（Open-System） cipher wireless access 6.2.2 Configuration Steps 1. Login the AP configuration page and enter into the wireless configuration page.
  • Page 47 DG-WM5307DOAC User Manual 2. Enter into the virtual AP configuration page.  Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.)  Configure the VLAN ID according to the actual situation.  Configure SSID as “WEP”.
  • Page 48 DG-WM5307DOAC User Manual the AP successfully, user can access the wireless network.  Enter into the client association page and the successful online clients can be viewed. 6.3 WPA2-PSK Wireless Access 6.3.1 Networking Requirements In a small office, the device administrator can complete the WPA2-PSK wireless access configuration through the web page.
  • Page 49 DG-WM5307DOAC User Manual  Choose to enable for RF1.  Choose IEEE 802.11b/g/n for the wireless mode.  Use the default configuration for the channel.  Click “submit” button. 2. Enter into the virtual AP configuration page.  Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ...
  • Page 50 DG-WM5307DOAC User Manual After associated with the AP successfully, user can access the wireless network.  Enter into the client association page and the successful online clients can be viewed. 6.4 WPA2-Enterprise Wireless Access 6.4.1 Networking Requirements In an office building of a company, the staffs need to access the office environment through the wireless network;...
  • Page 51 DG-WM5307DOAC User Manual  Choose to enable for RF1.  Choose IEEE 802.11b/g/n for the wireless mode.  Use the default configuration for the channel.  Click “submit” button. 2. Enter into the virtual AP configuration page.  Choose the virtual AP enabled box (the virtual AP 0 is enabled as default.) ...
  • Page 52 DG-WM5307DOAC User Manual  Choose the server and configure it as Radius IP address.  Use the default configuration for the broadcast key refresh rate.  Use the default configuration for the unicast key refresh rate.  Click “submit” button.
