Summary of Contents for Digisol DG-SR3004

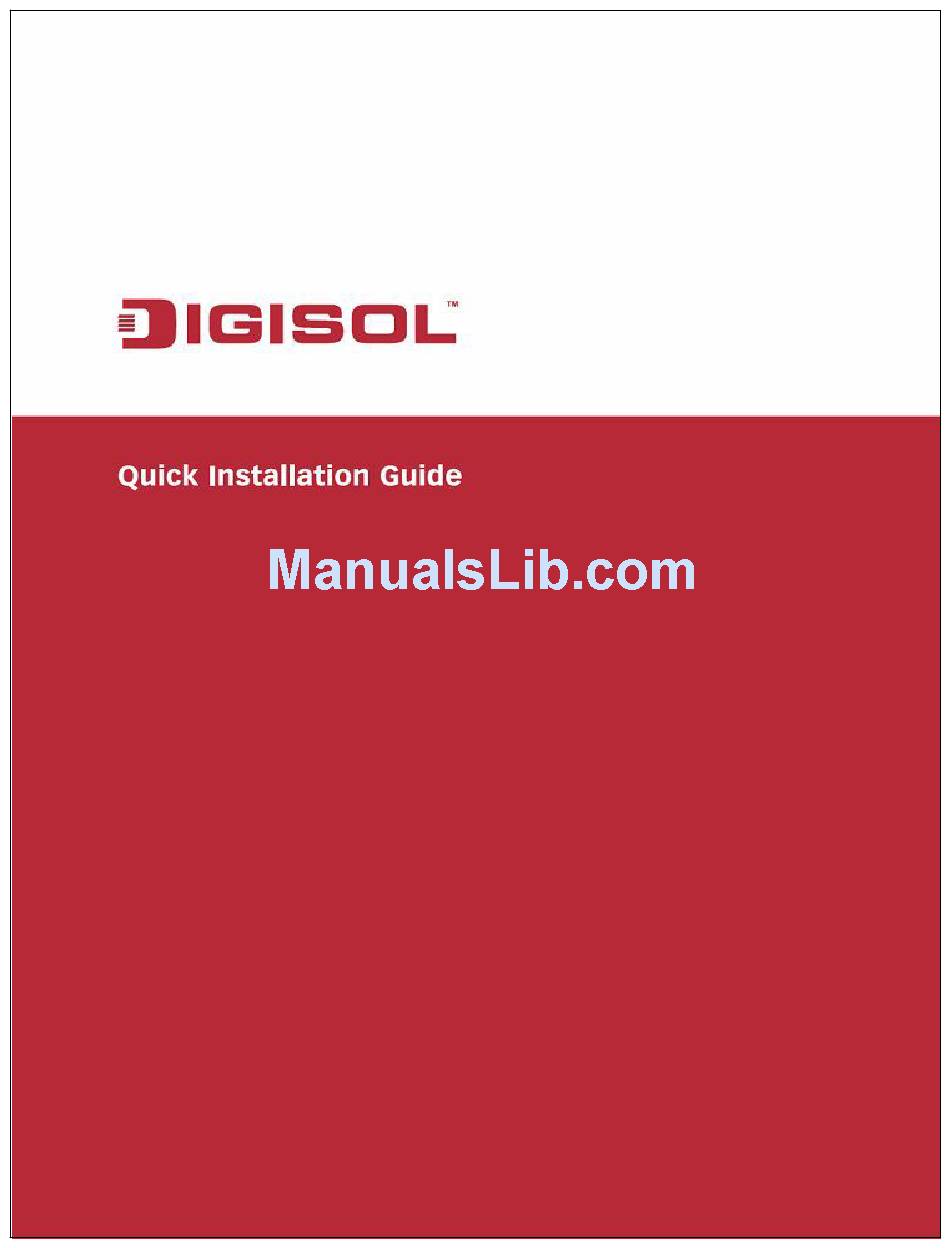

- Page 1 NVR SERIES 4/8/16/24 - Channel Network Video Recorder DG-SR3004 / DG-SR3008 / DG-SR3016 DG-SR3024 V1.0 2016-07-20...
- Page 2 Please check with your local distributors for latest information. No part of this document can be copied or reproduced in any form without written consent from the company. Trademark DIGISOL is a trademark of Smartlink Network Systems Ltd. All other trademarks are the property of the respective manufacturers.
-
Page 3: Package Contents
Product Overview Thank you for purchasing DIGISOL Network Video Recorder! This QIG is a reference guide for the installation and operation of your NVR. Before installation and operation please read the safeguards and warnings mentioned in the sections below carefully. -
Page 4: System Requirements
System Requirements The following system requirements are recommended: Windows XP, Vista or Win 7 operating system (both 32 or 64 bits version) 4GB of system memory 2GB of Display card memory 100GB of available hard disk space on system drive ... -
Page 5: Hardware Installation
Hardware Installation Inspect the NVR Packaging and Check Contents Upon receiving your NVR, please check for any visible damage to the external packaging. If the external packaging is damaged, please document the damage and report to the shipping agent. The protective materials used in packaging of the NVR can protect against most accidental damage during shipping and should be saved. - Page 6 Tighten the screws Mount the HDD using 5. Turn the DVR attaching the HDD to the four holes in the chassis. over. the chassis. Connect the SATA Place the cover. cable and power cable.
-
Page 7: Rear View
REAR VIEW 4/8 Ch NVR 16/24Ch NVR (1) Power Connector (2) USB (3) HDMI output (4) VGA output (5) Network (6) Audio input (7) Audio output (8) RS-485 interface (PTZ) - Page 8 System Login of NVR When the device boots up, the user must login and the system provides the corresponding functions with the user purview. There are two user settings, admin and guest, they have no password. Admin is the super user purview, guest’s permissions are preview and video playback.
- Page 9 IP Camera Setup / Channel Config Through [Main Menu]>[System]>[Digital] Channel manage including digital channels, channel status, and channel type (Note: Encoder only have Channel type option): The channel manage interface Single link page and multi-link page of digital channel 【Channel】select channel title/number. 【Enable】Open digital channel, click enable, then can do related settings...
- Page 10 【Time Synchronization】Enabled means the time of this channel and device is the same. 【Connection Mode】Can be single connect or multi-link, multi-link modes can connect to several devices, Device will be tour displayed one by one, tour interval can be set, no less then 10s; 【Delete】If the user wants to change device, select the existing device, click delete will be ok.
- Page 11 The cables of the hard disk are damaged. The hard disk is damaged. The SATA port of main board is damaged. This product comes with Two Years warranty. For further details about warranty policy and Product Registration, please visit support section of www.digisol.com...
