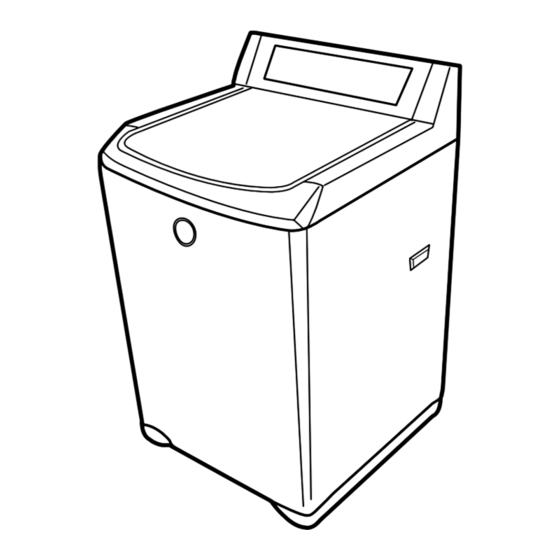

Full-Auto Electric Washing Machine
INSTRUCTION MANUAL
First applying the Air Bubble Washing System in the world.
Improving washing performance by more than 35%, while
reducing power consumption by 40%.
Applying One-Touch Operation System.
Realizing calm washing through the innovational low-noise
design.
Before operating this washer, please read this instruction
completely. Thank you.
Air Bubble Washing System in the World
Your washer is equipped with the
bubble generator that generates a
great deal of air bubble.
The air bubbles knock the dirt out
of the clothes during wash and
they push up the heavy dirt to
remove it during rinse.
Because the double washing
method using both air bubble &
water current is applied to this
washer, wash efficiency is excellent
in comparison with the original
washer system.
A NOTE TO YOU
Thank you for buying a Kelvinator appliance.
Kelvinator washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.
®
Model: KL 15 TL
CONTENTS
PARTS AND FEATURES.......................................................2
WASHER SAFETY.................................................................3
INSTALLATION INSTRUCTIONS.........................................4
ELECTRICAL REQUIREMENTS..........................................5
INLET HOSE CONNECTION................................................6
OPERATING YOUR WASHER.............................................7
THE FUNCTIONS OF THE CONTROL PANEL.................8
WASHING PROCEDURE AND COURSE SELECTION.......9
GENERAL PROCEDURE FOR OPERATION...................11
CARING FOR YOUR WASHER.........................................12
HOW TO CLEAN THE FILTER...........................................13
REMOVING STAINS............................................................14
TROUBLE SHOOTING........................................................15
SPECIFICATION..................................................................16
Page
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kelvinator KL 15 TL
Summary of Contents for Kelvinator KL 15 TL
- Page 1 A NOTE TO YOU Thank you for buying a Kelvinator appliance. Kelvinator washers are easy to use, save time, and help you manage your home better. This manual contains valuable information about how to operate and maintain your washer properly and safely.
- Page 2 PARTS AND FEATURES The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer. NOTE • The drawings in this book may vary from your washer model. They are designed to show the different features of all models covered by this book, Your model may not include all features.
- Page 3 WASHER SAFETY Save these instructions Your safety is important to us. To reduce the risk of fire, electrical shock, or injury when using your washer, follow basic precautions including the following: Read all instructions before using your washer • Flammable fluids (dry-cleaning solvents, Please ...
- Page 4 INSTALLATION IN STRUCTIONS Location of washer Check location where washer will be installed. Make sure you have everything necessary for correct installation. Proper installation is your responsibility. • ˚ ˚ Do not place or store your washer below 0 C (32 F) to avoid any damage from freezing.
- Page 5 Non-Pump Model 2 In case of extending the 3 Be careful that the end 1 In case that it goes over a door sill. drain hose. of the drain hose is not Don’t let the total length immersed in water. Don’t let the height of exceed 3m.
- Page 6 INLET HOSE CONNECTION Be careful not to confuse hot water inlet and cold water inlet. In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet valve. For Ordinary Tap 1 Pull down the collar of 2 Loosen the four screws...
- Page 7 OPERATING YOUR WASHER To obtain the best wahing results, you must operate your washer properly. This section gives you this important information. Preparing clothes for washing • Close zippers, snaps, and hooks to avoid • Turn down cuffs and turn synthetic knits snagging other items.
- Page 8 THE FUNCTIONS OF THE CONTROL PANEL • Press this button to turn the power "ON" or "OFF". POWER • It can be used to choose water temperature to be supplied. • As the button is pressed, water temperature will be repeated. COLD COLD + HOT WASH...
- Page 9 WASHING PROCEDURE AND COURSE SELECTION FULL AUTOMATIC COURSE 1. FUZZY COURSE (SENSOR); • This selection is for general washing except extraordinary clothes. • Artificial brain sensor selects properly the various kind of washing condition such as washing time, rinse times, spin time and water level. •...
- Page 10 GUIDES FOR OTHER USEFUL PROGRAMS Reserved Washing • Reservation can be made from 2 hours to 48hours. example) To make reservation to complete washing in 8hours. REMAIN REMAIN adjust to close START COURSE RES. RES. the course the lid HOLD you want.
- Page 11 GENERAL PROCEDURE FOR OPERATION 1. Add measured detergent to the washer, (Follow manufacturer’s directions for safe use) 2. OPTIONAL STEP If desired, add measured liquid chlorine bleach to the bleach inlet, use only liquid chlorine in the bleach inlet * Follow manufacturer’s direction for safe use. NOTE •...
- Page 12 CARING FOR YOUR WASHER Proper care of your washer can extend its life. This section explains how to care for your washer properly and safely. Cleaning your washer Exterior Interior Clean interior with 250ml of chlorine bleach Wipe up detergent, bleach, and other spills mixed with 500ml of detergent.
- Page 13 HOW TO CLEAN THE FILTER Cleaning the Lint Filter 1 Pull the Fiter frame up- 2 Turn the lint filter inside 3 Return the filter as it was, ward. fout, wash to the lint of and insert the filter frame with water into the slot Lint Filter...
- Page 14 REMOVING STAINS Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk, or grass. Prewashing helps loosen soil before washing. Stain removal rules • Use warm water for soaking or prewashing stained laundry. Hot water can set stains. •...
- Page 15 TROUBLE SHOOTING Most problems are easily solved if you understand the cause. Check the following list for problem befor calling for service. Before calling for service, check these PROBLEM CHECK POINT • The washer will not • Is there a power failure? •...
- Page 16 SPECIFICATION MODEL NO. KL 15 TL Power Source AC110~127V, 220V/60Hz AC220~240V/50Hz Power Consuption 550W 480W Dimension (W H D, mm) 1070 Unit Weight 47kg / 48kg (Pump) Standard Water Consumption •HIGH (97 ) •MEDIUM (77 ) Standard Water Level •LOW (66 ) •E.LOW (42 )
- Page 17 ABOUT THIS MANUAL ABOUT THIS MANUAL VISION CREATIVE, INC. 중구 남대문로 5가 526 대우재단빌딩 16층 담 당 안재영 님 바이어모델 KL 15 TL - ELE 공장모델 DWF-200AMP(영어) 1차 6차 2차 7차 일 정 3차 8차 4차 9차 5차 10차 제...
