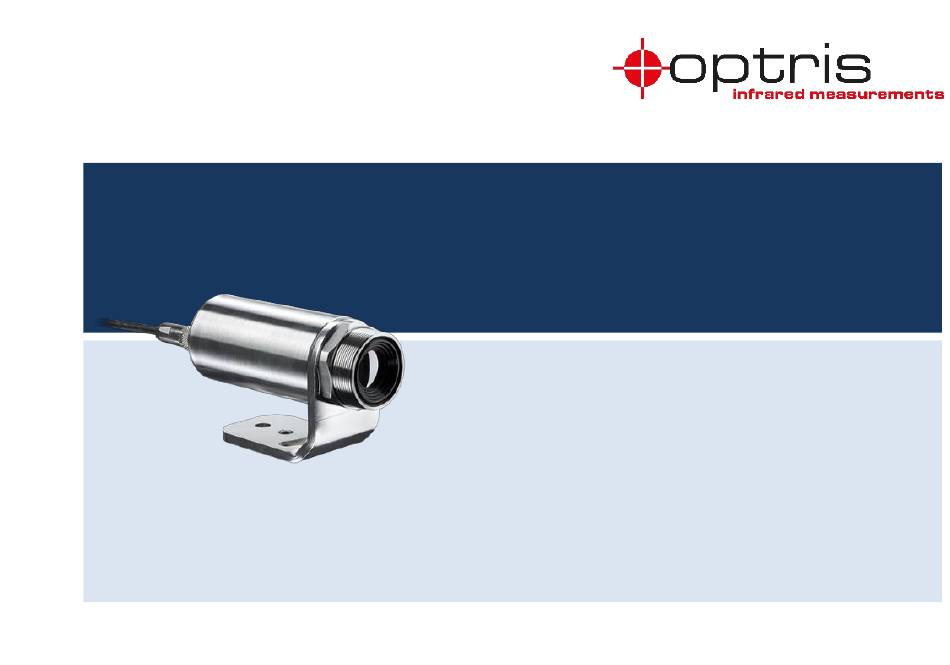

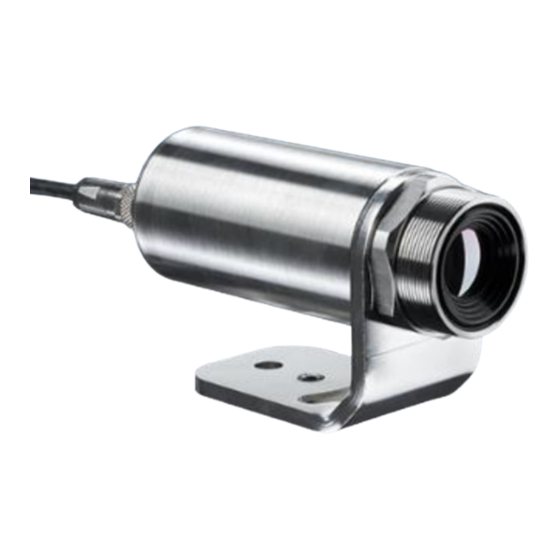

Page 1 Operator’s Manual optris ® 80/ 400/ 410/ 410 MT/ 640/ 1M Spot finder IR camera...
Page 2 Optris GmbH Ferdinand-Buisson-Str. 14 13127 Berlin Germany Tel.: +49 30 500 197-0 Fax: +49 30 500 197-10 E-mail: info@optris.com Internet: www.optris.com...
Page 3 Table of contents Table of contents Table of contents .............................. 3 General Notes ............................8 Intended use ............................8 Warranty ............................10 Scope of delivery ..........................11 Maintenance ............................. 11 1.4.1 Cleaning ............................ 11 Model overview ..........................12 Technical Data ............................13 General specifications ........................
Page 4 Measurement specifications ......................18 Optical specifications ........................20 Mechanical Installation .......................... 30 Dimensions ............................30 Accessories............................36 3.2.1 Air purge laminar ........................36 3.2.2 Water cooling ..........................42 3.2.3 Shutter ............................45 3.2.4 Combination of air purge, water cooling and shutter ..............49 3.2.5 Outdoor protective housing .......................
Page 5 Table of contents 4.1.2 Process interface Xi 400/640 ....................60 4.1.3 PIN allocation Xi 80/410/410 MT/1M ..................63 4.1.4 PIN allocation Xi 400/640 ......................64 4.1.5 Industrial Process Interface for Xi 80/410/410 MT/1M (optional) ..........66 4.1.6 Industrial Process Interface for Xi 400/640 (optional) .............. 71 Example for a Fail-Safe monitoring of the Xi with a PLC ..............
Page 6 5.3.1 Settings in PIX Connect Software..................... 95 IRmobile App ............................96 Software PIX Connect ..........................98 Installation and initial start-up ......................99 Software window ..........................101 Basis features of the software PIX Connect ................... 103 Basics of Infrared Thermometry ......................106 Emissivity ..............................
Page 7 Table of contents Appendix C – Quick start for serial communication ................. 119 Appendix D – Interprocess Communication (IPC) ..................122 Appendix E – PIX Connect Resource Translator ..................123 Appendix F – Wiring diagrams PIF for Xi 400/640 ..................124 Appendix G –...
Page 8 Thank you for choosing the optris Xi spot finder infrared camera. The optris Xi calculates the surface temperature based on the emitted infrared energy of objects [►8 Basics of Infrared Thermometry]. The two-dimensional detector (FPA - focal plane array) allows a measurement of an area and will be shown as thermal image using standardized palettes.
Page 9 General Notes Read the manual carefully before the initial start-up. The producer reserves the right to change the herein described specifications in case of technical advance of the product. • Avoid abrupt changes of the ambient temperature. • Avoid static electricity, arc welders, and induction heaters. Keep away from very strong EMF (electromagnetic fields).
Page 10 1.2 Warranty Each single product passes through a quality process. Nevertheless, if failures occur contact the customer service at once. The warranty period covers 24 months starting on the delivery date. After the warranty is expired the manufacturer guarantees additional 6 months warranty for all repaired or substituted product components.
Page 11 • USB cable: 1 m (standard), 3 m, 5 m, 10 m, 20 m * (optional) • Ethernet PoE cable: 1 m (only for Xi 410, Xi 410 MT, or Xi 1M) • Mounting nut and mounting bracket (adjustable in one axis, tripod thread) •...
Page 12 Real-time thermographic images in industrial application, 200 to 1500 °C USB: 4 Hz autonomous operation with automatic spot finder (optional) Xi 410 MT 475 to 1700 °C 3,9 µm Ethernet: 30 Hz Temperature measurement through flames, monitoring of USB: 5 Hz...
Page 13 Cable length: USB: 1 m (standard), 3 m, 5 m, 10 m, 20 m (10 and 20 m version only available for Xi 400 and Xi 640) Ethernet / RS485 (Xi 80/410/ Xi 410 MT/ Xi 1M): 1 m standard Vibration...
Page 14 Used standards for vibration and shock: Figure 1: Used standards Stress program (camera in operation): Shock, half sinus 25 G – testing Ea 25 G (acc. IEC 60068-2-27) Acceleration 245 m/s (25 G) Pulse duration 11 ms Number of directions (3 axes with 2 directions each)
Page 15 Technical Data Duration 600 Shocks (100 Shocks each direction) Shock, half sinus 50 G – testing Ea 50 G (acc. IEC 60068-2-27) Acceleration 490 m/s (50 G) Pulse duration 11 ms Number of directions (3 axes with two directions each) Duration 18 Shocks (3 Shocks each direction)
Page 16 Frequency range 10 - 2000 Hz Acceleration 39.3 m/s (4.01 G Frequency spectrum 10 - 106 Hz 0.9610 (m/s (0.010 G /Hz) 106 - 150 Hz +6 dB/ Octave 150 - 500 Hz 1.9230 (m/s (0.020 G /Hz) 500 - 2000 Hz -6 dB/ Octave 2000 Hz 0.1245 (m/s...
Page 17 Technical Data 2.2 Electrical specifications Power Supply: Xi 80/410/410 MT: USB/ PoE/ 5-30 VDC Xi 400/640: USB Xi 1M: USB/ PoE/ 8-30 VDC Current draw: Max 500 mA AO: Output Standard/Internal Process 0 - 10 V (Xi 400/640), 0/4 – 20 mA (Xi 80/410/410 MT/1M) (Main measure area, measure area, internal temperature, Interface (PIF out) flag status, recording status, line scan status, alarm, frame sync, fail-safe, external communication) [►Appendix F –...
Page 18 2.3 Measurement specifications Xi 80 Xi 400 Xi 410 Xi 410 MT Xi 640 Xi 1M 475 ... 1700 °C -20 ... 100 °C; 0 ... 450°C ... 1800 °C Temperature -20...100 °C; 0...250 -20...100 °C; 0...250 -20...100 °C; 0...250 250 °C;...
Page 19 Technical Data Microscope 18° x 14° (f=20 mm, lens (FOV) smallest measuring spot: 81 µm @ 90 mm Optical resolution 190:1 (12° optics) 390:1 (18° optics) 390:1 (18° optics) 390:1 (18° optics) 550:1 (22° optics) 1080:1 (7° optics) System < 1400 °C: ±1 % v. accuracy MW @ 20 Hz/ ±2 °C or ±2 %...
Page 20 2.4 Optical specifications Make sure that the focus of thermal channel is adjusted correctly. The cameras have a motorized focus, which can be adjusted in the PIX Connect software (Menu View/ Windows/ Distance or over the icon ). An adjustment to the left leads to the focus setting "near" and an adjustment to the right to the focus setting "infinite".
Page 21 (SRF). The result is determined by the number of pixels an object needs to fill to allow its temperature to be measured exactly. In high-performance infrared optical systems as used by Optris, this is 4x4, 3×3 or 2x2 pixels, with lower quality optical systems, in some circumstances as...
Page 22 PIX Connect has an algorithm which corrects this distortion. As an alternative to the tables below, the optics calculator can also be used on the optris website or via the optris calculator app. The app can be downloaded for free from the...
Page 23 Technical Data Table 2: optics table for Xi 80 * Note: The accuracy of measurement can be outside of the specifications for distances below the defined minimum distance.
Page 24 Table 3: optics table for Xi400 * Note: The accuracy of measurement can be outside of the specifications for distances below the defined minimum distance.
Page 25 Technical Data Table 4: optics table Xi 400 microscope optics Microscope Distance to measurement object optics Xi 400 0,09 382 x 288 px F20 CF 0,09 m 18° HFOV [m] 0,031 0,034 0,037 Mikroskop-Optik 14° VFOV [m] 0,024 0,026 0,028 23°...
Page 26 Table 5: optics table Xi 410 * Note: The accuracy of measurement can be outside of the specifications for distances below the defined minimum distance.
Page 27 Technical Data Table 6: optics table for Xi 410 MT Xi 410 MT Distance to measurement object [m] 0,05 320 x 240 px 11° HFOV [m] 0,35 m 0,04 0,06 0,10 0,19 0,39 0,77 1,16 1,93 5,78 19,3 8° VFOV [m]...
Page 28 Table 7: optics table for Xi 640...
Page 29 Technical Data Table 8: optics table for Xi 1M * Note: The accuracy of measurement can be outside of the specifications for distances below the defined minimum distance.
Page 30 3 Mechanical Installation 3.1 Dimensions The Xi is equipped with a metric M30x1 thread and can be installed either directly via the sensor thread or with help of the supplied mounting nut (standard) and adjustable mounting bracket (standard) to a mounting device available.
Page 31 Mechanical Installation For correct orientation, the USB port must be on the left side and the PIF port on the right side, Figure 5 Figure Figure 5: Xi 80, dimensions [mm]...
Page 32 Figure 6 : Xi 400/640, dimensions [mm]...
Page 33 Mechanical Installation Figure 7 : Xi 410/Xi 410 MT, dimensions [mm]...
Page 34 Figure 8 Xi 1M, dimensions [mm]...
Page 35 Mechanical Installation Figure 9: Industrial/stackable PIF (Process Interface) – electronic box, control box shutter, dimensions [mm]...
Page 36 3.2 Accessories 3.2.1 Air purge laminar The lens must be kept clean at all times from dust, smoke, fumes and other contaminants in order to avoid reading errors. These effects can be reduced by using an air purge. (Part-No.: ACXIAPL) •...
Page 37 The following table shows the article numbers for the air purge and corresponding replacement windows: Camera Air purge replacement window Xi 80 ACXIAPL ACXIAPLPWSI Xi 400 ACXIAPL ACXIAPLPWSI Xi 410 ACXIAPL ACXIAPLPWSI Xi 410 MT ACXIMTAPL ACXIMTAPLPWSI Xi 640 ACXIAPL ACXIAPLPWSI Xi 1M ACXI1MAPL ACXI1MAPLPWB33...
Page 38 How-to Video Replacement of Si-protective window https://www.optris.g lobal/replacement- of-the-si-protective- window-of-the- laminar-air-purge- attachment Figure 10: Laminar air purge with Si-protective window [ACXIAPL and ACXIMTAPL], dimensions [mm]...
Page 39 Mechanical Installation How-to video Xi 400 https://www.optris.global/mounting -the-air-purge-unit-on-xi-400 Figure 11: Laminar air purge with protective window, dimensions [mm]...
Page 40 Figure 12: Laminar air purge with Si protective window (ACXIAPL) and mounting bracket (ACXIAPLAB), dimensions [mm]...
Page 41 Mechanical Installation Figure 13: Mounting bracket (ACXIAPLAB), dimensions [mm], weight: 276 g...
Page 42 3.2.2 Water cooling The IR camera is for application at ambient temperatures up to 50 °C. For applications at higher ambient temperatures we recommend the usage of the optional water cooled housing (operating temperature up to 250 °C) and the optional high temperature cable (operating temperature up to 250 °C). •...
Page 43 Mechanical Installation Figure 14: Water cooling (ACXIMW) and mounting kit (ACXIxxxWAK1), dimensions [mm], weight: 1710 g...
Page 44 Figure 15: Shutter for water cooling (ACXISW), dimensions [mm], weight: 600 g...
Page 45 Mechanical Installation 3.2.3 Shutter To protect the optics of the camera, an optional shutter (closing mechanism) can be purchased. It is equipped with a servomotor that can open and close a mechanical lock as needed. The special feature of the shutter is not only the opening and closing, but also the complete seal in the closed state.
Page 46 Figure 16: Shutter (ACXIS) with mounting bracket (ACXIAPLAB), dimensions [mm], weight: 826 g...
Page 47 Mechanical Installation Figure 17: Shutter (ACXIS), dimensions [mm], weight: 550 g...
Page 48 Power supply: 12-24 V Upper terminal screw Connection for Process Interface (PIF) Switch for different operation modes: S1: Switching between switch operation and pulse operation S2: Activation/deactivation of fast-closing mode S3: Only for factory calibration (Switch must be at Normal) S4: Switching between mV or mA input Figure 18: Control box of shutter, dimensions (see Figure 9) Lower screw terminal: Connection for power supply,...
Page 49 Mechanical Installation 3.2.4 Combination of air purge, water cooling and shutter It is possible to combine all three components (air purge, water cooling and shutter) with each other. It should be noted that there are differences between the Xi 80 and Xi 400/410/410 MT/640/1M. Various mounting kits (ACXIxxxWAKx) are available in combination with water cooling.
Page 50 Air purge and Water cooling for Xi 80 ✓ ✓ ✓ Air purge and Water cooling for Xi 400/410/640 ✓ ✓ ✓ Air purge and Water cooling for Xi 410 MT ✓ ✓ ✓ Air purge and Shutter Xi 80/400/410/640 ✓ ✓ ✓...
Page 51 Mechanical Installation Part-No.: Combinations for: Xi 1M ✓ ✓ Air purge for Xi 1M ✓ ✓ Water cooling for Xi 1M F25 ✓ ✓ Water cooling for Xi 1M F50 ✓ ✓ Shutter for Xi 1M ✓ ✓ ✓ Air purge and Water cooling Xi 1M F25 ✓...
Page 52 Components: • Air purge • Water cooling • Mounting kit How-to video • https://www.optris.glo bal/assembly-of-xi- 400-into-the-water- cooling-housing-with- the-use-of-the- laminar-air-purge Figure 19: Air purge (ACXIAPL), water cooling (ACXIMW) and appropriate mounting kit (ACXIxxxWAKx), dimensions [mm]...
Page 53 Mechanical Installation Components: • Air purge • Water cooling • Shutter • Mounting kit How-to video https://www.optris.global/as sembly-of-xi-400-into-the- water-cooling-housing-with- the-use-of-the-laminar-air- Figure 20: Air Purge (ACXIAPL), water Cooling (ACXIMW), Shutter (ACXISW) and purge appropriate mounting kit (ACXIxxxWAKx), dimensions [mm]...
Page 54 Components: • Air purge • Mounting bracket • Shutter Figure 21: Air purge (ACXIAPL) with mounting bracket (ACXIAPLAB) and shutter (ACXIS), dimensions [mm]...
Page 55 Mechanical Installation 3.2.5 Outdoor protective housing • The infrared camera Xi can also be used for outdoor applications by using the outdoor protective housing (Part-No.: ACXIOPH24), optional with a visual HD video camera. • In addition, the industrial or stackable PIF (Part-No.: ACCJAPIPIFMA (Xi 400/640) or ACOPHXIPIF (Xi 80/410/410 MT/1M) can be installed as an accessory without housing and a USB Server (Part-No.: ACPIUSBSGB).
Page 56 4 Electrical Installation At the back side of the Xi there are the two connector plugs (see Figure 23 and Figure 24). Figure 23: Backside of the Xi 80/410/410 MT and 1M Figure 24: Backside of the Xi 400/640 with connectors with connectors Socket for USB / Ethernet / PoE cable...
Page 57 Electrical Installation 4.1 Process interface 4.1.1 Process interface Xi 80/410/410 MT/1M The Xi 80/410/410 MT/1M is equipped with an integrated process interface (cable with terminal block included in scope of supply), which can be programmed via the software as a direct analog input (AI), as a direct analog output (AO) in order to control the process or as an RS485 interface .
Page 58 Figure 25: Configuration terminal block Xi 80/410/410 MT/1M Shield Black Ground Brown 5-30 V Power White Analog/Digital Input or RS485 (A) Green Analog Output or RS485 (B) Yellow Isolated Ground for IN and OUT Gray Power supply only necessary when using the Ethernet connection (without PoE) or self-sufficient operation 8-30 V for Xi 1M...
Page 59 Electrical Installation The Xi 80/410/410 MT/1M provides the following direct inputs and outputs: Name Description max range / status Analog input 0-10 V Digital input 24 V (active-low = 0…0,6 V) Analog output 0/4-20 mA Alarm output 0/4-20 mA The AI is designed for max. 24 V, the voltage level above 10 V is not interpreted In addition to the above direct in- and outputs, the Xi 80/410/410 MT/1M has an RS485 interface.
Page 60 4.1.2 Process interface Xi 400/640 The process interface (electronics within cable as well as industrial interface) must be powered separately (5-24 VDC). Before switching on the power the PIF cable must be connected to the camera. The Xi is equipped with a process interface (cable with integrated electronics and terminal block), which can be programmed via the software as an Analog Input (AI) and Digital Input (DI) in order to control the camera or as an Analog Output (AO) in order to control the process.
Page 61 Electrical Installation Figure 26: Configuration Standard Process Interface (PIF) Xi 400/640 Shield Black Ground Brown Digital Input Gray Power supply, 5…24 V DC White Analog Input Green Analog Output Yellow...
Page 62 The standard process interface provides the following inputs and outputs: Name Description max range / status Analog input 0-10 V Digital input 24 V (active-low = 0…0,6 V) Analog output 0-10 V Alarm output 0/ 10 V Depending on supply voltage; for 0-10 V on the AO the PIF has to be powered with min. 12 V. The AI is designed for max.
Page 63 Electrical Installation 4.1.3 PIN allocation Xi 80/410/410 MT/1M Ethernet 1 VCC 1 VCC 2 D + 2 RS485 or AO 3 D - 3 RS485 or AI Tx + 4 GND Tx - 5 GND-ISO Rx + Rx - 8 GND Figure 27: Rear side of Xi 80/410/410 MT/1M...
Page 64 4.1.4 PIN allocation Xi 400/640 1 VCC 1 INT 2 GND 2 SDA (I²C) 4 D - 3 SCL (I²C) 5 D + 4 DGND 5 3,3 V (Out) Figure 28: Rear side of Xi 400/640...
Page 65 Electrical Installation If the process interface of the camera is directly connected to external hardware (without using the supplied PIF cable) an activation of the field „Support cable” in the menu Tools/ proprietary Configuration/ Device (PIF) in the PIX Connect software is necessary. Figure 29: Support proprietary PIF cable Consider that the input of the PIF is not protected if there is a direct PIF connection! A voltage >...
Page 66 4.1.5 Industrial Process Interface for Xi 80/410/410 MT/1M (optional) For use in industrial environment the industrial process interface with 500 V AC isolation voltage between Xi and process is available (connection box with IP65, 5 m, 10 m or 20 m standard or high temperature cable Appendix F –...
Page 67 Electrical Installation The process interface can be activated via the software choosing the following options: Analog Input (AI): Emissivity, ambient temperature, reference temperature, uncommitted value, flag control, triggered recording, triggered snapshots, triggered line-scanner, triggered event grabber, reset peak-/valley-hold, switch temperature range Analog Output (AO): Main measure area, measure area, internal temperature, flag status, recording status, line scan status, alarm,...
Page 68 The industrial process interface provides the following in- and outputs: Name Description max range / status INPUT 1 / 2 / 3 Analog or digital input 0-10 V AO1 / 2 / 3 Analog output 1, 2 and 3 0-10 V Alarm output 1, 2 and 3 0/4-20 mA DO1 / 2 / 3...
Page 69 Electrical Installation Xi 80/410/410 MT/1M Ethernet up to 100m or 5-24 VDC* or USB 5-24 VDC* or PoE Figure 31: Connection of 3 industrial PIFs via RS485 8-24 VDC für Xi 1M...
Page 70 Each stackable industrial PIF must have its own RS485 address. The address must be set directly on the board. The first address must be set to 1, the second to 2 and so on. For the PIF which is the furthest away the 120R switch (TERM. – Termination) has to be set. The overall cable length for an RS485 network can be extended up to 1000m.
Page 71 Electrical Installation 4.1.6 Industrial Process Interface for Xi 400/640 (optional) For use in industrial environment the industrial process interface with 500 V AC isolation voltage between Xi and process is available (connection box with IP65, 5 m, 10 m or 20 m standard or high temperature cable Appendix F –...
Page 72 The process interface can be activated via the software choosing the following options: Analog Input (AI): Emissivity, ambient temperature, reference temperature, uncommitted value, flag control, triggered recording, triggered snapshots, triggered line-scanner, triggered event grabber, reset peak-/valley-hold, switch temperature range Analog Output (AO): Main measure area, measure area, internal temperature, flag status, recording status, line scan status, alarm, frame sync, fail-safe, external communication Digital Input (DI):...
Page 73 Electrical Installation The industrial process interface provides the following inputs and outputs: Name Description max range / status A IN 1 / 2 Analog input 1 and 2 0-10 V D IN 1 Digital input 24 V (active-low = 0…0,6 V) AO1 / 2 / 3 Analog output 1, 2 and 3 0/4-20 mA...
Page 74 The process interface has an integrated fail-safe mode. This allows to control conditions like interruption of cables, shut-down of the software etc. and to give out these conditions as an alarm. The time constant of the fail-safe is 1.5 seconds. Controlled conditions on camera and software Standard Process interface Industrial Process interface...
Page 75 Electrical Installation 4.2 Example for a Fail-Safe monitoring of the Xi with a PLC Figure 33: Fail-Safe monitoring states Fail-Safe monitoring states Breakdown of PIF power supply Malfunction of Xi Cable break of fail-safe cable Breakdown of Xi power supply/ Interruption of USB cable Interruption of cable Xi-PIF Malfunction of PIX Connect software...
Page 76 4.3 USB cable extension for Xi 400/640 The maximum USB cable length is 20 m. For greater distances between Xi 400/640 and computer or for stand- alone solutions the optional USB Server Gigabit (Part No.: ACPIUSBSGB) is provided: Figure 34: USB Server Gigabit...
Page 77 Functions 5 Functions 5.1 Ethernet Xi 80/410/410 MT/1M The Xi 80/410/410 MT/1M has a direct Ethernet interface. The advantage is cable lengths of up to 100 m. For example, a switch can be used to extend the distances. The associated Ethernet cable (Order No.: ACXIETCBx) must be ordered separately.
Page 78 Xi 80/410/410 MT/1M Xi 80/410/410 MT/1M Xi 80/410/410 MT/1M Figure 35: Possibilities of power supply for Xi 80/410/410 MT/1M via Ethernet connection...
Page 79 Functions 5.1.1 Ethernet setup (Point-to-Point-Connection) After connecting the Ethernet cable to the camera and the PC, the first thing you need to do is to make the network settings on the PC. The devices are delivered with the following factory settings: •...
Page 80 Mark Internet protocol Click on Properties. In the register card General enable Version 4 (TCP/IPv4) and go the checkbox Use the following IP to Properties again address. Now enter a user defined IP address for your PC (192.168.0.100). This must be identical to the address set in the PIX Connect software.
Page 81 Functions Then close all windows with OK. The network settings on the PC are complete. Now start the PIX Connect software and activate the Ethernet function. To do this, go to the menu Devices and Enable Ethernet. When a Windows Firewall window appears make sure to select allow all three network parts (domain, private, public) in order to allow the communication with the device.
Page 82 The approval of programs can also be activated afterwards in the Windows Firewall settings of the PC (under Windows Firewall and Allow a program or feature through Windows Firewall).
Page 83 Functions The device is now ready for the Ethernet connection and is listed in the menu under Devices. The camera is identified by a network icon and the network address and port number. Select the device. A connection to the device is established and the temperature measurement can begin.
Page 84 Additionally, a separate port number must be configured. The selected number can be between 1 and 65535. If several cameras with different port numbers are connected and a specific camera is to be communicated with, the corresponding camera can be determined via Listen on port number. The port range used should be between 49152 ...
Page 85 Functions 5.2 Autonomous operation Xi 80/410/410 MT/1M A special feature of the Xi 80/410/410 MT/1M is the autonomous operation. There is no need for a permanent connection to the PIX Connect software. Only a few settings must be set in advance in the software. To do this, connect the PIF and Xi80/410/410 MT/1M Ethernet or USB cables to the...
Page 86 pressing the OK button an @ sign can be found in the configuration menu Devices (PIF), which indicates the autonomous operation. In autonomous mode, not all functions can be transferred from the PIX Connect software. The rotation of the image, as well as the zoom of the image are not taken into autonomous mode.
Page 87 Functions Figure 37: Configurations menu Device (PIF) Figure 38: Setup...
Page 88 Only for Xi 410/410 MT/1M When using the Xi 410/410 MT/1M camera, an important additional setting must be made for autonomous operation. When all the configurations have been made, it is important to write them to the device. This is done in the menu under Devices and Set configuration to device.
Page 89 Functions In general, these are all the settings that must be set in the PIX Connect software in order to operate the device autonomously. You can now close the software and then disconnect the Ethernet or USB cable. To start the device autonomously, a 5-30 V (8-30 V for Xi 1M) power supply must be connected to the terminal block.
Page 90 • Autonomous operation also works via the industrial/stackable PIF of the Xi 80/410/410 MT/1M. The device is powered by the power supply of the PIF. • Xi 1M has to be set to 132 x 100 pixels – mode for the autonomous operation. •...
Page 91 Functions 5.2.1 Hot- / Coldspot function in autonomous operation The setting for a hot- or coldspot in autonomous mode differs from the general procedure. Marking a measure area as hot- or coldspot does not work. Instead, a user defined rectangle must be selected under the tab measure areas of the configuration dialog.
Page 92 5.3 Use of Shutter The shutter system is supplied with a control box (for pin assignment, see also Figure 18). The servo motor of the shutter is connected to this control box. There are several ways to operate the control box. For all listed options, an input signal (IN 1) must be connected.
Page 93 Functions When using more than one shutter and the opening / closing of the shutter should be simultaneously, the switch S4 on one control box must be set to mA and the others to mV (see Figure 43).
Page 94 Figure 44: Connection of control box, shutter and industrial PIF (example here for Xi 400)
Page 95 Functions 5.3.1 Settings in PIX Connect Software After the hardware installation (connection control box shutter and PIF) the following settings can be made in the software: • Automatic Recording: By opening the shutter through input signal IN 1, an automatic recording can be started.
Page 96 With IRmobile you can monitor and analyze your infrared temperature measurement directly on a connected smartphone or tablet. All you need is an Optris infrared camera. This app runs on most Android (5 or higher) devices with a micro-USB port or USB-C port that supports USB OTG (On The Go). The app is easy to use: After you have connected your camera to the micro-USB port or USB-C port of your smartphone or tablet, the app launches automatically.
Page 97 ➢ Integrated simulator IRmobile supported for: ➢ Optris IR cameras: Xi and PI series ➢ Optris pyrometers: Compact series, high performance series and video thermometers ➢ For Android 5 (or higher) devices with a micro-USB port or USB C port...
Page 98 A detailed description is provided in the software manual on the USB stick. See also Help menu in the PIX Connect software (Help → Documentation). Alternatively, the software can also be downloaded via the Optris website under the following link: https://www.optris.global/pix...
Page 99 2. Please start Setup.exe. Follow the instructions of the wizard until the installation is finished. The installation wizard places a launch icon on the desktop and in the start menu: Start\Programs\Optris GmbH\PIX Connect 3. To connect the camera to the PC, plug the USB cable to the camera first. Afterwards connect it with the PC (to disconnect the camera and the computer remove the USB cable from the computer first and then disconnect it from the camera).
Page 100 After the calibration files have been installed the live image from the camera is shown inside a window on your PC screen. 6. Choose the desired language in the menu Tools → Language. 7. Adjust the focus of the image by using the distance function in the software (Menu View/ Windows/ Distance or over the icon...
Page 101 Software PIX Connect 101- 7.2 Software window Figure 45: Software window...
Page 102 IR image from the camera Temperature profile: Shows the temperatures along max. 2 lines at any size and position in the image. Control displays: Displays all temperature values in the defined measure areas like Cold Spots, Hot Spots, temperature at cursor, internal temperature and chip temperature.
Page 103 Software PIX Connect 103- 7.3 Basis features of the software PIX Connect Extensive infrared camera software • No restrictions in licensing • Modern software with intuitive user interface • Remote control of camera via software • Display of multiple camera images in different windows •...
Page 104 Video recording and snapshot function (IR) • Recording of video sequences and detailed frames for further analysis or documentation • Adjustment of recording frequency to reduce data volume • Display of snapshot history for immediate analysis Extensive online and offline data analysis •...
Page 105 Software PIX Connect 105- Automatic process control • Individual setup of alarm levels depending on the process • Definition of visual or acoustic alarms and analog data output • Analog and digital signal input (process parameter) • External communication of software via COM-Ports and DLL •...
Page 106 8 Basics of Infrared Thermometry Depending on the temperature each object emits a certain amount of infrared radiation. A change in the temperature of the object is accompanied by a change in the intensity of the radiation. Searching for new optical material William Herschel by chance found the infrared radiation in 1800. Figure 46: William Herschel (1738-1822) He blackened the peak of a sensitive mercury thermometer.
Page 107 Basics of Infrared Thermometry 107- noticed the increasing temperature from violet to red. The temperature rose even more in the area behind the red end of the spectrum. Finally he found the maximum temperature far behind the red area. Nowadays this area is called “infrared wavelength area”. Figure 47: The electromagnetic spectrum and the area used for temperature measurement For the measurement of “thermal radiation”...
Page 108 Figure 48: Main principle of non-contact thermometry Infrared thermometers basically consist of the following components: • Lens • Spectral filter • Detector • Electronics (amplifier/ linearization/ signal processing) The specifications of the lens decisively determine the optical path of the infrared thermometer, which is characterized by the ratio Distance to Spot size.
Page 109 Basics of Infrared Thermometry 109- The advantages of non-contact thermometry are clear - it supports: • temperature measurements of moving or overheated objects and of objects in hazardous surroundings • very fast response and exposure times • measurement without inter-reaction, no influence on the •...
Page 110 Application field: Monitoring of electronic R&D of electronics R&D of electronic parts Process control extruding cabinets plastic parts Process control Process control at R&D of mechanical parts Monitoring of cables manufacturing solar calendering modules...
Page 111 Emissivity 111- 9 Emissivity 9.1 Definition The intensity of infrared radiation, which is emitted by each body, depends on the temperature as well as on the radiation features of the surface material of the measuring object. The emissivity (ε – Epsilon) is used as a material constant factor to describe the ability of the body to emit infrared energy.
Page 112 Figure 51: Spectral emissivity of several materials: 1 Enamel, 2 Plaster, 3 Concrete, 4 Chamotte If the emissivity chosen is too high, the infrared thermometer may display a temperature value which is much lower than the real temperature – assuming the measuring object is warmer than its surroundings. A low emissivity (reflective surfaces) carries the risk of inaccurate measuring results by interfering infrared radiation emitted by background objects (flames, heating systems, chamottes).
Page 113 Emissivity 113- 9.2 Determination of unknown emissivity ► First determine the actual temperature of the measuring object with a thermocouple or contact sensor. Second, measure the temperature with the infrared thermometer and modify the emissivity until the displayed result corresponds to the actual temperature. ►...
Page 114 ► Cove a part of the surface of the measuring object with a black, flat paint with an emissivity of 0.98. Adjust the emissivity of your infrared thermometer to 0.98 and take the temperature of the colored surface. Afterwards, determine the temperature of a directly adjacent area and modify the emissivity until the measured value corresponds to the temperature of the colored surface.
Page 115 Emissivity 115- 9.3 Characteristic emissivity In case none of the methods mentioned above help to determine the emissivity you may use the emissivity table ► Appendix A and Appendix B. These are average values, only. The actual emissivity of a material depends on the following factors: •...
Page 116 Appendix A – Table of emissivity for metals...
Page 117 Appendix A – Table of emissivity for metals 117-...
Page 118 Appendix B – Table of emissivity for non-metals...
Page 119 Appendix C – Quick start for serial communication 119- Appendix C – Quick start for serial communication Introduction One special feature of the PIX Connect software contains the possibility to communicate via a serial COM- Port interface. This can be a physical COM-Port or a virtual COM-Port (VCP). It must be available on the computer where the PIX connect software is installed.
Page 120 3. Select the baud rate that matches the baud rate of the other communication device. The other interface parameters are 8 data bits, no parity and one stop bit (8N1). These parameters are used in many other communication devices too. The other station must support 8 bit data.
Page 121 Appendix C – Quick start for serial communication 121- RS485 for Xi 80/410/410 MT/1M The Xi 80/410/410 MT/1M cameras support a direct RS485 connection. RS485 interface is designed for high- speed serial data transmission over long distances and as a bidirectional bus system with up to 32 participants. An RS485 bus can be set up as a 2-wire as well as a 4-wire system.
Page 122 The ImagerIPC2.dll will export a bunch of functions that are responsible for initiating the communication, retrieving data and setting some control parameters. The main difference to the former Version 1 (ImagerIPC.dll) is the support of more than one Optris Xi via multiple instances of Optris PIX Connect.
Page 123 Appendix E – PIX Connect Resource Translator 123- Appendix E – PIX Connect Resource Translator A detailed tutorial is provided on the USB stick. PIX Connect is a .Net Application. Therefore, it is ready for localization. Localization as a Microsoft idiom means a complete adaption of resources to a given culture.
Page 124 Appendix F – Wiring diagrams PIF for Xi 400/640 Analog Output: The maximum load impedance is 500 Ohm. The analog output can be used as a digital output too. The current value for “no alarm” and “alarm on” is set within the software.
Page 125 Appendix F – Wiring diagrams PIF for Xi 400/640 125- Digital Input: Figure 55: Digital input The digital input can be activated with a button to the Xi GND-Pin or with a low level CMOS/TTL signal: Low level 0…0.6 V; High level 2…24 V Example Button: Figure 56: Button...
Page 126 Analog input (usable voltage range: 0 … 10 V): Figure 57: Analog input Relay output at industrial PIF [Part No.: ACPIPIFMACBxx] The analog output must be set to “Alarm”. The range for AO1-AO3 can be set in the software (no alarm: 0-4 mA/ alarm: 10-20 mA).
Page 127 Appendix F – Wiring diagrams PIF for Xi 400/640 127- Figure 58: Relay output at industrial PIF...
Page 128 Appendix G – Declaration of Conformity...
Page 129 Appendix G – Declaration of Conformity 129-...
