ROOMS TO GO 8679-24 Assembly Instructions

Manufactured for Rooms To Go
LFST
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp,
exposed staple tips can cause injury, therefore, for your protection, please remove any
exposed staple used in packing
1. We recommend that you should assemble this product with the assistance of another
person; this will make assembly easier, and will help to eliminate damage to the product or
injury to person during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose
inside the carton during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps
to assemble your newly purchased product correctly and efficiently.
PART LISTS
STT DESC
1
CHAIR BACK
SEAT FRAME
2
SEAT CUSHION
3
FRAME
LOWER FOOT
4
FRAME
5
UPPER FOOT
FRAME
BOTTOM FRAME
6
Screwdriver is needed but not include in the hardware package
This product is manufactured by LFST for
ASSEMBLY INSTRUCTIONS

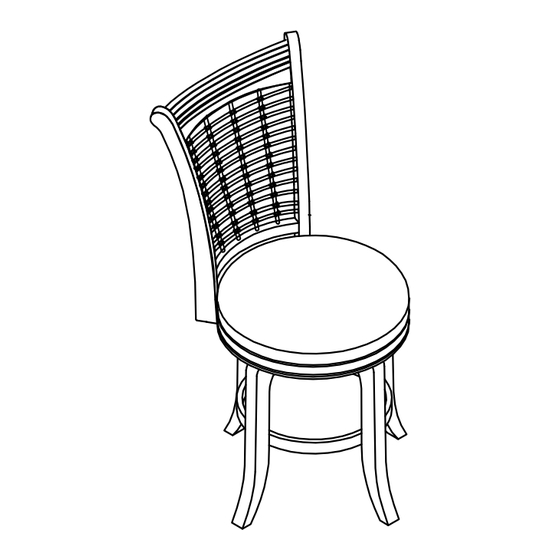

8679-24 SWIVEL CNT HEIGHT STOOL
SKU: 43486794
OUTLOOK Q'TY
1
1
1
1
1
1
PAGE: 1 OF 3
HARDWARE LISTS
STT OUTLOOK
Ø5/16" x 18 x 65 mm L
A
Ø5/16'' x 13 mm Spring Washer
Ø5/16'' x 19 mm x 2mm Flat Washer
Ø1/4" x 18 x 50 mm L Bolt
B
Ø1/4" x 13 mm Spring washer
Ø1/4" x 19 mm x 2mm Flat washer
Ø1/4" x 18 x 38 mm L Bolt
C
Ø1/4" x 13 mm Spring washer
Ø1/4" x 19 mm x 2mm Flat washer
D
Ø1/4" x 18 x 19 mm L Bolt
E
ALLEN WRENCH(4mm)
F
#8×38mm WOOD SCREW
G
L-SHAPED ANGLE IRON
SIZE Q'TY
4
4
4
4
1
4
2
