ROOMS TO GO 8679-4 Assembly Instructions

Manufactured for Rooms To Go
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp,
exposed staple tips can cause injury, therefore, for your protection, please remove any
exposed staple used in packing
1. We recommend that you should assemble this product with the assistance of another
person; this will make assembly easier, and will help to eliminate damage to the product or
injury to person during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose
inside the carton during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps
to assemble your newly purchased product correctly and efficiently.
PART LISTS
STT DESC
1
CHAIR BACK
2 SEAT FRAME
CHAIR RIGHT LEGS
3
CHAIR LEFT LEGS
4
SIDE STRETCHER
5
(RIGHT)
SIDE STRETCHER
6
(LEFT)
Screwdriver is needed but not include in the hardware package
This product is manufactured by LFST for
ASSEMBLY INSTRUCTIONS

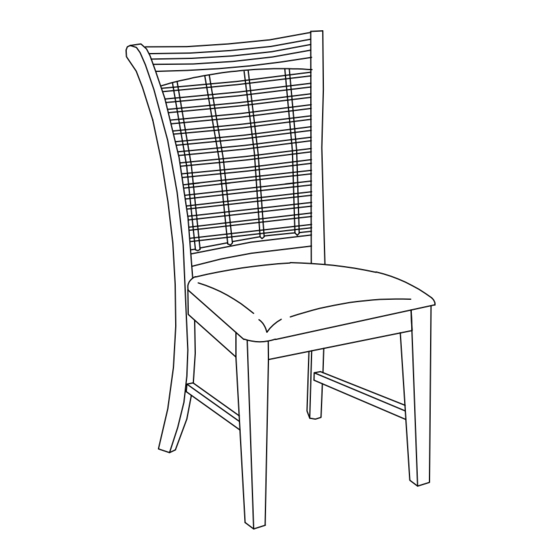

8679-4 SIDE CHAIR SKU:42486793
OUTLOOK Q'TY
1pc
1pc
1pc
1pc
1pc
1pc
PAGE: 1 OF 2
HARDWARE LISTS
STT OUTLOOK
Ø1/4" x 18 x 38 mm L Bolt
Ø1/4" x 13 mm
A
Spring washer
Ø1/4" x 19 mm x 2mm
Flat washer
Ø5/16" x 18 x 75 mm L
Ø5/16'' x 13 mm
B
Spring Washer
Ø5/16'' x 19 mm x 2mm
Flat Washer
Allen wrench(4mm)
C
#8×38mm WOOD SCREW
D
SIZE Q'TY
3
8
1
4
