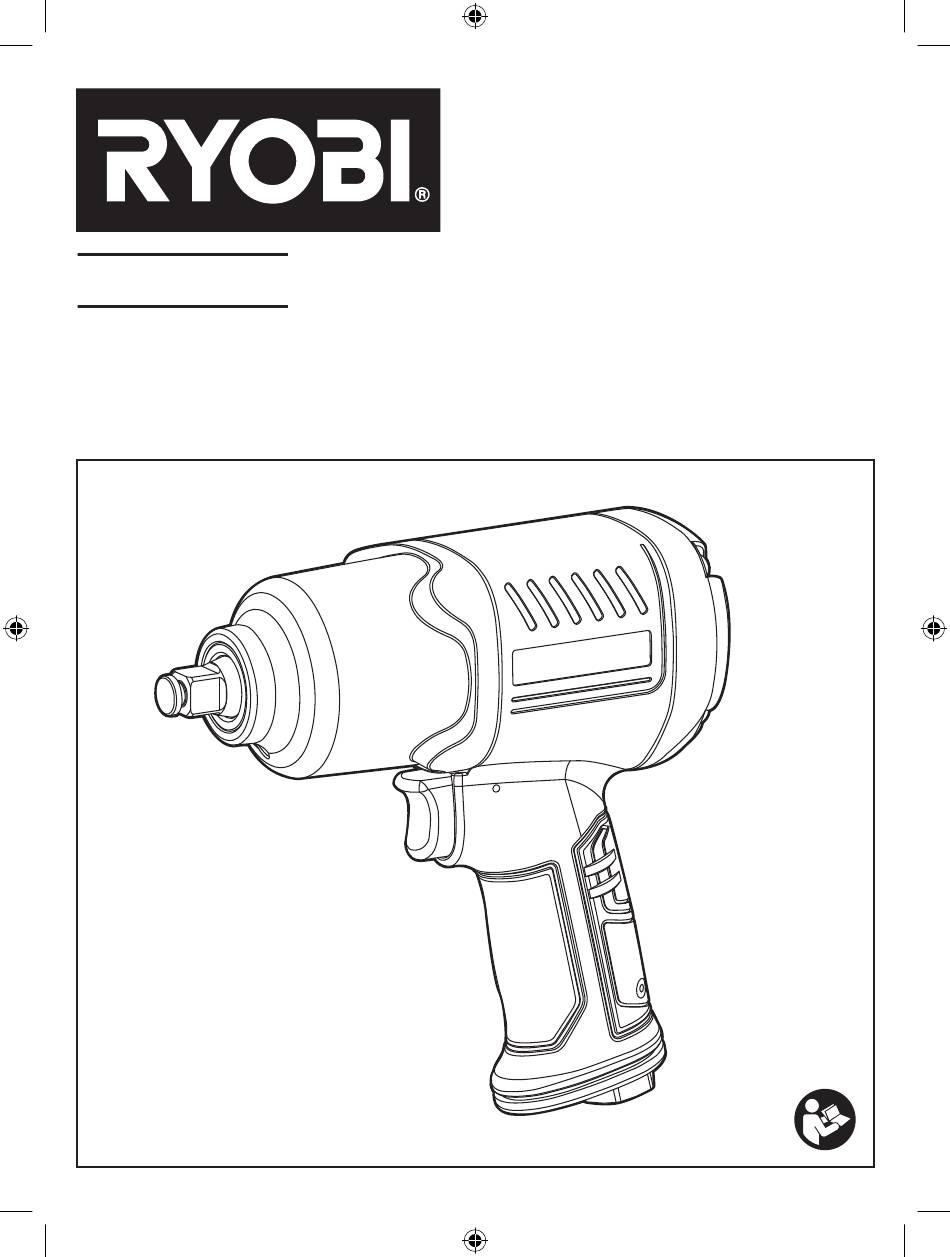

- Page 1 RAIWKIT1 AIR IMPACT WRENCH KIT OPERATOR'S MANUAL ORIGINAL INSTRUCTIONS...
- Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 3 DESCRIPTION 1. Wrench anvil 6. Air inlet 11. Screwdriver 16. Clockwise (torque 1) 2. Front housing cover 7. NITTO style plug 12. 10 x Impact sockets 17. Clockwise (torque 2) 3. Main housing 8. Automatic oiler 13. Quick coupler (not included) 18.
- Page 4 Fig.6 Quick Quick connector connector Lubricator Filter Tool compressor Cut-off valve Quick Quick coupler coupler Regulator Air hose (0-8.5 bar) Fig.7 ratings and markings required by this part of ISO 11148 GENERAL SAFETY RULES are legibly marked on the tool. The employer/user shall contact the manufacturer to obtain replacement ■...
- Page 5 ■ Ensure that the work piece is securely fixed. should change posture during extended tasks, which can help avoid discomfort and fatigue. ENTANGLEMENT HAZARDS ■ If the operator experiences symptoms such as ■ Entanglement hazards can result in choking, scalping persistent or recurring discomfort, pain, throbbing, and/or lacerations if loose clothing, personal jewellery, aching, tingling, numbness, burning sensations or...
- Page 6 ■ All integral features or accessories for the collection, employer and consult a physician. extraction or suppression of airborne dust or fumes ■ Operate and maintain the assembly power tool should be correctly used and maintained in accordance for threaded fasteners as recommended in the with the manufacturer’s instructions.
- Page 7 3. Danger of injury and property damage caused by flying objects. SPECIFICATIONS ASSEMBLY Air impact wrench kit Model RAIWKIT1 UNPACKING ■ Carefully remove the tool and any accessories from Square drive 12.7 mm (1/2”) the box. Make sure that all items listed in the packing Capacity bolt size 16 mm (5/8”)
- Page 8 AIR SUPPLY SET UP ■ Attach the impact socket to the square drive. See figure 2. WARNING! Ensure the air supply is clean and does not exceed 6.3 bar (90 psi). while operating the product. ■ Ensure the trigger is not depressed before connecting Too high an air pressure and unclean air will shorten to the air supply.
- Page 9 ● Use correct lubricant in the air line lubricator. The or an authorised service centre can perform repairs or lubricator should be of low air flow or changing air replacement of the product. flow type, and should be kept filled to the correct Disconnect the product from the air supply before level.
- Page 10 ■ If the product remains jammed, return to the service centre. PROBLEM: Product will not shut off. POSSIBLE CAUSE O-rings throttle valve is dislodged from seat inlet valve. REMEDY Replace the O-ring. NOTE: Repairs should be carried out by a qualified person.
- Page 11 PARTS LIST Description Description Description Description Washer Front cap Rotary controller Exhaust deflector Head Rotor O-ring 34 x 1.8 Washer Gasket Rotor blade Sealing cover O-ring 15 x 2.65 Anvil bushing Bolt 4 x 46 Spring Retaining ring Washer Cylinder Steel ball Plug cover O-ring 7.5 x 1.8...
- Page 12 31 Gilby Road, Mount Waverley VIC, 3149, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, and is used under license. Unit C, 70 Business Parade South NITTO is a registered trade mark owned by Nitto Kohki Co., Ltd.
