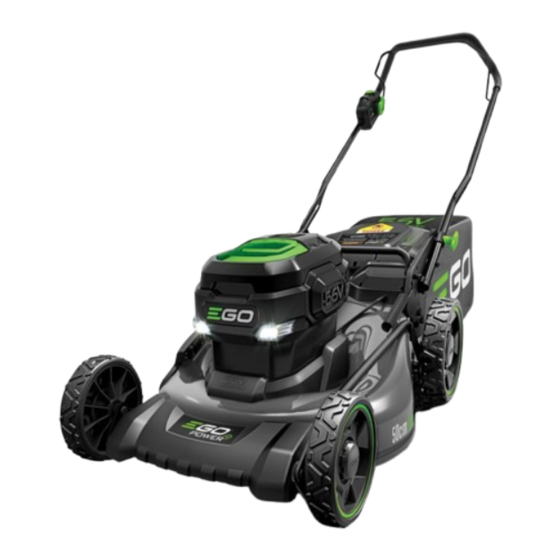

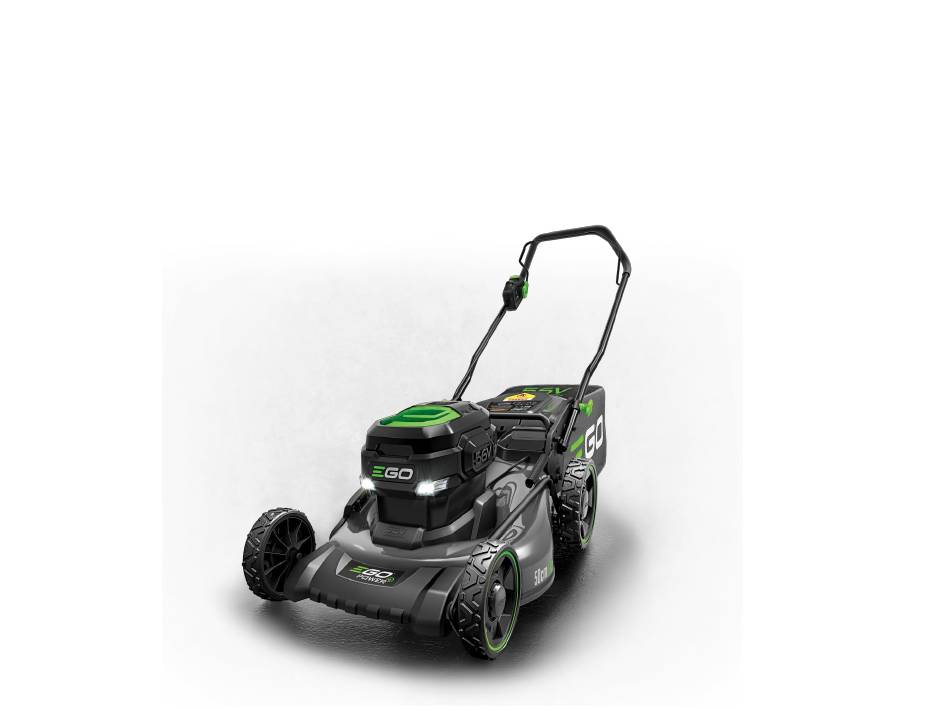

- Page 1 REPAIR GUIDELINE PART 1: Blade Replacement - LM2010E Lawn Mower...
- Page 2 Table of Contents LM2010E Lawn Mower Contents Page Blade Removal Blade Installation...
- Page 3 1. Blade Removal LM2010E Lawn Mower 1. Release switches and remove the battery pack from the mower. 2. While wearing protective gloves, turn the mower on its side (Fig. 1). 3. Place a metal rod (e.g., a thick bit) with a diameter less than 11mm into the fixing hole to act as a stabilizer and place another metal rod (e.g., a thin bit) with a diameter less than 6.35 mm into the holes (the through holes in the fan with the holes in the blade) to act as another stabilizer (Fig.
- Page 4 1. Blade Removal LM2010E Lawn Mower Use a 14mm wrench to turn the blade bolt counterclockwise to loosen it. Stabilizer Another Stabilizer Loosen...
- Page 5 1. Blade Removal LM2010E Lawn Mower 5. Remove the bolt, outer flange and the blade. Replace any broken or worn parts. 6. Remove the inner flange and fan from the motor shaft, then replace any broken or worn parts. Description Part Number SPEC Flange Bolt...
- Page 6 2. Blade Installation LM2010E Lawn Mower 1. Fix the inner flange into the fan. 2. Mount the fan and the inner flange onto the motor shaft with the fan blades towards the deck. Fan blades towards deck Inner flange Motor shaft Wrong assembly of the fan...
- Page 7 2. Blade Installation LM2010E Lawn Mower Flat position 3. Mount the blade onto the inner flange with the surface stating “THIS SIDE FACING GRASS” facing outwards (Fig. 1) . 4. Aligning the flat position of the outer flange with the corresponding flat position on the motor shaft, mount the outer flange in place(Fig.
- Page 8 2. Blade Installation LM2010E Lawn Mower 5. Mount the bolt into the shaft and pre-tighten it in a clockwise direction by hand. Out flange Pre-tighten by hand Bolt...
- Page 9 2. Blade Installation LM2010E Lawn Mower 6. Turn the blade by hand to align the holes in blade with the through holes in the inner flange(Fig. 1). 7. Place a metal rod (e.g. a thin bit) with a diameter less than 6.35mm into the aligning holes to act as a stabilizer.
