Wilton Tradesman Vise 1780A Quick Start Manual

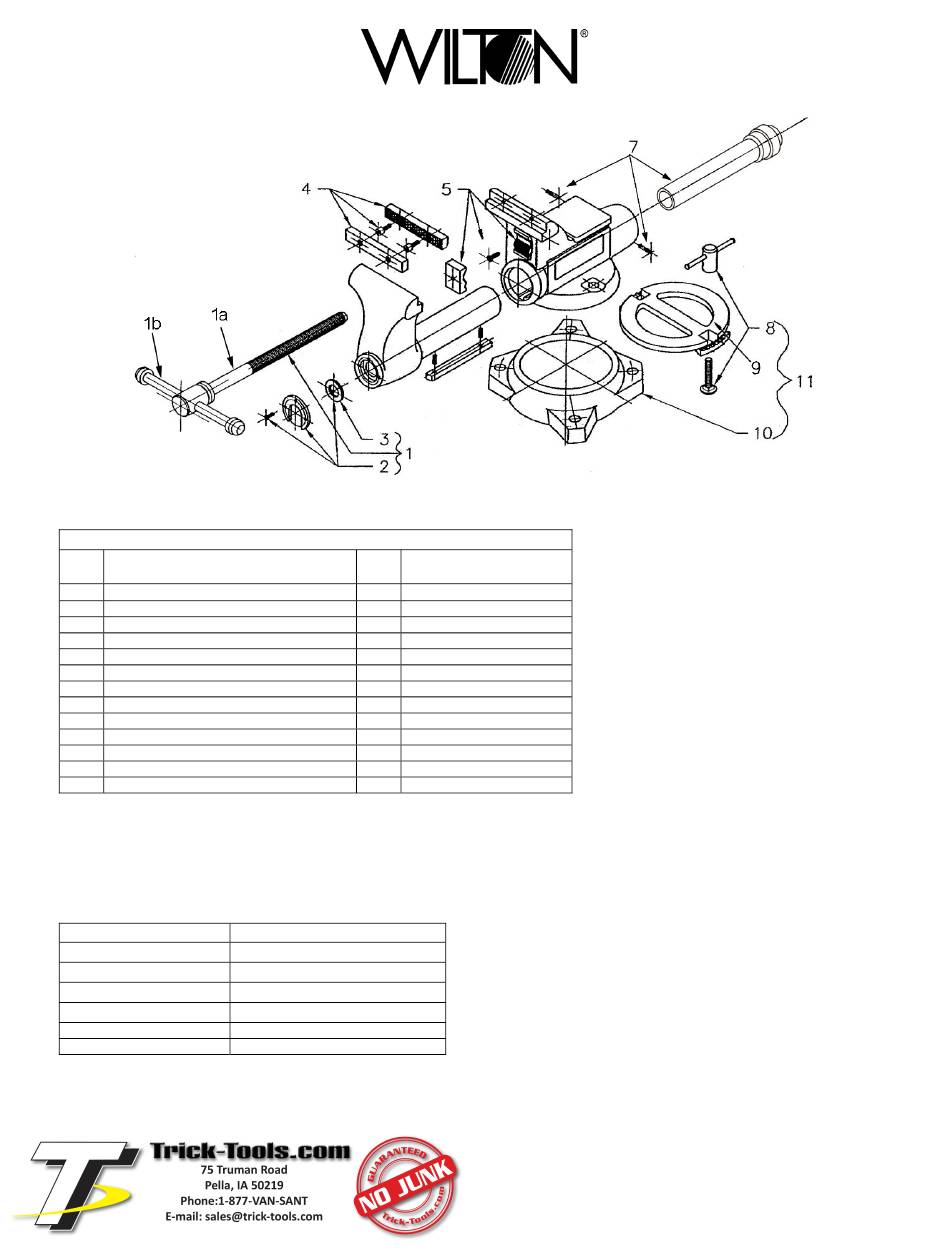

Replacement parts
Stock no.28808 Model no. 1780A
ITEM DESCRIPTION
Stationary Jaw casting # reference
1 Spindle Assembly
1a Spindle
1b Tommy Bar, with rubber rings
2 Spindle Retainer with 3 screws and #3
3 Thrust Washer
4 Set of Jaw Inserts with 4 screws
5 Set of Pipe Jaw Inserts with 2 screws
7 Casing Nut w/ 2 pins
8 Lock Nut Assemblies (set of 2)
9 Inner Ring
10 Outer Ring only
11 Swivel Base Assembly (includes #8,9,10)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the
Model Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are
shown for reference only, and may not be available individually.
Specifications
Stock no. 28808
Model no. 1780A
Jaw width 8 in. (203 mm)
1
Open capacity, maximum 6-3/4 in. (172.5 mm)
Throat depth 4-3/4 in. (121 mm)
Pipe jaw capacity 1/8 – 3-1/2 in. (3.2 – 89 mm)
Shipping weight 111 lbs. (50.3 kg)
1
based on lead screw engagement with half of nut thread length
Stock no. 28808, Tradesman Vise (model 1780A)
QTY.
1
1
1
1
1 Not available separately
1 set
1 set
1
1 set
1
1
1
PART NO.
112213A
2900510
2900511
2900512
2904070
2908100
2908050A
2900520A
2905370
1010830A
1010840
2900590A
Note: See reverse side for important safety instructions.
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
Part No. M-28808
Edition 3 11/2018
