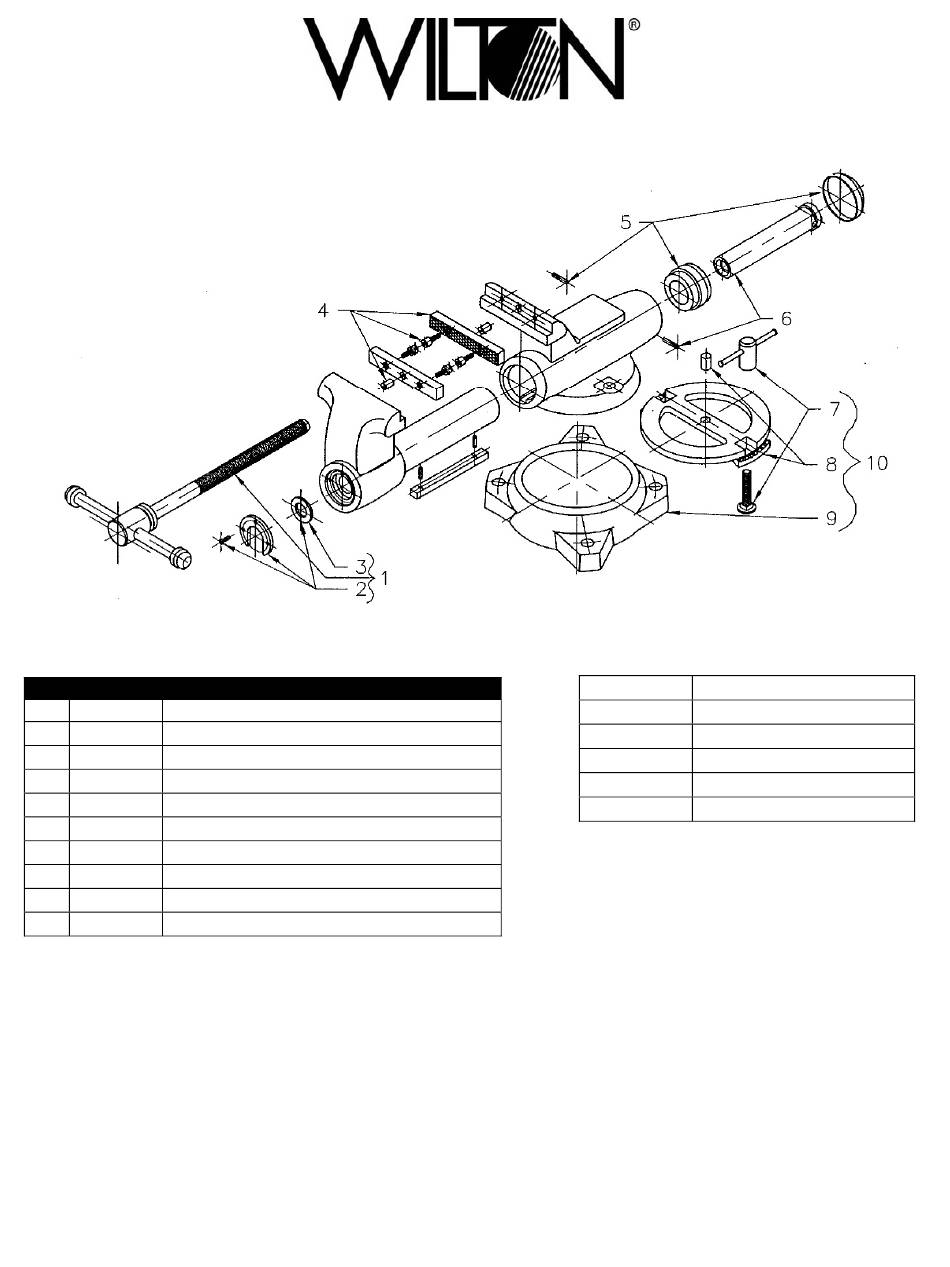

#28831, 4-inch Swivel Base Machinist Vise (model 400S)
Replacement parts
Item
Part No.
Description
1
2900020
Spindle Assembly Complete
2
2904010
Spindle Retainer (with 3 screws and #3)
3
---
Thrust Washer (not available separately)
4
2904980
Serrated Jaw Inserts with 4 screws
5
2900080
End Piece Assembly Complete, with 2 pins
6
2900120
Casing Nut with 2 pins
7
2904270
Lock Nut Assemblies
8
1010810
Inner Ring with Dowel Pin
9
1011980
Outer Ring only
10
2904120
Swivel Base Assembly Complete (includes #7,8,9)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Note: See reverse side for important safety instructions.
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com
Specifications
Stock no.
Model no.
Jaw width
Jaw opening
Throat depth
Net weight
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
28831
400S
4 in. (102 mm)
6-1/2 in. (165 mm)
3-1/2 in. (89 mm)
62 lbs. (28 kg)
M-28831
Edition 1 09/2018
