#28830, 3-inch Swivel Base Machinist Vise (model 300S)

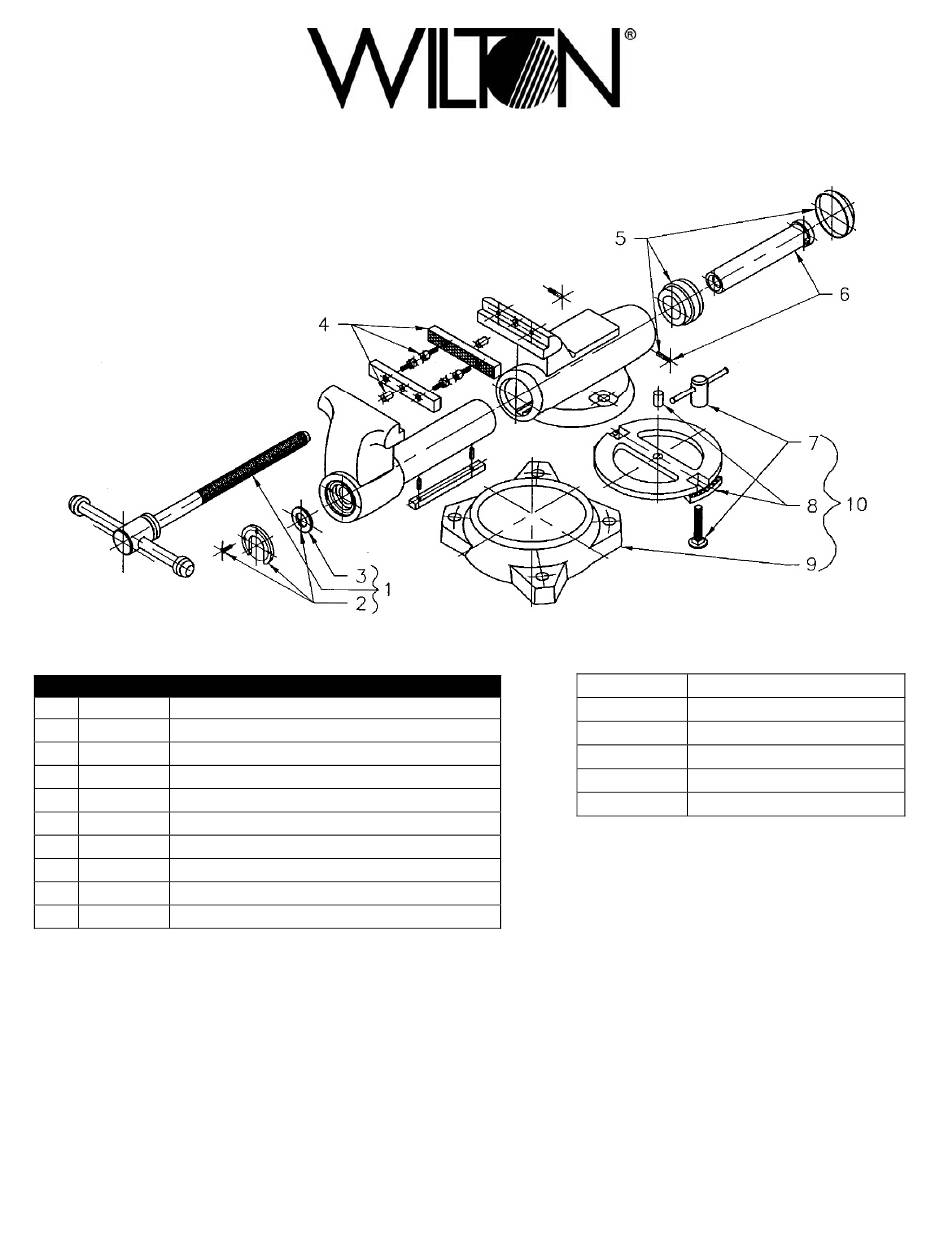

Replacement parts
Item
Part No.
Description
1
2900000
Spindle Assembly Complete
2
2904000
Spindle Retainer (with 3 screws and #3)
3
---
Thrust Washer (not available separately)
4
2903080
Serrated Jaw Inserts with 4 screws
5
2903100
End Piece Assembly Complete, with 2 pins
6
2903110
Casing Nut with 2 pins
7
2904060
Lock Nut Assemblies
8
1010900
Inner Ring with Dowel Pin
9
1012010
Outer Ring only
10
2904370
Swivel Base Assembly Complete (includes #7,8,9)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Note: See reverse side for important safety instructions.
WILTON
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.wiltontools.com
Specifications
Stock no.
Model no.
Jaw width
Jaw opening
Throat depth
Net weight
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
28830
300S
3 in. (76.2 mm)
4-3/4 in. (121 mm)
2-5/8 in. (67 mm)
30 lbs. (13.6 kg)
M-28830
Edition 1 09/2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wilton 300S
Summary of Contents for Wilton 300S
- Page 1 Note: See reverse side for important safety instructions. WILTON 427 New Sanford Road LaVergne, Tennessee 37086 M-28830 Ph.: 800-274-6848 Edition 1 09/2018 www.wiltontools.com Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
- Page 2 Wilton reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. NOTE: Wilton is a division of JPW Industries, Inc. References in this document to Wilton also apply to JPW Industries, Inc., or any of its successors in interest to the Wilton brand.
- Page 3 #28830 Model 300S Machinist Vise Mounting Template Drill four (4) 7/16” diameter holes. Mount vise with four (4) 3/8” diameter cap bolts, 1-1/4 inches longer than benchtop thickness. Use minimum Grade 5 bolts. Secure with flat washers and nuts. ⚠...
- Page 4 9 3/4” 11/16” 5/8” 28828 1011080 3 1/2” 4 3/8” 4 1/2” 3 5/8” 11 3/8” 11/16” 5/8” 28830 300S 1012010 1 7/8” 2 7/16” 2 9/16” 2 1/16” 6 3/8” 7/16” 3/8” 28831 400S 1011980 2 9/16” 3 5/16”...
