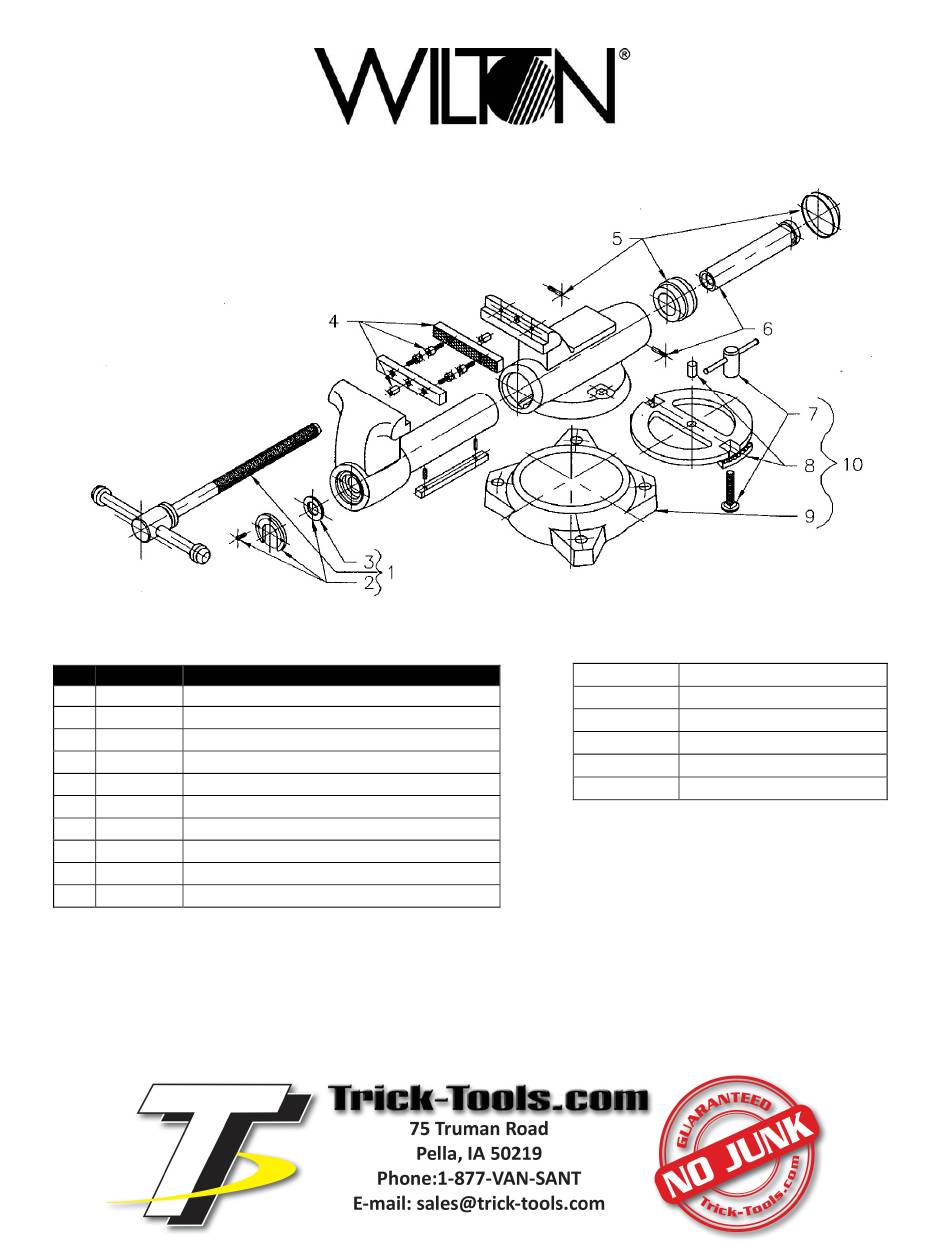

#28833, 6-inch Swivel Base Machinist Vise (model 600S)
Replacement parts
Item
Part No.
Description
1
2900050
Spindle Assembly Complete
2
2904500
Spindle Retainer (with 3 screws and #3)
3
---
Thrust Washer (not available separately)
4
2903280
Serrated Jaw Inserts with 4 screws
5
2901070
End Piece Assembly Complete, with 2 pins
6
2901080
Casing Nut with 2 pins
7
2904160
Lock Nut Assemblies
8
1010830
Inner Ring with Dowel Pin
9
1010840
Outer Ring only
10
2904150
Swivel Base Assembly Complete (includes #7,8,9)
To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model
Number and Serial Number of your tool available when you call will allow us to serve you quickly and accurately. Some parts are shown for
reference only, and may not be available individually.
Note: See reverse side for important safety instructions.
Specifications
Stock no.
Model no.
Jaw width
Jaw opening
Throat depth
Net weight
Copyright © 2018 WILTON, a Division of JPW Industries, Inc.
28832
600S
6 in. (153 mm)
10 in. (254 mm)
5-1/2 in. (140 mm)
156 lbs. (71 kg)
M-28833
Edition 1 09/2018
