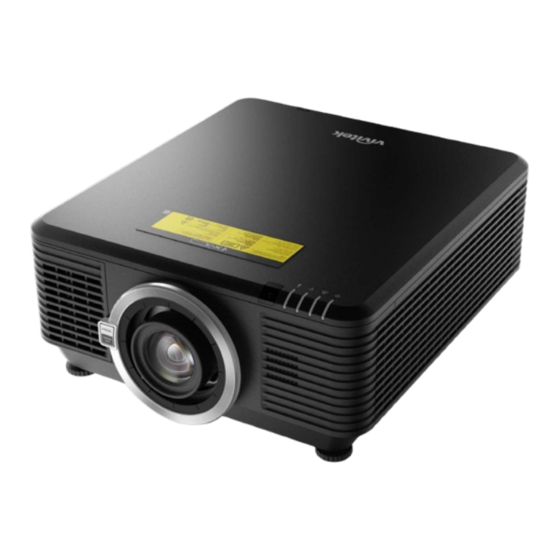

Vivitek DU7199Z User Manual

Hide thumbs Also See for DU7199Z:

User manual (70 pages)

page of 70

/ 70
Bookmarks

Quick Links

Download this manual

DU7099Z

DU7199Z

DU7299Z

User Manual

www.vivitekcorp.com

Need help?

Do you have a question about the DU7199Z and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivitek DU7199Z

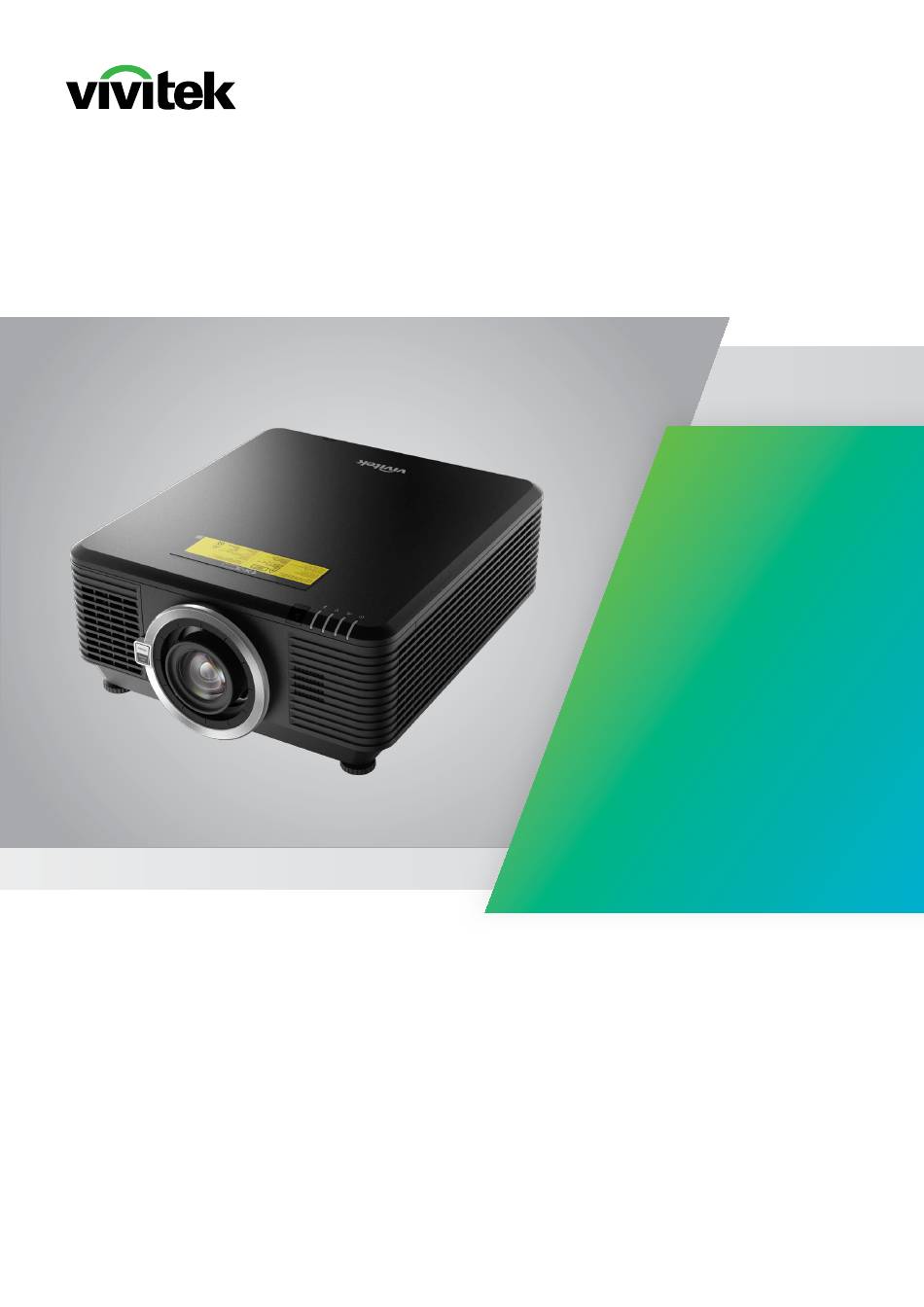

Page 1 DU7099Z DU7199Z DU7299Z User Manual www.vivitekcorp.com...
Page 2 Cooling Notes ......................18 Installation Notice ....................19 Setup and Projection options ................. 19 Mounting the Projector ...................20 Custom Stand Mount Installation compliances ............20 Installing or Removing the Optional Lens .............. 21 Lenses Series ......................22 Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 3 Lens Settings ......................34 Alignment Reset.......................34 CONTROL Menu ..................... 35 Direct Power On .......................36 Light Source ......................36 High Altitude ......................36 IR Control ........................36 Remote ID .........................37 HDBaseT ........................37 Network ........................37 Art-Net Setup ......................43 Rental Mode ......................44 Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 4 Projector Time Table ....................56 6. Regulatory Compliance FCC Warning ......................59 Canada ........................59 Safety Certifications ....................59 Disposal and Recycling ...................59 7. RS-232 Communication Communication parameter setup ................60 Operation commands ....................60 Lens related function ....................68 8. Servies Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 5 States and other countries. HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. All other product names used in this manual are the properties of their respective owners and are acknowledged. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 6 Please write down your projector model number and serial number and keep the information for maintenance purposes in the future. Should the equipment be lost or stolen, the information could also be used for the police report. Model number: Serial number: Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 7 Mode of operation Pulsed, due to frame rate Pulse width 1.12ms Pulse repetition rate 120Hz Maximum laser energy 0.611mJ Total internal power >100w Apparent source size >10mm, at lens stop Divergence >100 mili Radian Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 8 In case to install the projector over head, keep over 3m distance at least between the floor surface and the RG3 area. Operators shall control access to the beam within the hazard distance or install the product at the height that will prevent exposures of spectators’ eyes within the hazard distance. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 9 USER MANUAL 1.General Information Warning Labels Safety Hazard and Warning information Labels are placed at the following locations: Hazard Warning Symbol and Aperture Label and Explanatory Label Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 10 This machine has 2 (Top cover x 1, Lens x 1) Interlock switches to protect the laser light Leakage. 1. Will power-off the system individually when the top cover is removed. 2. Will power-off the system individually when the lens is removed or not install correctly. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 11 Digital Mirror Devices (DMD™). Sun Light Warning Avoid using the series of projector in direct sun light. Sun light on the projector lens can severely damage the Digital Mirror Devices (DMD™). Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 12 Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. Caution: Avoid using the projector in dusty environments. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 13 3. Lens Filter Sponge 6. Lens Release Button Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector light source cool. Do not obstruct any of the ventilation openings. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 14 ● Screen controllers are supplied and supported by screen manufacturers. ● Do not use this jack for anything other than intended use. Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 15 3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 16 The set ID number is overwritten if new ID number is set, you can press ID SET and CLEAR button to erase ID number of the remote control. Press ID SET and CLEAR buttons The backlight of the buttons is flashing one simultaneously time Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 17 ● Insert the battery with the positive side facing up. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the batteries when not using the projector for prolonged periods. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 18 STANDBY status. Air Inlet ● Make sure there is no object blocking air input within 30 cm. ● Keep the inlet away from other heat sources ● Avoided heavy dust area Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 19 ● All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air. Setup and Projection options Front Rear Ceiling Front Ceiling Rear Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 20 The drawing showing below is for referal only. It is not an accurate stand design drawing. Air intake Air intake Air exhaust Air intake 110.0 300.0 107.0 [Front View] [Side View] Horizontal adjuster Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 21 7. If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt. Installing the New Lens Please take off lens filter sponge. Align the flange and correctly position as shown in the picture. Flange Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 22 2.Getting Started USER MANUAL Lenses Series Eight types of optional electric lenses are available for the projector as below table. Contact the authorized dealer of Vivitek for details. Lenses Group (Optional) Image Size Lens Throw Ratio Zoom Ratio Projection Distance...
Page 23 ● Press to select the Source Device. Note: Component is supported through the RGB to Component adapter. Using a single HDBaseT CAT5e (above) cable, the projector supports an HDBaseT connection distances to 100m/328ft. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 24 There is a Lens Lock function on OSD menu to disable lens control adjustment for avoiding possible misoperation after you finish the adjustment. Please make sure to disable the lock before performing the lens control. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 25 Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 26 Lines, Diagonal Lines, Horizontal Ramps, Vertical Ramps, Off Auto Source ● Use ◄/► to set On/Off. ● On: Lets projector searching for the input signal automatically. ● Off: Select the input signal manually. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 27 3D League on December 10, 2008. It states that those who watch 3D images, need to take a break for at least 5 to 15 minutes every thirty minutes or one hour. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 28 ● Use ◄/► to select Grid, White, Red, Green, Blue, Black, RGB Ramps, Color Bar, Step Bar, CheckBoard, Horizontal Lines, Vertical Lines, Diagonal Lines, Horizontal Ramps, Vertical Ramps, Off to enable the test pattern image. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 29 PQ-L700 (for HDR only) Color Temperature: Warm, Normal, Cold Input Balance: R Gain, G Gain, B Gain, R Offset, G Off- set, B Offset Current: (OK, Cancel) Picture Mode reset All: (OK, Cancel) Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 30 ● These three options are used to adjust the range of color input for the entire image. If minimal amount of red, green or blue appears in the gray areas, lower the gain of the corresponding color accordingly. As gain increases, the contrast of the image will become lower. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 31 Press to reset current Picture Mode to the defaut settings. ● All: Press to reset all Picture Mode to the defaut settings. Note: “Picture Mode Reset” is only reset according to input signal. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 32 Lens Settings Lens Lock: Off, On Lens Type: non-UST Lens, UST Lens Lens Control: Zoom & Focus, Lens Shift Lens Memory: Save , Load Memory : 1~10 Center Lens (execute) (OK, Cancel) Alignment Reset Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 33 ▼/▲ to scroll through submenus. ● Screen Format: Use ◄/► to select the screen format to 16:10, 16:9, 4:3 and 2.35:1. Use ◄/► to adjust the Position of Screen. ● Screen Position: Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 34 Lens position, Zoom and Focus automatically. ● Center Lens: Press to do Lens Shift central calibration. Alignment Reset ● Press to reset all Alignment to the defaut settings. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 35 Network Network State: Connect, Disconnect DHCP: Off, On IP Address: 0~255, 0~255, 0~255, 0~255 Subnet Mask: 0~255, 0~255, 0~255, 0~255 Gateway: 0~255, 0~255, 0~255, 0~255 DNS: 0~255, 0~255, 0~255, 0~255 Apply: OK, Cancel Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 36 ● Use ◄/► to select the prefered IR control location (Front+ Rear IR On, Front IR On, Rear IR On, Front+ Rear IR Off). This function let you select which IR remote controller receiver is active. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 37 Set the gateway. The input method is the same as the setting for IP address. ● DNS: Set the DNS. The input method is the same as the setting for IP address. and use ▼/▲ to scroll through submenus. ● Apply: Press Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 38 Support- Service team directly. Connecting with LAN 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 39 ● Subnet Mask: 255.255.255.0 ● Gateway: 0.0.0.0 ● DNS Server: 0.0.0.0 10. Press (Enter) / ► to confirm settings. Open a web browser (for example, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher). Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 40 12. Press (Enter) / ►. The projector is setup for remote management. The LAN/RJ45 function displays as follows. CATEGORY INPUT-LENGTH ITEM Crestron Control IP Address IP ID Port Projector Projector Name For more information, please visit http://www.crestron.com. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 41 Note: Fill in all fields as specified. User can click Send Test Mail to test what setting is correct. For successful sending an e-mail alert, you must select alert conditions and enter a correct e-mail address. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 42 By default installation for Windows, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled. Open “Control Panel” in Windows Open “Programs” Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 43 Use ◄/► to select universes for each Sub net. ● Universe: Use ◄/► to select Address starting point. ● Start Address: Use ◄/► to select OK or Cancel after finish ArtNet settings. ● Apply: Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 44 Expiration Time Reset: To restart and countdown the expiration time. ● Change Password: Press to change the password of Rental Mode. Note: If want to enable Rental Mode, please contact local agent to obtain 5 digits password. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 45 Menu Translucent: Off, 50%, 100% Keypad Lock Off, On Security Lock Off, On Language English, Français, Deutsch, Español, Português, 简体中文, 繁體中文, Italiano, Norsk, Svenska, Nederlands, Русский, Polski, Suomi, Ελληνικά, 한국어, Magyar, Čeština, Türkçe, 日本語, Dansk Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 46 Use ◄/► to switch Off / 50% /100% for Menu transparency. Keypad Lock ● Use ◄/► to to switch On/Off for Keypad lock. Note : To unlock by keypad, please press “ ▼ ” for 5 sec and then pop-out “keypad unlock”. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 47 ● Press ▲/▼/◄/► button to scroll and highlight your language. ● Press the MENU button to exit the language submenus. Environment Status ● Press to display the Environment Status sub menu. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 48 Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out. INFO Screen This screen displays the projector current status information to be used for technical support. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 49 Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 50 In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Light source LEDs are still blinking or the Over Temp LED is lit, contact your service center. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 51 ● Turn off any fluorescent lights in the room. ● Check the battery polarity. ● Replace the batteries. ● Turn off other Infrared-enabled devices in the vicinity. ● Have the remote control serviced. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 52 Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 53 HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively investigates these instances to ensure that the HDMI trademark is properly used in the market. We recommend that consumers buy their cables from a reputable source and a company that is trusted. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 54 5. Specifications USER MANUAL 5. Specifications Projector Dimensions 470.0 Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 55 At temperature 0 to 40°C, relative humidity 10% to 85%, non-conden- Environmental Opera- tion Condition sation At temperature -10 to 60°C, relative humidity 5% to 95%,non-conden- Environmental Storage Condition sation Note: “*” : Standard lens. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 56 1280 x 1024 (3D:TB,SBS) ‒ ‒ ○ ○ 1280 x 1024 ‒ ‒ ○ ○ 1280 x 1024 91.1 ○ ‒ ‒ ○(3D:TB,SBS) 1280 x 960 (3D:TB,SBS) ‒ ‒ ○ ○ 1280 x 960 85.9 Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 57 ‒ ‒ ‒ ‒ ○ 3840 x 2160 56.25 ‒ ‒ ‒ ‒ ○ 3840 x 2160 67.5 ‒ ‒ ‒ ‒ ○ 3840 x 2160 112.5 ‒ ‒ ○ 3840 x 2160 Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 58 The native resolution of the panel is 1920 x 1200. Resolution other than native resolution may be display with uneven size of text or line. SDTV \ EDTV \ HDTV may have a little noise is acceptable. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 59 This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 60 = 100[CR] OP BRIGHT = 100 Set up brightness Out of range or not support op bright = 200[CR] OP BRIGHT = NA op abright = 100[CR] Illegal command *Illegal format# Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 61 4 : Side by side 5 : Off 0 ~ 359 3D Sync Out Delay threed.syncdelay 0 : Internal 3D Sync Input threed.syncinput 1 : External 0 : Internal 3D Sync Output threed.syncoutput V 1 : External Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 62 HSG/White/Blue Gain hsg.wb.gain 0 ~ 10 Brilliant Color bri.color 0 ~ 31 Sharpness sharp 0 = 1.8 Gamma gamma 1 = 2.0 2 = 2.2 3 = 2.4 4 = B&W 5 = Linear Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 63 1 : 16:9 2 : 4:3 3: 2.35:1 16:10 : Not Available Screen Position screen.shift 16:9 : -60 ~ 60 : -160 ~ 160 2.35:1 : -191 ~ 191 Alignment Reset align.reset Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 64 2: On By Lan 3: On By HDBaseT 0 ~ 36 No Signal Power Off nosignal.poweroff V 0 ~ 120 Sleep Timer sleep.timer 0 ~ 10 Volume volume 0 ~ 10 Mic Volume mic.volume Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 65 1 : On 1 : Up Security Lock security.lock 2 : Down 3 : Left 4 : Right 1 : Up Security Unlock security.unlock 2 : Down 3 : Left 4 : Right Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 66 4 : Warmup 5 : Powerup 6 : Failure 0 : Off Mute mute 1 : On 0 : Off Freeze freeze 1 : On 0 : Off Internal Speaker speaker 1 : On Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 67 3 = Power Level 4 = Input 5 = Channel Control 0 = None Art-Net Channel 5 Function artnet.ch5.func 1 = Power 2 = PIC-MUTE 3 = Power Level 4 = Input 5 = Channel Control Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 68 Lens right lens.right Lens right 2 lens.right.2 Lens right 3 lens.right.3 Lens center lens.center 0 : Non-UST Lens Lens type lens.type 1 : UST Lens Lens load lens.load Lens save lens.save Lens clear lens.clear Vivitek - DU7099Z_DU7199Z_DU7299Z Series User Manual v1.0...
Page 69 USER MANUAL 8. Servies 8. Servies Europe, Middle East and Africa Vivitek Service & Support Zandsteen 15 2132 MZ Hoofddorp The Netherlands Tel: Monday - Friday 09:00 - 18:00 English (UK): 0333 0031993 Germany: 0231 7266 9190 France: 018 514 8582...
