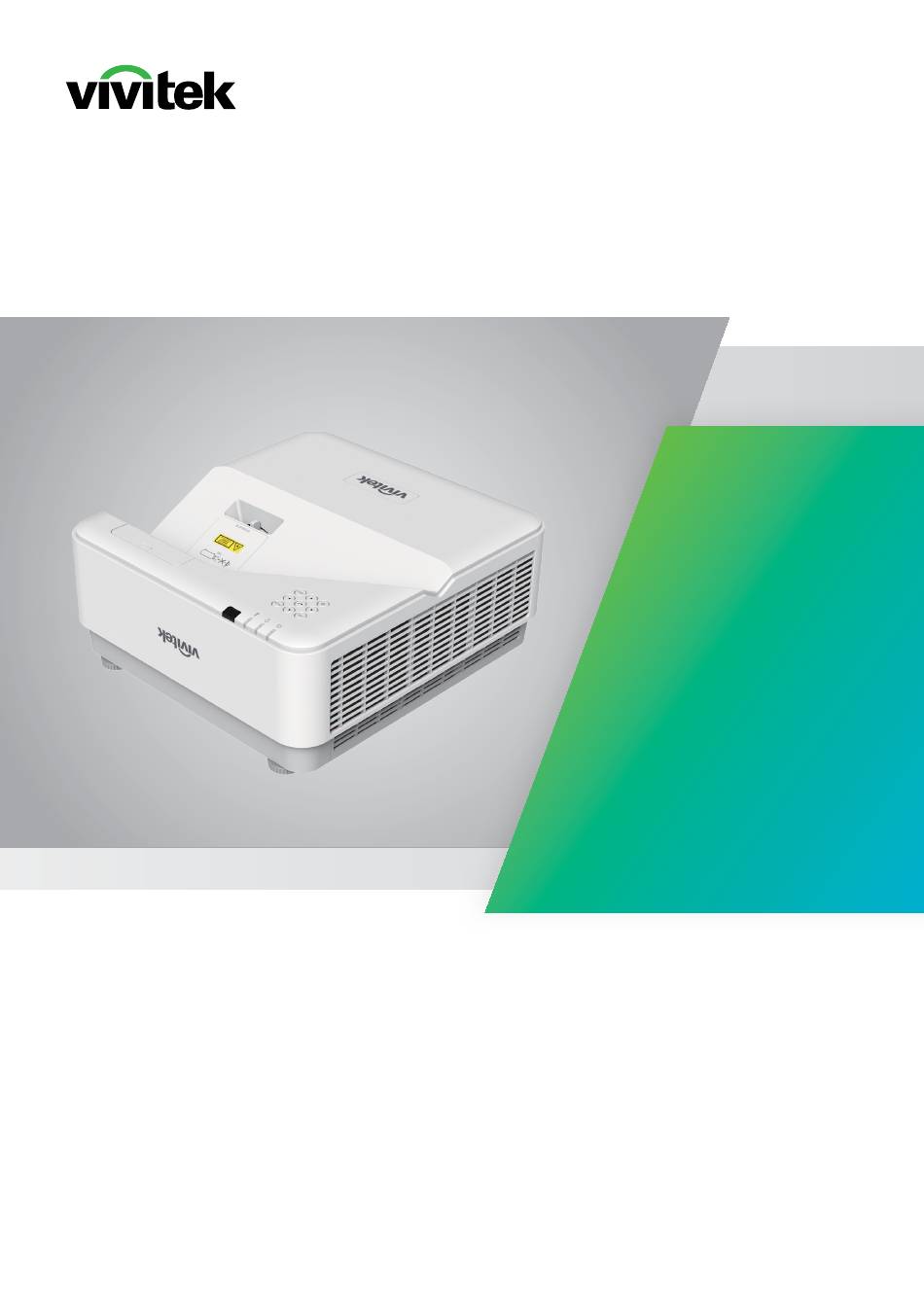

- Page 1 DU77x-UST Series User Manual www.vivitekcorp.com...
-
Page 2: Table Of Contents
Projector Start Guide ....................19 1 Connect Power and Source Devices ..............19 2 Power ON/OFF ..................... 19 3 Select Source Device ................... 19 4 Adjust Projector Tilt .....................20 5 Adjust Projector Images ..................20 Vivitek - DU775Z-UST Series User Manual v1.0... - Page 3 High Altitude ......................28 Remote ID .........................28 Network ........................29 SETTINGS Menu ....................36 Audio .........................36 Blank Screen Color ....................36 Menu .........................37 Keypad Lock ......................37 Security Lock ......................37 Language ........................37 Reset All ........................37 INFO Screen ......................38 Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 4 Projector DataSheet ....................45 Projector Time Table ....................46 6. Regulatory Compliance FCC Warning ......................49 Canada ........................49 Safety Certifications ....................49 Disposal and Recycling ...................49 7. RS-232 Communication Communication parameter setup ................50 Operation commands ....................50 8. Service Vivitek - DU775Z-UST Series User Manual v1.0...
-
Page 5: General Information
HDMI Licensing LLC in the United States and other countries. All other product names used in this manual are the properties of their respective owners and are acknowledged. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 6: Important Safety Information
Please write down your projector model number and serial number and keep the information for maintenance purposes in the future. Should the equipment be lost or stolen, the information could also be used for the police report. Model number: Serial number: Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 7: Laser Warning
Maximum laser energy 0.62mJ Total internal power >100w Apparent source size >10mm, at lens stop Divergence >100 mili Radian As with any bright light source, do not stare into the beam. RG2 IEC 62471-5:2015. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 8: Warning Labels
1.General Information USER MANUAL Warning Labels Safety Hazard and Warning information Labels are placed at the following locations: 1. Hazard Warning Symbol and Aperture Label 2. RG2 Label 3. Explanatory Label Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 9: General Notice
Digital Mirror Devices (DMD™). Sun Light Warning Avoid using the DU775Z-UST Series in direct sun light. Sun light on the projector lens can severely damage the Digital Mirror Devices (DMD™). Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 10: Getting Started
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. Caution: Avoid using the projector in dusty environments. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 11: Projector Features
Ventilation openings on the projector allow for good air circulation, which keeps the projector light source cool. Do not obstruct any of the ventilation openings. Note: For setting the DP01 kit on projector, Please find DP01 manual in the kit box you purchase. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 12: Connect Source Devices
8. 3D OUT 9. HDMI 2 Info 10. HDMI 1 11. VGA OUT Enter 12. VGA IN 13. MINI USB (Service / Interactive) Navigate ▲ ▼ ◄ ► 14. AC IN 15. Kensington Security Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 13: Remote Controller (Src) + Function
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 Caution: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 14: Operating Range
2. Dispose of used batteries according to local ordinance regulations. 3. Remove the batteries when not using the projector for prolonged periods. Combo Key Settings ID+0: Reset Remote Controller customer code to default settings. ID+(1~7): Set Remote Controller customer code to “1~7”. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 15: Installation Guide
STANDBY status. Air Inlet ● Make sure there is no object blocking air input within 30 cm. ● Keep the inlet away from other heat sources ● Avoided heavy dust area Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 16: Installation Notice
● All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air. Setup and Projection options Front Rear Ceiling Front Ceiling Rear Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 17: Mounting The Projector
60 seconds. 250.0 Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 18: Projection Distance Vs. Projection Size
1171 16.5 20.0 2286 76.3 1939 47.7 1212 17.2 20.7 2540 84.8 2154 53.0 1346 18.9 22.7 3048 101.8 2585 63.6 1616 10.0 23.1 26.7 3810 127.2 3231 79.5 2019 13.1 29.1 32.7 Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 19: Projector Start Guide
Select Source Device ▼▲ ● Press the SOURCE button and use to scroll through the Source Devices. ● Press to select the Source Device. Note: Component is supported through the RGB to Component adapter. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 20: Adjust Projector Tilt
3. Ensure the cables are in a safe location. You could trip over them. Adjust Projector Images Use the focus ring located on the projector top panel only FOCUS Rotate the Image-focus control outer ring to sharpen the projected image. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 21: On-Screen Display (Osd) Menu Settings
Depending on the video source, not all items in the OSD are available. For example, the Horizontal/Vertical Position items in the Analog menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 22: Input Menu
Limited: Force to select Limited Range(16~235). ● Instant Motion: ( Recommended for Gaming ) Off: Disable the function and using normal alignment parameters. On: Enable the function and alignment parameters return to default. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 23: Analog
3D images, need to take a break for at least 5 to 15 minutes every thirty minutes or one hour. Signal Power on ● Use ◄/► to set On/ Off to enable or disable auto Power On by input signal. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 24: Picture Menu
Suggest to use in a dark environment. ● Game: Using for video game. ● sRGB: Optimization RGB colors to reach true-to-life images with limited brightness setting. ● DICOM: To use for Digital Imaging and Communications in Medicine Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 25: Brightness
The available options are 1.8, 2.0, 2.2, 2.4, B&W, Linear. ● Color Temperature: Use ◄/► to select the color temperature Warm : make image reddish white. Normal : Normal colorings of white. Cold : make image bluish white. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 26: Picture Mode Reset
Offset: Adjust the brightness level of Red, Green,Blue. Picture Mode Reset This function will reset all Picture Mode to the defaut settings Note: “Picture Mode Reset “ is only reset according to input signal. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 27: Alignment Menu
Mount the projector on the ceiling and project the image from the rear of the screen. Test Pattern ● Use ◄/► to select Off / Grid , enable the test pattern image. the test pattern image Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 28: Control Menu
High Altitude ● Use ◄/► to adjust cooling fan speed (Noraml, High) Remote ID Display current projector ID and remote control ID number. To set a unique ID for the projector and control independently. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 29: Network
Set the gateway. The input method is the same as the setting for IP address. ● DNS: Set the DNS. The input method is the same as the setting for IP address. ● Aply: Press and use ▼/▲ to scroll through submenus Vivitek - DU775Z-UST Series User Manual v1.0... - Page 30 Support- Service team directly. Connecting with LAN 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 31 ● DHCP: Off ● IP Address: 10.10.10.10 ● Subnet Mask: 255.255.255.0 ● Gateway: 0.0.0.0 ● DNS Server: 0.0.0.0 10. Press (Enter) / ► to confirm settings. Open a web browser (for example, Microsoft Internet Explorer). Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 32 Network Configuration DHCP (Enabled) (N/A) IP Address Subnet Mask Default Gateway DNS Server User Password Enabled (N/A) New Password Confirm Admin Password Enabled (N/A) New Password Confirm For more information, please visit http://www.crestron.com. Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 33 Note: Fill in all fields as specified. User can click Send Test Mail to test what setting is correct. For successful sending an e-mail alert, you must select alert conditions and enter a correct e-mail address. Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 34 By default installation for Windows, “TELNET” function is not included. But end-user can have it by way of “Turn Windows features On or Off” to be enabled. Open “Control Panel” in Windows Open “Programs” Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 35 Telnet-Control. Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms). (*, In Windows built-in “TELNET.exe” utility, “Enter” key pressed will have “Carriage-Return” and “New-Line” code.) Vivitek - DU775Z-UST Series User Manual v1.0...
-
Page 36: Settings Menu
▼/▲ to scroll through submenus ● Volume: use ◄/► to increase or decrease the projector sound volume Blank Screen Color ● Use ◄/► to select screen background color (Black, Red, Green, Blue, White) Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 37: Menu
● Press the MENU button to exit the advanced Setting Language Reset All ● Press and use ◄/► to switch OK/Cancel for resetting all OSD setting items ● Press the MENU button to exit RESET ALL Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 38: Info Screen
Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out. INFO Screen This screen displays the projector current status information to be used for technical support. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 39: Troubleshooting
Keep a record of the steps you take when troubleshooting: The information may be useful when calling for technical support or for passing on to service personnel. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 40: Led Indicator Messages
● Ensure the projector-to-screen distance is within the specified range. ● Check that the projector lens is clean. Q. The image is reversed ● Check the Projection setting on the ALIGNMENT menu of the OSD. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 41: Light Source Problems
● Test the source audio output with other speakers. ● Have the projector serviced. Q. The sound is distorted ● Check the audio cable connection. ● Test the source audio output with other speakers. ● Have the projector serviced. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 42: Having The Projector Serviced
Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 43: Hdmi Q&A
HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively investigates these instances to ensure that the HDMI trademark is properly used in the market. We recommend that consumers buy their cables from a reputable source and a company that is trusted. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 44: Specifications
5. Specifications USER MANUAL 5. Specifications Projector Dimensions 380.0 380.0 Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 45: Projector Datasheet
380mm*405mm*150mm Weight 9kg (19.8lbs) Available Colors Two-Tone: White/Gray Noise Level 33dB/30dB (Normal/Eco. Mode) Power Supply AC 100-240V, 50/60Hz 305W (Normal Mode), 240W (Eco. Mode), <0.5W (Standby Mode), 2W Power Consumption (LAN Standby Mode) Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 46: Projector Time Table
○ ○ 1280 x 1024 91.1 ‒ ○ ○ ○ 1280 x 960 ‒ ○(TB,SBS) ○(TB,SBS) ○(TB,SBS) 1280 x 960 85.9 ‒ ○ ○ ○ 1400 x 1050 65.3 ‒ ○(TB,SBS) ○(TB,SBS) ○(TB,SBS) Vivitek - DU775Z-UST Series User Manual v1.0... - Page 47 ‒ ○ 4096 x 2160 56.25 ‒ ‒ ‒ ○ 4096 x 2160 67.5 ‒ ‒ ‒ ○ 4096 x 2160 112.5 ‒ ‒ ‒ ○ 4096 x 2160 ‒ ‒ ‒ ○ Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 48 ‒ ‒ 1080p 67.5 ○ ‒ ‒ ‒ ○ : Supported frequency - : Not Supported frequency FS => Field Sequential TB => Top / Bottom SBS => Side-By-Side FP => Frame Packing Vivitek - DU775Z-UST Series User Manual v1.0...
-
Page 49: Regulatory Compliance
This product may contain other electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. Vivitek - DU775Z-UST Series User Manual v1.0... -
Page 50: Rs-232 Communication
Set up brightness op bright = 100[CR] OP BRIGHT = 100 Out of range or not support op bright = 200[CR] OP BRIGHT = NA Illegal command op abright = 100[CR] *Illegal format# Vivitek - DU775Z-UST Series User Manual v1.0... - Page 51 0 ~ 100 HSG/Green/Saturation hsg.g.sat 0 ~ 100 HSG/Blue/Saturation hsg.b.sat 0 ~ 100 HSG/Cyan/Saturation hsg.c.sat 0 ~ 100 HSG/Magenta/Saturation hsg.m.sat 0 ~ 100 HSG/Yellow/Saturation hsg.y.sat 0 ~ 100 HSG/Red/Hue hsg.r.hue 0 ~ 100 Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 52 1 : On Light Mode light.mode 0 : Normal (100%) 1 : ECO(80%) 2 : Custom Light (25~100) Custom Light custom.light 25 ~ 100 Fan Speed fanspeed 0 = Normal 1 = High Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 53 1 : On Security Lock security.lock 1 : Up 2 : Down 3 : Left 4 : Right Security Unlock security.unlock 1 : Up 2 : Down 3 : Left 4 : Right Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 54 0 : Reset 1 : Standby 2 : Active 3 : cooling 4 : Warming 5 : Power Up Mute mute 0 : Off 1 : On Freeze freeze 0 : Off 1 : On Vivitek - DU775Z-UST Series User Manual v1.0...
- Page 55 USER MANUAL Function Operation Set Get Inc Dec EXE Values Input Select input.sel 1 : RGB 6 : HDMI 1 9 : HDMI 2 11 : Multi Media(Optional for NOVO Board) 15 : HDBaseT(Optional) Vivitek - DU775Z-UST Series User Manual v1.0...
-
Page 56: Service
