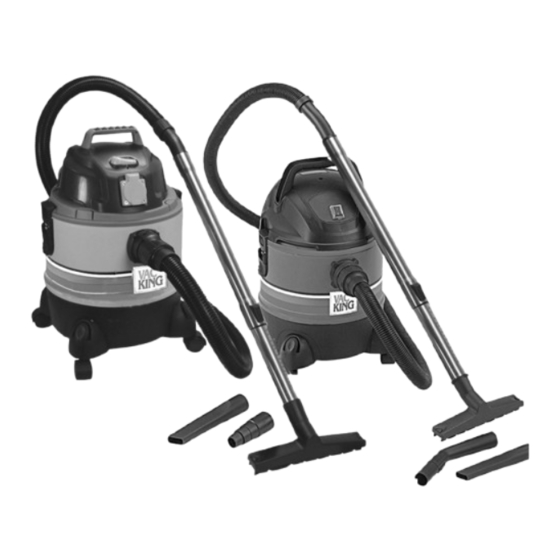

- Page 1 WET & DRY VACUUM CLEANERS MODEL NO: CVAC20P & CVAC20PR2 PART NO: 6471100 & 6471127 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL09/24 - Rev 15...
- Page 2 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for its intended purpose.
- Page 3 3. Never use this CVAC if any part is damaged. Have it inspected and repaired by your Clarke dealer. Do not use if the electric cable, plug, or the machine itself, is in poor condition. 4. Never abuse the power cable. Never pull on the cable when removing the plug from the socket or lift the machine by the power cable.
- Page 4 CARE & STORAGE 1. When not in use, turn off by the On/Off switch on top of the machine, then remove the plug from the mains power supply. 2. When you have finished with the machine, ensure the electric cable is stowed away and not left as a hazard for others to trip over.
- Page 5 The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard. CVAC20P (DOUBLE INSULATED APPLIANCE) WARNING! THIS PRODUCT IS DOUBLE INSULATED. THE WIRES IN THE POWER CABLE ARE COLOURED IN ACCORDANCE WITH THE...
- Page 6 CVAC20PR2 (EARTHED ELECTRICAL APPLIANCE) WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: Blue = Neutral Brown = Live Yellow and Green = Earth If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
- Page 7 COMPONENTS No Description No Description Motor Housing & Head Section Caster Container Linen Bag Filter Flexible Hose Paper Dust Bag Extension Tube Foam Filter (water pick-up only) Brush Adaptor Handle Crevice Tool ON/OF Switch Power Tool Adaptor (20PR2 only) Auxiliary Power Take-Off (20PR2) Angle Adaptor Filter Cage Parts &...
- Page 8 PREPARATION FOR USE WARNING: BEFORE USING THE CVAC, MAKE SURE THAT YOU HAVE READ AND UNDERSTOOD THE SAFETY INSTRUCTIONS UNPACKING & ASSEMBLY With the CVAC removed from the packaging, undo the two clamps securing the head and remove the components from within the tank. Lay them out and check for shortages and that no damage was suffered in transit.
- Page 9 FOR WET USE The Foam Filter is only to be used for picking up water. It is the only filter used during this operation and must be fitted over the filter cage as shown. The linen and paper bag filters must be removed before using the CVAC to pick up water.
- Page 10 Before use, open the machine and check that the appropriate filters are fitted and are in good condition. If the paper bag is full, replace it. Spare bags are available from your Clarke stockist. Switch the machine on and begin work. The CVAC should be positioned on a firm, level surface.
- Page 11 Inspect all other components periodically and replace damaged castors or accessories when necessary. Contact your CLARKE dealer for replacements. Regular inspection and the correct maintenance of the filters will ensure efficient running and prolong the life of your machine.
- Page 12 SPARE PARTS ESCRIPTION ESCRIPTION Handle Container Body Head Assembly Castor Assembly Latch Assembly Water Drain Assembly Hose Inlet Assembly Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 13 82 dB LpA Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 14 DECLARATION OF CONFORMITY - CVAC20P Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 15 DECLARATION OF CONFORMITY - CVAC20PR2 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
