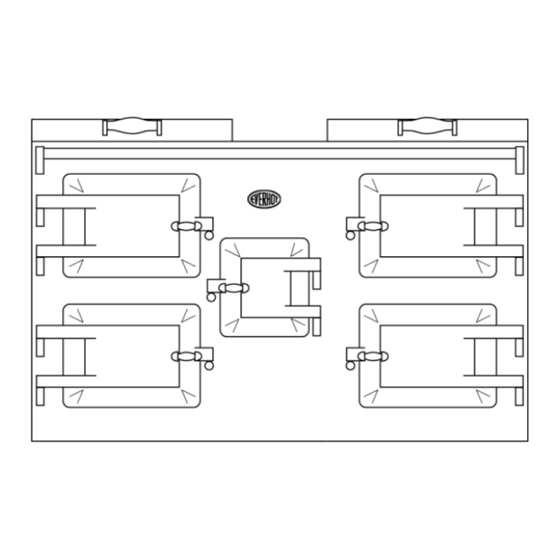

EverHot EVH 160i Installation Instructions

NOTE: The preparation of the site, in readiness for the installation of the appliance, is
the responsibility of the site owner, not of the manufacturer of the appliance
a. The floor must be level
600kg).
b. It is important to ensure the flooring is laid before delivery and runs underneath the cooker. Flooring
should not be laid up to the cooker after installation.
c. The cooker measurements are 600mm deep and 900mm high to the working surface with a width of
1598mm.
d. The cooker is 900mm high to the working surface. If the cooker needs to be raised to match worktop levels,
this should be done by way of a plinth built to the appropriate height prior to delivery.
e. The cooker should be installed with a minimum of 30mm clearance from the back wall to allow for
the electric cable entry, and induction hob venting.
worktop behind the cooker, though a standard 30mm stainless infill strip that fits to the back of the
cooker is supplied with the Everhot.
against the back wall as this may damage the electric cable, or block the induction vent. A minimum
gap of 5mm per side is required to allow installation and removal of the cooker – please contact us
in advance of installation if this is not possible. Where the end grain of a wooden worktop is adjacent
to the cooker, we recommend that this is increased to 10mm to minimise the chance of the worktop
splitting.
f. Clearance must be allowed for the raising of the cooker lids into the upright position (minimum height
of 1530mm from ground level). Please see side view diagrams for further clarification. A 5mm gap
on each side of the cooker lid should be allowed when in the raised position (each lid is 590mm wide
to allow for overhead cupboards).
g. The appliance must be used on 220-240V AC only and should be plugged into three standard, single
13 amp sockets.
with a solar diverter.
so as not to impede the opening of the top lid, and ensuring the plugs are not exposed to steam or
excessive moisture. If the sockets cannot be positioned immediately adjacent to the cooker, please
see diagrams attached for exact lengths of cables (unfortunately it is not possible to extend these
cable lengths). If the power supply cord is damaged, it must be replaced by the manufacturer or
their representative, as special purpose tools are required.
wired – please install using the supplied 13amp
Your EVERHOT cooker has been built to comply with the following UK and European Directives, and carries the UKCA and CE mark.
3. Electromagnetic Compatibility Regulations (2016) 4. Electrical Equipment (Safety) Regulations (2016)
Control of Substances - Health and Safety
This appliance contains the following substances indicated below. It is the User's/Installer's responsibility to ensure that the appropriate precautions
are taken when handling, where applicable, any of the materials that could be interpreted as being injurious to health and safety.
Mineral wool, Glass Yarn.
May cause irritation to the skin, eyes, nose and throat, may be harmful if inhaled. Use appropriate protective clothing to avoid contact with body. After
handling, wash hands and other exposed parts.
Your cooker does not contain ceramic insulants.
The EVERHOT is a high quality appliance that will provide decades of use, however when you feel that it has reached the end of its working life, please
contact us and we will remove it and recycle it free of charge
With Everhot Cookers' policy of continuous product improvement, the manufacturer reserves the right to change specifications and make
modifications to the appliance described and illustrated at any time
s:/installation specs/EVH160i installation.doc/ver2022_2
INSTALLATION INSTRUCTIONS & SPECIFICATION
PRE – INSTALLATION
and capable of supporting the weight of the cooker (approximate weight
On no account should any Everhot model be pushed hard
Double or multi-gang sockets must not be used. Your cooker is not suitable for use
The 13 amp sockets should be accessible and positioned adjacent to the cooker,
1. EMC Directive (2014/30/EU) 2. Low Voltage Directive (2014/35/EU)
This 30mm gap is best sealed by running the
An Everhot cooker should NOT be hard
plugs.
EVH
160i
