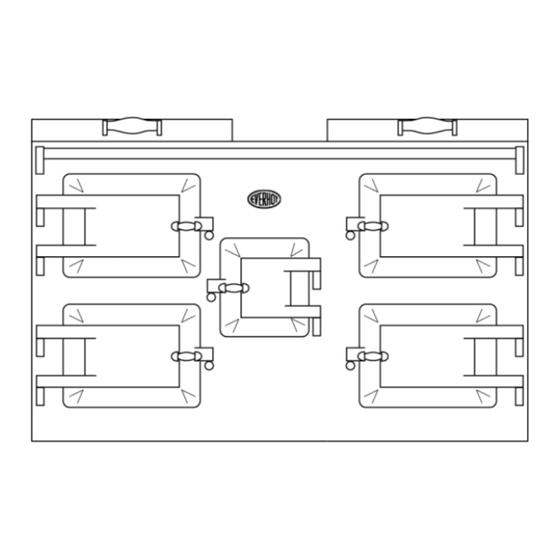

EverHot EVH 150i Installation Instructions

NOTE: The preparation of the site, in readiness for the installation of the appliance, is the
responsibility of the site owner, not of the manufacturer of the appliance
a. The floor must be level
b. It is important to ensure the flooring is laid before delivery and runs underneath the cooker. Flooring
should not be laid up to the cooker after installation.
c. The cooker measurements are 600mm deep and 900mm high to the working surface with a width of
1490mm.
d. The cooker is 900mm high to the working surface. If the cooker needs to be raised to match worktop levels,
this should be done by way of a plinth built to the appropriate height prior to delivery.
e. The cooker should be installed with a minimum of 30mm clearance from the back wall to allow for the
electric cable entry, and induction hob venting.
behind the cooker, though a standard 30mm stainless infill strip that fits to the back of the cooker is
supplied with the Everhot.
wall as this may damage the electric cable or block the induction vent. A minimum gap of 5mm per
side is required to allow installation and removal of the cooker – please contact us in advance of
installation if this is not possible. Where the end grain of a wooden worktop is adjacent to the cooker,
we recommend that this is increased to 10mm to minimise the chance of the worktop splitting.
f. Clearance must be allowed for the raising of the cooker lids into the upright position (minimum height
of 1530mm from ground level). Please see side view diagrams for further clarification. A 5mm gap on
each side of the cooker lid should be allowed when in the raised position (each lid is 590mm wide to
allow for overhead cupboards).
g. The appliance must be used on 220-240V AC only and should be plugged into two standard 13 amp
sockets. Two single sockets are recommended.
The 13-amp sockets should be accessible and positioned adjacent to the cooker, so as not to impede
the opening of the top lid, and ensuring the plugs are not exposed to steam or excessive moisture. If
the sockets cannot be positioned immediately adjacent to the cooker, please see diagrams attached
for exact lengths of cables (unfortunately it is not possible to extend these cable lengths). If the power
supply cord is damaged, it must be replaced by the manufacturer or their representative, as special
purpose tools are required.
supplied 13amp plugs.
With Everhot Cookers' policy of continuous product improvement, the manufacturer reserves the right to change specifications and make
modifications to the appliance described and illustrated at any time
s:/installation specs/EVH 150i installation spec.doc/ver2022_2
INSTALLATION INSTRUCTIONS & SPECIFICATION
PRE – INSTALLATION
and capable of supporting the weight of the cooker (approximate weight 450kg).
On no account should any Everhot model be pushed hard against the back
An Everhot cooker should NOT be hard wired – please install using the
This 30mm gap is best sealed by running the worktop
Your cooker is not suitable for use with a solar diverter.
EVH
150i
