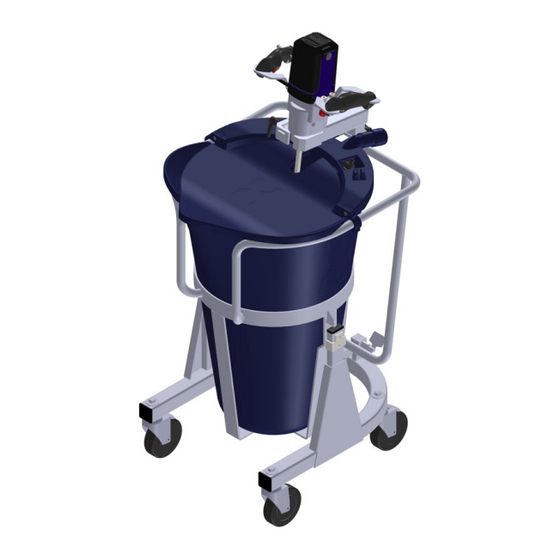

MIXING STATION
MS-150-AU
MS-150-EU
MS-150-US
MS-150-UK
OPERATOR'S MANUAL
Rev 1224

Advertisement

loading
Need help?

Need help?

Do you have a question about the MS-150-AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAKINEX MS-150-AU

Summary of Contents for MAKINEX MS-150-AU

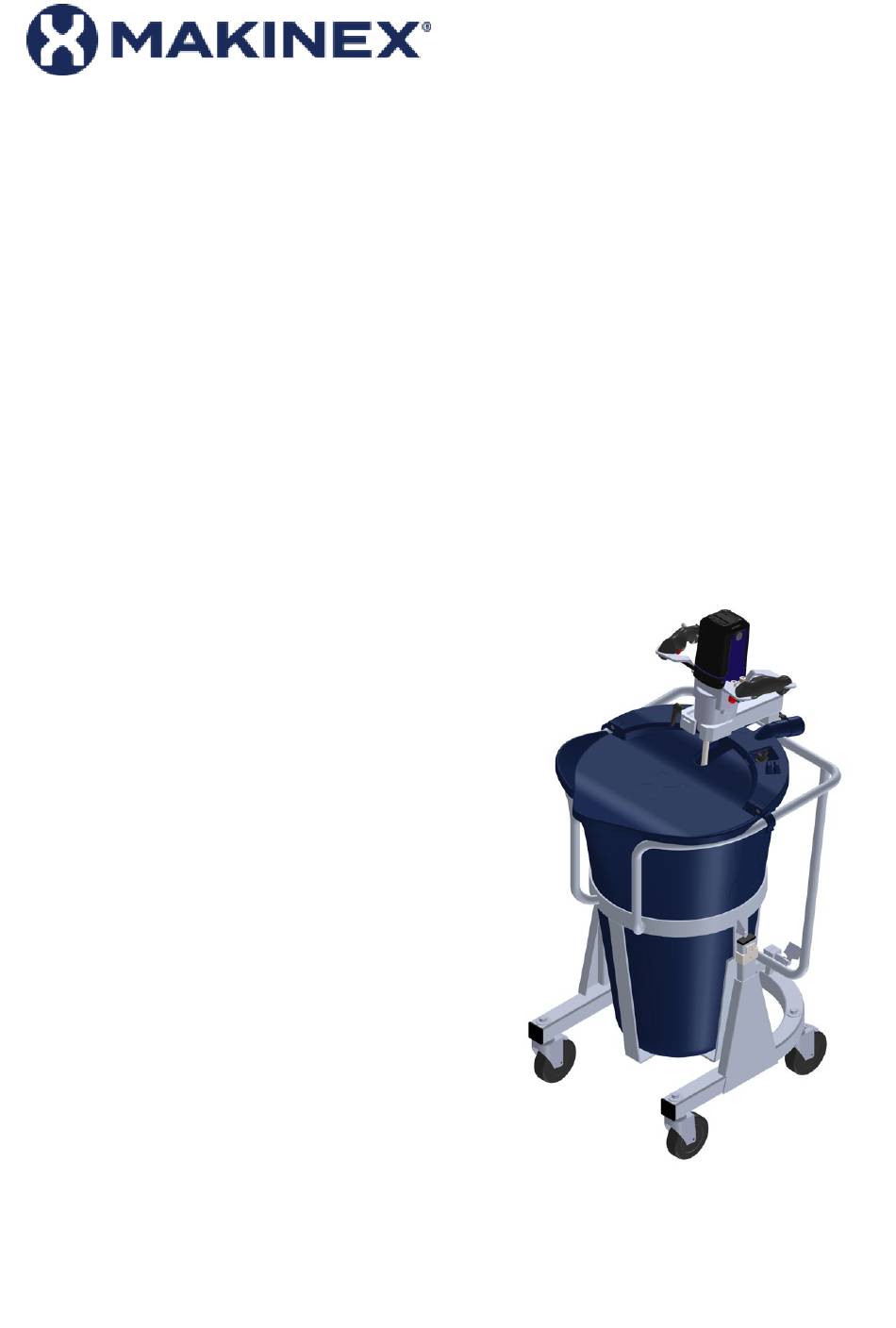

  • Page 1 MIXING STATION MS-150-AU MS-150-EU MS-150-US MS-150-UK OPERATOR’S MANUAL Rev 1224...
  • Page 2 TABLE OF CONTENTS Table of Contents INTRODUCTION ............................3 DISCLAIMER ............................3 ABOUT THIS MANUAL .......................... 4 KEY TERMS ............................4 SAFETY INFORMATION ........................5 SAFETY DECALS ..........................6 PRODUCT DESCRIPTION AND SPECIFICATION ..................7 INSTRUCTIONS FOR USE ........................9 STEP 1 –...
  • Page 3 2022902209 DISCLAIMER MAKINEX and its affiliates take no responsibility for any damage, injury or death resulting from the incorrect or unsafe use of this product. Use of this product should be undertaken by competent persons only. It is the operator’s responsibility to ensure that the following safety procedures are followed.
  • Page 4 PROHIBITED These safety warnings do not eliminate all possible hazards that could occur therefore it is essential to use common sense and to strictly follow any instructions to prevent accidents. MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 4 OF 21...
  • Page 5 Always wear the recommended personal protective equipment (PPE). DANGER Do not expose power tools to rain or wet conditions. Water entering a PROHIBITED power tool will increase the risk of electric shock. MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 5 OF 21...
  • Page 6 It is forbidden to remove any safety or instructional stickers or panels from the MS-150. PROHIBITED Read all safety and instructional stickers displayed on each component of READ the MS-150. CAREFULLY MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 6 OF 21...
  • Page 7 740mm (29.1 inches) LENGTH OF HANDLE ADJUSTMENT 243mm (9.56 inches) WEIGHT (WITHOUT MAKINEX ELECTRIC 22kg (48.5 lbs) MIXER AND HELIX PADDLE) WEIGHT (WITH MAKINEX ELECTRIC MIXER 33kg (72.75lbs) AND HELIX PADDLE) MAKINEX 2200W MIXER TECHNICAL DATA NO-LOAD SPEED GEAR 150 – 300 rpm GEAR 300 –...
  • Page 8 MAKINEX 2200W (2040W for US version) MIXER ELECTRICAL DATA JURISDICTION VOLTAGE 230V 230V 230V 120V CURRENT 9.6A 9.6A 9.6A FREQUENCY 50Hz 50Hz 50Hz 50-60Hz MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 8 OF 21...
  • Page 9 1. Assemble the four Castor Wheels to the bottom of the Frame using the M12 Bolts, Washers and Locknuts provided. Fit the two Braked Castor Wheels to opposite corners of the Frame. Check that the Castor Brakes have been engaged after assembly. Braked Castor Wheels MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 9 OF 21...
  • Page 10 Tighten Helix Paddle with 22mm spanner Helix Paddle Adjustable Slider Clamp NOTE: Always grab the mixer by the handles and make sure the mixer is securely tightened, but do not over-tighten! MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 10 OF 21...
  • Page 11 When fitting the Makinex Electric Mixer, ensure the Electrical Cord is facing to back of the MS-150. Connect Makinex Mixer Electrical Cord to extension cord. Connect the extension cord from mains power to the Cable Clip on Vac Lid Module.
  • Page 12 Read material manufacturer’s instructions before mixing READ CAREFULLY Make sure Makinex Electric Mixer is switched to low gear (1 Gear) and speed 1. Plug in Makinex Electric Mixer to extension cord to Mains Power. Press Trigger to turn ‘ON’ mixer and lock in Trigger.
  • Page 13 14. Once equal consistency has been achieved, turn off the Makinex Electric Mixer. 15. Unplug Makinex Electric Mixer from extension cord; wind-up the Power Cord on the MS- 150 Handle. STEP 3 – POURING AND PLACING LEVELLING COMPOUND ALWAYS check that power cord is secured around the MS-150 handle before pivoting the bucket.
  • Page 14 2. Extra attention should be focused on cleaning the Wheels. 3. Wheels should be oiled / greased regularly. 4. The ventilation slots on the Makinex Electric Mixer motor casing must remain free of particles, water or ingress of any material.
  • Page 15 5. After 100 hours of operation check the carbon brushes in the Makinex Electric Mixer. When the carbon brushes are worn see the diagram below to replace the carbon brush. One pair of replacement carbon brushes are included. Remove the brush cap with a flat blade screwdriver and remove the worn carbon brush.
  • Page 16 MAKINEX dealer/service technician means that you cannot take advantage of the MAKINEX limited warranty. MAKINEX warrants each new mixer to be free from defects in material and workmanship under normal domestic and industrial use and service for the period specified below, conditional to the limitations and exclusions printed on this page.
  • Page 17 All warranties will be carried out by MAKINEX authorised staff or appointed agents at a premise to be determined by the Manufacturer. It is the responsibility (and cost) of MAKINEX or our appointed agent to return the machine to be •...
  • Page 18 CONTACT INFORMATION For sales, service, warranty and parts for all MAKINEX products; please refer below. SALES, SERVICE, SPARE PARTS & WARRANTY SALES TEL 1300 795 953 or +61 2 9460 8071 WEB www.makinex.com.au AUSTRALIA SERVICE, SPARE PARTS & WARRANTY SALES EMAIL sales@makinex.com.au...
  • Page 19 APPENDIX A – RISK ASSESSMENT MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 19 OF 21...
  • Page 20 MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 20 OF 21...
  • Page 21 MAKINEX MS-150 OPERATOR’S MANUAL REV1224 PAGE 21 OF 21...
