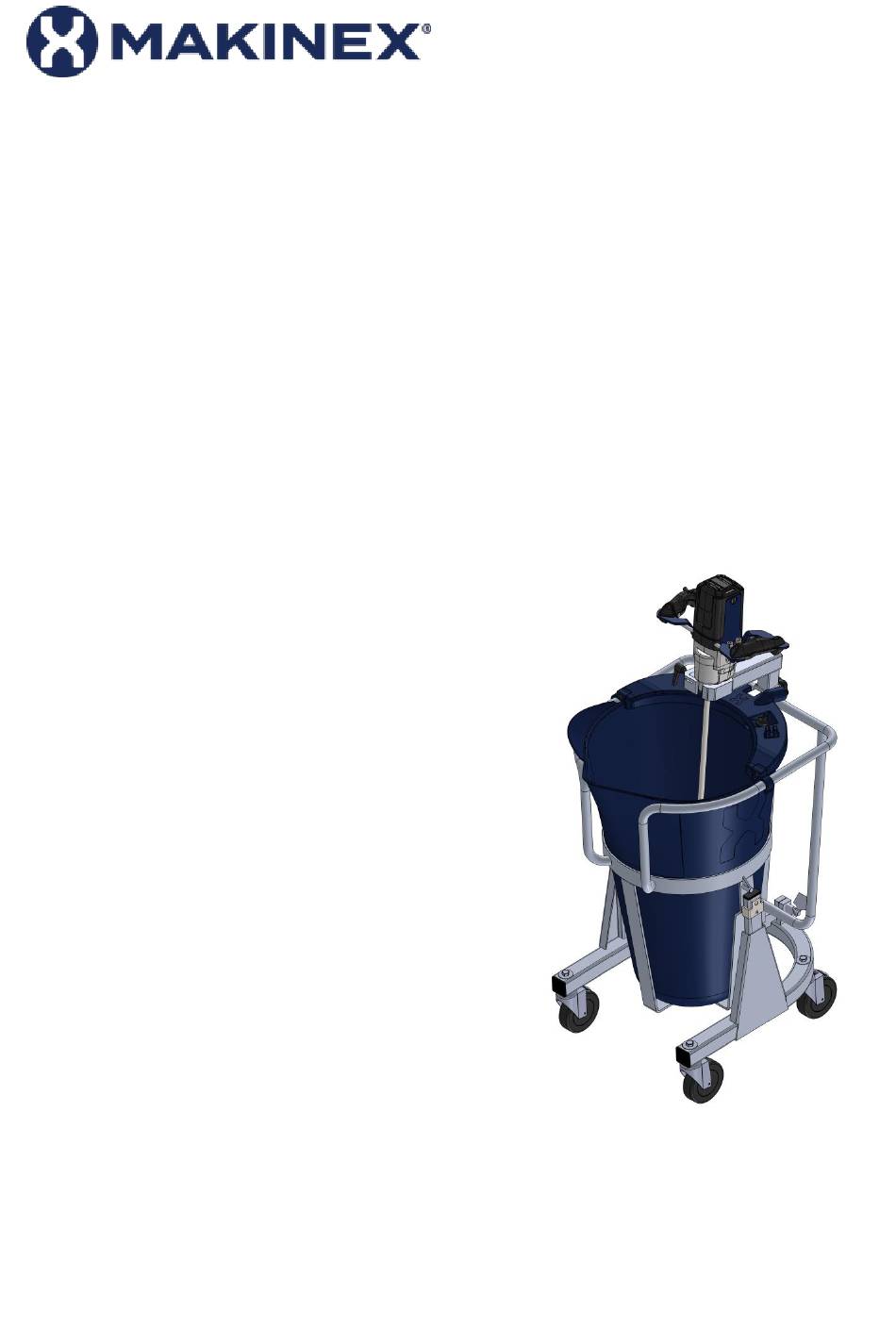

MIXING STATION
MS-150
OPERATOR'S MANUAL
Rev 1222

Advertisement

Table of Contents
loading

Related Manuals for MAKINEX MS-150

Summary of Contents for MAKINEX MS-150

  • Page 1 MIXING STATION MS-150 OPERATOR’S MANUAL Rev 1222...

  • Page 2: Table Of Contents

    PRODUCT DESCRIPTION AND SPECIFICATION ................4 INSTRUCTIONS FOR USE ......................... 5 STEP 1 – ASSEMBLING THE HELIX PADDLE/ MIXER TO THE MS-150 ........5 STEP 2 – USING THE MS-150 ......................7 STEP 3 – POURING AND PLACING LEVELLING COMPOUND ............. 9 STEP 4 –...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing a MAKINEX product. This manual provides information and procedures to safely operate and maintain the MS-150 Mixing Station. For your own safety and protection from injury, carefully read, understand, and observe the safety instructions described in this manual.

  • Page 4: About This Manual

    Ensure you read all information contained in this manual before using the READ MS-150. CAREFULLY Ensure you read the User Manual and safety instructions for the MS-150 and other components that are part of this unit. READ See Appendix for more information.

  • Page 5: Safety Decals

    SAFETY DECALS There is a safety and information panel provided on the Clamp Arm (see images below) of the MS-150 to alert the user of potential safety risks/hazards. Please read and adhere to all instructions on the Unit. It is forbidden to remove any safety or instructional stickers or panels from the MS-150.

  • Page 6: Product Description And Specification

    An MS-150 mixing station can mix up to 160kg (353 lbs) (6 x 20kg bags plus water) in 7 minutes. The MS-150 is ultra-lightweight for easy transportation and the ergonomic design with easy-tilt operation provides control and speed for precision pouring.

  • Page 7: Instructions For Use

    Frame. Check that the Castor Brakes have been engaged after assembly. Braked Castor Wheels 2. Attach MS-150 Clamp Arm into the Slide Arm Collar of the MS-150 Frame; tighten Collar Thumb Screw in place. MAKINEX MS-150 Operator’s Manual Rev0322...
  • Page 8 4. Connect Helix Paddle to Mixer output shaft and firmly tighten using 22mm spanner. The MS-150 is supplied with a short Helix Paddle (up to 3 bag mix) and a large Helix Paddle (4 - 6 bag mix). Adjust height of Clamp Arm if necessary if Helix Paddle is touching base of Bucket.

  • Page 9: Step 2 - Using The Ms-150

    When fitting the Makinex Electric Mixer, ensure the Electrical Cord is facing to back of the MS-150. Connect Makinex Mixer Electrical Cord to extension cord. Connect the extension cord from mains power to the Cable Clip on Vac Lid Module.
  • Page 10 Gear). The mixing speed can also be adjusted using the speed dial (there are six speeds) 11. After final bag of Levelling Compound has been added, STOP the Makinex Electric Mixer and THEN switch to high-speed gear (2 Gear). It may be necessary to rotate the helix paddle forward and backwards slightly by hand to engage the gear.

  • Page 11: Step 3 - Pouring And Placing Levelling Compound

    3. Disengage castor wheel brake. 4. Wheel the MS-150 to the desired area (use caution when moving the loaded bucket). 5. Disengage (unlock) ‘Locking Pin’ at the base of the bucket. MAKINEX MS-150 Operator’s Manual Rev1222...

  • Page 12: Step 4 - Maintaining The Ms-150

    6. Using a controlled motion (use the MS-150 Side Handle and Rear Handle) pour mixed Levelling Compound where required. NOTE: With two MS-150 Portable Mixing Stations, another mix could be completed using the same Mixer while one is being poured.

  • Page 13: Limited Warranty

    WARRANTY: (Ex-factory/ Reseller premise) MAKINEX warrants to the original purchaser:  MAKINEX provides a Limited One Year Warranty that applies to MS-150 Mixing Station only (this excludes the Helix Paddle/mixer and any other attachments and consumables).  All wheels must be thoroughly cleaned after each use, failure to do so will void warranty.

  • Page 14: Warranty Exclusions

    Manufacturer.  It is the responsibility (and cost) of MAKINEX or our appointed agent to return the machine to be repaired or replaced under warranty to the consumer- this is valid for domestic territories only (e.g., machine purchased in USA will repaired/replaced under warranty and returned to the USA...

  • Page 15: Contact Information

    CONTACT INFORMATION For sales, service, warranty and parts for all MAKINEX products; please refer below. SALES, SERVICE, SPARE PARTS & WARRANTY SALES TEL 1300 795 953 or +61 2 9460 8071 WEB www.makinex.com.au AUSTRALIA SERVICE, SPARE PARTS & WARRANTY EMAIL service@makinex.com.au...

  • Page 16: Appendix A - Risk Assessment

    APPENDIX A – RISK ASSESSMENT MAKINEX MS-150 Operator’s Manual Rev0322 Page 14 of 15...
  • Page 17 MAKINEX MS-150 Operator’s Manual Rev0322 Page 15 of 15...
  • Page 18 MAKINEX MS-150 Operator’s Manual Rev0322 Page 16 of 15...
