- Page 1 技术要求： 1.该手册印刷颜色均为黑色 : PANTONE BLACK C 2.纸张规格为A 5 3.如果供应商的排版需要加空白页，请加在封底之前 用户手册 6710031132 HSCM15FB/S(U76H1A) 标记 处数 分区 更改文件号 签 名 日 期 阶 段 标 记 比 例 80G双胶 校对 REV. 编 制 性能 数 量 重 量 审 核 佛山市顺德区美的 审 定 排版...

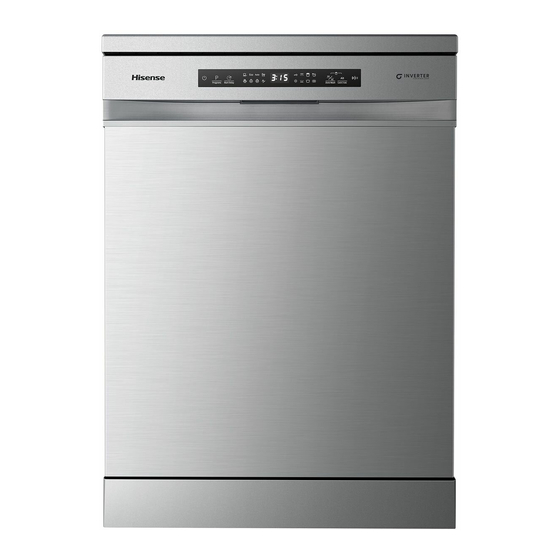

- Page 2 HSCM15FS HSC 1 FB...
- Page 3 PART Ⅰ: Generic Version Please read this manual carefully before using the dishwasher Keep this manual for future reference.
- Page 4 CONTENTS SAFETY INFORMATION PRODUCT OVERVIEW USING YOUR DISHWASHER Basket Use Tips MAINTENANCE AND CLEANING External Care Internal Care Caring For The Dishwasher INSTALLATION INSTRUCTION About Power Connection Water Supply And Drain Connection Of Drain Hoses Position The Appliance Free Standing Installation Built-In Installation(for the integrated model) TROUBLESHOOTING TIPS LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1...
- Page 5 SAFETY INFORMATION WARNING When using your dishwasher , follow the precautions listed below: Installation and repair can only be carried out by a qualified technician. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
- Page 6 mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 ) Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 7 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 8 Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 9 Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
- Page 10 PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Top spray arm Inner pipe Lower spray arm Filter assembly Dispenser Upper spray arm Cup rack Cutlery rack Upper basket Lower basket NOTE:...
- Page 11 USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) Basket Used Tips Adjusting the upper basket Type 1:...
- Page 12 Type 2: To raise the upper basket just lift To lower the upper basket, lift the the upper basket at the center of adjustable handles on each side each side until the basket locks into to release the basket and lower it to place in the upper position.
- Page 13 MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.
- Page 14 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 15 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the center still and out the spray arm upward.
- Page 16 Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3.
- Page 17 INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter...
- Page 18 Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear.
- Page 19 Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.
- Page 20 Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
- Page 21 Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).
- Page 22 2. If dishwasher is installed at the corner of the cabinet, there should be some space when the door is opened. Dishwasher Cabinet Door of dishwasher Minimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.
- Page 23 model Full-integrated Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B). 1.Take away the four short screws 2.Pin up the four long screws Step 3.
- Page 24 Step 4. Dishwasher installation steps Please refer to the specified installation steps in the installation Please refer to the specified installation steps in the installation drawings. drawings. 1. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.
- Page 25 Step 5. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
- Page 26 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher.
- Page 27 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent and wear rubber gloves.
- Page 28 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
- Page 29 Problem Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing drying been selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.
- Page 30 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers Glasses Number Item Dinner plates Soup plates Dessert dishes...
- Page 31 3.Cutlery basket: Number Item Forks Soup spoons Dessert spoons 4 4 4 Teaspoons Knives Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 15 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: Detergent(Pre/main): 5g/28.75g Door is open at the end of the drying cycle for the drying performance test and last 40mins.
- Page 32 Cutlery Rack Used Tips Lift the right basket up, both left and right baskets are flat. Move the right basket from right to left, two basket are overlapping. Remove the right basket from the tray, only has the left basket.
- Page 33 PART Ⅱ:Special Version M15F Please read this manual carefully before using the dishwasher and Keep this manual for future reference.
- Page 34 CONTENTS USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAM SELECTION Wash Cycle Table Saving Energy Starting A Program Changing The Program Mid-cycle Forget To Add A Dish? ERROR CODES TECHNICAL INFORMATION...
- Page 35 QUICK USER GUIDE Please read the corresponding content the instruction manual for detailed operating method. Install the dishwasher (Please check the section 5 “INSTALLATION INSTRUCTION ” PART Ⅰ:Generic Version.) Inside Outside Load the baskets. Remove larger residue from dishes. Avoid pre-rinsing. Fill the dispenser with detergent Select a suitable program and and rinse aid.
- Page 36 USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press this button to select the appropriate washing program, the Programs program indicator will be lit. Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours.
- Page 37 Display Intensive For heaviest soiled crockery, and normally soiled pots, pans, dishes etc. With dried-on food. This is standard program, it is suitable to clean normally terms of its combined energy and water consumption for that type of tableware. Auto Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food.
- Page 38 Upper When you select Upper, only the upper rack nozzle is activated. The lower nozzle will not operate. Alternative Wash Lower When you select Lower, only the lower rack nozzle is activated. The upper nozzle will not operate. Express Reduce the program time. (It can only be used with Intensive, ECO, Glass, Hygiene and 1 hour) Function indicator...
- Page 39 Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
- Page 40 Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way:...
- Page 41 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
- Page 42 Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to run off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher.
- Page 43 Filling The Rinse Aid Reservoir Remove the rinse reservoir cap by lifting up the handle . Pour the rinse aid into the dispenser, being careful not to overfill. Close the cap after all. Adjusting the rinse aid reservoir To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user.
- Page 44 Filling The Detergent Dispenser Sliding it to the right B B B Press down Add detergent into the larger cavity (A) for main wash. For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door(B). The additional detergent will activate during the pre-wash phase.
- Page 45 PROGRAM SELECTION Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. Consumption values and program duration are only indicative except for the ECO program.
- Page 46 Description Running Energy Water Detergent Rinse Program Of Cycle (kWh) Time(min) Pre/Main Wash Wash(45℃) Rinse(55℃) 0.70 11.0 quick Rinse(55℃) Prewash 0.02 pre-wash NOTE: *AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with *AS/NZS 2007.1.
- Page 47 Saving Energy 1. Pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. 2. Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the instructions.
- Page 48 Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. After the spray arms stopped working, you can open the door completely. 3.
- Page 49 ERROR CODES If there is a malfunction the dishwasher will display an error code. The following table shows possible error codes and their causes. Meanings Codes Possible Causes Faucets are not opened, or water intake is Longer inlet time. restricted,or water pressure is too low. Not reaching required Malfunction of heating element .
- Page 50 TECHNICAL INFORMATION W W W H H H Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°)
- Page 51 Product fiche Manufacturer Hisense Type / Description HSCM15FS HSC 1 FB Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.652 kWh Water consumption of the standard cleaning cycle 12.2 liter...
Need help?
Do you have a question about the HSCM15FS and is the answer not in the manual?
Questions and answers
Hello, my dishwasher is saying E3 (not reaching required temperature - malfunction of heating element. Can you please advise how to fix this as couldn't see in the manual. Kind Regards Amber
The E3 error on the Hisense HSCM15FS dishwasher indicates a problem related to the heating element. To fix this:
1. Check if water is in the base pan due to an overfill or small leak. If so, remove the water before restarting the dishwasher.
2. If the issue persists, it may involve a failure in the washing control system, such as the PCB or motor.
If basic checks do not resolve the issue, service may be required.
