Disassembly & Assembly –V3 Razor
This product contains static-sensitive devices. Use anti-static
handling procedures to prevent electrostatic discharge (ESD) and
component damage.
Removing and Replacing the Battery Housing and Battery
1. Ensure the phone is turned off.

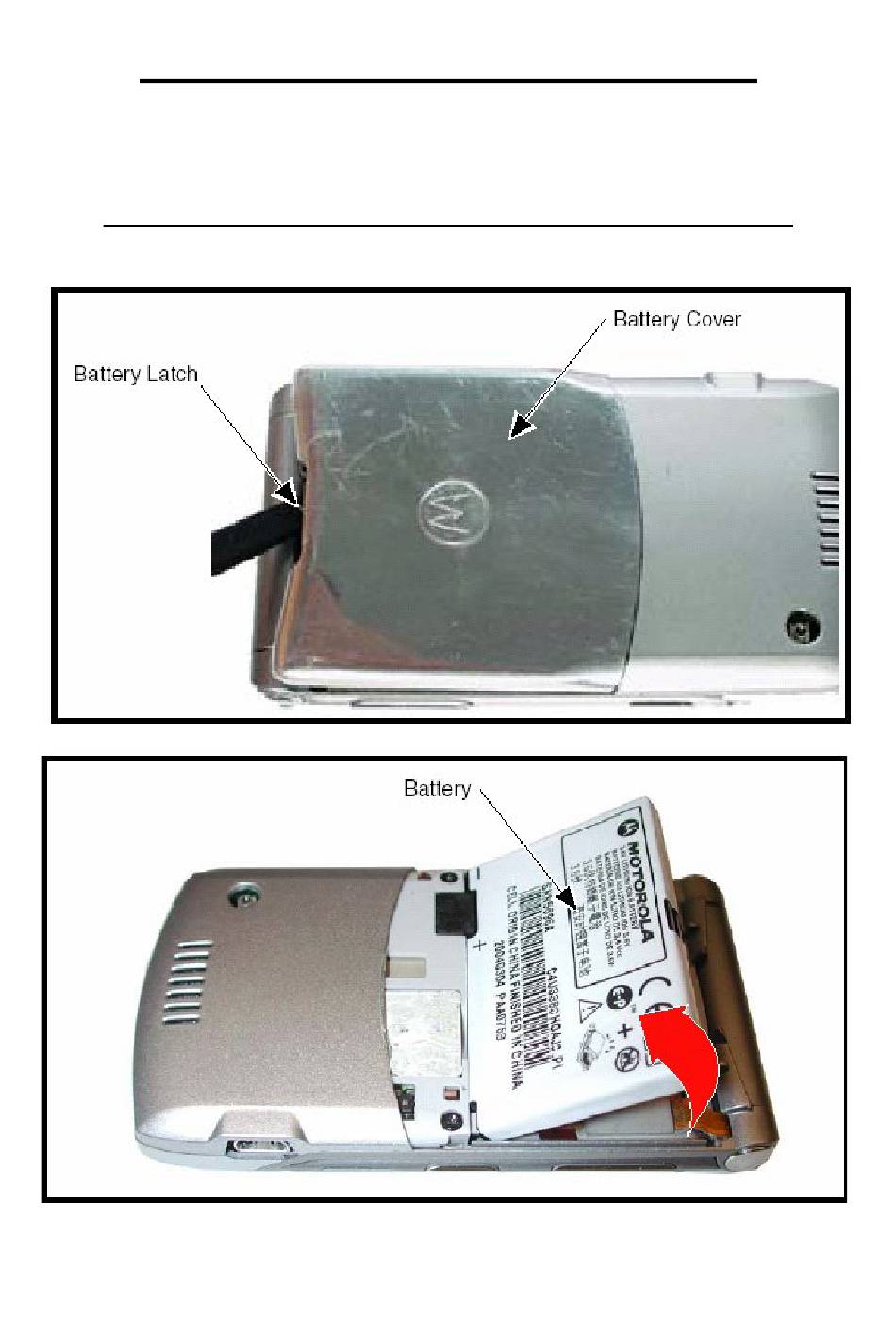

2. Press in and hold the battery door latch as shown.
3. Rotate the battery cover upwards and lift it completely off the phone.
4. Lift the end of the battery first, and then remove it from the phone.
5. To replace, Align the battery with the battery compartment so the
contacts on the battery match the battery contacts in the phone.
