- Page 1 AB-1200FLS Freestanding FlipShelf™ Wine and Beverage Fridge OWNER’S MANUAL Read and save these instructions. Manual v1.0...
- Page 2 Count on NewAir. As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.
- Page 3 ODEL 110-120V/60Hz OLTAGE REQUENCY 1.3A URRENT OWER ONSUMPTION 72 cans (19.2oz)/126 cans (12oz)/28 bottles OTTLE APACITY 3.4 cu. ft. TORAGE APACITY 37°F - 68°F EMPERATURE ANGE R600a (1.058 oz) EFRIGERANT 58.9 lbs. EIGHT 18.4"D x 18.9"W x 33.2"H IMENSIONS www.newair.com...
- Page 4 REGISTER YOUR PRODUCT ONLINE Register Your Newair Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications...
- Page 5 SAFETY INFORMATION & WARNINGS Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock, or injury when using your NewAir appliance, follow these basic precautions This is the Safety Alert Symbol. This symbol alerts you to potential hazards that may result in serious injury.
- Page 6 • Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other services should only be recommended by NewAir. Contact customer service if you have any issues with your fridge.
- Page 7 • This appliance is designed for household, non-commercial use only. Any other use will void the warranty. • Do not plug into the power outlet before set-up is completed. • Do not move this appliance without emptying it and securing the door in a closed position. www.newair.com...

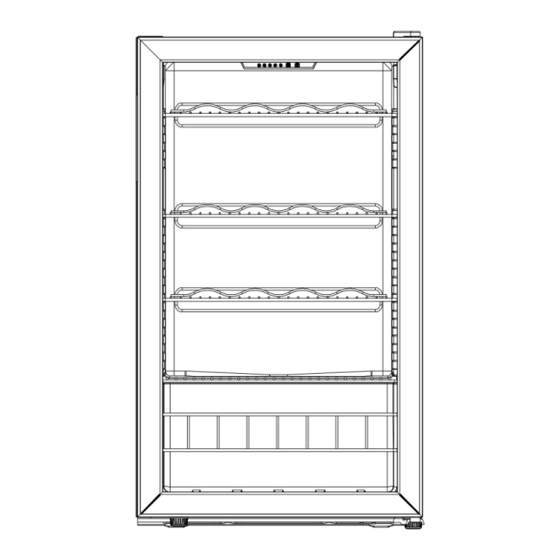

- Page 8 Check to make sure the following parts are included: • 3 FlipShelf Shelves • 1 Half Shelf • 1 instruction manual 1. Temperature Control Panel 5. Interior LED light 2. Door 6. FlipShelf™ 3. Adjustable Foot 7. Half Shelf 4. Door Hinge 8. Condensation Drip Tray www.newair.com...
- Page 9 Before connecting the fridge to a power outlet, let it stand upright for approximately 8 hours. This will reduce the possibility of a malfunction in the cooling system due to handling during transportation. • Clean the interior surface with lukewarm water using a soft cloth. www.newair.com...
- Page 10 Plug the fridge into its own grounded wall outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a qualified electrician or customer service. www.newair.com...
- Page 11 ELECTRICAL CONNECTION WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, do not use the appliance. Contact NewAir customer service immediately. • This fridge requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with a three-prong power plug.
- Page 12 Press the Snowflake button to cycle through 5 different temperature settings: Set Temperature to around 68°F (± 4°F) Set Temperature to around 59°F (± 4°F) Set Temperature to around 52°F (± 4°F) Set Temperature to around 45°F (± 4°F) Set Temperature to around 37°F (± 4°F) www.newair.com...
- Page 13 The sturdy surface keeps cans and bottles from tipping over. Wine side Use the wine side to securely hold bottles in place. The grooves keep the bottles from rolling around and knocking over the other beverages in your beverage fridge. www.newair.com...
- Page 14 If you are hearing a noise that doesn’t seem to fall under the list above, or seems abnormal, your unit may be installed improperly, or may be faulty. Contact customer service immediately if you hear any noises that cause you concern. www.newair.com...
- Page 15 • Securely tape down shelves inside the unit, and tape the door shut. • Turn the adjustable legs up into the base to avoid damaging them. • Keep it upright throughout all transportation. www.newair.com...
- Page 16 CAUTION: Store the unit out of the reach of children. If you have children, you may want to take additional precautions such as removing the door. www.newair.com...
- Page 17 Cabernet Sauvignon 7-10 years Pinot Noir 5 years Merlot 3-5 years Zinfandel 2-5 years Beaujolais Ready to drink Chardonnay 2-3 years Riesling 3-5 years Sauvignon Blanc 18 months – 2 years Pinot Gris 1-2 years Champagne Ready to drink www.newair.com...
- Page 18 • Ensure the door gasket is seal properly frequently not loose • It is normal for the fan to turn on and off to circulate the air inside of the unit for even temperature distribution and to save energy www.newair.com...
- Page 19 • Ensure the door gasket is the screws to reposition the frosting often door/hinge and tighten the not loose • Lower the room screws • Ambient temperature or humidity/temperature with humidity is too high a dehumidifier or air conditioner. www.newair.com...
- Page 20 When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
