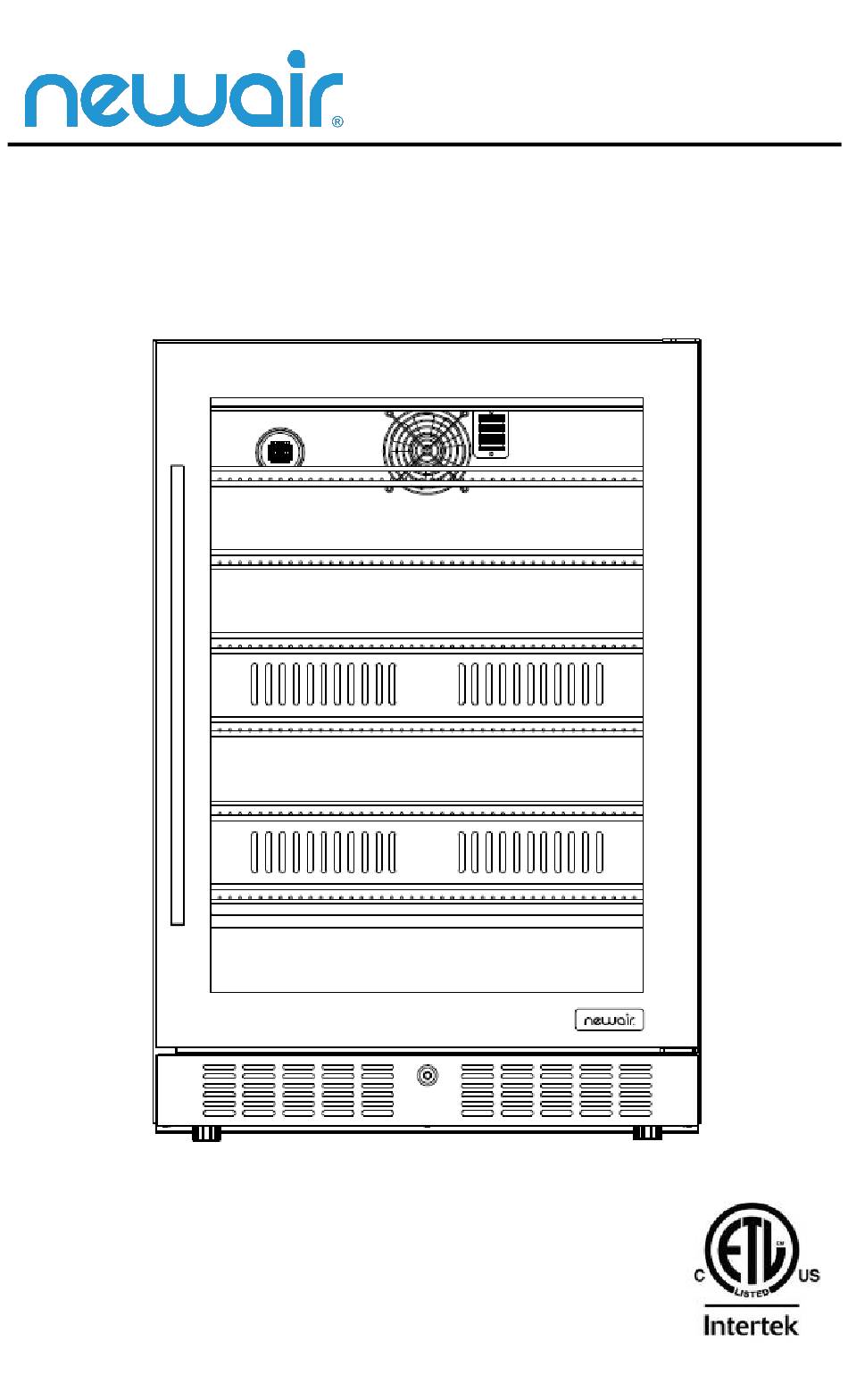

- Page 1 SKU: NBC224SS00 24” 224-Can Beverage Fridge Built-in or Freestanding Design OWNERS MANUAL Read and save these instructions. Manual v1.0...
-
Page 2: Table Of Contents
Safety Information & Warnings ................4 Parts List ......................7 Assembly & Installation ..................8 Operating Instructions ..................17 Cleaning & Maintenance ..................19 Troubleshooting ....................21 Limited Manufacturer’s Warranty ..............23 SPECIFICATIONS NBC224SS00 ODEL 120V OLTAGE 1.3A URRENT 60Hz REQUENCY... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your NewAir Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... -
Page 4: Safety Information & Warnings
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected. Failure to do so can result in electrical shock or death. newair.com... - Page 5 • Take serious care when handling, moving, and using the appliance to avoid either damaging the refrigerant tubing or increasing the risk of a leak. newair.com...
- Page 6 To prevent entrapment and suffocation hazard, do not leave children unattended when in the vicinity of the appliance. Before discarding your old refrigerator: • take off the doors. • leave the shelves in place so that children may not easily climb inside. - SAVE THESE INSTRUCTIONS - newair.com...
-
Page 7: Parts List
PARTS LIST NBC224SS00 – 24" Built-in Premium 224-Can Beverage Fridge Upper Hinge Control Panel Door Door Seal Door Handle Black Wire Shelf Carbon Filters Air Channel Plate Adjustable Feet Vent Kick Plate newair.com... -
Page 8: Assembly & Installation
Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a service center authorized by NewAir, LLC. newair.com... - Page 9 10 amperes. BEFORE USING YOUR APPLIANCE Remove the exterior and interior packing; check to be sure you have all the following parts: Model NBC224SS00 Instruction Manual Black Wire Shelves Door Handle • Before connecting this appliance to the power source, let it stand upright for approximately 24 hours.
- Page 10 Be sure that airflow under the appliance is not blocked. Cabinet Opening Dimensions IN (min) CM (min) Width 23.8” 60.5 cm Depth 25.2” 64.0 cm Height 34.5” 87.6 cm newair.com...
- Page 11 Tighten the screws using a Phillips head screwdriver until the handle sets both flush and secured tightly against the door frame. (DO NOT over- tighten as this will cause damage to the handle assembly). 3. Replace the door gasket to its original position. newair.com...
- Page 12 REVERSING STAINLESS STEEL DOOR newair.com...
- Page 13 newair.com...
- Page 14 newair.com...
- Page 15 newair.com...
- Page 16 WIRINGDIAGRAM newair.com...
-
Page 17: Operating Instructions
2. Light on model: Press and hold for 3 seconds to enter light on mode. When in this mode, the LCD screen will display and the light will always be on. newair.com... - Page 18 Press any key to stop the beeping alarm. 3. High temperature alarm: When inside temperature is above 77°F (25°C) for over 6 hours, it will beep to alarm and LCD screen will display Press any key to stop the beeping alarm. newair.com...
-
Page 19: Cleaning & Maintenance
To avoid denting or scratching protect the appliance with a cover if possible. ENERGY-SAVING TIPS • The appliance should be located in the coolest area of the room, away from heat producing appliances, and out of direct sunlight. newair.com... - Page 20 4 Remove the existing filter and replace with a new one. 5 Put the new filter into the hole and then turn the filter 90 degrees in a clockwise direction. newair.com...
-
Page 21: Troubleshooting
• At the end of a cooling cycle, you can hear the noise of The appliance water circulating. makes a lot of • Expansion and contraction of the internal walls may noise cause a cracking sound. • The appliance is not level. • Check if fan is in good condition. newair.com... - Page 22 • The appliance is not level. • The door seal is dirty or damaged. The door does • The shelves are not positioned correctly. not close • A part of the contents is preventing the door from properly closing. newair.com...
-
Page 23: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
