Summary of Contents for NewAir NWB080SS00

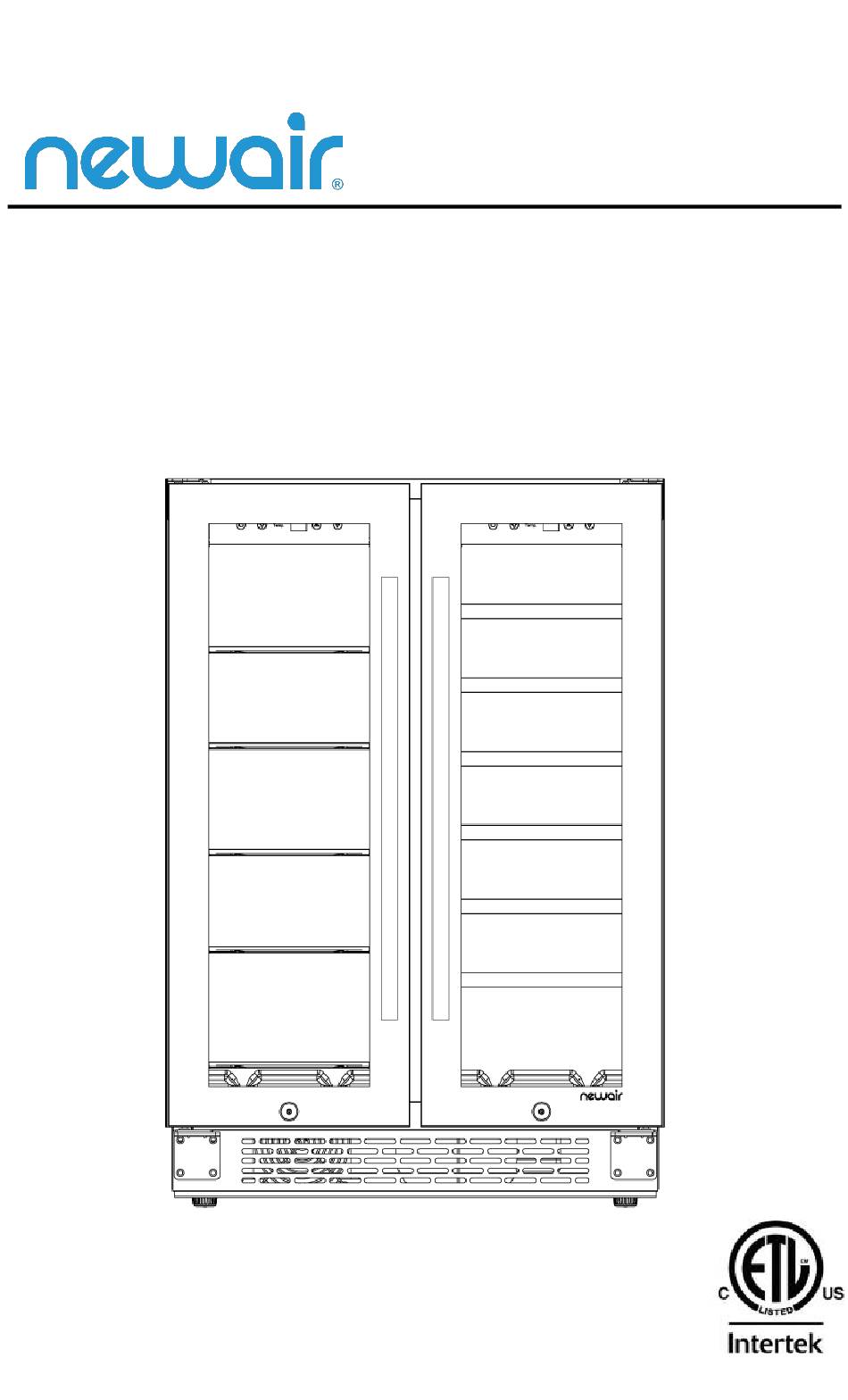

- Page 1 SKU: NWB080SS00 24” French Door Dual Zone Wine and Beverage Fridge OWNER’S MANUAL Read and save these instructions. Manual v1.1...
-
Page 2: Table Of Contents
Register Your Product Online ................3 Safety Information & Warnings ................4 Assembly Instructions ..................5 Operating Instructions ..................7 Cleaning & Maintenance ..................9 Troubleshooting ....................10 Limited Manufacturer’s Warranty ..............11 SPECIFICATIONS NWB080SS00 ODEL 110-120V OLTAGE 0.9 Amps URRENT R600a EFRIGERANT... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your NewAir Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... -
Page 4: Safety Information & Warnings
24 hours before connecting to power, to allow refrigerant to settle. If there are any issues with the unit, please contact us immediately at support@newair.com. • Place the unit on a level floor that will be strong enough to support it when it is at full capacity. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS INITIAL SETUP Remove exterior and interior packing materials and let the fridge stand for 24 hours before connecting to power, to allow refrigerant to settle. Once it is plugged in, let it run for at least 30 minutes before stocking. Do not change the temperature or adjust any settings during this time. - Page 6 • Align the handle with the screws installed in the above step. Tighten the screws using a Phillips head screwdriver until the handles secure tightly against the door frame. (Do NOT over tighten) Replace the gasket. newair.com...
-
Page 7: Operating Instructions
OPERATING INSTRUCTIONS LEFT ZONE RIGHT ZONE Press the power button to turn the fridge on and off, even while the unit is plugged in. The fridge will be on by default but pressing and holding the power button for 5 seconds will shut it off. This feature is handy if you want to shut the unit off but are unable to reach the plug. - Page 8 (a small round peg on each side that prevents the shelves from falling out). Lift the shelf so that the notch passes over the lock, then remove the shelf. Do the reverse to reinsert the shelf. newair.com...
-
Page 9: Cleaning & Maintenance
OTHER TIPS • This unit comes equipped with a “door open” alarm, which will start beeping if one of the doors is left open for more than 3 minutes. If you hear this alarm, double check to make sure the doors are closed properly. •... -
Page 10: Troubleshooting
There is insufficient Allow sufficient clearance ventilation. around the unit. The unit is too close to a Allow sufficient clearance wall or other surface. around the unit. newair.com... -
Page 11: Limited Manufacturer's Warranty
Problem Possible Causes Solution Frost is building up There is excess humidity Turn the unit off, unplug it in the unit. or the interior and remove the frost temperature is too low. manually by letting it thaw, or using a plastic/rubber pick. Reconnect once the ice has thawed. - Page 12 When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer’s discretion.
Need help?
Do you have a question about the NWB080SS00 and is the answer not in the manual?
Questions and answers

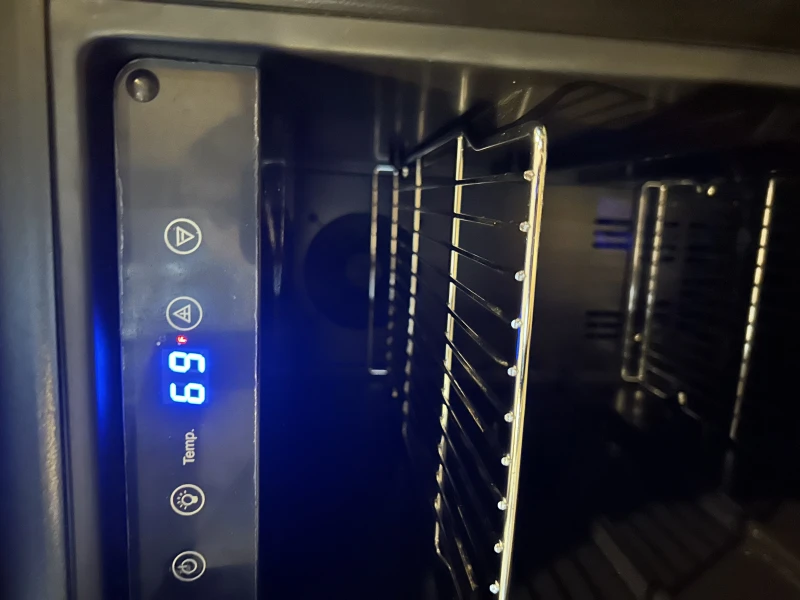

Unit will not cool down. Change temperature and it goes back to higher temperature. Set 55 and goes to 70?
The NewAir NWB080SS00 unit may not be cooling down or resetting the temperature from 55°F to 70°F due to a few possible reasons:
1. Power Interruption: If the unit was recently unplugged, turned off, or experienced a power loss, it requires a 3-5 minute delay before restarting. Attempting to restart it immediately may prevent it from functioning.
2. Ventilation Issues: Insufficient ventilation or clearance around the unit could hinder proper cooling. Ensure the unit is placed in a well-ventilated area with enough clearance around it.
3. Door Seal Issues: If the door is not completely closed or the door seal is not working properly, cool air can escape, preventing the unit from reaching the desired temperature. Check and ensure the door is tightly closed.
4. Temperature Stabilization: After the unit is turned on for the first time or restarted after a long period, there may be a few degrees of variance between the set and ambient temperatures. This should stabilize after a few hours of operation.
If none of these solutions resolve the issue, further troubleshooting may be needed.
This answer is automatically generated
