welcoming
MODEL NUMBER
1789VADA-48-201-901
1789VADA-48-201-925

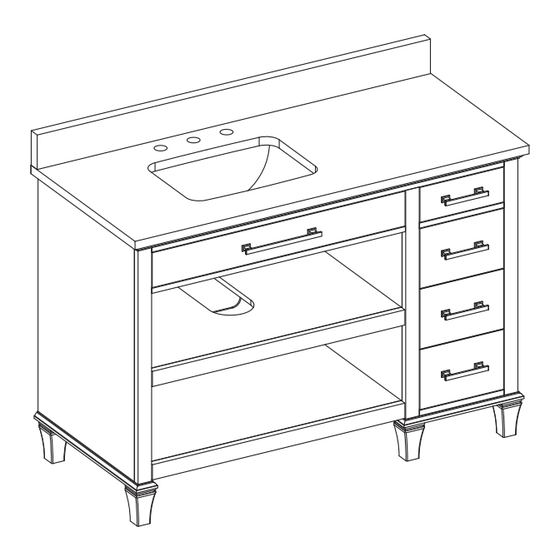

48-IN VANITY WITH TOP
ITEM # 5071983; 5071984
MODEL # 1789VADA-48-201-901; 1789VADA-48-201-925
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION
AR 48-In White ADA Vanity with Eng White Top
AR 48-In White ADA Vanity with Eng Carrara Top
1
•
inspiring
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LOWES 1789VADA-48-201-901
Summary of Contents for LOWES 1789VADA-48-201-901
- Page 1 AR 48-In White ADA Vanity with Eng Carrara Top 48-IN VANITY WITH TOP ITEM # 5071983; 5071984 MODEL # 1789VADA-48-201-901; 1789VADA-48-201-925 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
- Page 2 TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................13 Warranty............................13 Replacement Parts List.........................14...
- Page 3 PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Upper Shelf Lower Shelf Holster Panel Drawer Divider Box 2 of 3 Large Holster Medium Holster Small Holster HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Bolt...
- Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS...
- Page 5 INSTALLATION INSTRUCTIONS 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 6 INSTALLATION INSTRUCTIONS 4. Screw bolts (MM) into the threaded holes of stone top (B). Hardware Used Bolt 5. Lower the sink brackets (NN) over the bolts (MM) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (PP) over bolts (MM) and secure with nuts (OO).
- Page 7 INSTALLATION INSTRUCTIONS Note: A t this stage it may be easier to install the faucet and drain kit (not included) to top (B) per the manufacturer’s instructions, before moving on to Step 6. 6. Apply stain free silicone caulk (not included) to the top edge of vanity (A).
- Page 8 INSTALLATION INSTRUCTIONS 8. Insert shelf pins (BB) at desired height, ensuring they are level. Place upper shelf (E) on top of shelf pins (BB). Repeat for the lower shelf (F). Hardware Used Shelf Pin 9. Place the Holster panel (L) onto the drawer (as shown on Step 9), pls make sure it sits firmly on the it's correct location.
- Page 9 INSTALLATION INSTRUCTIONS 10. Place the large holster (CC), medium holster (DD) and small holster (EE) into the holes on the holster panel (L). you can put your appliances in these holsters. Note: The holsters and the holster panels can be removed if it's not desired, the drawer can perform as a regular drawer.
- Page 10 INSTALLATION INSTRUCTIONS 12. As shown in the diagram, fully extend the drawer and locate the plastic levers on the metal glide tracks. Push the left-side and right-side levers at the same time to disengage the drawer from the drawer glides. Gently lift the drawer up to remove it from vanity (A).
- Page 11 INSTALLATION INSTRUCTIONS 14. There is a drawer cover pre-built inside of the top drawer, it can be slide in or out when needed for the purpose of temporary station area. 15. Gently open the top tip-out door and remove the wood tray by lifting/sliding up (per the diagram).
- Page 12 INSTALLATION INSTRUCTIONS 16. Re-hang the wood tray back inside of the top tip-out door. Assembly is now complete. Install desired faucet and drain assemblies (neither included) per the manufacturers’ instructions to complete the installation.
- Page 13 CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •...
- Page 14 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 48" Engineered White Top 2550VTADA-48-901 Complete Set 48" Engineered Carrara Top 2550VTADA-48-925 48" Engineered White Backsplash PUBS-25-901-48 48"...
- Page 15 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Touch-up pen OF-0010 Shelf Pin B1044 Large Holster HOLSTER-Ø82 Medium Holster HOLSTER-Ø57 Small Holster HOLSTER-Ø44 Long Handle-Brushed Nickel (with screw) 1789VADA-BN LONG HANDLE Handle-Brushed Nickel (with screw)
