welcoming
MODEL NUMBER
1808VADA-48-201-901
1808VADA-48-201-925
1808VADA-48-201-926
48-IN VANITY WITH TOP
ITEM # 5071990; 5071991; 5071992
MODEL # 1808VADA-48-201-901; 1808VADA-48-201-925; 1808VADA-48-201-926
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION

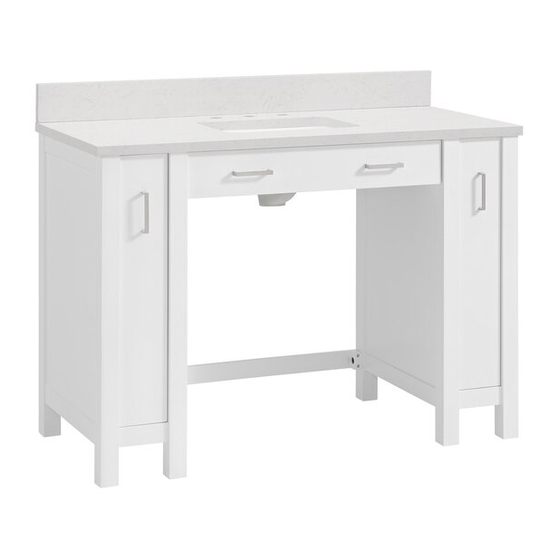

AR 48-In White ADA Vanity with Eng White Top
AR 48-In White ADA Vanity with Eng Carrara Top
AR 48-In White ADA Vanity with Eng Calacatta Top
1
•
inspiring
Advertisement
Table of Contents
Related Manuals for LOWES 1808VADA-48-201-901
Summary of Contents for LOWES 1808VADA-48-201-901
- Page 1 AR 48-In White ADA Vanity with Eng Calacatta Top 48-IN VANITY WITH TOP ITEM # 5071990; 5071991; 5071992 MODEL # 1808VADA-48-201-901; 1808VADA-48-201-925; 1808VADA-48-201-926 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................11 Warranty............................11 Replacement Parts List.........................12... -
Page 3: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Center Frame Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Left Cabinet Right Cabinet Box 2 of 3 Back Stretcher Bar HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Short Bolt Lock Washer Washer... -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 35 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS... - Page 5 INSTALLATION INSTRUCTIONS Note: Clean area where the vanity will be permanently located prior to beginning installation, ensuring the vanity will not interfere with any water supply and drain lines once mounted. 2. With two people, carefully place vanity against the wall in its final location. While holding the vanity base firmly against the wall, use the pre-assembled levelers on the bottom of each leg of the vanity to level the...
- Page 6 INSTALLATION INSTRUCTIONS 4. Apply silicone caulk (not included) to the top edge of sink (D). With the help of another adult, lower the sink onto the back side of the stone top. Make sure the sink over-flow hole is facing the front of stone top.
- Page 7 INSTALLATION INSTRUCTIONS 6. Lower the sink brackets (LL) over the bolts (KK) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (NN) over bolts (KK) and secure with nuts (MM). Hand tighten nuts (MM) with included wrench (OO).
- Page 8 INSTALLATION INSTRUCTIONS 8. Apply silicone caulk (not included) to unpolished side and bottom of backsplash (C). Position backsplash (C) on top (B) and against wall. Clean any excess caulk before allowing to dry. 9. If you want to remove the drawer tower, from the bottom of the drawer box, slightly pull the small plastic pin lock on the left glide and the right glide, now you can lift up the drawer...
- Page 9 INSTALLATION INSTRUCTIONS 10. If you want to re-install the drawer tower back into the cabinet, please fully extend the left and right glides to the front, set the drawer tower on top of the glides and make sure the drawer tower is fully sit on top of the glides.
- Page 10 INSTALLATION INSTRUCTIONS 12. Re-hang the wood tray back inside of the top tip-out door. Assembly is now complete. Install desired faucet and drain assemblies (neither included) per the manufacturers’ instructions to complete the installation.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 12: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 48" Engineered White Top 2500VT-48-901 Complete Set 48" Engineered Carrara Top 2500VT-48-925 Complete Set 48" Engineered Calacatta Top 2500VT-48-926 48"...
