welcoming
MODEL NUMBER
1954VA-30-278-900-UM
1954VA-30-278-901-UM
1954VA-30-278-925-UM
1954VA-30-278-926-UM
1954VA-30-279-900-UM
1954VA-30-279-901-UM
1954VA-30-279-925-UM
1954VA-30-279-926-UM
1954VA-30-291-900-UM
1954VA-30-291-901-UM
1954VA-30-291-925-UM
1954VA-30-291-926-UM
30-IN VANITY WITH TOP
ITEM #4136369; 4136370; 4136371; 4136372; 4136373; 4136374; 4136375; 4136376; 4136377; 4136378;
4136379; 4136380
MODEL #1954VA-30-278-900-UM; 1954VA-30-278-901-UM; 1954VA-30-278-925-UM; 1954VA-30-278-926-UM;
1954VA-30-279-900-UM; 1954VA-30-279-901-UM; 1954VA-30-279-925-UM; 1954VA-30-279-926-UM;
1954VA-30-291-900-UM; 1954VA-30-291-901-UM; 1954VA-30-291-925-UM; 1954VA-30-291-926-UM
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION

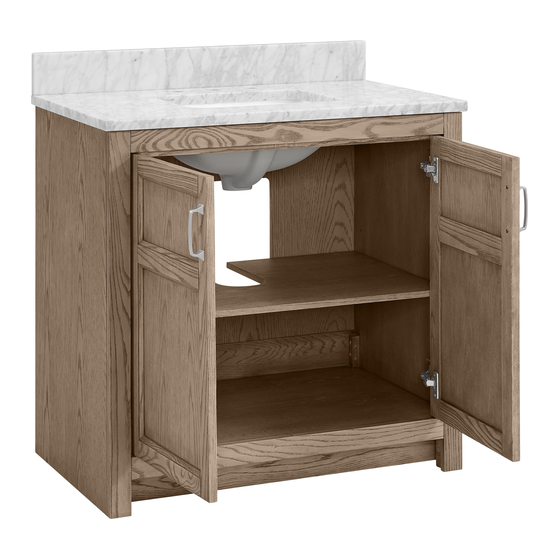

AR 30-IN WATSON WASHED NATURAL OAK VANITY W/CARRARA MARBLE TOP
AR 30-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED WHITE TOP
AR 30-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED CARRARA TOP
AR 30-IN WATSON WASHED NATURAL OAK VANITY W/ENGINEERED CALACATTA TOP
AR 30-IN WATSON SANDSTORM OAK VANITY W/CARRARA MARBLE TOP
AR 30-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED WHITE TOP
AR 30-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED CARRARA TOP
AR 30-IN WATSON SANDSTORM OAK VANITY W/ENGINEERED CALACATTA TOP
AR 30-IN WATSON PEBBLE OAK VANITY W/CARRARA MARBLE TOP
AR 30-IN WATSON PEBBLE OAK VANITY W/ENGINEERED WHITE TOP
AR 30-IN WATSON PEBBLE OAK VANITY W/ENGINEERED CARRARA TOP
AR 30-IN WATSON PEBBLE OAK VANITY W/ENGINEERED CALACATTA TOP
•
1
inspiring
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LOWES 1954VA-30-278-900-UM
Summary of Contents for LOWES 1954VA-30-278-900-UM
- Page 1 AR 30-IN WATSON PEBBLE OAK VANITY W/ENGINEERED CALACATTA TOP 30-IN VANITY WITH TOP ITEM #4136369; 4136370; 4136371; 4136372; 4136373; 4136374; 4136375; 4136376; 4136377; 4136378; 4136379; 4136380 MODEL #1954VA-30-278-900-UM; 1954VA-30-278-901-UM; 1954VA-30-278-925-UM; 1954VA-30-278-926-UM; 1954VA-30-279-900-UM; 1954VA-30-279-901-UM; 1954VA-30-279-925-UM; 1954VA-30-279-926-UM; 1954VA-30-291-900-UM; 1954VA-30-291-901-UM; 1954VA-30-291-925-UM; 1954VA-30-291-926-UM ATTACH YOUR RECEIPT HERE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions....................4 Care and Maintenance........................10 Warranty............................10 Replacement Parts List.........................11... -
Page 3: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Left Door (preassembled to vanity (A)) Right Door (preassembled Box 2 of 3 to vanity (A)) Shelf Floor Plumbing Cutout Lid HARDWARE CONTENTS... -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS (Undermount Sink) - Page 5 INSTALLATION INSTRUCTIONS (Undermount Sink) 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 6 INSTALLATION INSTRUCTIONS (Undermount Sink) 4. Screw bolts (GG) into the threaded holes of stone top (B). Hardware Used Bolt 5. Lower the sink brackets (HH) over the bolts (GG) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (JJ) over bolts (GG) and secure with nuts (II).
- Page 7 INSTALLATION INSTRUCTIONS (Undermount Sink) Note: A t this stage it may be easier to install the faucet and drain kit (not included) to top (B) per the manufacturer’s instructions, before moving on to Step 6. 6. Apply stain free silicone caulk (not included) to the top edge of vanity (A).
- Page 8 INSTALLATION INSTRUCTIONS (Undermount Sink) 8. The back of the vanity is open for accessibility for drain(s) and water line(s) hookup. If your plumbing comes out of the back wall, insert the floor plumbing cutout lid (H), as shown in Illustration 8. This will close the hole and increase your storage space.
- Page 9 INSTALLATION INSTRUCTIONS (Undermount Sink) 10. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 11: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1954VA-30-278-UM (Undermount Sink) For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 30" Carrara Marble Top 2500VT-30-900 Complete Set 30" Engineered White Top 2500VT-30-901 Complete Set 30"... - Page 12 REPLACEMENT PARTS LIST FOR 1954VA-30-279-UM (Undermount Sink) For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 30" Carrara Marble Top 2500VT-30-900 Complete Set 30" Engineered White Top 2500VT-30-901 Complete Set 30"...
- Page 13 REPLACEMENT PARTS LIST FOR 1954VA-30-291-UM (Undermount Sink) For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 30" Carrara Marble Top 2500VT-30-900 Complete Set 30" Engineered White Top 2500VT-30-901 Complete Set 30"...
