welcoming
MODEL NUMBER
1789VADA-36-201-901
1789VADA-36-201-925
1789VADA-36-201-926

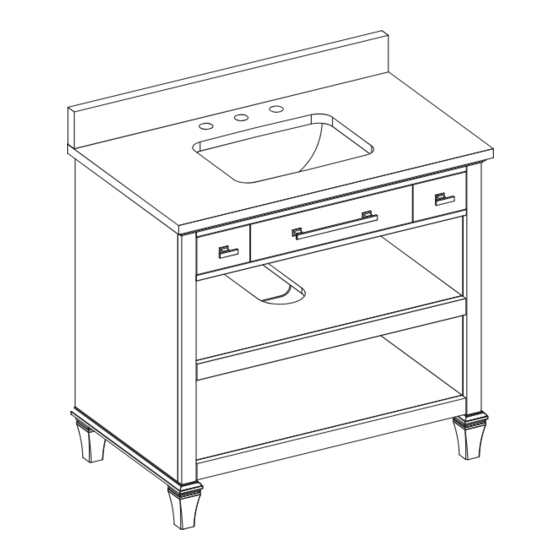

36-IN VANITY WITH TOP
ITEM # 5071980; 5071981; 5071982
MODEL # 1789VADA-36-201-901; 1789VADA-36-201-925; 1789VADA-36-201-926
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION
AR 36-In White ADA Vanity with Eng White Top
AR 36-In White ADA Vanity with Eng Carrara Top
AR 36-In White ADA Vanity with Eng Calacatta Top
1
•
inspiring
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LOWES AR 1789VADA-36-201-901
Summary of Contents for LOWES AR 1789VADA-36-201-901
- Page 1 welcoming • sophisticated • inspiring MODEL NUMBER DESCRIPTION 1789VADA-36-201-901 AR 36-In White ADA Vanity with Eng White Top 1789VADA-36-201-925 AR 36-In White ADA Vanity with Eng Carrara Top 1789VADA-36-201-926 AR 36-In White ADA Vanity with Eng Calacatta Top 36-IN VANITY WITH TOP ITEM # 5071980;...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Instructions...........................3 Preparation............................4 Assembly or Installation Instructions ....................4 Care and Maintenance........................11 Warranty............................11 Replacement Parts List.........................12... -
Page 3: Package Contents
PACKAGE CONTENTS (Undermount Sink) PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 3 Box 1 of 3 Backsplash Sink Box 3 of 3 Upper Shelf Box 2 of 3 Lower Shelf HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Bolt Sink Bracket Lock Washer Wrench Touch Up Pen... -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level INSTALLATION INSTRUCTIONS... - Page 5 INSTALLATION INSTRUCTIONS 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 6 INSTALLATION INSTRUCTIONS 4. Screw bolts (MM) into the threaded holes of stone top (B). Hardware Used Bolt 5. Lower the sink brackets (NN) over the bolts (MM) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (PP) over bolts (MM) and secure with nuts (OO).
- Page 7 INSTALLATION INSTRUCTIONS Note: A t this stage it may be easier to install the faucet and drain kit (not included) to top (B) per the manufacturer’s instructions, before moving on to Step 6. 6. Apply stain free silicone caulk (not included) to the top edge of vanity (A).
- Page 8 INSTALLATION INSTRUCTIONS 8. Insert shelf pins (BB) at desired height, ensuring they are level. Place upper shelf (E) on top of shelf pins (BB). Repeat for the lower shelf (F). Hardware Used Shelf Pin 9. If you want to remove the drawer tower, from the bottom of the drawer box, slightly pull the small plastic pin lock on the left glide and the right glide, now you can lift up the drawer...
- Page 9 INSTALLATION INSTRUCTIONS 10. If you want to re-install the drawer tower back into the vanity, please fully extend the left and right glides to the front, set the drawer tower on top of the glides and make sure the drawer tower is fully sit on top of the glides.
- Page 10 INSTALLATION INSTRUCTIONS 12. Re-hang the wood tray back inside of the top tip-out door. Assembly is now complete. Install desired faucet and drain assemblies (neither included) per the manufacturers’ instructions to complete the installation.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 12: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# Complete Set 36" Engineered White Top 2550VT-36-901 Complete Set 36" Engineered Carrara Top 2550VT-36-925 Complete Set 36" Engineered Calacatta Top 2550VT-36-926 36"...
