Propane Fire Pit Table
Owner's Instruction manual
SKU No.:
AJ1185
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, leave the area immediately.
•
•
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
For outdoor use only.
Advertisement
Table of Contents
Related Manuals for AJ Enjoy AJ1185
Summary of Contents for AJ Enjoy AJ1185

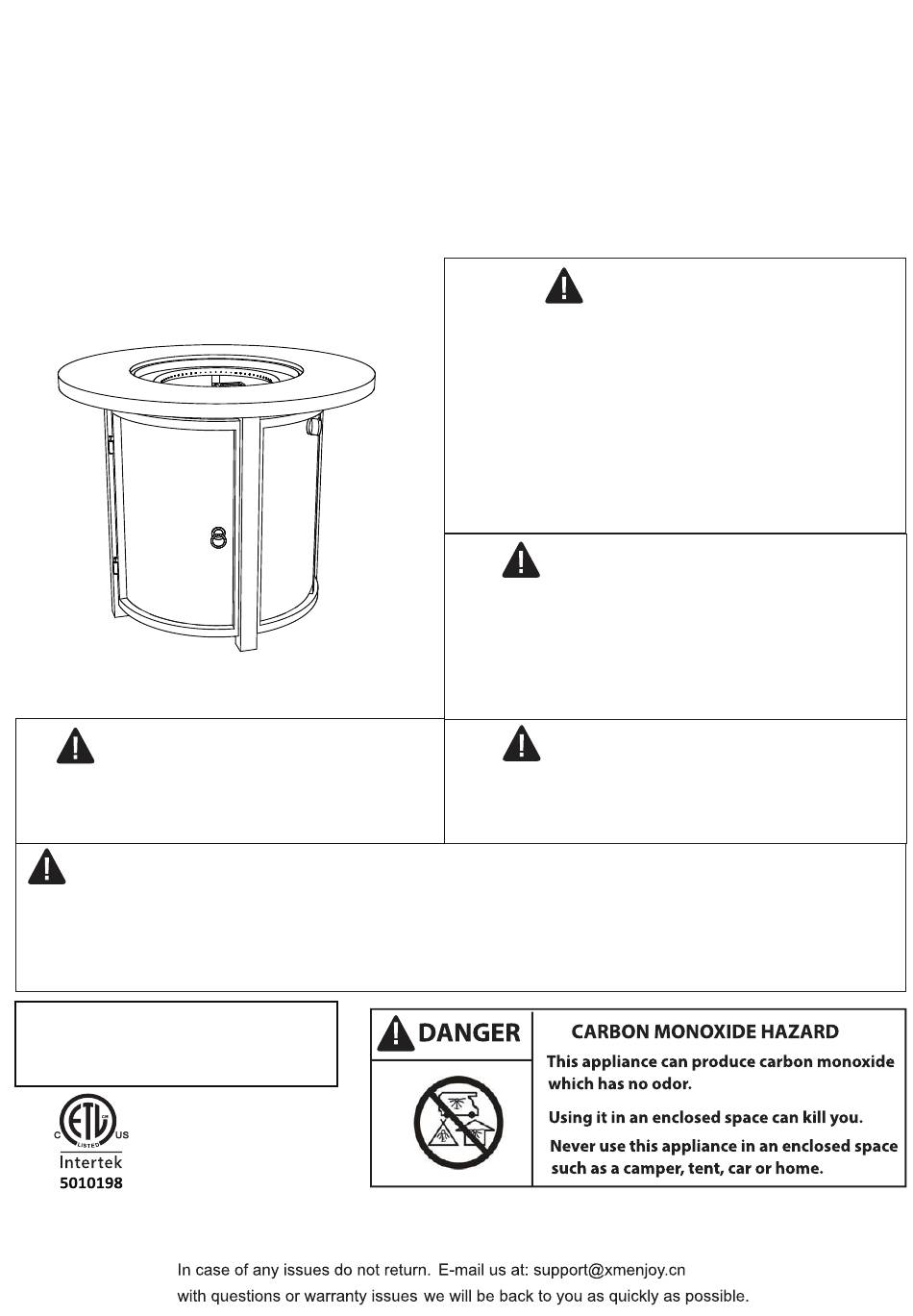

- Page 1 Propane Fire Pit Table Owner’s Instruction manual SKU No.: AJ1185 DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to the appliance. • Extinguish any open flame. • If odor continues, leave the area immediately. • •...
-
Page 2: Safety Information
SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2. • THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area. - Page 3 SAFETY INFORMATION • Combustible material should not be within 60 inches of the top of the unit, or within 48 inches around the entire unit. • Keep the appliance area clear and free fr vapors and liquids. • • Do not add water into the unit. •...
- Page 4 SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by the supplier. Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance.
-
Page 5: Parts List
PARTS LIST Tabletop Panel D Panel E Panel door Steel legs Metal stand Lava rocks 1 box... -
Page 6: Parts List(Hardware)
PARTS LIST(Assembled Fire System) PARTS LIST(Hardware) Tools Required (not included) Phillips Screwdriver... -
Page 7: Assembly Instruction
ASSEMBLY INSTRUCTION Do not fasten all screws until the all parts is in position. - Page 8 ASSEMBLY INSTRUCTION Attach panel (C) and steel (F) together using 4pcs of Bolts (1) and 4 pcs M6 Washer (2) with Screwdriver. Att ach gas tank hold er (G) at t he bottom using 4pcs Bolts (1) and 4pcs M6 Washer (2) with screwdriver.
- Page 9 ASSEMBLY INSTRUCTION Put the metal base on the bottom of the top using 4pcs of Bolts (4) and 4pcs M6 Washer (2) with Screwdriver. Make sure the panel (C) valve rod. Hang the door panel (E) on the steal (F).
- Page 10 ASSEMBLY INSTRUCTION Go around this fire table and chcek if all parts are in good position, then fasten all screws now. Put the control knob(10) on the valve rod on panel(C)
- Page 11 ASSEMBLY INSTRUCTION Place the 20 lb. Propane Gas Tank (not included) into the Metal Stand (G). Turn the preassembled wing screw in a clockwise direction to secure the propane tank tightly. Turn the cylinder valve on the tank clockwise to close the propane tank. Attach the preassembled regulator to the cylinder valve by turning the regulator coupling nut clockwise, then attach the door panel(E) in place !!! Make sure it is fastened securely and tighten connections by hand only.
- Page 12 ASSEMBLY INSTRUCTION 1 1 . Pour the box of lava rocks(H) into the fire bowl. Put the cover lid(A) in place.
- Page 13 LIGHTING Ignition Instructions WARNING WARNING Do Not Cover the Ignition Screen when placing the rocks into the re bowl. Always keep the ignition screen visible. This heating item should not be used on plastic composite or arti cial wood SCREEN CORRECT INCORRECT WARNING...
- Page 14 OPRATION To Extinguish 1. Turn control knob clockwise to the “HIGH” position; let the knob pop up and continue turning the control knob to the “OFF” position. 2. Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time. MAINTENANCE Before performing any maintenance always disconnect propane gas tank.
-
Page 15: Troubleshooting
TROUBLESHOOTING Problem: Burner will not light using igniter Possible Cause 3: Residue on Igniter Pin. Problem: Burner will not light with match Problem: Sudden drop in gas flow Venturi Problem: Irregular flame pattern Problem: The fire table emits a lot of black smoke when in use... - Page 16 Problem: Sudden drop in gas flow, or a reduced flame height Problem: Irregular flame pattern, flame does not run the full length of the burner Problem: Flame blow out Problem: Sudden drop in gas flow Problem: Flame seems to lose heat when burning in cold weather - temperature below 50°F vaporization process is too low.
