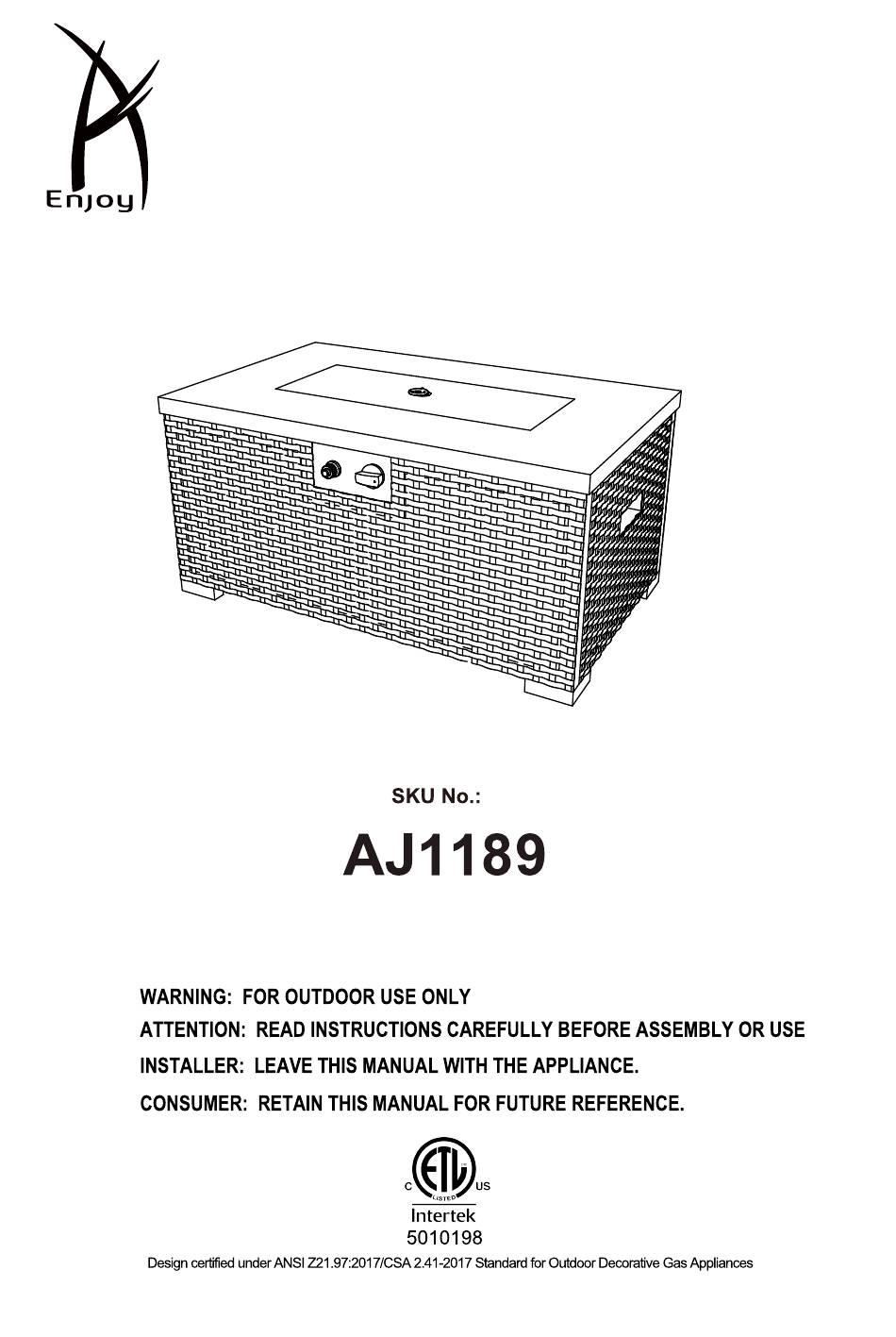

Page 1
Fire Pit Table Owner’s Instruction manual...
Page 2
Warnings DANGER WARNING CARBON MONOXIDE HAZARD WARNING indicates an ● This appliance can produce carbon ● imminently hazardous situation monoxide which has no odor. Using it in which, if not avoided, will result an enclosed space can kill you. in death or serious injury. For outdoor use only.
Page 3
Warnings WARNING The installation of this unit must adhere to local codes or either the ● National Fuel Gas Code, ANSI Z223. 1/NFPA54, OR CAN/CGA- B149.1, National Gas and Propane Installation Code. This unit is to be used with propane gas only! (sold separately), is ●...
Page 4
Warnings WARNING DO NOT add water into the unit. ● ● DO NOT disconnect any part while the unit is in use. DO NOT operate on a boat or vehicle. ● DO NOT set the Protective Cover over the unit until the Fire Table / ●...
Page 5
Warnings WARNING Do not operate unit until all parts are fully assembled. ● Do not attempt to move it while in use. ● This unit is not intended for cooking. ● Young children should be carefully supervised when they are in the ●...
Parts Diagram Tabulated here below are the description to all parts as shown in above Picture . Picture Item Description Guard Thermocouple Ignition Pin Main Frame of Fire Table Glass Rocks Burner Nozzle Corrugated Pipe Switching Valve Regulator Valve with Gas Hose Control Knob Ignitor...
Metal lid AA Battery Panel C Panel D Protective Cover Panel F Table Top Adjust foot Hardware Bolt (M6*35MM) Bolt (M6*16MM) W002 M6 Washer T001 Hex Bolt Driver...
Page 8
Assembly Instructions T001 S003 W002 Attach panel (F) and (D) to the table top (G) Attach panel (C) 2pcs with Panel (D) and Panel (F) together by using 8pcs Bolts (S003) and 8pcs M6 washer(W002) with Hex Bolt Driver T(001). Please do not fully tighten.
Page 9
Assembly Instructions Step 3: Attach adjust foot (H) to the bottom of fire pit using 8pcs of Bolts (S001) with Hex Bolt Driver (T001). And tighten the Bolts. Step 4 Put the metal lid on the table top of fire pit. Then tighten all the bolts.
Page 10
User's Instructions Step 1. Check that the Contro Knob for the gas supply system is turned to the "OFF'' position before starting any assembly. 2. Place a 20 lb Propane Gas Tank (not included) into a secure position. Step Turn the Cylinder Valve on the tank in a clockwise direction to TURN OFF SUPPLEY of the LP Gas supply-Attach the preassembled Regulator (19) from the Fire Table to the...
Page 11
User's Instructions Step 7: Step 8: DO NOT PLACE GLASS ROCKS ON THE PROTECTIVE GUARD. KEEP GUARD CLEAR. Guard Incorrect Correct...
SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by us. Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate the appliance.
Operation FOR YOUR SAFETY, READ BEFORE LIGHTING Before performing a leak test, make sure that no sparks can occur and you • are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the •...
Page 14
Operation Keep holding 10-15 To Extinguish Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time. Turn control knob clockwise to the “HIGH” position; let the knob pop up and continue turning the control knob to the “OFF”...
Maintenance & Storage To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: Before performing any maintenance always disconnect propane gas • tank. Use warm soapy water for cleaning. Never use flammable or corrosive •...
Trouble Shooting PROBLEM CAUSE SOLUTION Wipe dry with cloth. Electrode and burners are wet Check that the battery is inserted correctly in the Igniter battery is dead or igniter or replace the battery. Make sure the backwards plastic wrap on the battery has been removed. Igniter Pin cracked or broken Burner will not light using igniter Please contact Living source to request the parts.
Page 17
Trouble Shooting Problem: Burner JUST LIGHT UP FOR SECOND AND WILL AUTOMATICALLY TURN OFF PILOT GUARD THERMOCOUPLE IGNITION IGNITION THERMOCOUPLE 1. The thermocouple will be under the Pilot Guard on the top of the unit. Please remove the Pilot guard by unscrewing it from the metal bowl with a screw driver. 2.
