AJ Enjoy AJ5103 Owner's Instruction Manual

Propane fire pit table
Hide thumbs

Advertisement

Quick Links

Download this manual
Propane Fire Pit Table
Owner's Instruction manual
SKU No.:
AJ5103
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage,personal injury,or loss of life.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Refer to the owner's information manual provided with this appliance.
For assistance or additional information consult a qualified installer, services agency or
the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, leave the area immediately.
•
•
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING
Installation and service must be performed
by a qualified installer, service agency,
or the gas supplier.
For outdoor use only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AJ5103 and is the answer not in the manual?

Questions and answers

Related Manuals for AJ Enjoy AJ5103

Summary of Contents for AJ Enjoy AJ5103

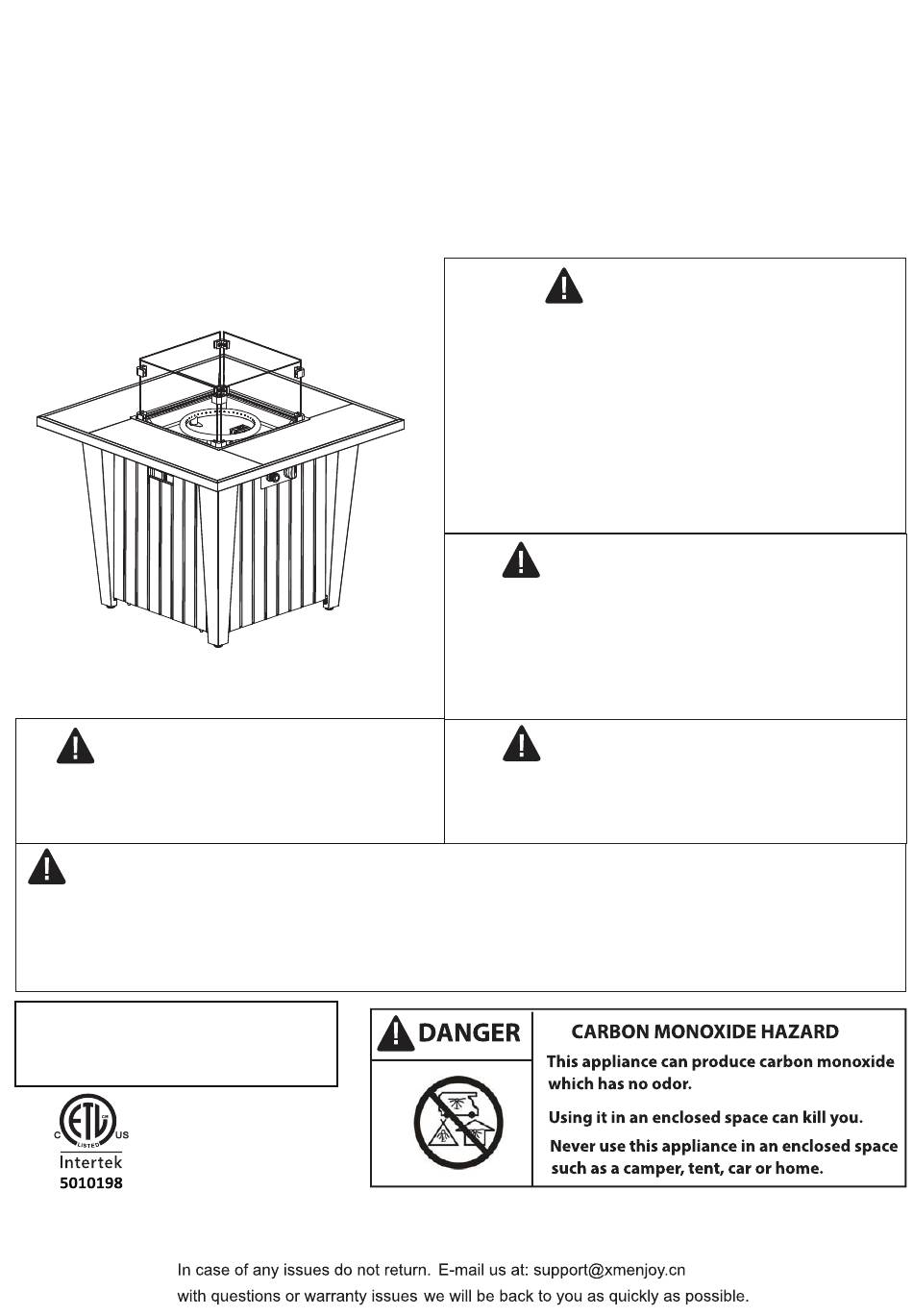

  • Page 1 Propane Fire Pit Table Owner’s Instruction manual SKU No.: AJ5103 DANGER FIRE OR EXPLOSION HAZARD If you smell gas: Shut off gas to the appliance. • Extinguish any open flame. • If odor continues, leave the area immediately. • •...
