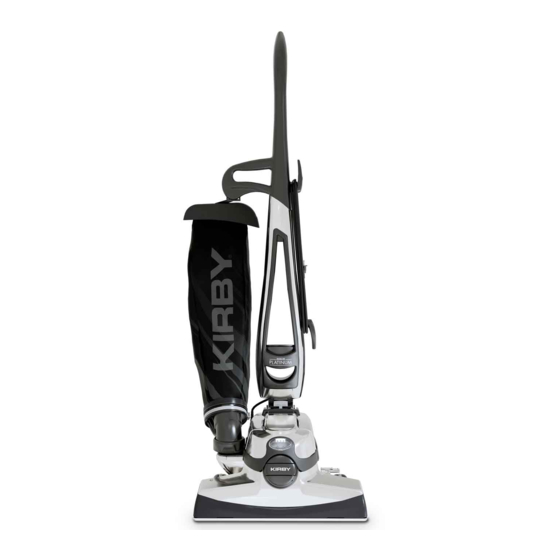

Kirby Avalir 2 Domestic Edition Service Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SERVICE MANUAL
Domestic Edition
Models: Avalir 2 & Avalir Platinum
120 V
Printed in USA • © 2024 The Kirby Company • 246515 • Rev 11/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the Avalir 2 Domestic Edition and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kirby Avalir 2 Domestic Edition

Summary of Contents for Kirby Avalir 2 Domestic Edition

  • Page 1 SERVICE MANUAL Domestic Edition Models: Avalir 2 & Avalir Platinum 120 V Printed in USA • © 2024 The Kirby Company • 246515 • Rev 11/2024...
  • Page 2 Troubleshooting Matrix 9-13 3.2.2 Assembly of Unit and Section References 3.2.3 Micron Magic HEPA Filtration System Electrical Guide – 120 Volt – Kirby Unit 3.3.1 Basic Electrical Design 14-15 Common Electrical Failures-Cause and Troubleshooting Guide 3.4.1 Motor Will Not Run 16-17 3.4.2...
  • Page 3 TABLE OF CONTENTS SECTION 4 Service Details and Instructions Use of This Section 4.1.1 Warnings, Cautions, and Notes 4.1.2 Arrangement of Illustrated Parts List and Exploded Views 4.1.3 Relationship of Text to Theory Illustrations and Exploded Views Power Unit Checkout Power Unit Disassembly –...
  • Page 4 TABLE OF CONTENTS SECTION 5 Slide Bracket Service Instructions Slide Bracket Assembly Service 5.1.1 Slide Bracket Assembly Component Replacement 44-45 5.1.2 Handle Pivot Spring Assembly 45-46 5.1.3 Final Assembly of Unit SECTION 6 Outer Bag Service Instructions Outer Bag Assembly Service 6.1.1 Bag Top Assembly Service 6.1.2...
  • Page 5 FORWARD – 120 V THE PURPOSE OF THIS MANUAL IS: 1. To review the Kirby warranty as it pertains to the Customer, The Kirby Company, and after market situations. 2. To provide detailed assembly and service instructions. 3. To provide a visual reference and parts list for ordering.
  • Page 6 THE LIMITED WARRANTY The Limited Warranty as supplied with the Kirby is for 3 years. It is intended to cover defects in material or workmanship. It is not intended to cover incorrect or lack of maintenence or user misuse or abuse. It cannot be altered or extended in any way other than as it is written.
  • Page 7 SECTION 2 – 120 V RECOMMENDED TOOLS AND METERS TOOLS AND METERS Tools required include: Screwdrivers – Flat and Phillips – Assorted Sizes Pliers – Assorted Impact Screwdriver Bench Vise File – Round Rattail – 8” long File – ¼” pillar – 6” long Tap Wrench Threading Taps 6 x 32, 8 x 32, 10 x 24, and 10 x 32 In addition, certain special tools and supplies available from the factory are:...
  • Page 8 SECTION 3 – 120 V TROUBLESHOOTING USE OF THIS SECTION 3.1.1 Warnings, Cautions, and Notes Observe all Warnings, Cautions, and Notes in this section as well as those sections to which you will be referred. 3.1.2 Arrangement of the Troubleshooting Section The troubleshooting section is arranged in two parts;...
  • Page 9 SECTION 3 – 120 V TROUBLESHOOTING TROUBLESHOOTING GUIDE When the problem appears electrical in nature, and the information contained in the following table does not correct the problem, proceed to Section 3.2.1 TroubleShooting Matrix 3.4 for information on conducting an electrical The following matrix guides the user to the resistance check.
  • Page 10 SECTION 3 – 120 V TROUBLESHOOTING TROUBLESHOOTING TABLE PROBLEM PROBABLE CAUSE SOLUTION 5. Armature/carbon 1. Motor binds 1. Replace motor (4.6.1) or failed brushes spark motor component 4.6.2 – 4.6.8) 2. Carbon brush stuck in holder 2. Replace carbon brush assembly (4.6.3) 3.
  • Page 11 SECTION 3 – 120 V TROUBLESHOOTING TROUBLESHOOTING TABLE PROBLEM PROBABLE CAUSE SOLUTION 1 1. Base pan dirty inside 1. Motor seal pinched/leaking 1. Reset or replace motor seal 2. Horn gasket torn (4.6.8 A) 2. Replace horn gasket (4.3.3) 12. Headlight bulb 1.
  • Page 12 SECTION 3 – 120 V TROUBLESHOOTING TROUBLESHOOTING TABLE PROBLEM PROBABLE CAUSE SOLUTION 17. Drive system assembly 1. Primary drive belt tight 1. Adjust primary drive belt rattles on wind down (4.4.4 F 1 and F 2) 2. Primary drive sprocket gear loose 2.
  • Page 13 SECTION 3 – 120 V TROUBLESHOOTING TROUBLESHOOTING TABLE PROBLEM PROBABLE CAUSE SOLUTION 22. Brush roll belt breaks 1. Brush roll binds 1. Remove brush roll ends to clean, or replace brush roll (7.1 E) 2. Motor runs backwards 2. Motor brush leads reversed. Correct brush lead routing (Fig.
  • Page 14 3.2.2 Assembly of Unit Section References 3.3.1 Basic Electrical Design Once the problem has been serviced, The Kirby unit is powered by a two speed assemble the unit. Repair assembly universal motor. Basic circuit elements include references are given below.
  • Page 15 SECTION 3 – 120 V TROUBLESHOOTING...
  • Page 16 This service manual is available through the or Mini Emtor bag assembly. Kirby Distributor Service Center, the International Warehouse in your location, or Unplug the cord. The cleaner should be in online at KirbyAuthorizedService.com.
  • Page 17 SECTION 3 – 120 V TROUBLESHOOTING CHART 3.4.1 OPEN CIRCUIT ISOLATION SEQUENCE (120 VOLT) Continuity Procedure Comments (Yes/No) Step 1: Unit functions properly. Problem is in Attach one of the multi-meter probes to point supply voltage, power cord, or an 1 (upper switch prong) and the other to intermittent open circuit.
  • Page 18 SECTION 3 – 120 V TROUBLESHOOTING 3.4.2 Failure in the Motor Field Check for the following resistance: Motor Field A high resolution ohm-meter can be used to Terminals Winding Resistance Reading help find a motor field problem. 5 and 7 2.823/3.249 ______ Equipment 7 and 8...
  • Page 19 SECTION 3 – 120 V TROUBLESHOOTING 3.4.4 Failure in the Switch Speed Selection Contacts On Check To check the speed blade contact, use the See Figure 4. If it is suspected that the following sequence: switch has a failure, a resistance check with a regular ohm-meter can be used to help find 1.
  • Page 20 SECTION 3 – 120 V TROUBLESHOOTING 4. Measure between field terminals #6 and 2. To perform the high potential test the #7. There should be no continuity with cleaner must be in the on condition. There must the high speed plunger out, and there be an accessory on the front mounting (floor should be continuity with the plunger in.
  • Page 21 SECTION 3 – 120 V TROUBLESHOOTING – MSSS CARPET Carpet Shampoo System – Carpets SYMPTOMS CAUSES CORRECTIONS Black Marks on Baffle Strip on underside of MSSS missing Replace Baffle Strip Carpeting Not Enough suds Suds control valve not set correctly Select Carpet setting Suds Screen missing or Foam Sponge clogged Clean Foam sponge or replace Suds Screen Solution - shampoo / water ratio not correct...
  • Page 22 SECTION 3 – 120 V TROUBLESHOOTING – MSSS HARD FLOOR Carpet Shampoo System – Hard Floor SYMPTOMS CAUSES CORRECTIONS No Suds Gasket (tank) alignment issue Replace MSSS tank. Suds Screen missing or Foam Sponge clogged Clean Foam sponge or replace Suds Screen Suds control valve not set to correct position Select Hard Floor setting...
  • Page 23 NOTES ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________...
  • Page 24 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS USE OF THIS SECTION 4.1.1 Warnings, Cautions, and Notes Observe all Warnings, Cautions, and Notes. 4.1.2 Arrangement of Illustrated Parts Lists and Exploded Views The parts list and related exploded views are provided in a separate document, Section 8. Item numbers on the exploded views relate to the parts list contained in that document.
  • Page 25 SERVICE DETAILS AND INSTRUCTIONS Power Unit Checkout D. Operate switch pedal and observe power unit operation. If the Kirby Unit requires service, checkout E. If the power unit does not operate as follows: properly, inspect the power cord for damage or evidence of shorts or opens.
  • Page 26 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 4.3.1 Cover Assembly Removal 4.3.2 Fan Case Assembly and Wheel Shaft Main Assembly Removal A. Remove rug nozzle, Mini Emtor, and handle with bag from power unit. ! NOTE Removal of the fan case is necessary only if B.
  • Page 27 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 2. Remove two screws from top of 5. If the fan blade requires fan case. replacement, refer to Section 4.6.2. 3. Remove two remaining screws from 6. Prior to the reassembly of fan case, lower end of the fan case.
  • Page 28 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS C. Wheel Shaft and Ratchet Lock 6. While ratchet lock and spring are Service: compressed, install wheel shaft to 1. Inspect wheel shaft components for fan case by inserting teeth of ratchet breaks or cracks and center shaft for pedal onto teeth of ratchet lock.
  • Page 29 Detailed service The drive system assembly is a sealed unit information on the drive system assembly and should only be serviced at Kirby. is provided in Section 4.4.2. However, wheel covers and wheels may be replaced without removing drive system A.
  • Page 30 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS B. Carefully lift power switch foot pedal up and out of power unit until sufficient clearance is available to slide power switch actuating rod out of foot pedal. Leave actuating rod connected to power switch.
  • Page 31 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 4.4.3 Rear Axle Assembly Service B. Remove N/D pedal assembly by removing screw in bottom of the drive system assembly, and lifting up A. After N/D pedal and bracket cam and pulling out. assemblies are removed from drive system, loosen both axle retainer screws C.
  • Page 32 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS G. If there is a growling noise in neutral teeth of clutch half overload gear. Install mode, inspect axle surface for wear. If bearing with washer side against drive worn, replace rear axle. If there is no bevel gear.
  • Page 33 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS Insert left axle bushing into the left Q. Install the N/D pedal and bracket cam bushing sleeve of the drive system assemblies on the drive system assembly casting, with tab pointing up, and right by positioning the bracket cam finger side of axle angled away from drive between the drive bevel gear and the...
  • Page 34 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 1. If belt is too tight, loosen screws and shift drive system assembly to left (ratchet side) and re-tighten screws. 2. Using moderate downward pressure, belt should deflect 3/8” to 1/2” between gears.
  • Page 35 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 4.6.1 Motor Unit Assembly Removal Remove the motor unit assembly as follows: A. See Figure 21. Turn the power unit over and remove the two screws from the recessed holes in power unit. (See CAUTION at end of this section).
  • Page 36 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS ! NOTE C. See Figure 23. Remove exhaust duct screw. Then place flat blade screw driver All work conducted on the motor should be in slot. While prying exhaust duct away done with the switch actuating rod removed.
  • Page 37 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 2. See Figure 25. Install spacer/seal assembly with flat side of seal toward spacer shoulder and tapered side of seal toward bearing plate. BRUSHES Figure 26. Carbon Brush Cartridge Replacement B. Remove brush holder retainer screw. With screw removed, tilt brush holder away from screw hole to avoid breaking 3.
  • Page 38 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 4.6.4 Power Switch Replacement H. Tighten power switch screw to 4-6 in-lbs when installing. 4.6.5 Armature Assembly and Front Bearing Replacement A. See Figure 26. Using T154, snap ring expander pliers No. 0200, remove motor drive clip at rear of armature shaft.
  • Page 39 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS G. To replace rear bearing, remove bearing See Figure 29. Install bearing plate using rear bearing puller, part no T127A. assembly. To install bearing, press or lightly tap on the inner bearing race. Bottom end of 1.
  • Page 40 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS N. Install Fan. 1. Make sure top surface of bearing plate is clean. Apply thin, visible layer of T159S grease to bearing plate eyelet. 2. See Figure 25. Install spacer/seal assembly with flat side of seal toward spacer shoulder and tapered side of seal toward bearing plate.
  • Page 41 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS 2. Install motor mount screws. Install right brush lead wire from brush a. Install rear motor mount cartridge to lower switch terminal noted screws first. Tighten screws “O” on power switch. Refer to Figure to 22-26 in-lbs.
  • Page 42 SECTION 4 – 120 V SERVICE DETAILS AND INSTRUCTIONS LED CIRCUIT BOARD P/N 164317 BRUSH LEAD LEFT-EMI P/N 602910 ARMATURE MATCHES "B' ON P/N 114789 MOTOR HOUSING SWITCH/HDL JUMPER P/N 607189A FUSE MOTOR FIELD P/N 103989 POWER SWITCH P/N 110523 MATCHES "O"...
  • Page 43 NOTES ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________...
  • Page 44 SECTION 5 – 120 V SLIDE BRACKET SERVICE INSTRUCTIONS Slide Bracket Assembly Service E. Refer to Figures 31 and 32 as needed to assemble. Assembly is as follows: 5.1.1 Slide Bracket Assembly Component 1. If new roller bearing assemblies are Replacement to be installed, bend along score line so that flat surface of cage will be...
  • Page 45 SECTION 5 – 120 V SLIDE BRACKET SERVICE INSTRUCTIONS ✦ Slide is equipped with a centering spring. Install with spring facing downward, toward slide bracket casting. When assembled, the spring should rest in the rectangular shaped cut-out in the slide bracket casting.
  • Page 46 SECTION 5 – 120 V SLIDE BRACKET SERVICE INSTRUCTIONS B. See Figure 35. Remove two screws E. Using other side of the TT-150 tool, from bracket tab. Remove handle install tool to position handle pivot spring assembly with “FACE UP TO pivot assembly.
  • Page 47 SECTION 5 – 120 V SLIDE BRACKET SERVICE INSTRUCTIONS 5.1.3 Final Assembly Unit A. Install cover shell. 1. Assure proper assembly of trim strips to cover before installation. 2. Avoid twisting or pinching of wires when assembling cover shell to unit. 3.
  • Page 48 SECTION 6 – 120 V OUTER BAG SERVICE INSTRUCTIONS Outer Bag Assembly Service 6.1.2 Removal/Installation of Bag to Mini Emtor 6.1.1 Bag Top Assembly Service A. To remove outer bag assembly from A. See Figure 36. Remove the bag top Mini Emtor, cut through all bars of the cover by lifting it straight up off the lock on bag clamp strap located at the...
  • Page 49 SECTION 6 – 120 V OUTER BAG SERVICE INSTRUCTIONS G. Lock the strap and ensure that all the teeth on the end opposite the cross bar lock are secured by the ribs of the lock. This can be accomplished by using channel lock pliers or a wide flat blade screwdriver while applying pressure behind the raised tab just behind the...
  • Page 50 SECTION 7 – 120 V BELT LIFTER, ATTACHMENT HOSE AND HEADLIGHT SERVICE Belt Lifter Replacement 8. Hook should point toward top of A. Remove rug nozzle assembly from nozzle when belt lifter is turned power unit. counter-clockwise to its fullest extent.
  • Page 51 SECTION 7 – 120 V BELT LIFTER, ATTACHMENT HOSE AND HEADLIGHT SERVICE Attachment Hose Swivel Tube Or 7.3 Headlight Lens And LED Service Suction Blower Connector Materials Needed: Replacement • EL-164317 - Headlight LED circuit board • Static Mat with ground wire, Wrist Strap ! NOTE with cable (P/N 166906 ESD Kit) Repair method described in Sections A and...
  • Page 52 SECTION 7 – 120 V HEADLIGHT SERVICE Procedure: 7. Using the release latch on the harness connector, remove the Board from the 1. Place the Avalir Power Unit on the wire harness. Static Mat. 8. Gently bend one of the snap latches on 2.
  • Page 53 NOTES ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________...
  • Page 54 SECTION 8 – 120 V ILLUSTRATED PARTS LIST AND EXPLODED VIEWS For Reference and Ordering Parts...
  • Page 55 EXPLODED DIAGRAMS Printed in USA • ©2024 The Kirby Company • 775224 • Rev A...
  • Page 56 This page left intentionally blank...
  • Page 57 COVER – CORD SET 196023 COVER – CORD SET 207017 KADDY MAIN ASSEMBLY 807020 KADDY MAIN ASSEMBLY PHATHALATE FREE 207017 KADDY MAIN ASSEMBLY 270823 TELE-TOP – KIRBY 270823 TELE-TOP – KIRBY 270823 TELE-TOP – KIRBY 459223 TURBO CARTON 459223 TURBO CARTON 459223...
  • Page 58 ® KIRBY EXPLODED DIAGRAM MOTOR ASSEMBLY PART DESCRIPTION MODEL 1001 18S Motor Housing w/Tolerance Ring G5/PL 101076A Front Bearing Retainer Ring 10/PK 2CB/PL 104689G Motor/Field Screw 2/PK G3/PL 105718S Front Bearing Plate Assembly w/Motor Seal G3/PL 107189A Domestic Only Carbon Brush/Holder Assembly...
  • Page 59 ® KIRBY EXPLODED DIAGRAM MOTOR ASSEMBLY scr0119 Motor_dom...
  • Page 60 ® KIRBY EXPLODED DIAGRAM BASE PAN ASSEMBLY PART DESCRIPTION MODEL 604314 Polymer Base Pan Assembly AV/PL 601996S Horn Gasket – Exhaust 5/PK G3/PL 100689A Rivet – Exhaust Horn Gasket 10/PK G3/PL 106397 Exhaust Duct G3/PL 605989A Screw – Thread Cutters/Duct for Thermoplastic only 5/PK...
  • Page 61 ® KIRBY EXPLODED DIAGRAM BASE PAN ASSEMBLY POLYMER BASE...
  • Page 62 ® KIRBY EXPLODED DIAGRAM FAN CASE ASSEMBLY PART DESCRIPTION MODEL 1 19797S Fan Case Assembly G5/PL 125297A Nozzle Lock Lever 2/PK G5/PL 121 1 S Nozzle Lock Screw 10/PK 505/PL 121297S Nozzle Lock Spring 10/PK 505/PL 121618S Nozzle Attachment Shaft...
  • Page 63 ® KIRBY EXPLODED DIAGRAM FAN CASE ASSEMBLY...
  • Page 64 ® KIRBY EXPLODED DIAGRAM FLOOR NOZZLE ASSEMBLY PART DESCRIPTION MODEL 140414 Nozzle Bumper AV/PL 141381A Rug Plate Latch Rivet 10/PK HI/PL 141617S Floor Nozzle Assembly, Less Brush Roll & Belt AV/PL 159217 Belt Lifter Assembly, Hot Stamped AV/PL 144291 Belt Lifter Hook...
  • Page 65 ® KIRBY EXPLODED DIAGRAM FLOOR NOZZLE ASSEMBLY...
  • Page 66 ® KIRBY EXPLODED DIAGRAM COVER SHELL ASSEMBLY PART DESCRIPTION MODEL 135606A Cover Shell, Less Trim Strips SE/PL 630914 Left Trim Strip – Cover Shell Black AV/PL 630814 Right Trim Strip – Cover Shell Black AV/PL 1 1 1214 Scuff Plate...
  • Page 67 ® KIRBY EXPLODED DIAGRAM COVER SHELL ASSEMBLY...
  • Page 68 ® KIRBY EXPLODED DIAGRAM HANDLE FORK ASSEMBLY PART DESCRIPTION MODEL 1731 14 Handle Grip G3/PL 174514 Rear Cover Handle Fork Black AV/PL 673814 Handle Fork – Polished AV/PL 289517 Front Cover Handle Fork – Blue 289523 Front Cover Handle Fork – Platinum 672189 Latch Plate –...
  • Page 69 ® KIRBY EXPLODED DIAGRAM HANDLE FORK ASSEMBLY...
  • Page 70 ® KIRBY EXPLODED DIAGRAM ® MINI EM-TOR & BAG ASSEMBLY PART DESCRIPTION MODEL 185816S Snap Fill Tube/Em-Tor Assembly F-Style G3/PL 188814 Snap Mini Em-Tor G3/PL 190316 Fill Tube Double Snap BTA and Em-Tor Ends G3/PL 190409 F-Style Top Adaptor/Double Snap (with 190316 & 188814)
  • Page 71 ® KIRBY EXPLODED DIAGRAM ® MINI EM-TOR & BAG ASSEMBLY...
  • Page 72 ® KIRBY EXPLODED DIAGRAM CAP/SLIDE BRACKET ASSEMBLY PART DESCRIPTION MODEL 102168A Screw – Headlight/Rear Axle/Plt-Pvt Cstg/RCover 10/PK 505/PL 108506S Lens – Headlight Cap 5/PK SE/PL 164317 New LED Circuit Board SE/PL 160006 Headlight Cap Casting – Polished SE/PL 161389 Headlight Pivot Casting...
  • Page 73 ® KIRBY EXPLODED DIAGRAM CAP/SLIDE BRACKET ASSEMBLY Liner must be flat and installed prior to frame bracket. Shield is assembled between PCB (item 5) and frame bracket locks. Verify that locks firmly engage PCB. Shield must be centered and free from any buckling.
  • Page 74 ® KIRBY EXPLODED DIAGRAM TRANSMISSION PART DESCRIPTION MODEL 55521 1A Rear Axle Assembly Kit G3/PL 601689A Clip – Motor Sprocket Gear/Rear Axle 102095 10/PK G3/PL 1 10317 Foot Pedal – Blue 1 10323 Foot Pedal – Platinum 550505 Primary Sprocket Gear (No Clip) Trans Lt Grey...
  • Page 75 ® KIRBY EXPLODED DIAGRAM TRANSMISSION 23 18...
  • Page 76 ® KIRBY EXPLODED DIAGRAM ATTACHMENTS PART DESCRIPTION MODEL 201314 Portable Handle Assembly w/Cover Black G3/PL 216214S Wheel/Plate Assembly w/Brush – Surface Nozzle G5/PL 210814S Wall/Ceiling Brush Assembly G3/PL 210014 Suction/Blower Connector G5/PL 213814 Inflator/Deflator G3/PL 2141 14 Utility Tool G3/PL...
  • Page 77 ® KIRBY EXPLODED DIAGRAM ATTACHMENTS...
  • Page 78 ® KIRBY EXPLODED DIAGRAM MULTI-SURFACE SHAMPOO SYSTEM PART DESCRIPTION MODEL 306717 Tank Assembly Carpet Shampoo System – Blue 306723 Tank Assembly Carpet Shampoo System – Platinum 308914 Measuring Tank Cap – CSS Tank Black G3/PL 316214 Suds Screen – CSS Tank...
  • Page 79 ® KIRBY EXPLODED DIAGRAM MULTI-SURFACE SHAMPOO SYSTEM...
  • Page 80 THE COMPLETE HOME CLEANING SYSTEM Turbo Accessory System Sprayer Air Pump Portable Shampooer Hand Portable Upright Multi-Surface Canister Shampoo System (shown with Zippbrush) CARPET HARD FLOOR Straight Suction Upright Tile & Grout Kit Hard Floor Polish...
