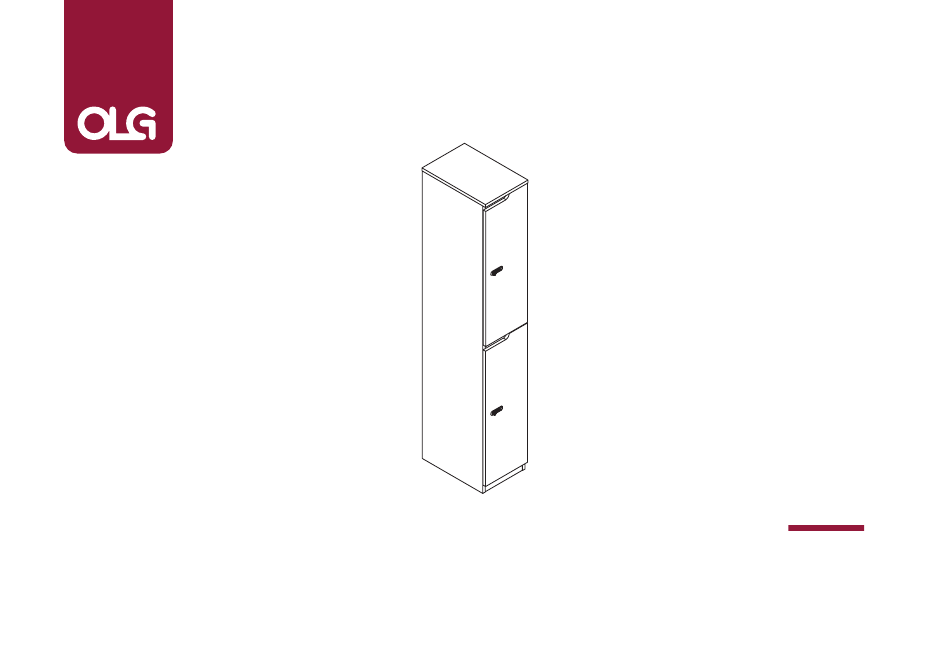

- Page 1 Knox Locker (50-LK2D) Assembly Instructions...
- Page 2 Knox Locker (50-LK2D) Components List 30 x 6x35mm 40 x 4x16mm 28 x 8x30mm 30 x 5/8” Cam Bolt Screw Dowel Pin Cam Cover 2pcs Lock 2pcs Lock 4pcs Hinge 4pcs Clothes 2pcs Clothes Catch Holder Hanger Knox Locker Assembly Instructions...
- Page 3 Knox Locker (50-LK2D) Assembly Instructions STEP 1: STEP 2: Preparation for panels X, Z, F, A, G. Preparation for panels V*2, O, D. 1. Insert cam bolts C1 into panels X, Z, A and G as illustrated above. 1. Insert cam bolts C1 into panels D as illustrated above.
- Page 4 Knox Locker (50-LK2D) Assembly Instructions STEP 3: STEP 4: Panels O, F, G and D assembly. Panels X and Z assembly. 1. Insert cam bolt C1 on panel O into cams on panels G and tighten in a clockwise 1. Insert cam bolt C1 on panel X and Z into cams on panels O, G, F and D and tighten in direction as illustrated above.
- Page 5 Knox Locker (50-LK2D) Assembly Instructions STEP 5: Panel A assembly. 1. Insert cam bolts C1 on panel A into cams on panels X, Z and D and tighten in a clockwise direction as illustrated above. Knox Locker Assembly Instructions...
- Page 6 Knox Locker (50-LK2D) Assembly Instructions STEP 6: Door Panel V allocate with Hinge H1 assembly Hinge assembly details as below: Fix the screws S1 into Fix the rest 2 pcs screws Loosen the screw A to Loosenthe screw B to...
- Page 7 Knox Locker (50-LK2D) Assembly Instructions Complete: Knox Locker Assembly Instructions...
- Page 8 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
