Summary of Contents for OLG Qzone Phonebooth

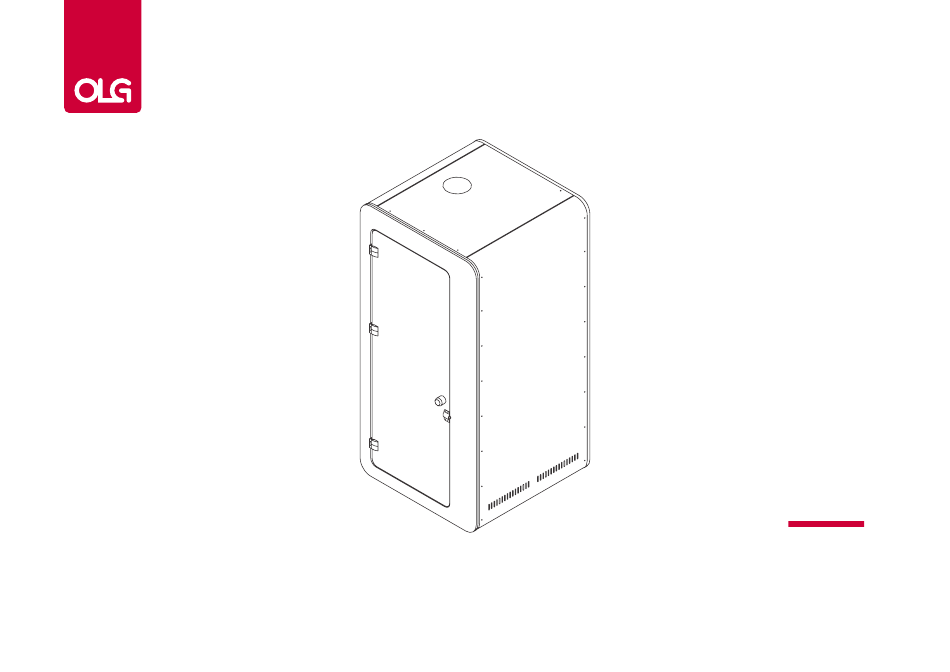

- Page 1 Qzone Phonebooth Assembly Instructions...
- Page 2 5 x 15 Self 4 x 40 Self 4 x 25 Self Door Latch bolts (x32) bolts (x32) bolts (x4) Tapping Screw (x4) Tapping Screw (x4) Tapping Screw (36) TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
-
Page 3: Exploded Parts
Exploded Parts Ceiling Panel Top Panel AKU Panel Front Panel Glass Door Back Panel Shelf Bottom Panel Side Panel AKU Side Panel Side Panel AKU Side Panel TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions... - Page 4 Bolt the side panel X to the back panel D using M6 x 50 screws. Bolt the side panel Z to the back panel D using M6 x 50 screws. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 5 Bolt the bottom panel G to the back panel D using M6 x 50 screws. Bolt ceiling panel A to the back panel D using M6 x 50 screws. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 6 Bolt the front panel B to panels Z, X, G and A using M6 x 50 screws. Install the fan on the panel A1 with washers and 4 x 45 self-tapping screws. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 7 STEP 8: Make the electric connections according to instructions then bolt the Bolt PET panels X1 and Z1 using M6 x 20 screws. top panel A1. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 8 STEP 10: Bolt the top panel A1 using self-tapping screws. Bolt the shelf E to the panels front B and back D using M6 x 45 screws. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 9 Mount glass door B1 to the frame using supplied hardware. tube on the door latch allows adjustment for a tigther closing. Might requiere a few trials to find the perfect position. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 10 Mark the correct position of the threaded tube and unscrew. Apply LOCTITE or similar product on the thread so it doesn’t loosen over time. Adjust the threaded tube back to the original position. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Qzone Phonebooth Assembly Instructions...
- Page 11 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
