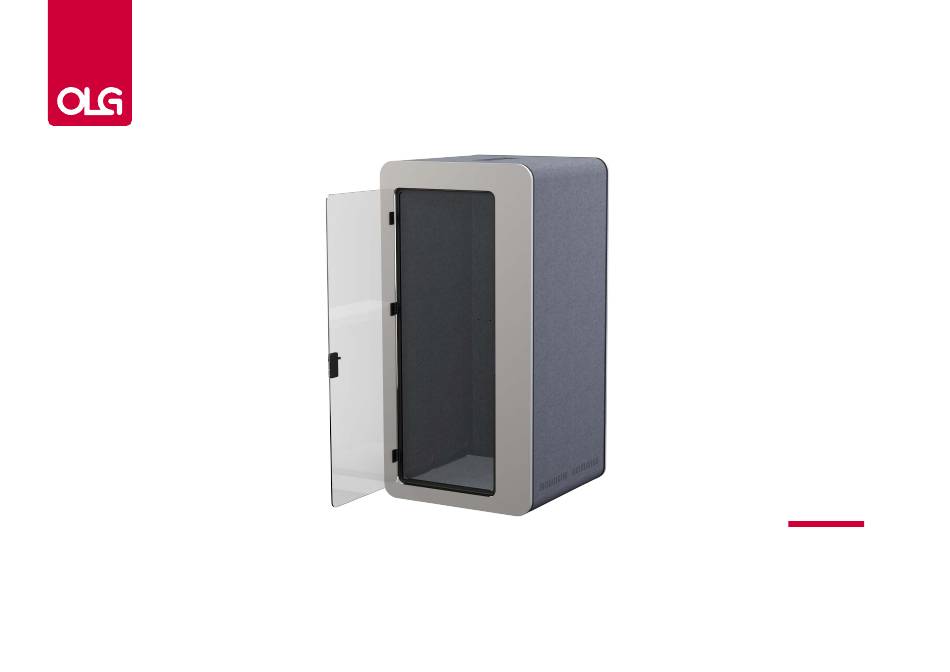

- Page 1 Phone Booth Assembly Instructions...
- Page 2 Phone Booth Parts List Fan (x1) Hinge (x3) Handle (x1) Threshold plate (x1) M6 bolts Self tapping screws M6 x 50 mm (x36) 3.5 x 40 mm (x4) M6 x 40 mm (x4) 3.5 x 20 mm (x4) Light (x1)
-
Page 3: Exploded Parts
Phone Booth Exploded Parts Ceiling Panel Top Panel E-panel Top Front Panel Glass Door Back Panel Shelf Bottom Panel Side panel Side E-panel Side Panel Side E-panel TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Phonebooth Assembly Instructions... - Page 4 Phone Booth Assembly Instructions side panel X bottom back panel D panel G M6 x 50 mm M6 x 50 mm STEP 1: STEP 2: Bolt the bottom to the back panel. Bolt the side panel to the back panel.
- Page 5 Phone Booth Assembly Instructions side panel Z STEP 3: STEP 4: Bolt the ceiling panel A to the back panel D and side panel X. Bolt the side panel Z to the back panel. TEMPERED GLASS DOOR Must be recycled at specialist...
- Page 6 Phone Booth Assembly Instructions front panel B STEP 5: Bolt the front panel B. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Phonebooth Assembly Instructions...
- Page 7 Phone Booth Assembly Instructions STEP 6: Install the switch, light and fan on the ceiling panel A and bolt the top panel A1 along with the A2 E-panel. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Phonebooth Assembly Instructions...
- Page 8 Phone Booth Assembly Instructions E-panel Z1 NOTE: Slightly compress the E-Panel so that it holds in place. And does not crush the panel. E-panel X1 Wood Screw x 20 mm M6 x 20 mm STEP 7: Bolt the E-panels X1 and Z1.
- Page 9 Phone Booth Assembly Instructions M6 x 12 mm STEP 8: Bolt the metal feet to the bottom panel. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Phonebooth Assembly Instructions...
- Page 10 Phone Booth Assembly Instructions M6 x 12 mm shelf E M6 x 16 mm STEP 9: STEP 10: Bolt the shelf E to the front and back panel. Bolt the hinges to the inner edge of the front panel. TEMPERED GLASS DOOR...
- Page 11 Phone Booth Assembly Instructions 3.5 x 30 mm STEP 11: Bolt the glass door B1 to the hinges and add the handle. TEMPERED GLASS DOOR Must be recycled at specialist recycling centre Phonebooth Assembly Instructions...
- Page 12 Phone Booth Softwiring General recommended settings for the sensor: • 300 or 500 Lux • 5 minutes on Timer 1 • Sensitivity set to about ¾ the way to full Phonebooth Assembly Instructions...
- Page 13 Sydney 02 8188 2732 Melbourne 03 9111 0315 Brisbane 07 3733 1923 Adelaide 08 7111 0810 Perth 08 9468 2707 info@olgoffice.com myolg.online | olgoffice.com | officedesigner.net | motionoffice.com...
